用于烘干手部的装置，具有低噪音和高性能。
专利摘要

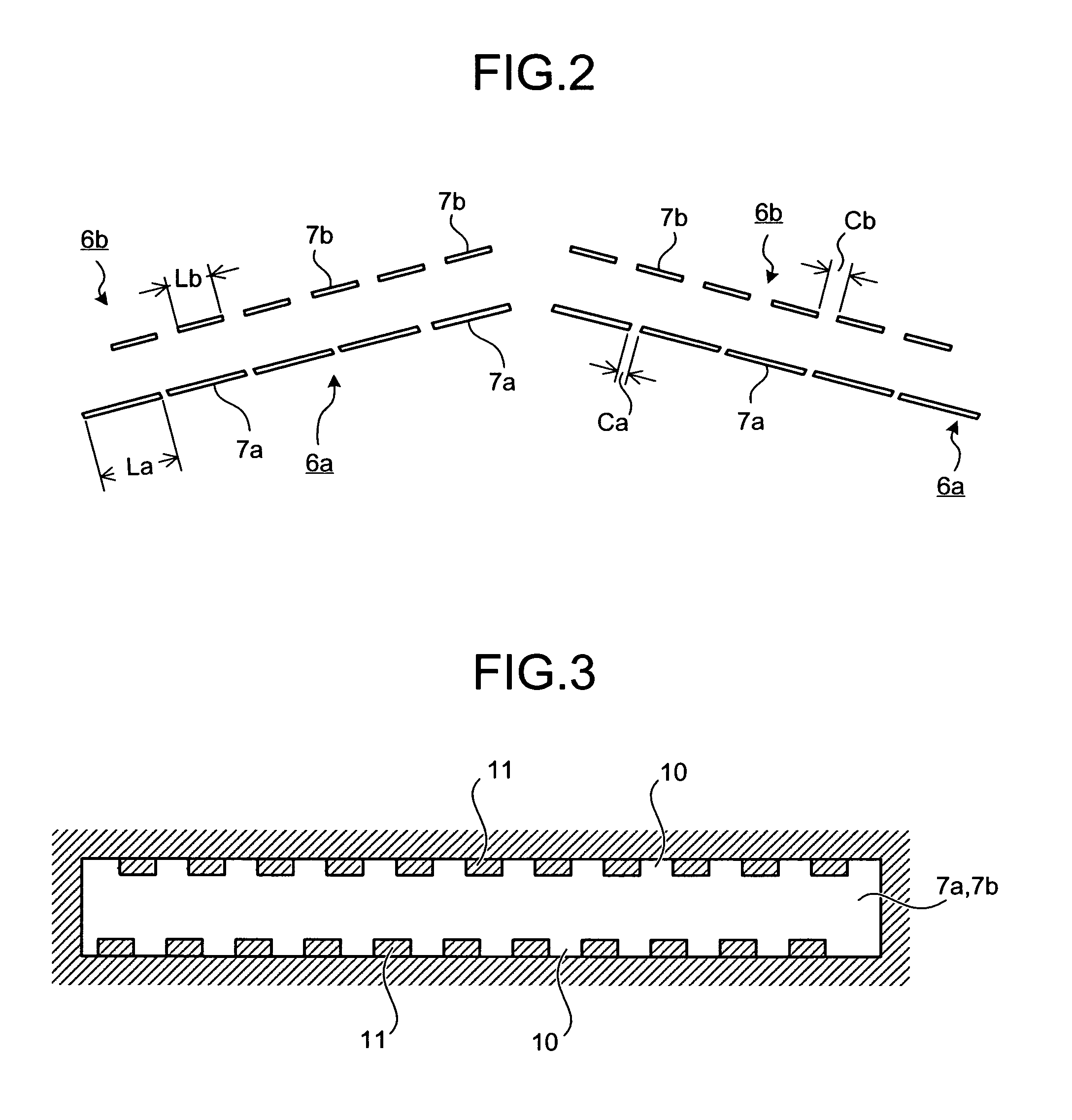

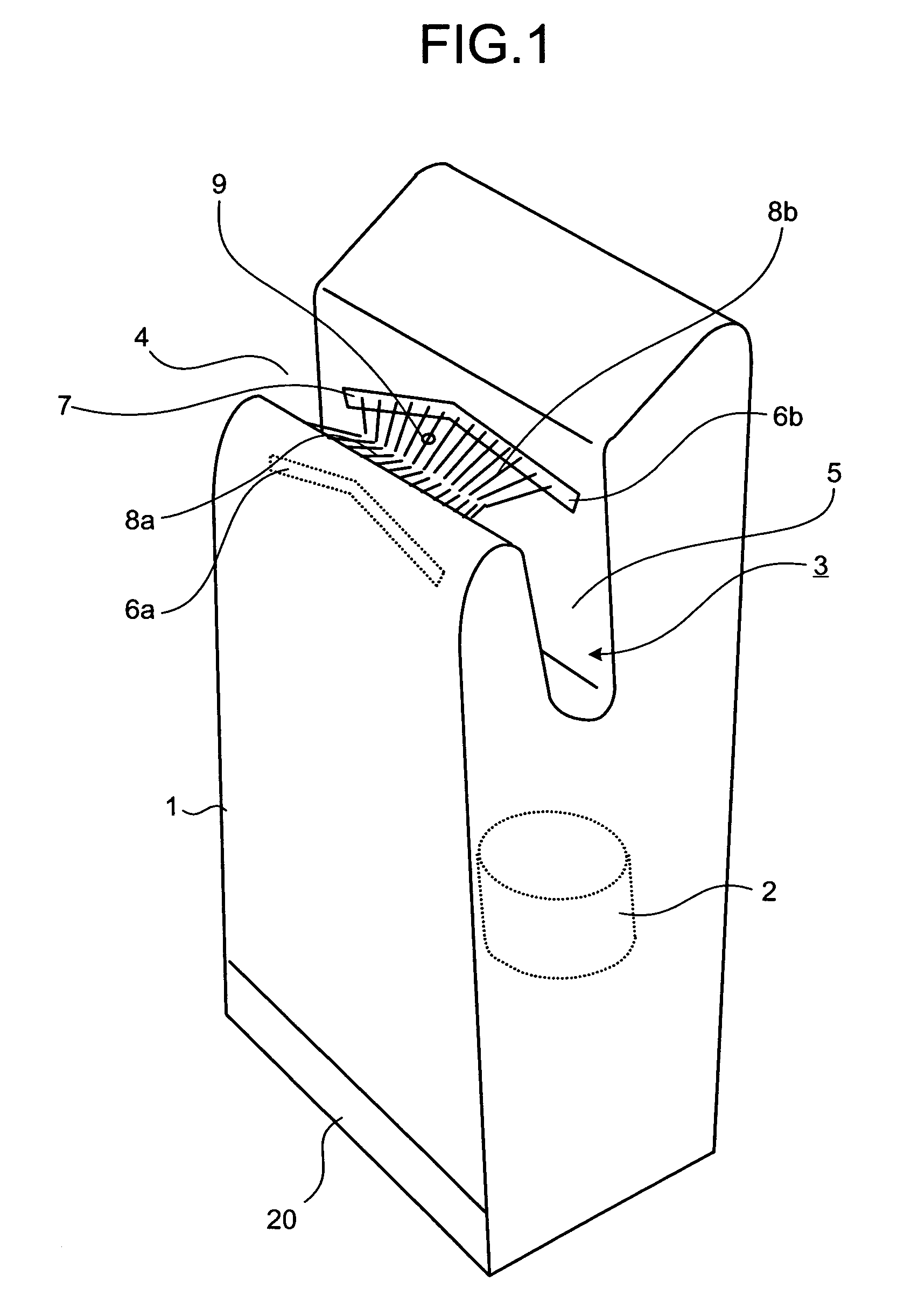

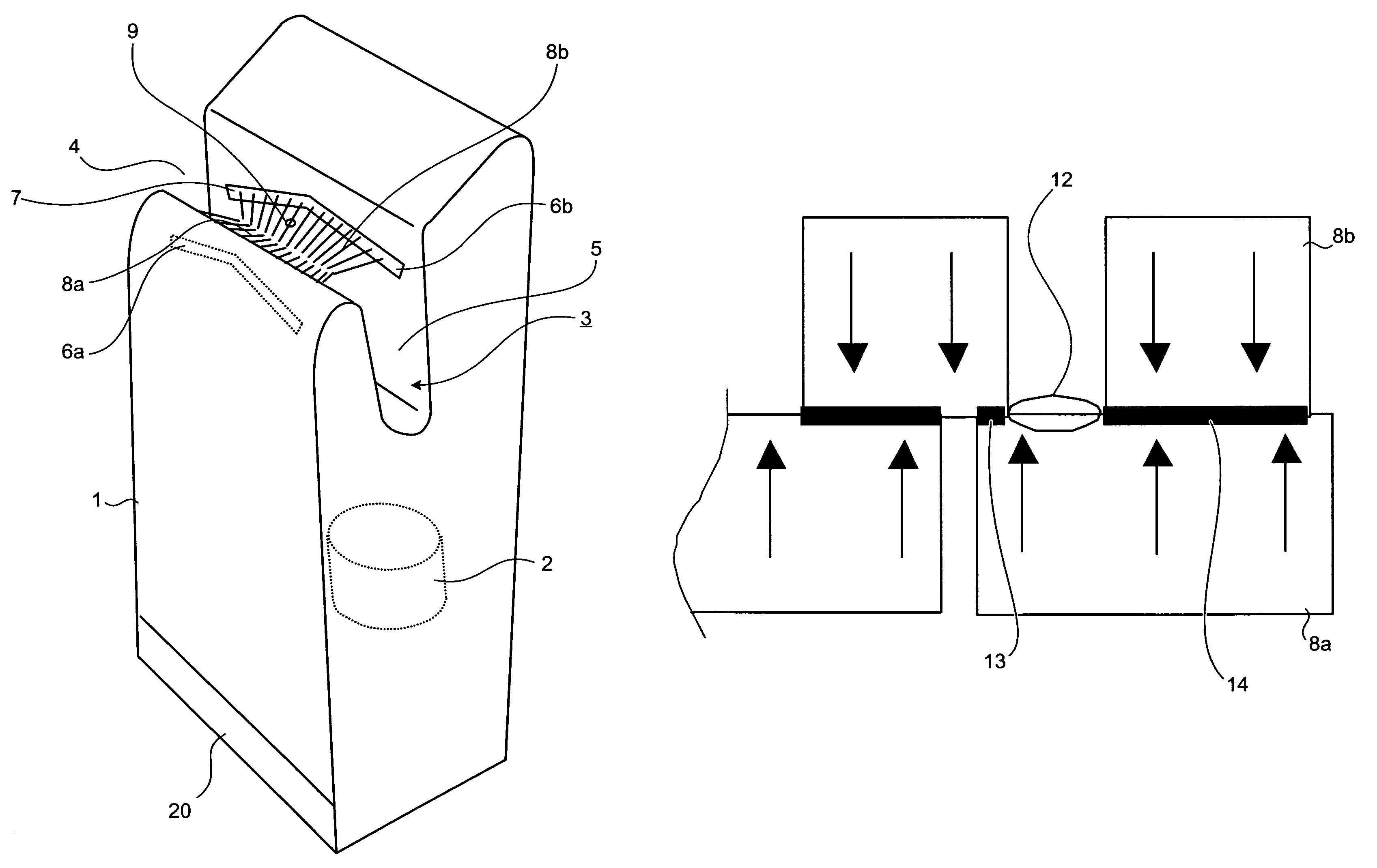

一种干手装置包括主体箱壳(1)，其上部形成凹形的手插入部分(3)；高压气流发生器(2)，产生高压气流并包括在主体箱壳中；以及前侧空气喷嘴(6a)和后侧空气喷嘴(6b)，将高压气流发生器(2)产生的高压气流喷射到手插入部分(3)中并彼此面对。前侧空气喷嘴(6a)和后侧空气喷嘴(6b)分别由多个狭缝形喷射孔(7)排列成一行形成，并且狭缝形喷射孔(7)的长度和排列间隔中的两者或任一者在前侧和后侧之间不同。获得了一种能够防止噪音并实现高干燥性能和优异可用性而无需采用复杂结构的干手装置。
Original abstractA hand drying apparatus includes a main body box case 1 that has a hand inserting portion 3 formed in a concave shape at an upper portion; a high-pressure airflow generator 2 that generates high-pressure airflows and is included in the main body box case; and a front side air nozzle 6 a and a back side air nozzle 6 b that eject the high-pressure airflows generated by the high-pressure airflow generator 2 into the hand inserting portion 3 and face each other. The front side air nozzle 6 a and the back side air nozzle 6 b are formed by a plurality of slit-shaped ejecting holes 7 arranged in a line, respectively, and both or any one of lengths and arranging intervals of the slit-shaped ejecting holes 7 is different between a front side and a back side. A hand drying apparatus that can prevent noise and realize high drying performance and excellent usability without employing a complicated construction is obtained.
专利附图（8）
