具有系统接口的卫生元件系统
Sanitary element system with a system interface
US-7611108-B2用于连接卫生设备的功能元件。
专利摘要
本发明涉及一种用于卫生领域的支撑元件和至少两个功能元件的系统，其中支撑元件可通过系统接口与每个功能元件耦合，系统接口在支撑元件侧具有栓状元件，该栓状元件具有向外偏置的闩锁元件，闩锁元件横向于其纵向轴线从栓状元件突出，功能元件各自具有与栓状元件相对应的管状元件，并具有用于闩锁元件的切口。
Original abstractThe invention relates to a system of a support element and at least two functional elements which can be used in the sanitary sector, with the support element being able to be coupled to each of the functional elements via a system interface and the system interface having a spigot-shaped element—at the support element side—with an outwardly biased latch element projecting out of said spigot-shaped element transversely to its longitudinal axis and the functional elements each having a tubular element corresponding to the spigot-shaped element and having a cut-out for the latch element.

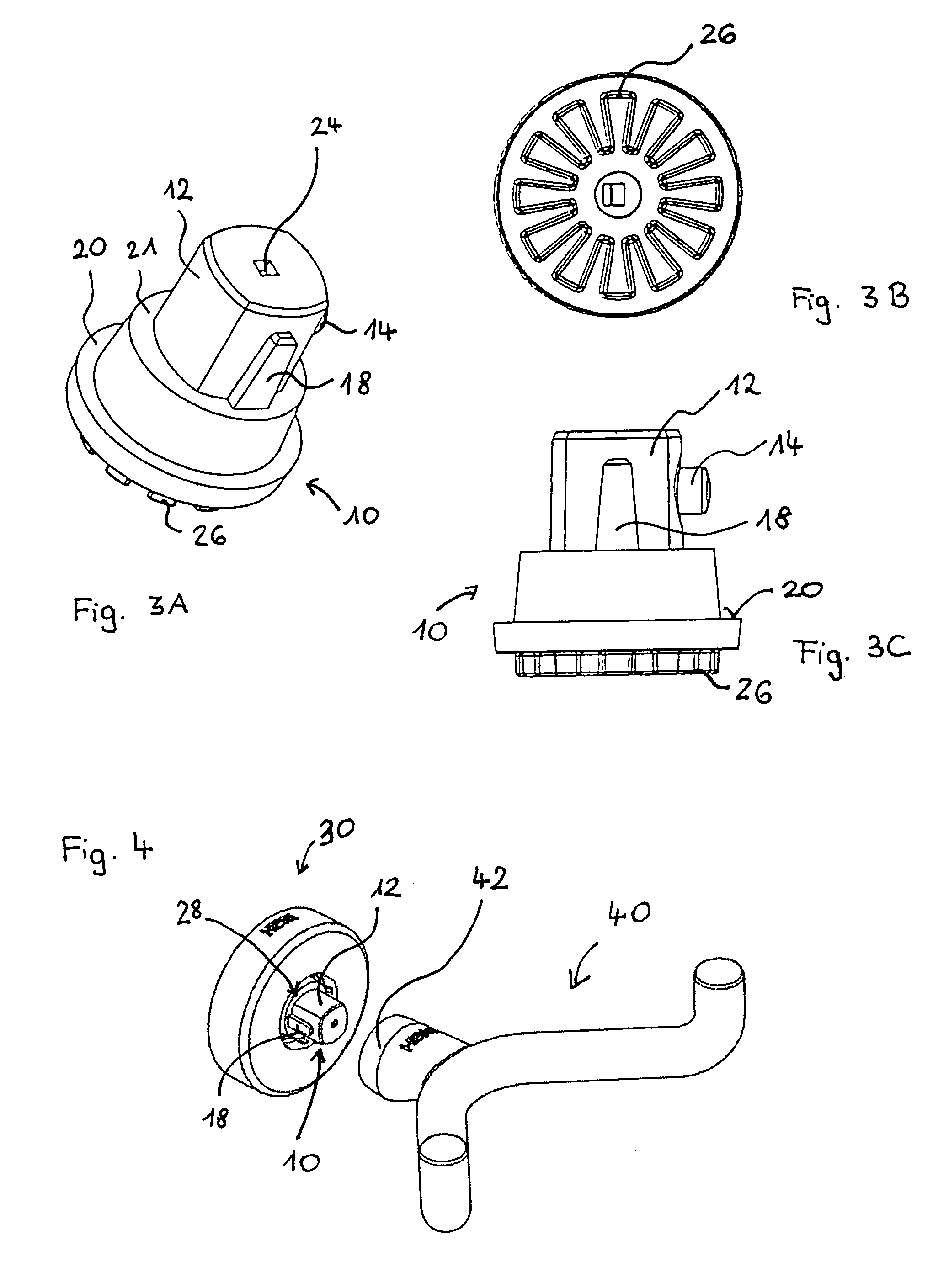

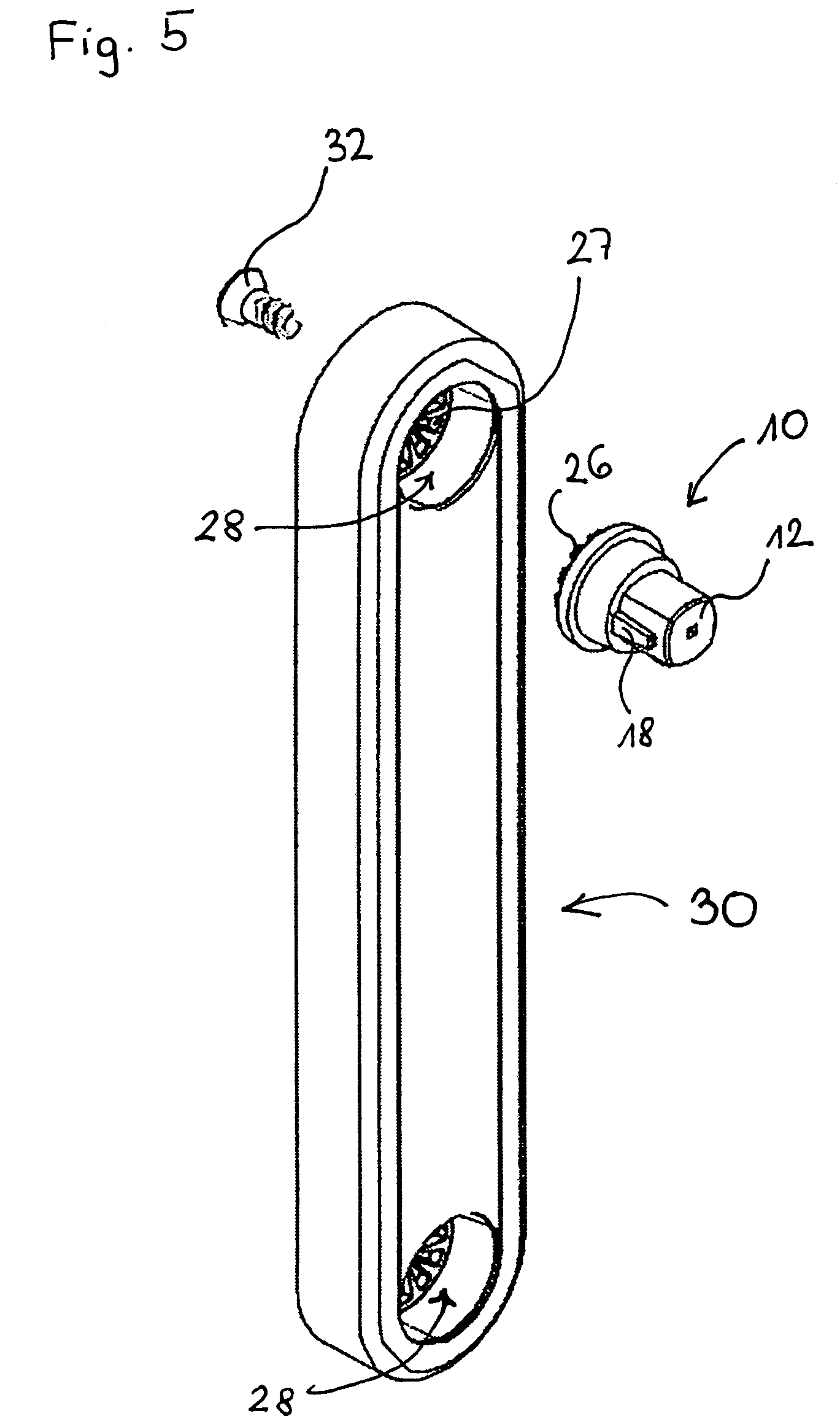

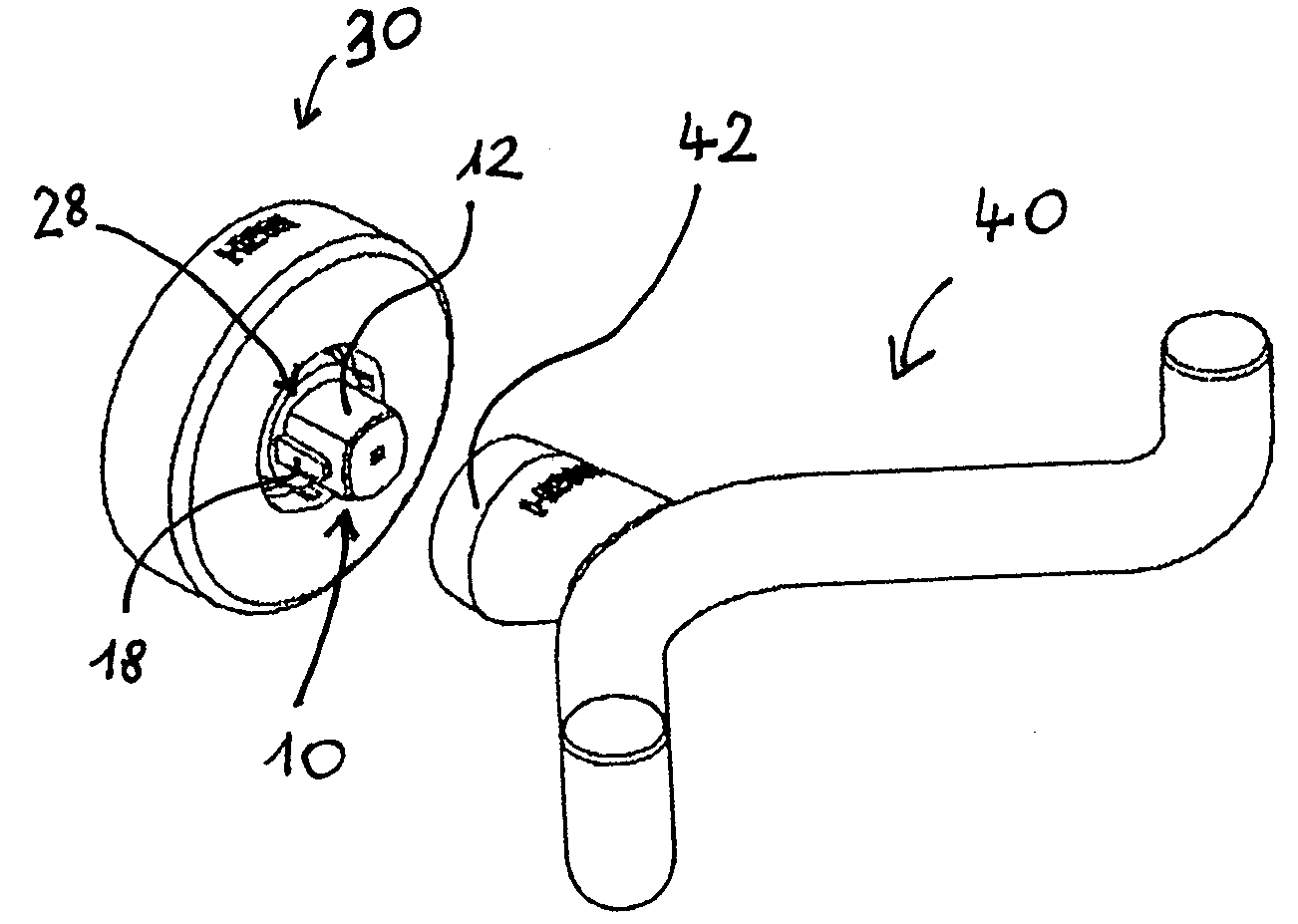

专利附图（8）
