带有使用滑动构件的可重新闭合饮用开口的饮用杯盖
Drinking cup lid with a reclosable drink opening using a sliding member
US-7611029-B2用于可重复开合的杯盖。
专利摘要

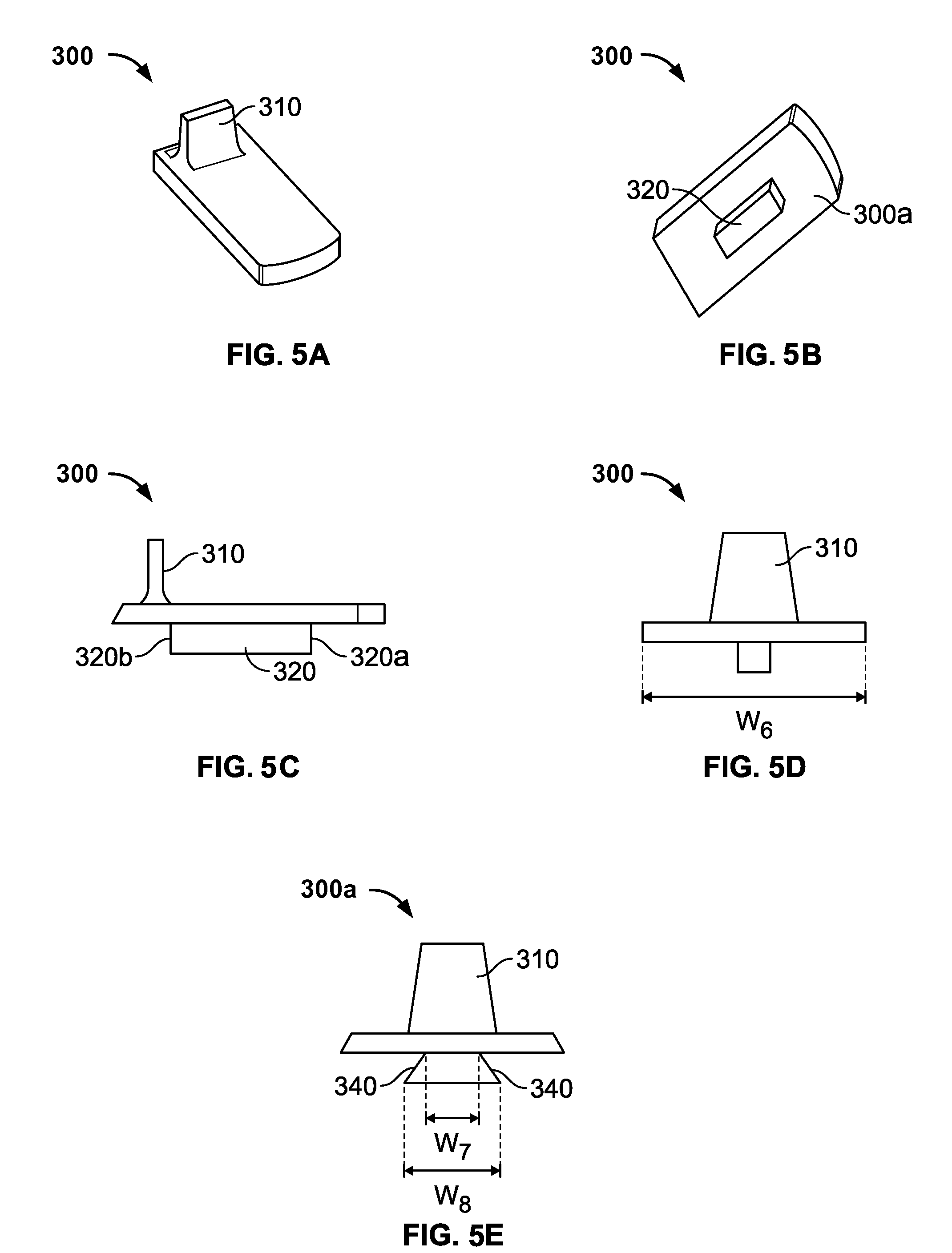

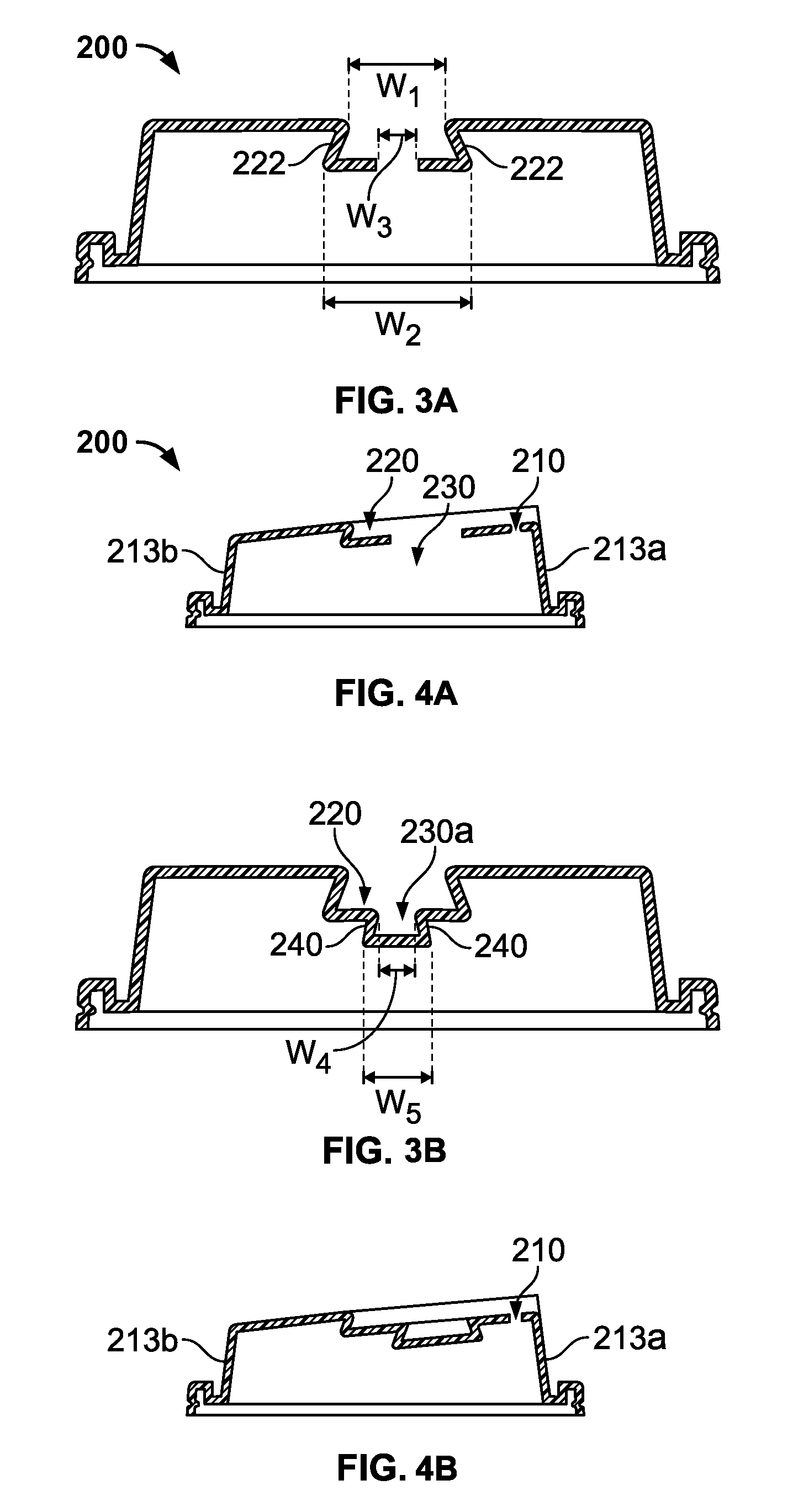

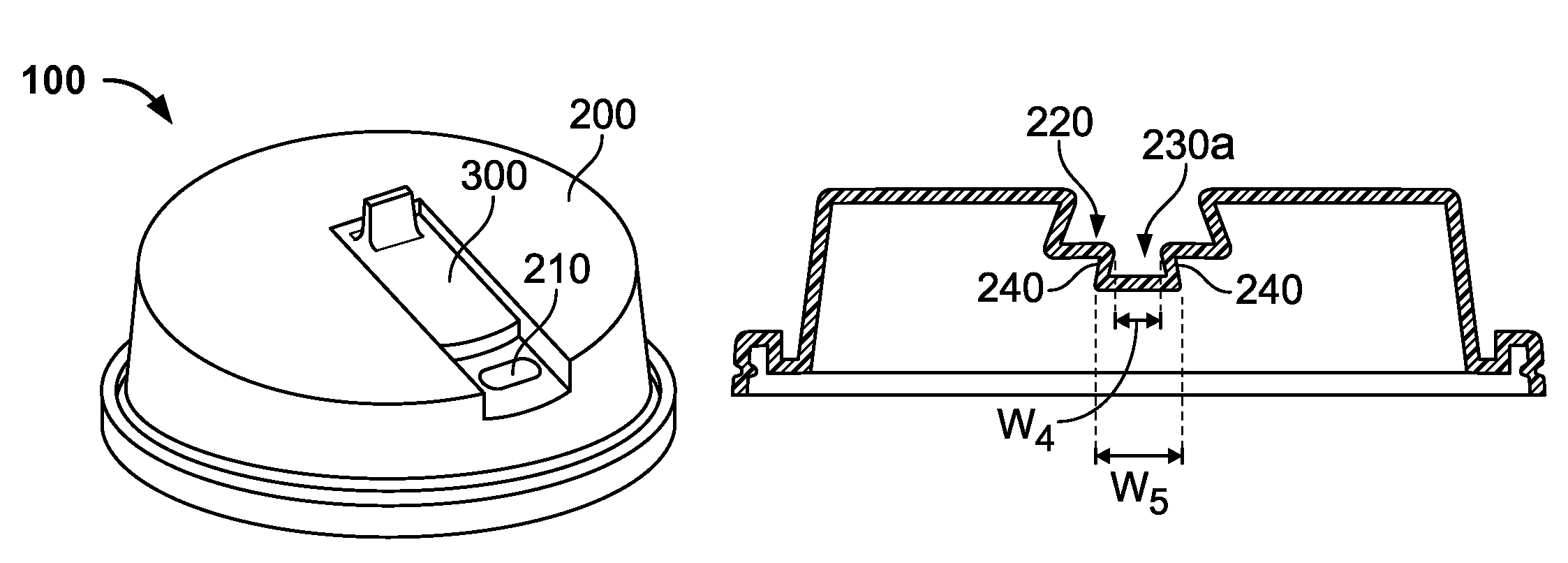

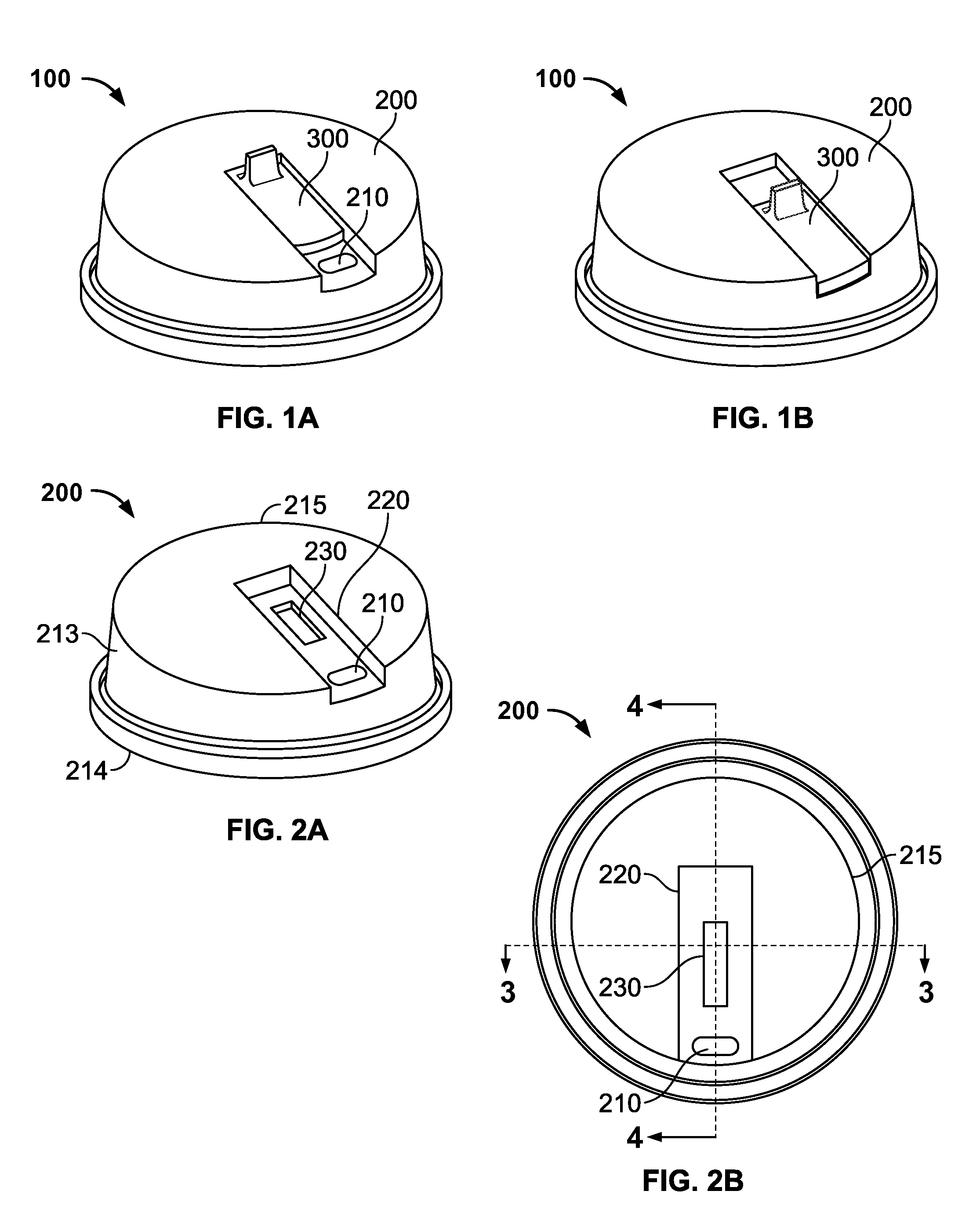

一种用于饮用杯的一次性盖子包括具有大致圆形周边的盖部分和滑动构件，该滑动构件被配置为可滑动地配合到盖部分中的沟槽中。沟槽从盖部分的顶表面向下并纵向延伸，并在盖部分的周边处具有开口端。盖部分包括在沟槽底表面上且邻近周边的饮用开口，以及在沟槽底表面上的导向槽。滑动构件包括从滑动构件底表面向下延伸的导向件，使得导向件可滑动地配合到沟槽底表面上的导向槽中。导向槽允许滑动构件通过导向件在第一关闭位置和第二打开位置之间移动。
Original abstractA disposable lid for a drinking cup includes a cover portion having a generally circular periphery and a sliding member that is configured to slidably fit into a trench in the cover portion. The trench extends downwardly from and longitudinally along a top surface of the cover portion, and has an open end at the periphery of the cover portion. The cover portion includes a drink opening on a bottom surface of the trench and adjacent to the periphery and a guide slot on the bottom surface of the trench. The sliding member includes a guide extending downwardly from a bottom surface of the sliding member so that the guide slidably fits into the guide slot on the bottom surface of the trench. The guide slot allows the sliding member to move between a first closed position and a second open position via the guide.
专利附图（8）
