用于壁挂电气设备的支撑框架和部件组

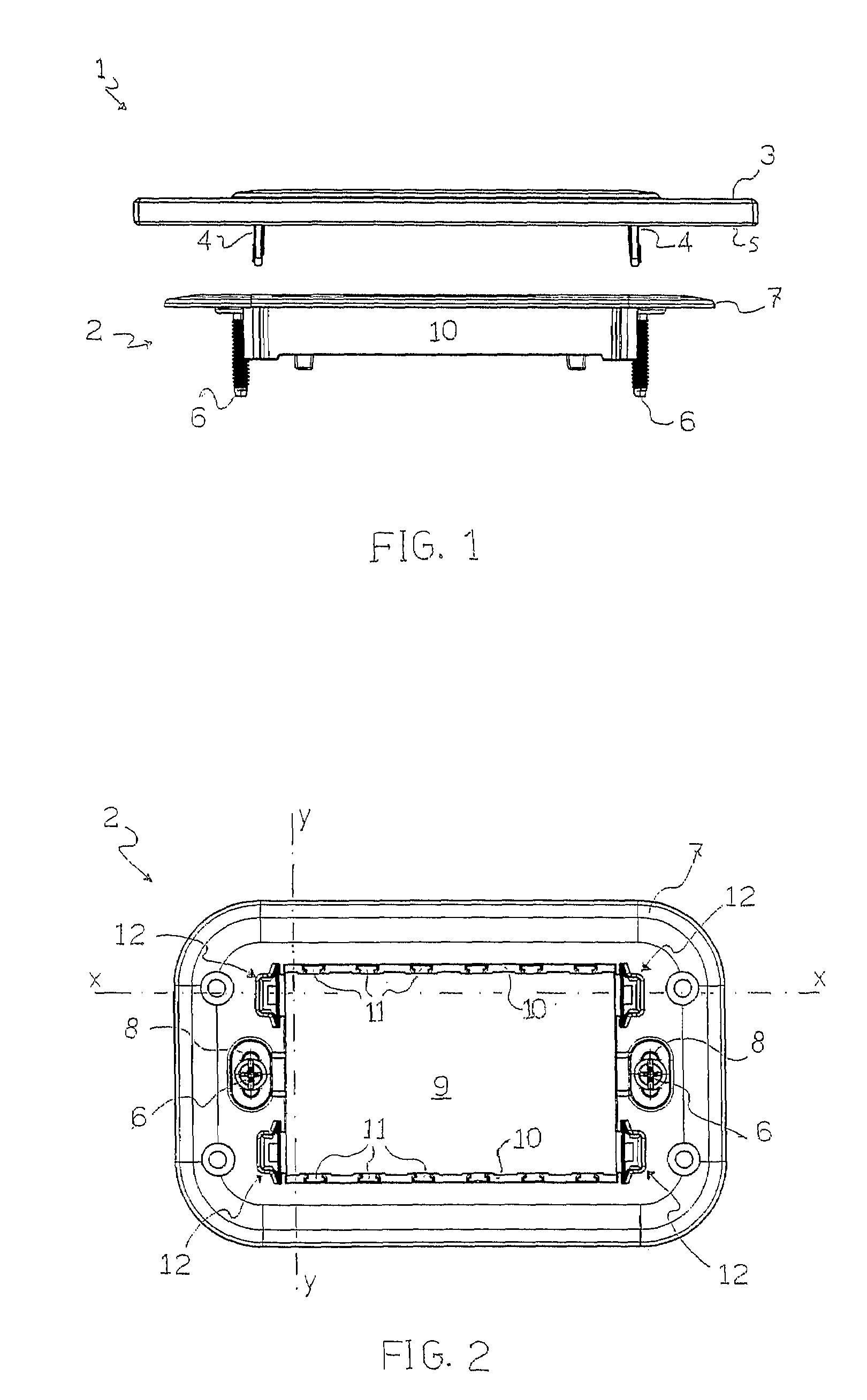

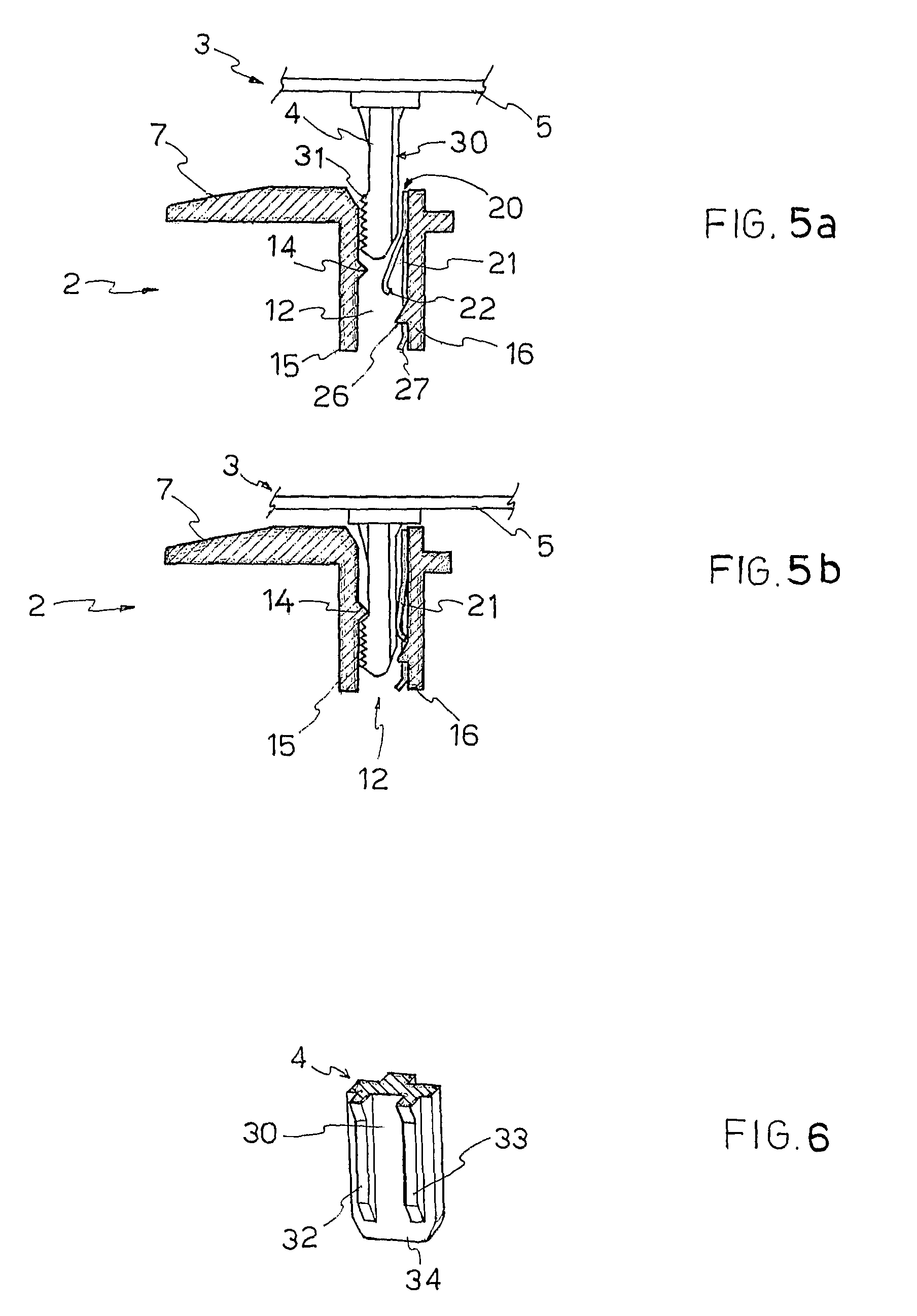

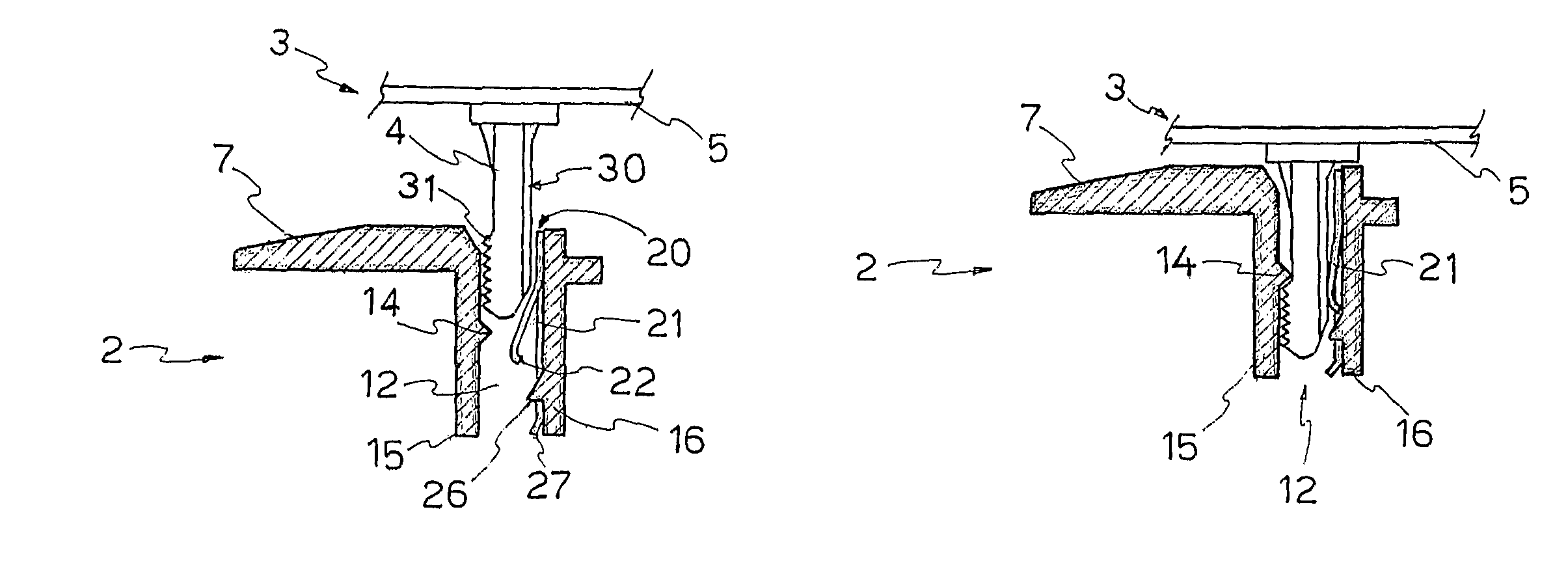

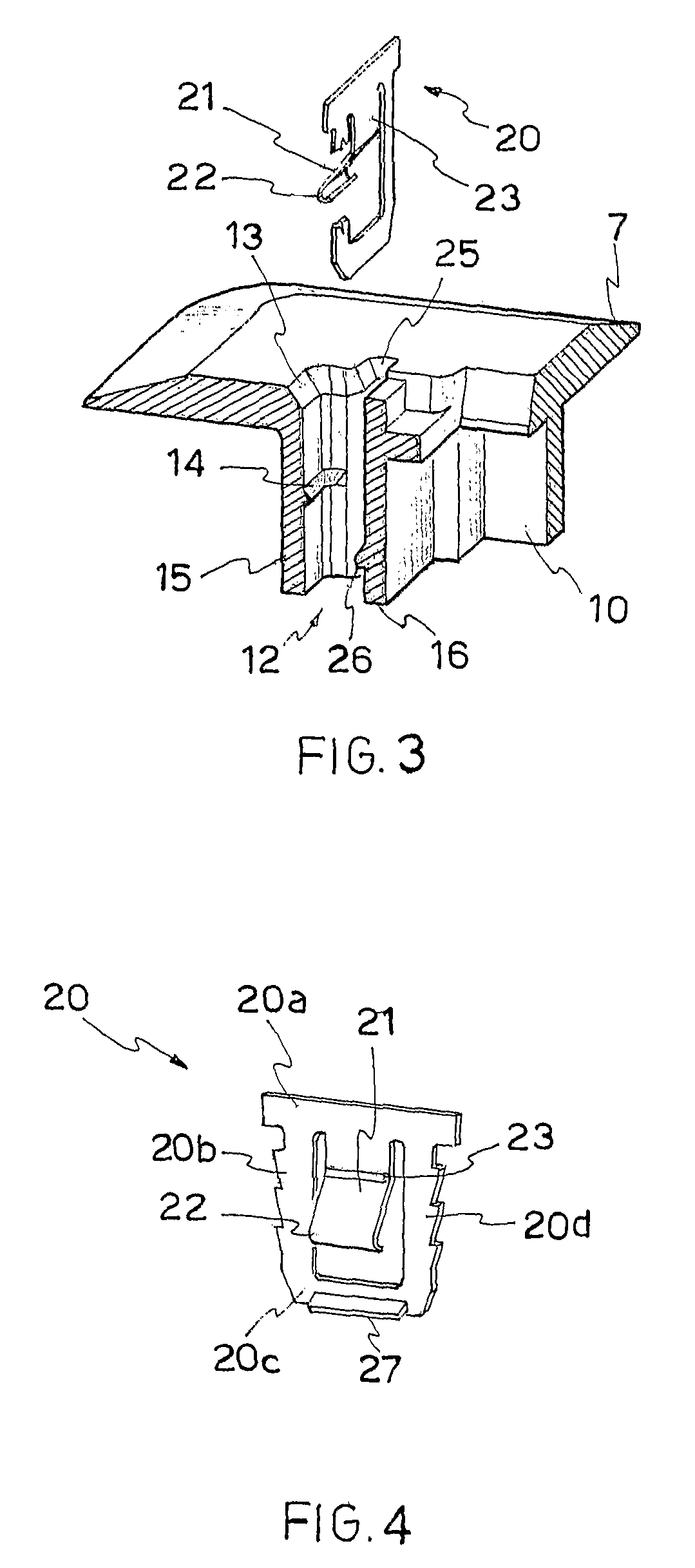

Original abstractThe present invention refers to a support frame ( 2 ) for wall-mounting at least one electrical apparatus, the frame ( 2 ) comprising:—a frame body ( 7 ) fixable to the wall and developing about a window ( 9 ) defining a mounting seat adapted for receiving and holding said at least one electrical apparatus; and—fixing means ( 12 ) for removably fixing a cover plate ( 3 ) to the support frame ( 2 ). The support frame ( 2 ) is characterised in that the fixing means includes at least one fixing channel ( 12 ) exhibiting an end jointed to an opening ( 13 ) obtained in the frame body ( 7 ), the fixing channel ( 12 ) being such as to be capable of receiving, through the opening ( 13 ), a corresponding fixing tongue ( 4 ), provided in the cover plate ( 3 ), the fixing channel ( 12 ) including therein relief means ( 14 ) that can face a surface ( 31 ) of the tongue ( 4 ) and pushing means ( 20, 21 ) adapted for acting on the fixing tongue ( 4 ) for engaging pressure-wise said surface ( 31 ) of the tongue against said relief means ( 14 ) of the channel ( 12 ).
