一种可折叠桌子，便于收纳和使用。
专利摘要
一种桌子，具有工作平台，工作平台底部表面安装有一组腿。腿可从与工作平台并置的缩回位置枢转到垂直于工作平台的向外延伸位置。每条腿连接有一个支撑杆，该支撑杆可摆动以将支撑杆的外自由端与固定在工作平台底部表面的连接板接合。每条腿有单独的连接板。当支撑杆夹紧到连接板上时，每条腿将牢固地定位在延伸位置，使工作平台与支撑表面间隔开，允许椅子与桌子配合使用，用户坐在椅子上在桌子上执行任务。
Original abstractA desk that has a working platform which has a set of legs that are mounted on the bottom surface of the working platform. The legs are pivotable from a retracted position in juxtaposition with the working platform to an outwardly extended position located transverse to the working platform. Attached to each leg is a brace and this brace is swingable to engage the outer free end of the brace with an attaching plate that is fixed relative to the bottom surface of the working platform. There is a separate attaching plate for each leg. With the brace clamped to the attaching plate, each leg will be securely positioned in the extended position permitting the working platform to rest in a spaced relationship relative to a supporting surface permitting a chair to be used in conjunction with the desk with a human user to be located in the chair and the user to then perform tasks on the desk.

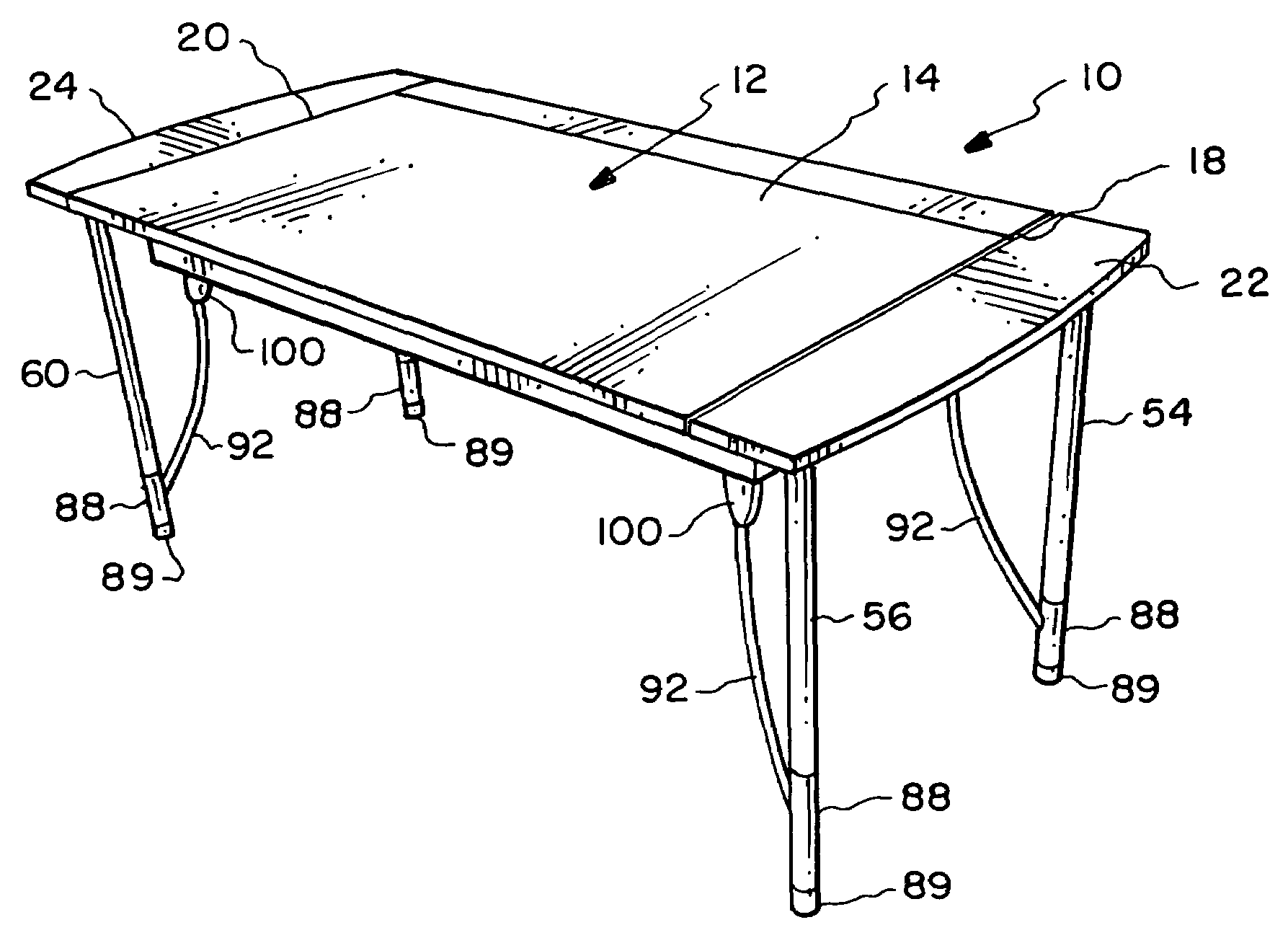

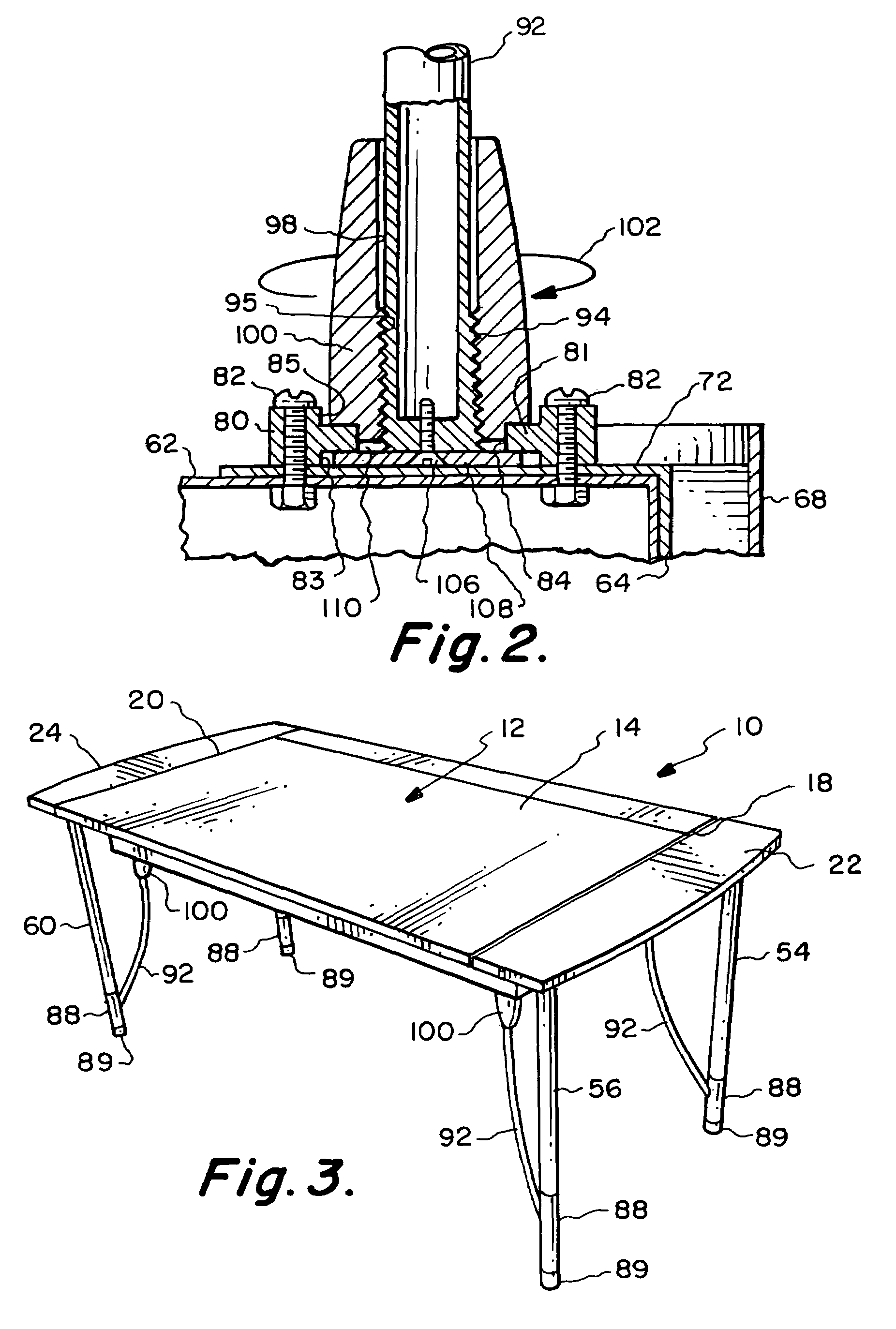

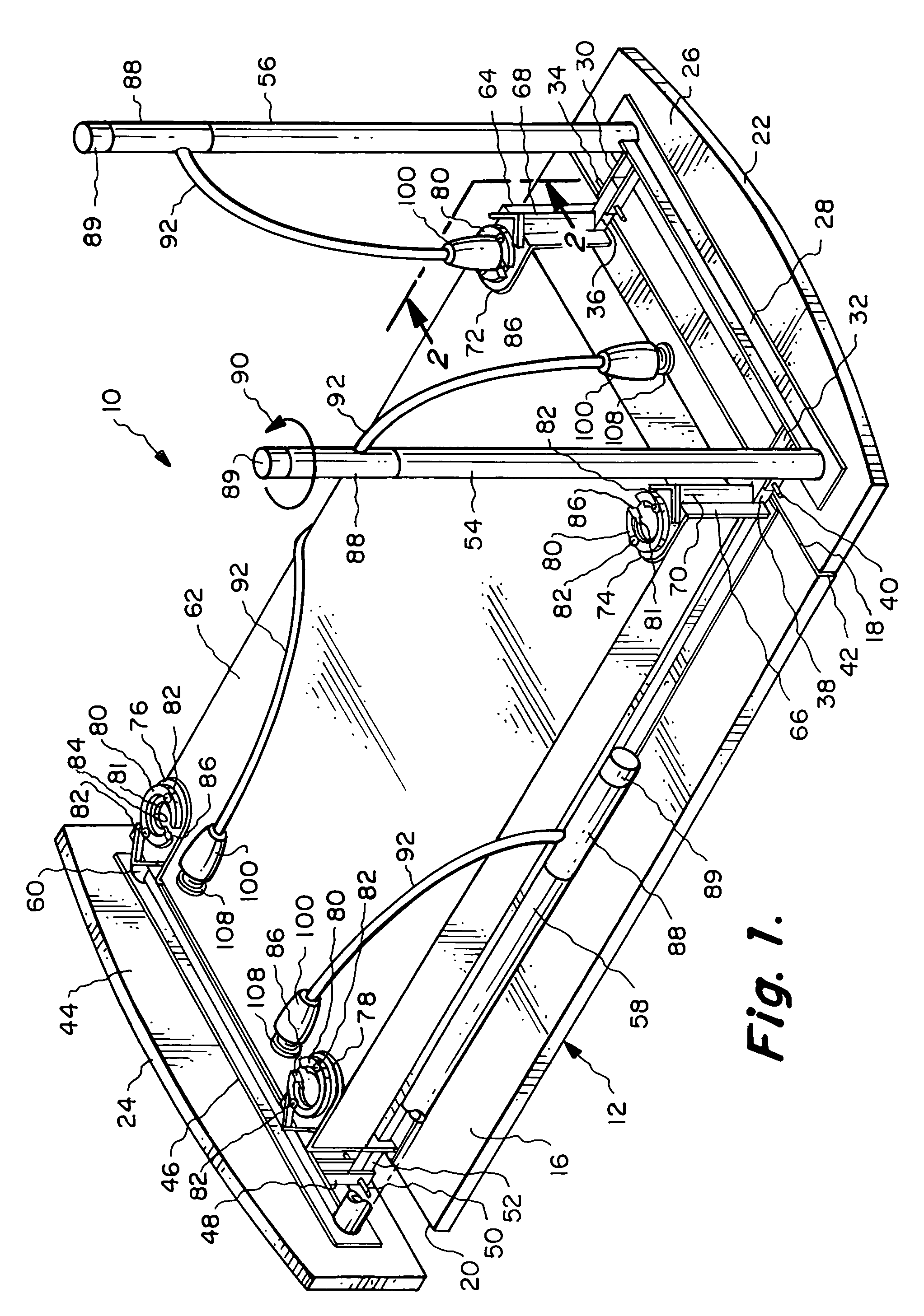

专利附图（6）
