用于在阁楼中存储物品。
专利摘要
一种阁楼存储系统，包括一系列细长轨道，每个轨道包括沿其长度间隔安装的多个滚轮。各个存储容器由轨道承载，容器底部设有支撑装置，可沿轨道长度方向移动。本发明的轨道适于安装在阁楼两根或多根天花板托梁的上表面上。因此，轨道可以平行于、倾斜于或垂直于天花板托梁的长度方向安装，从而提高了系统操作元件在阁楼内定位的可变性，进而增强了对任何一个或多个存储容器的可访问性。
Original abstractAn attic storage system comprising a series of elongated rails, each including an array of rollers mounted in and along the length of each rail at spaced apart locations. Individual storage containers, provided with bottom support means adapted to ride along the length of the rails are carried by the rails. The rails of the present invention are adapted to be mounted atop the upper surface of two or more of the ceiling joists of the attic. Thus, the rails may be mounted parallel to, angular to, or perpendicular to, the length dimension of the ceiling joints, thereby providing for enhanced variability in the positioning of the operative elements of the system within an attic, hence enhanced accessibility to any given one or more of the storage containers.

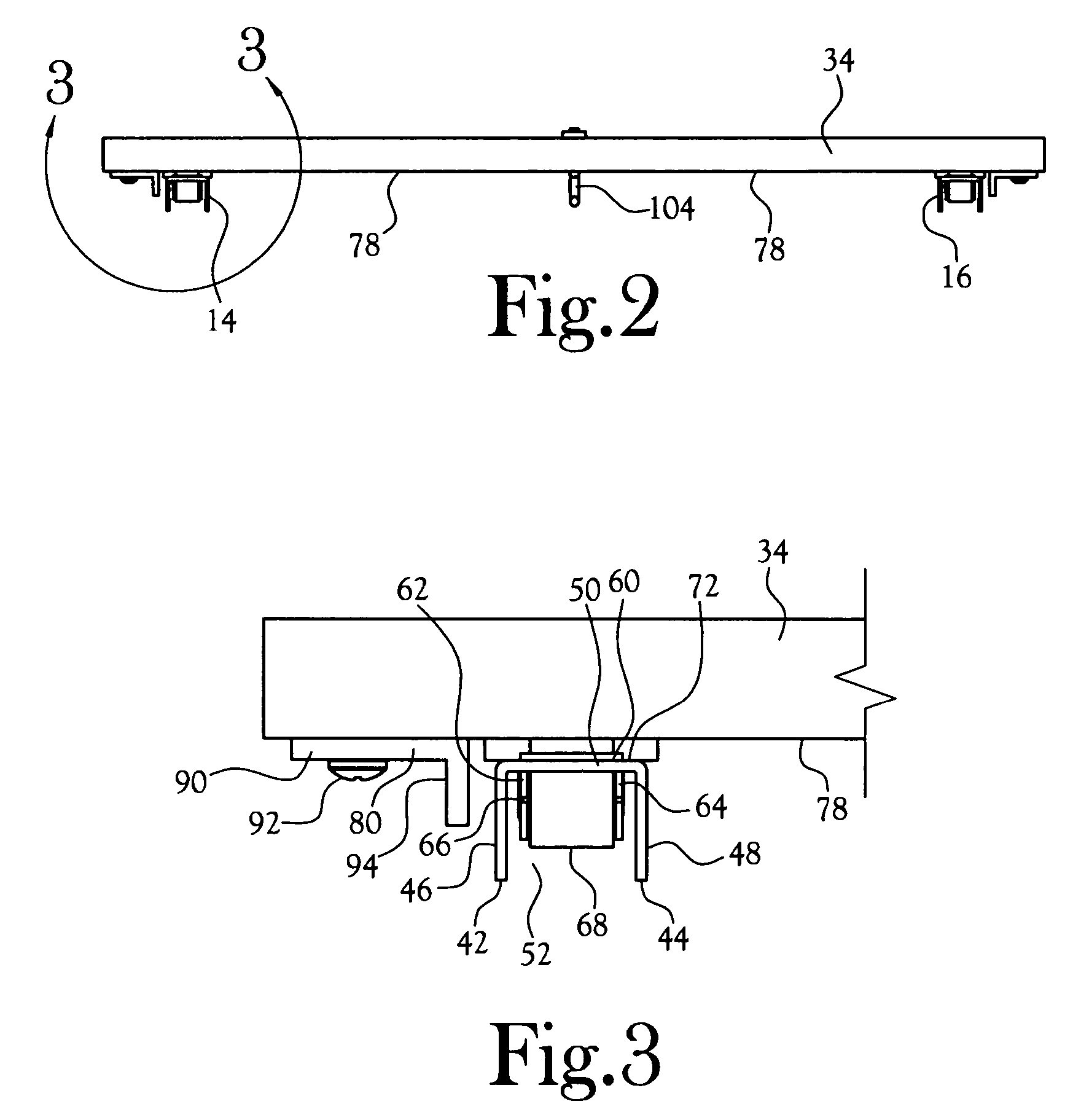

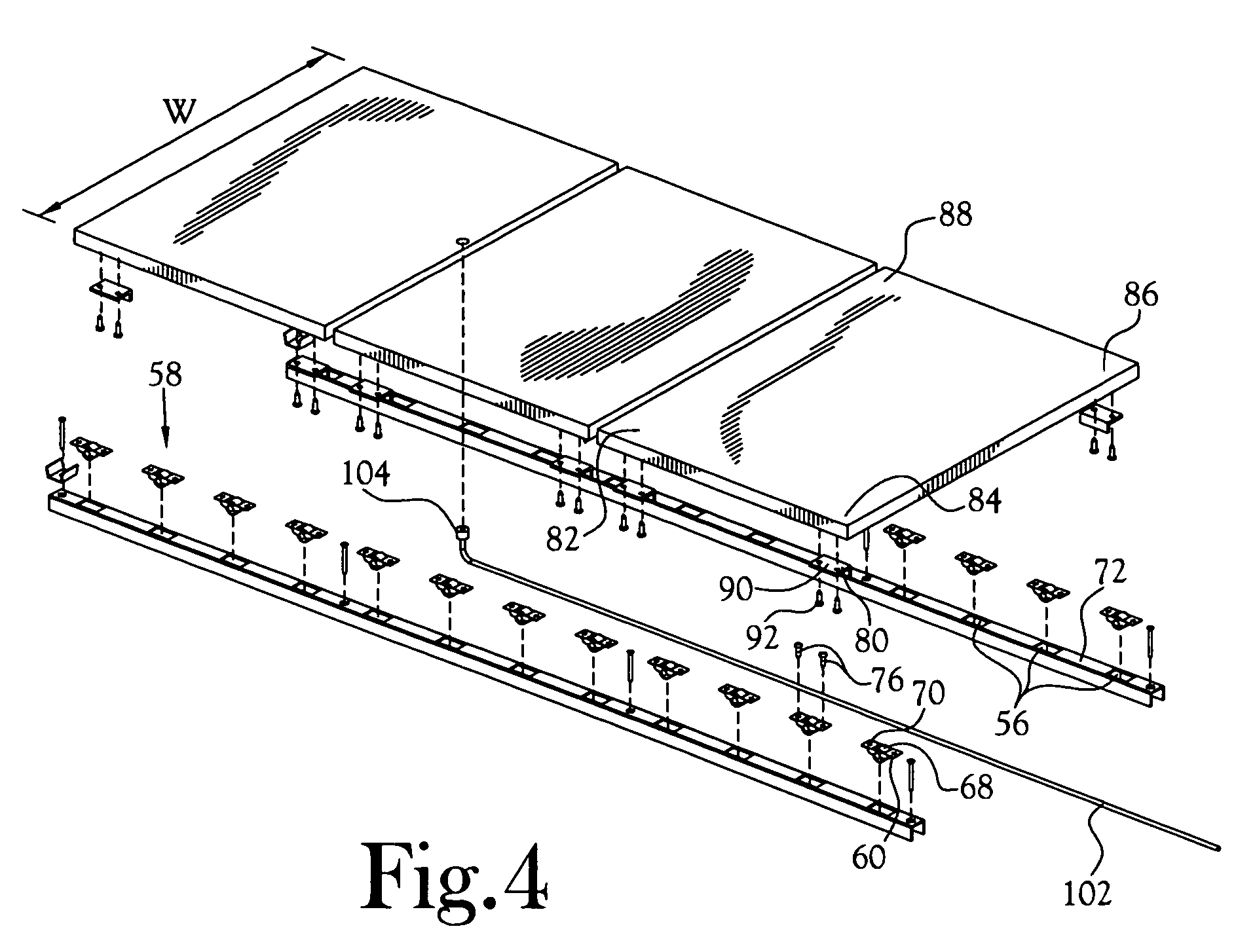

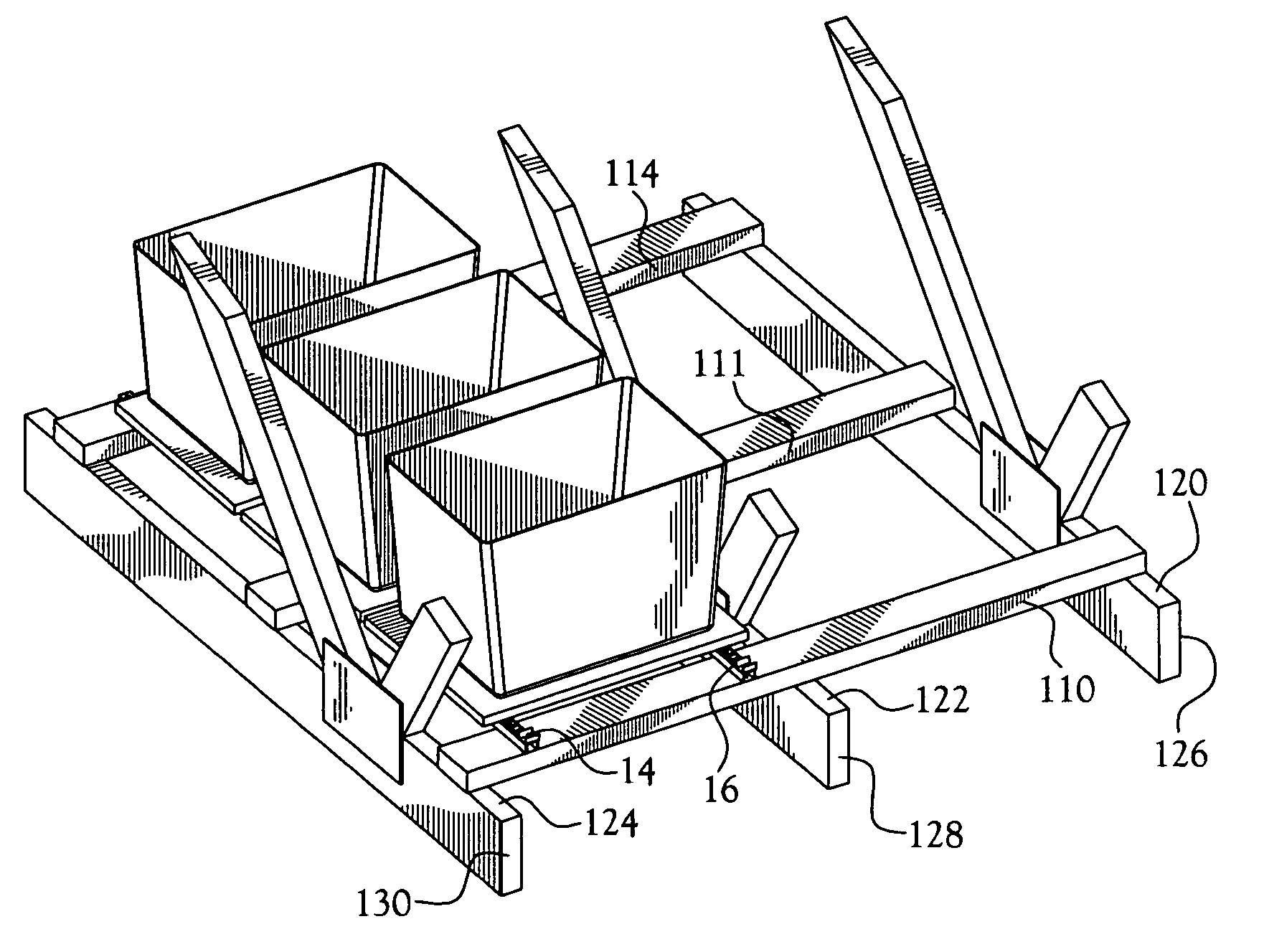

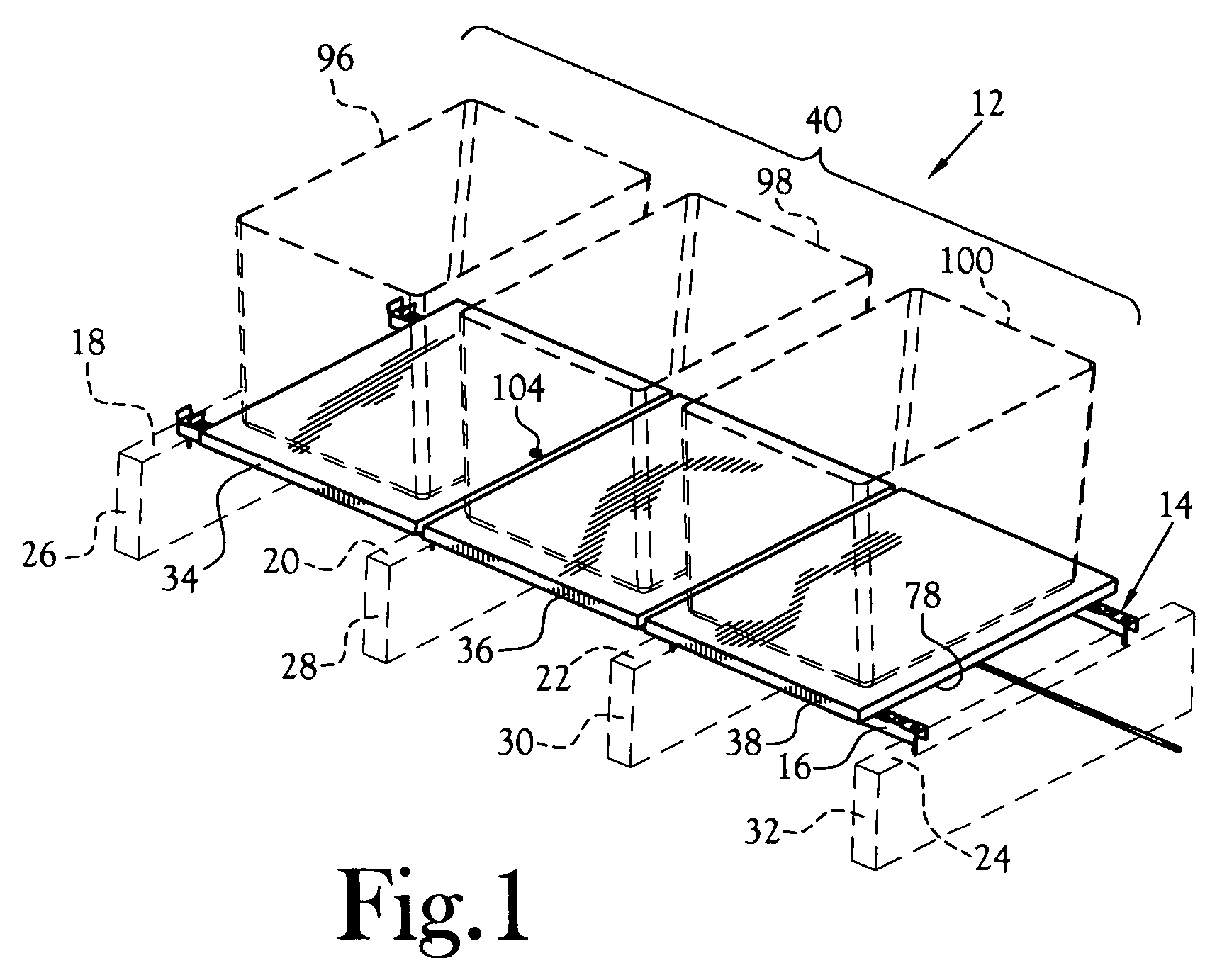

专利附图（8）
