来源记录显示 Expired
包含外框和背衬构件的相框组件
Picture frame assembly incorporating an outer frame and a backing member
US-7587850-B2用于固定图片的相框组件。
专利摘要
一种相框组件，包含外框和背衬构件，背衬构件具有至少一个横向延伸的弹性槽接合边缘突出部，其与外框的后图片开口凹槽返回部中环绕、形成或铸造的接收槽配合，以将艺术品固定在相框组件内。优选地，背衬构件具有多个弹性槽接合边缘突出部，每个弹性槽接合边缘突出部与接收槽配合以将艺术品固定在外框内。在使用中，每个横向延伸的弹性槽接合边缘突出部被横向压缩，然后回弹到与接收槽紧密接合，从而将背衬构件固定在艺术品后面的外框内。
Original abstractA picture frame assembly incorporates an outer frame and a backing member having at least one laterally extending resilient groove engaging edge protrusion that cooperates with a receiving groove circumscribed, formed, or cast in a back picture opening rabbet return of the outer frame to secure an artwork within the picture frame assembly. Preferably, the backing member has a plurality of resilient groove engaging edge protrusions with each resilient groove engaging edge protrusion cooperating with a receiving groove to secure an artwork within the outer frame. In use, each laterally extending resilient groove engaging edge protrusion is laterally compressed and then rebounds into close engagement with the receiving groove whereby the backing member is secured within the outer frame behind the artwork.

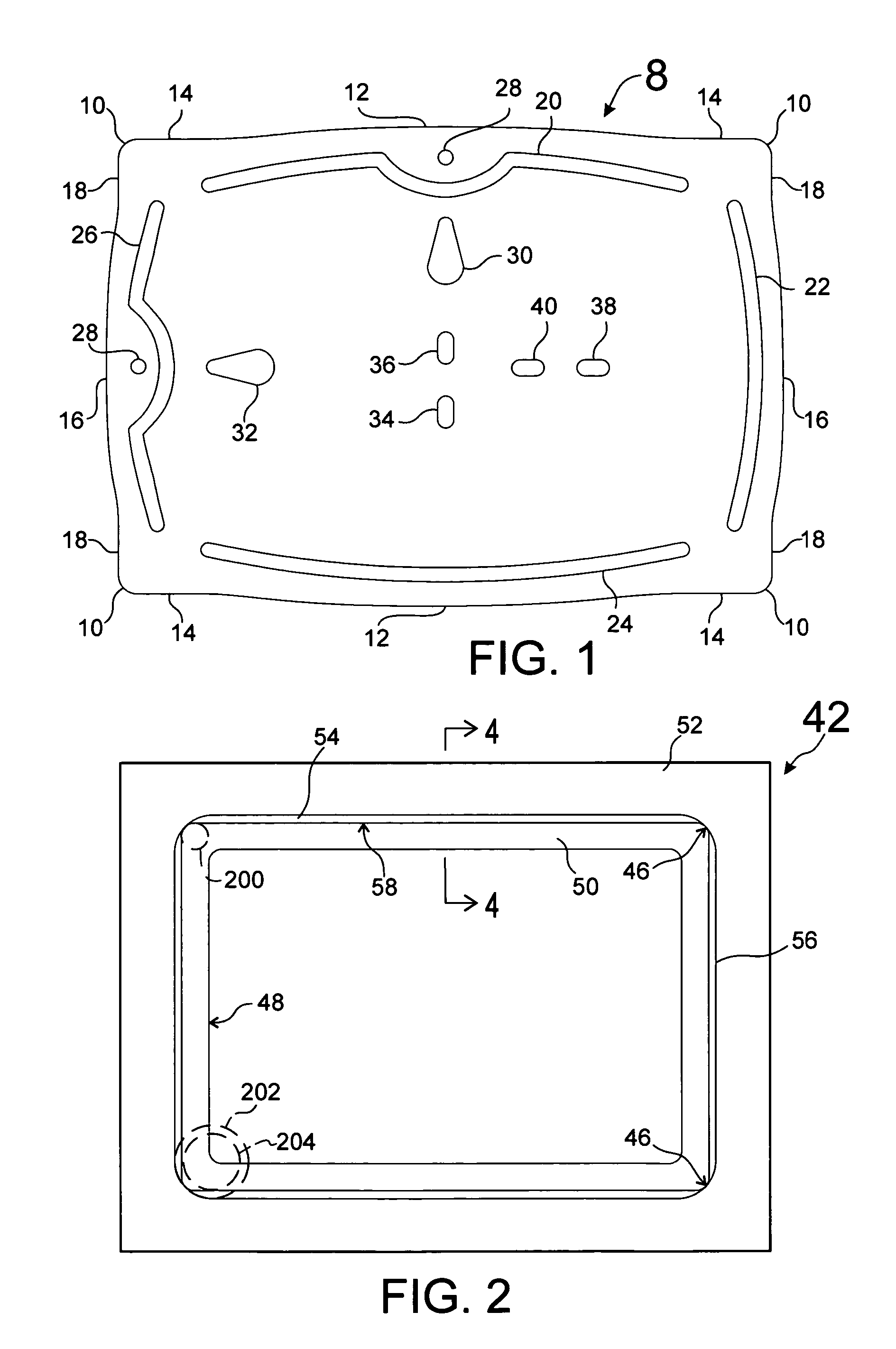

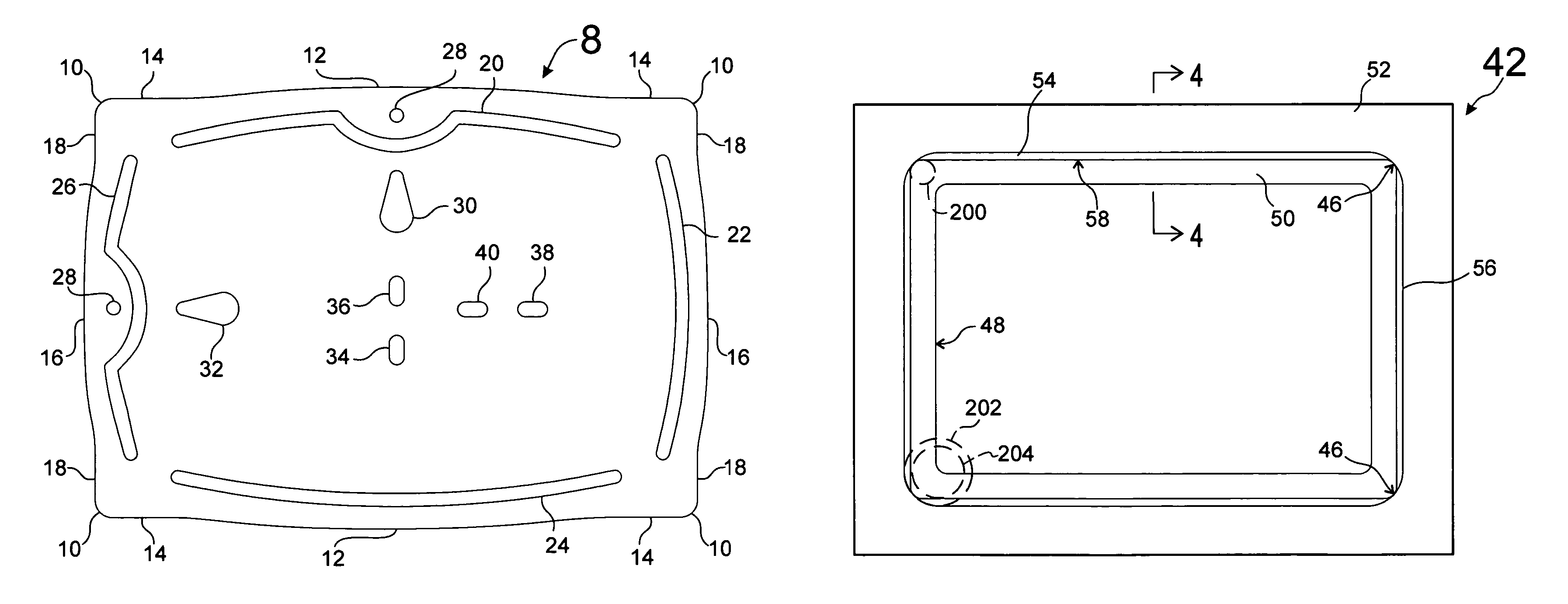

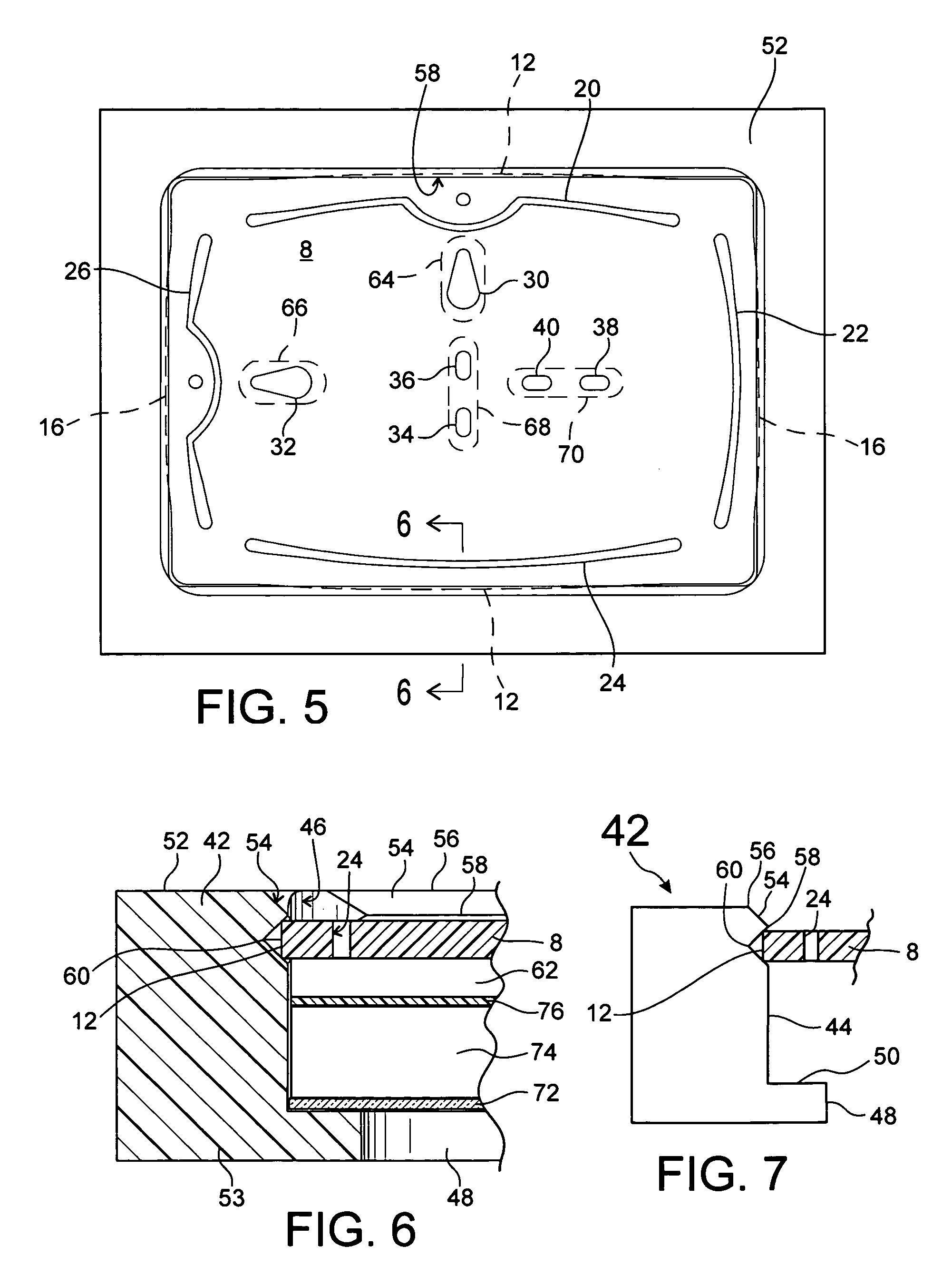

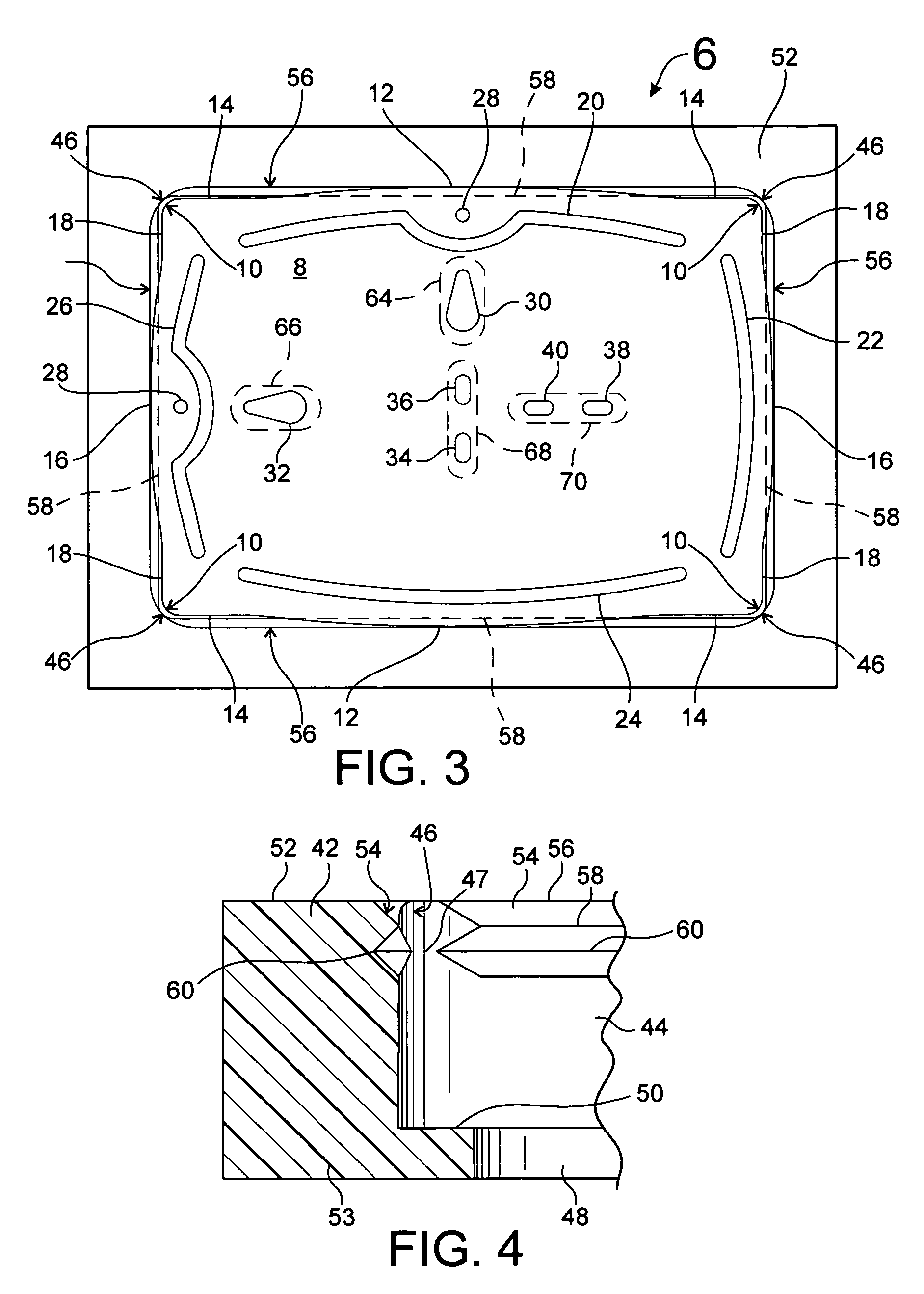

专利附图（8）
