用于在免下车餐厅交换物品。
专利摘要
一种用于交换物品的托盘，包括限定多个隔间的容器，包括食物、饮料和硬币隔间。遮篷安装到容器上，用于保护容器免受天气事件影响。导向件安装到容器上并向上延伸到遮篷的上部。可伸缩手柄枢转地联接到导向件，用于在大致水平和垂直配置之间选择性移动。手柄在垂直配置中支撑容器以便装载，并在水平配置中使容器能够在免下车餐厅延伸到车辆中的消费者。导向件的下部是完全开放的通道，手柄可通过该通道在水平和垂直配置之间移动。
Original abstractA tray for exchanging items includes a receptacle defining a plurality of compartments including food, drink, and coinage compartments. An awning is mounted to the receptacle for covering the receptacle from weather events. A guide is mounted to the receptacle and extends upwardly to an upper portion of the awning. An extensible handle is pivotally coupled to the guide for selective movement between generally horizontal and vertical configurations. The handle supports the receptacle for loading in the vertical configuration and enables the receptacle to be extended to a consumer in a vehicle at a drive-through restaurant in the horizontal configuration. A lower portion of the guide is a completely open channel through which the handle may move between horizontal and vertical configurations.

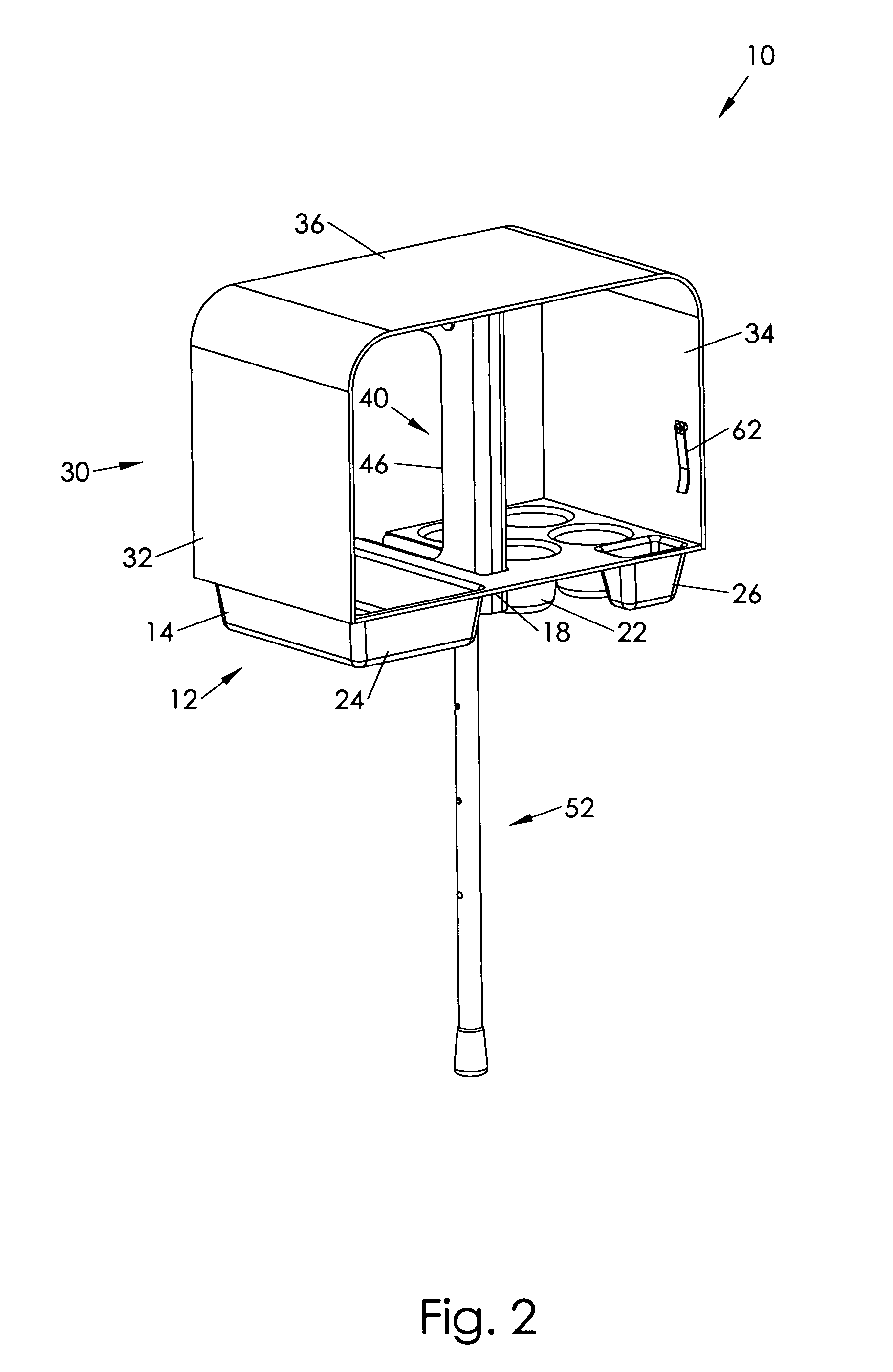

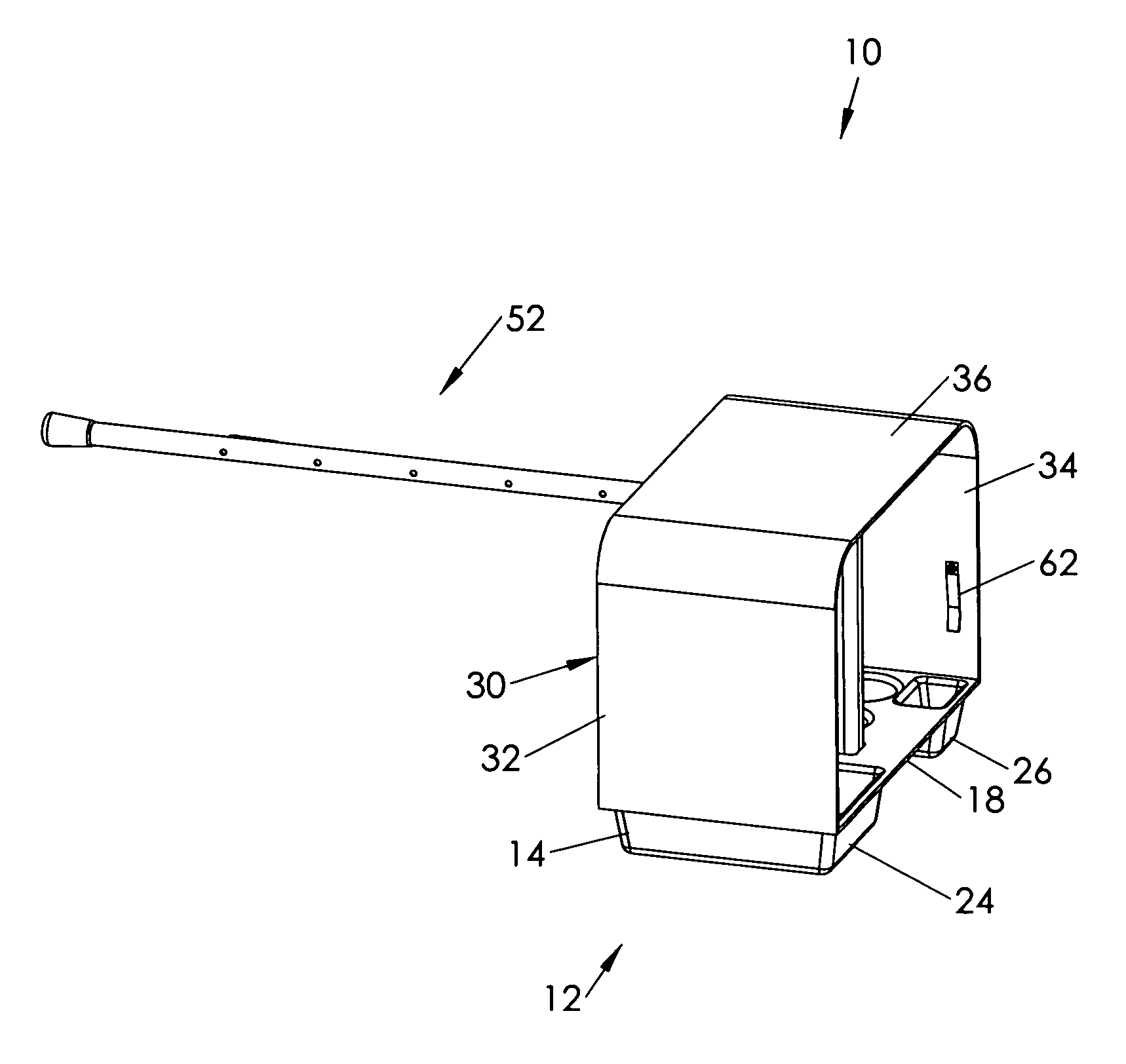

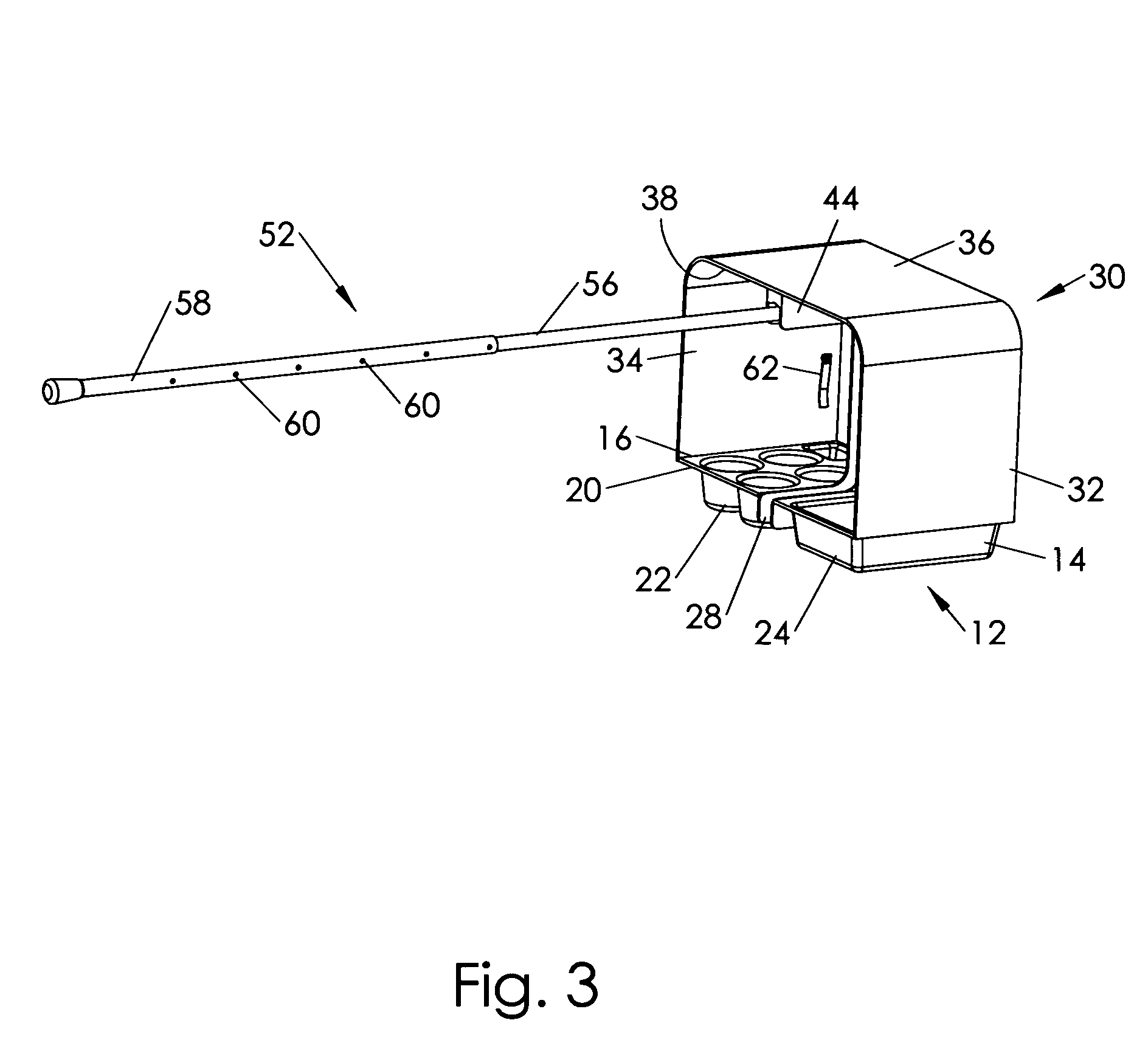

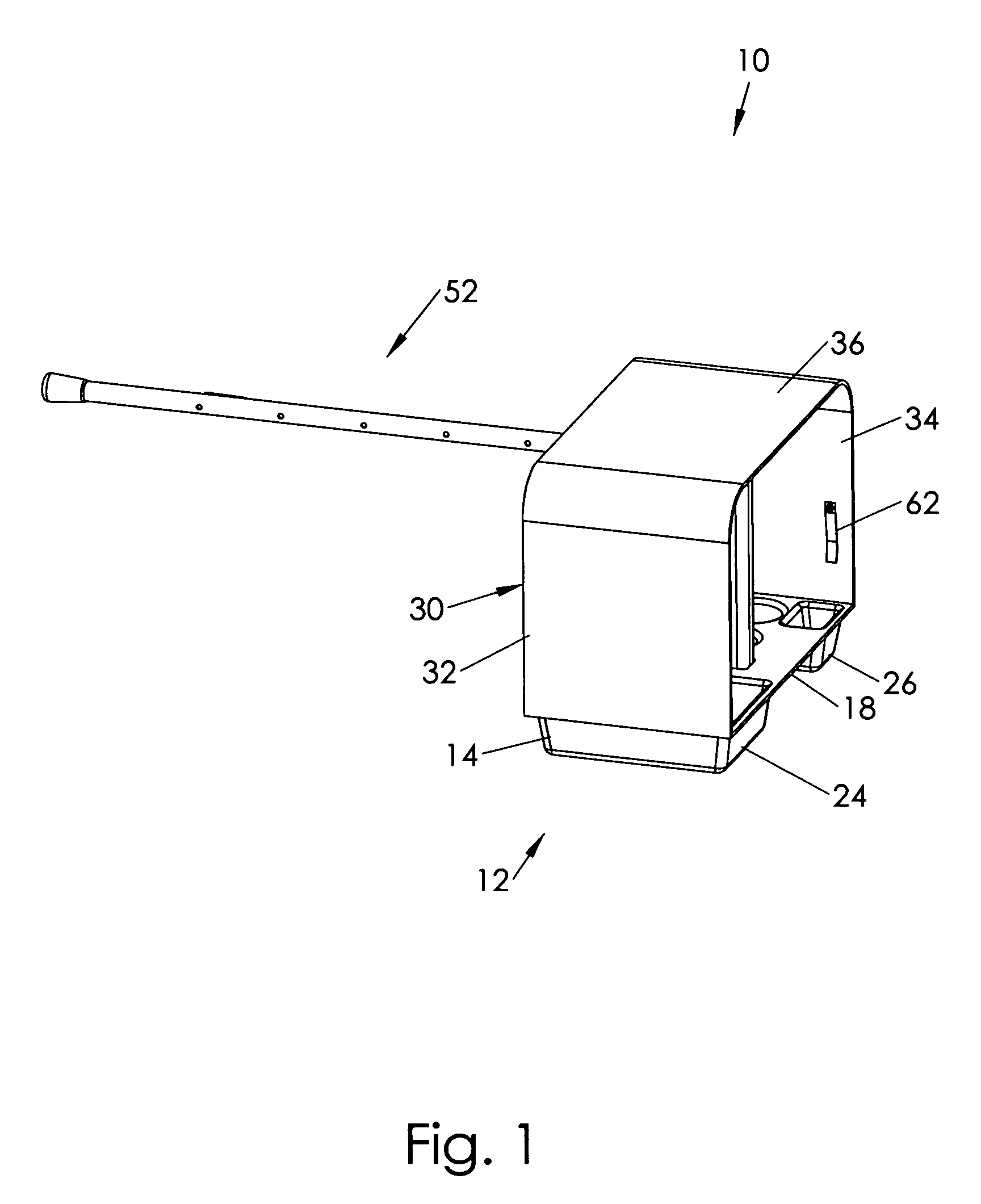

专利附图（8）
