用于快速组装奖杯，简化传统螺纹杆安装过程。
专利摘要

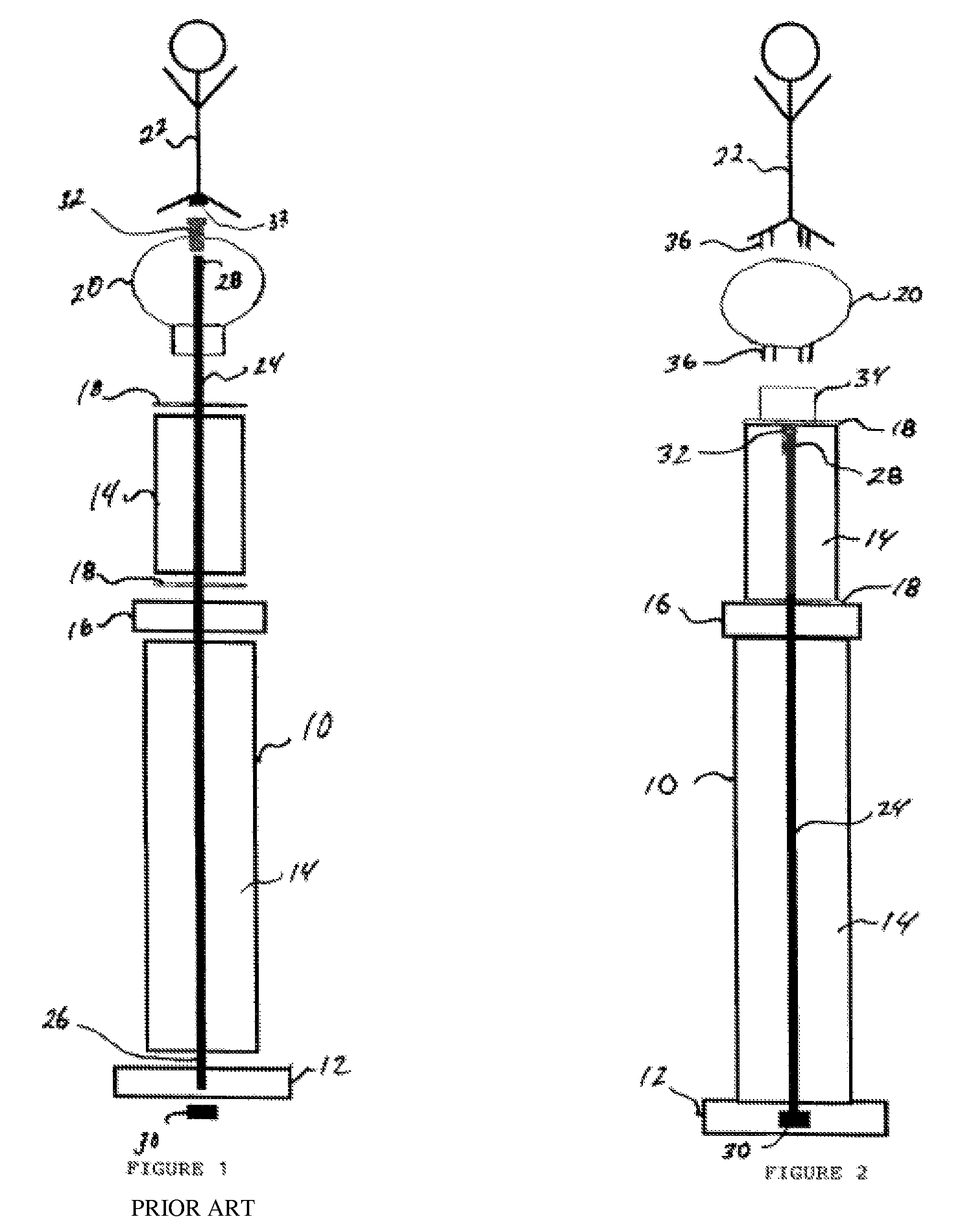

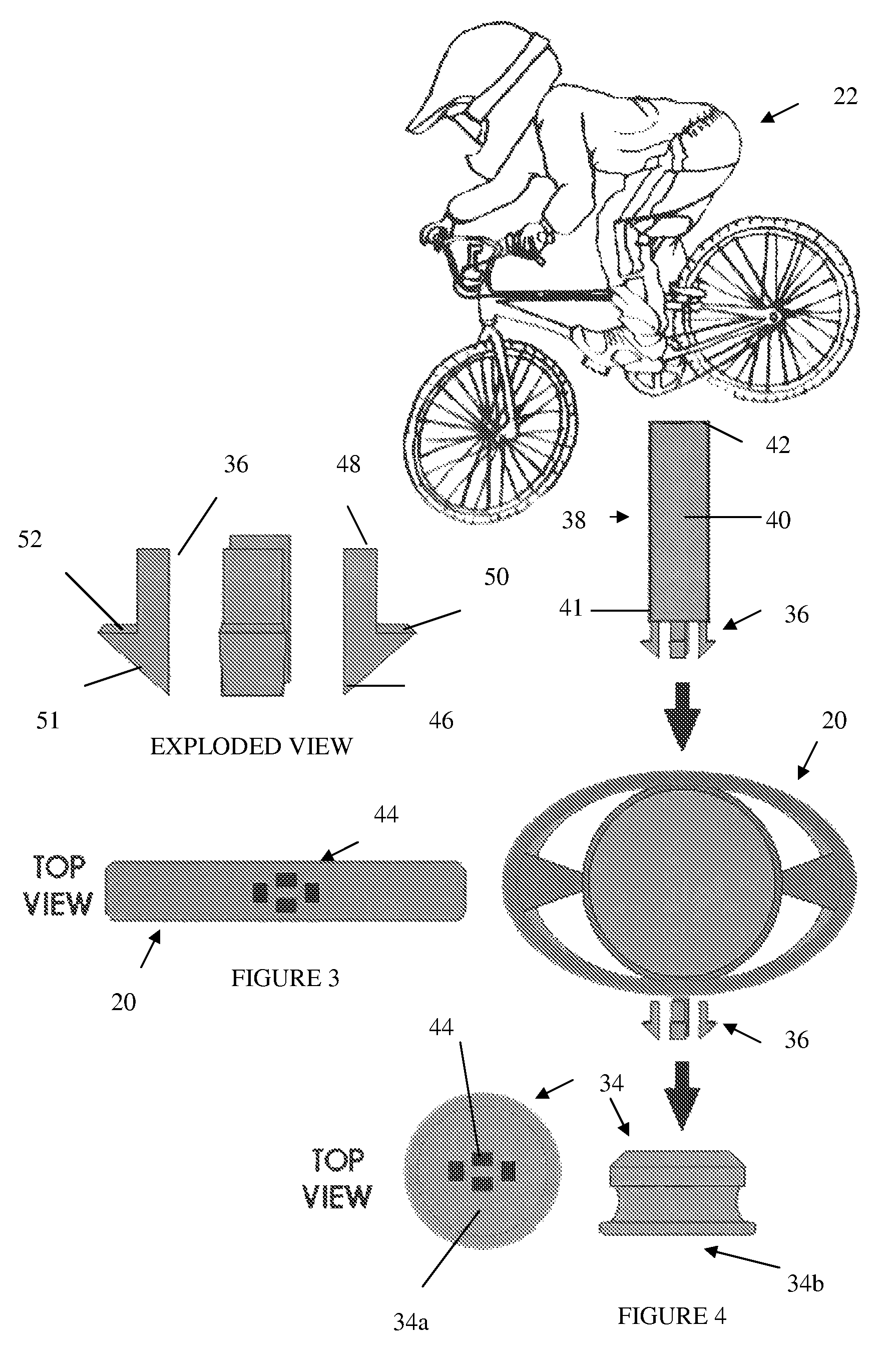

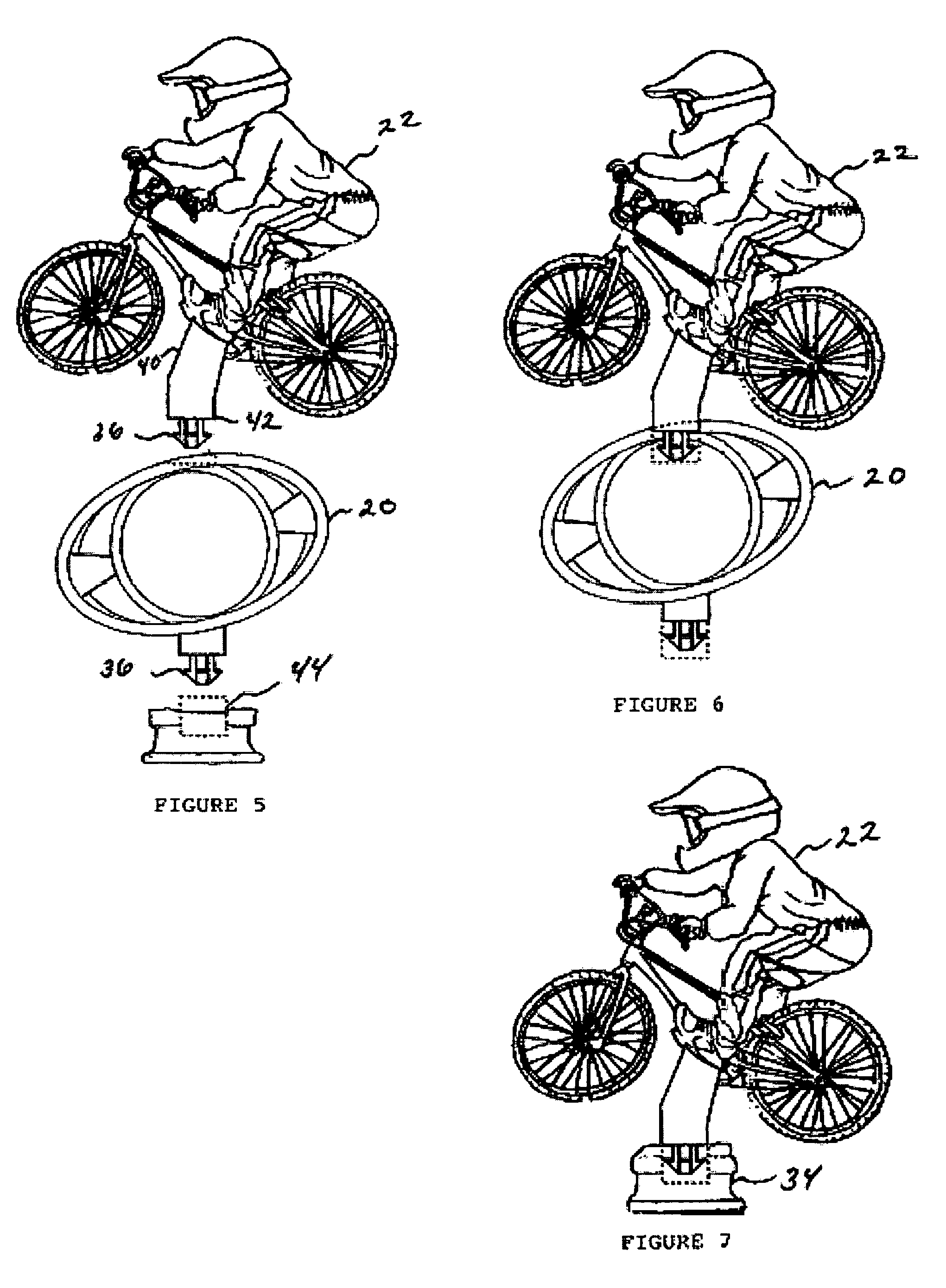

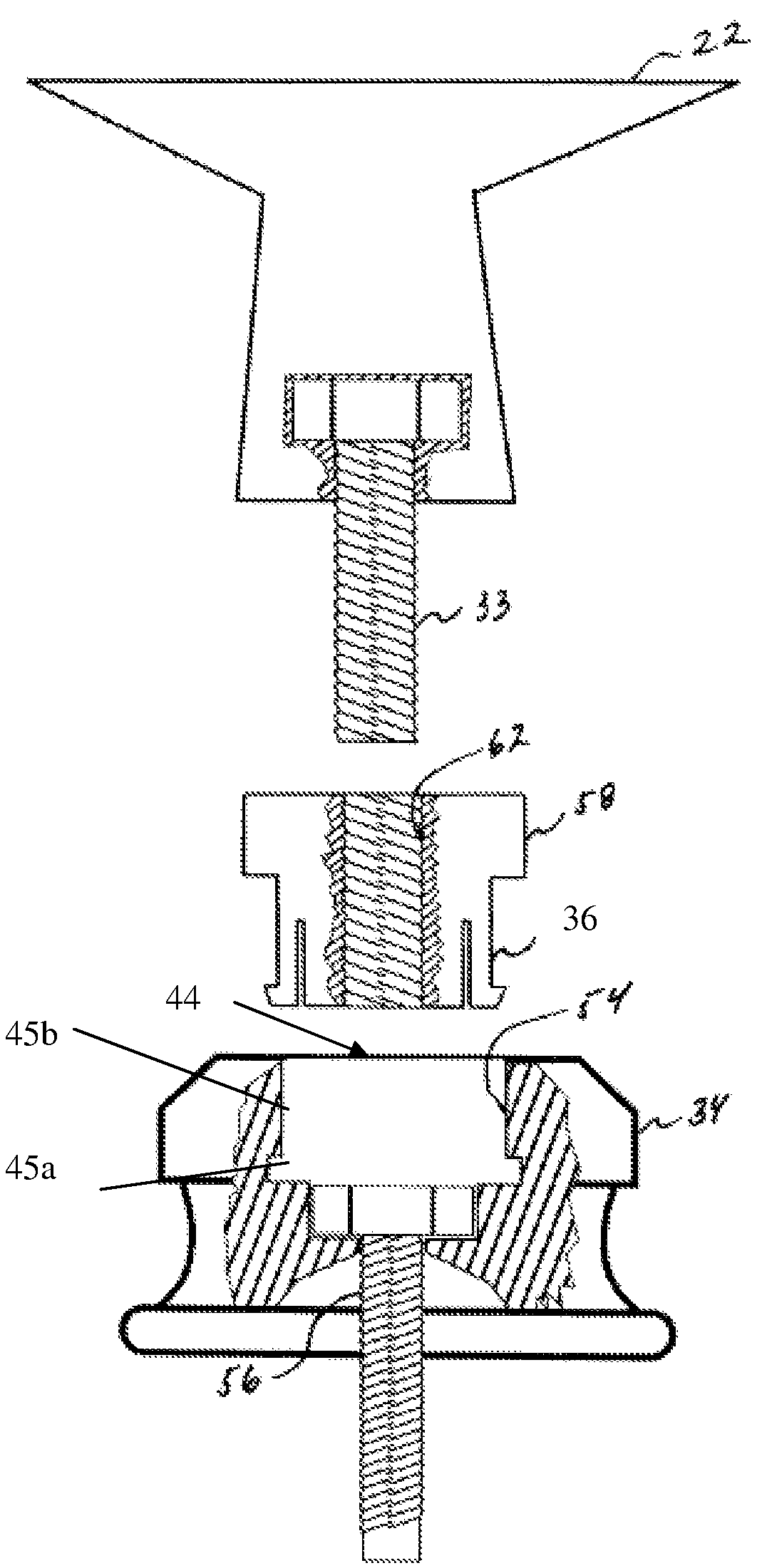

一种利用本发明的连接器底座在附接人物之前预先构造奖杯组件的装置和方法，利用传统的螺纹杆构造，该连接器底座还适于接收一个或多个配置有弹性或刚性附接件的附加组件，例如人物，以完成奖杯供使用。更具体地，人物可以模制有传统的螺纹螺柱，或者适于卡扣或扭转到位以建立永久连接，或者可逆地扭转或卡扣到位。此外，附接件包括附接到奖杯组件的弹性或刚性连接构件，其适于插入第二奖杯组件中配置的连接器构件开口中。此外，奖杯组件的任何组件都可以适配本发明的卡扣或扭转附接件，并且组装可以快速进行，无需内部螺纹杆。此外，还陈述了一种向行业提供预构造奖杯组件的商业方法。
Original abstractAn apparatus and method therefore of utilizing a connector base of the present invention to preconstruct a trophy assembly prior to the attachment of the figure, utilizing traditional threaded rod construction, with the connector base further adapted to receive one or more additional components configured with a resilient or rigid attachment, such as a figure, to complete the trophy for use. More particularly, the figure may have a traditional threaded stud molded therein, or be adapted to snap or twist in place establishing a permanent connection, or reversibly twist or snap in place. In addition, the attachment comprises a resilient or rigid connecting member attached to a trophy component adapted to insert into a connector member opening configured in a second trophy component. Further, any component of a trophy assembly could be adapted with the snap or twist attachment of the present invention and the assembly could quickly proceed without the need for the internal threaded rod. Further, a method of business providing preconstructed trophy assemblies to the industry is stated.
专利附图（8）
