用于存储和组织药品的收纳架。
专利摘要

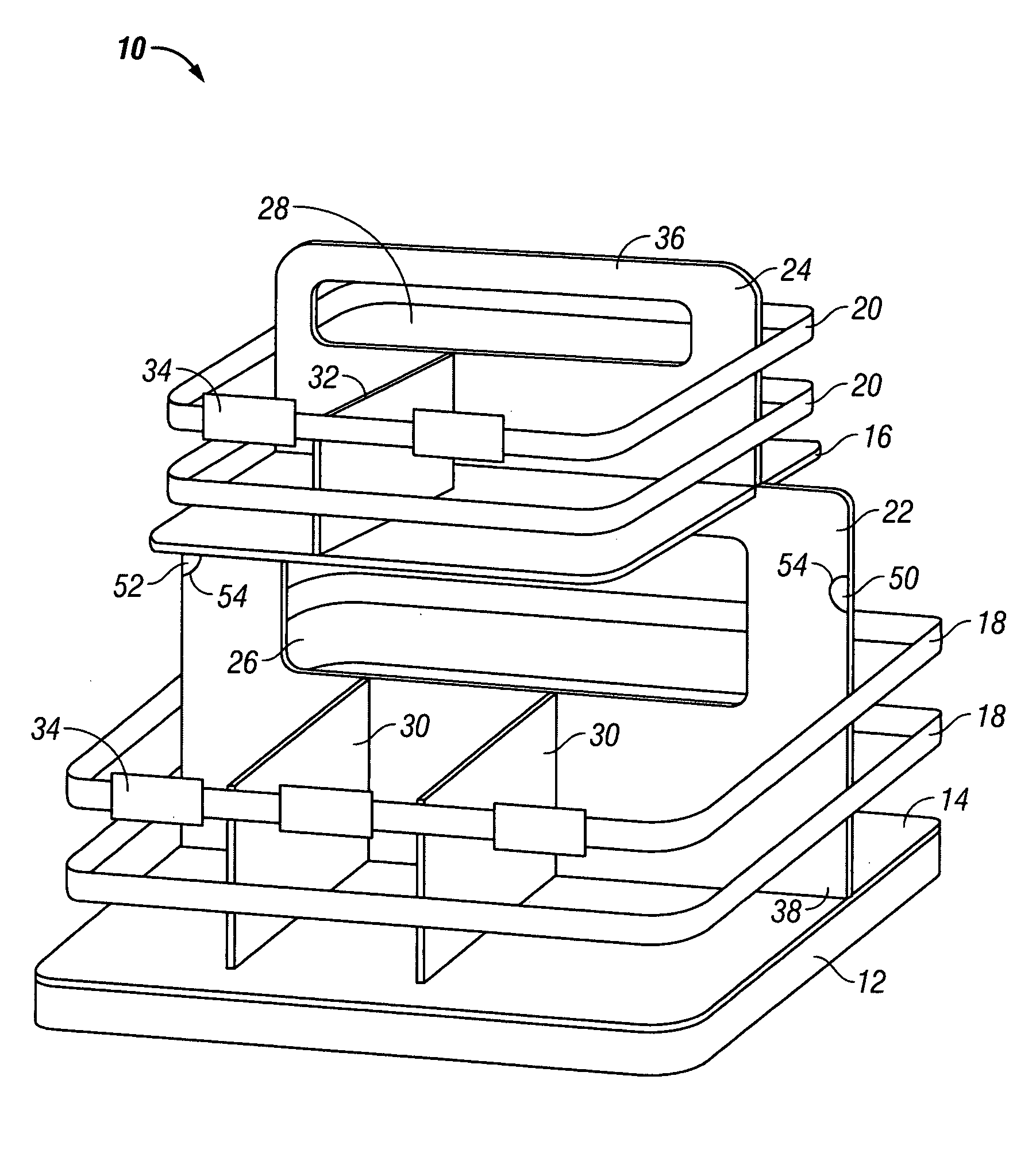

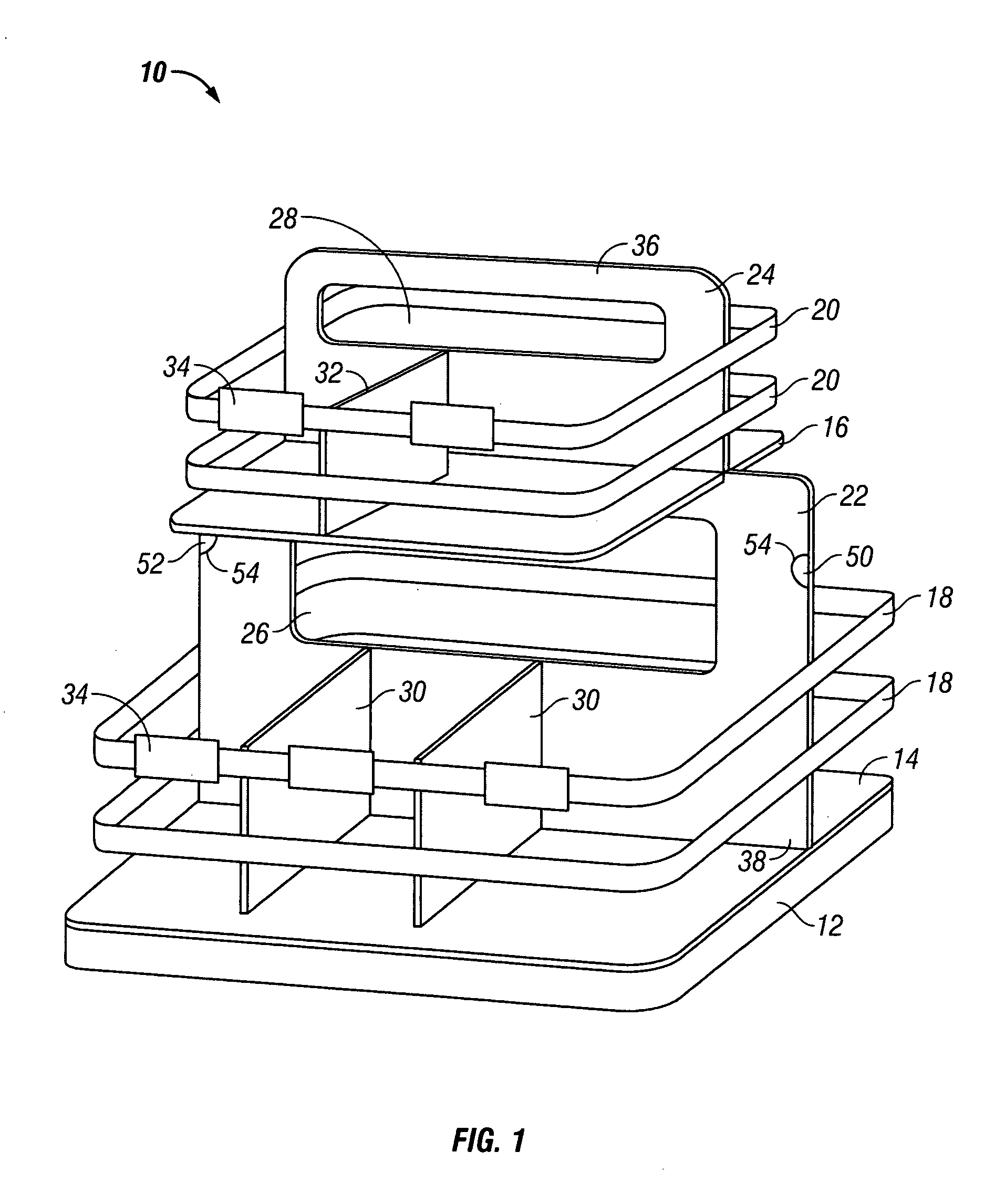

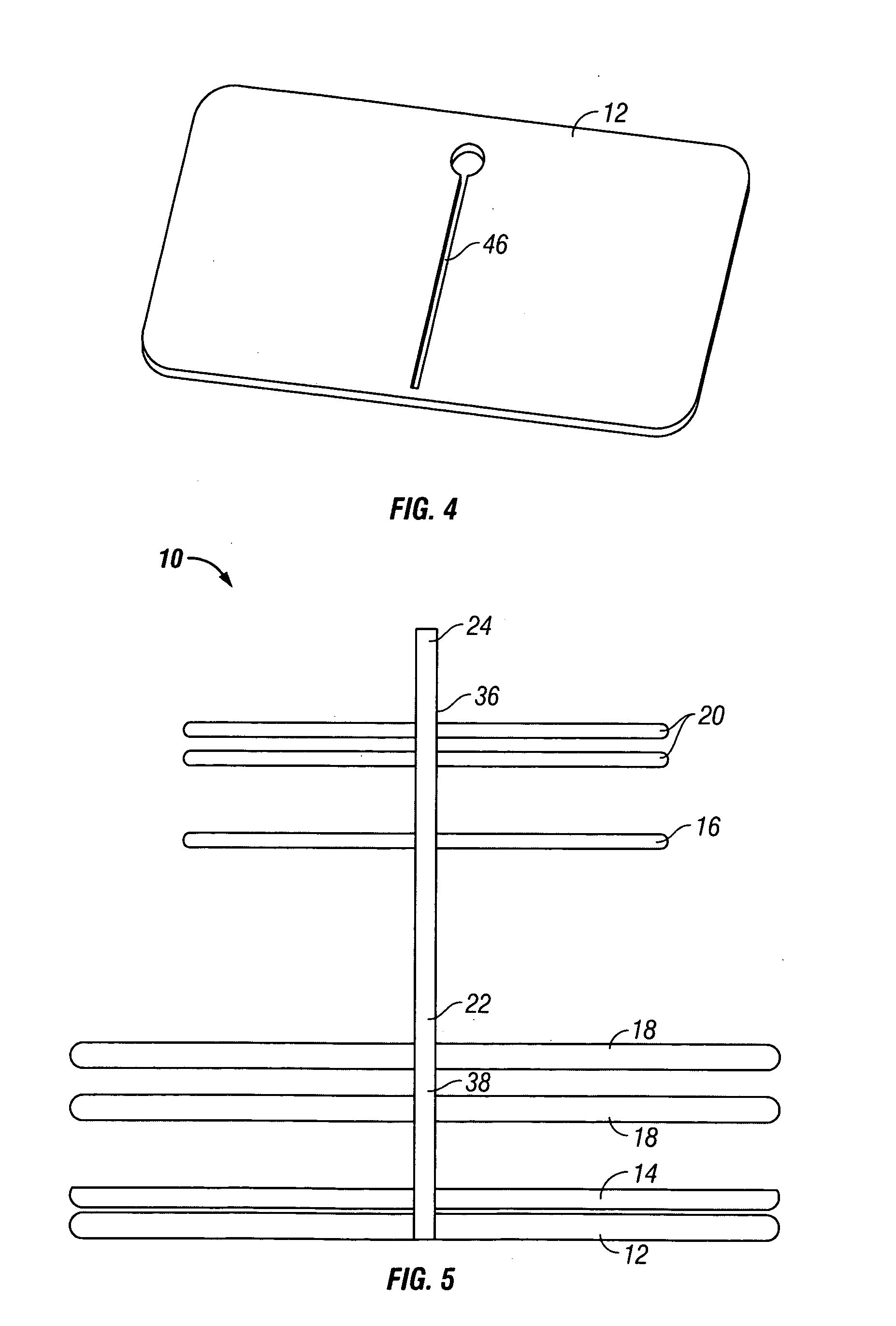

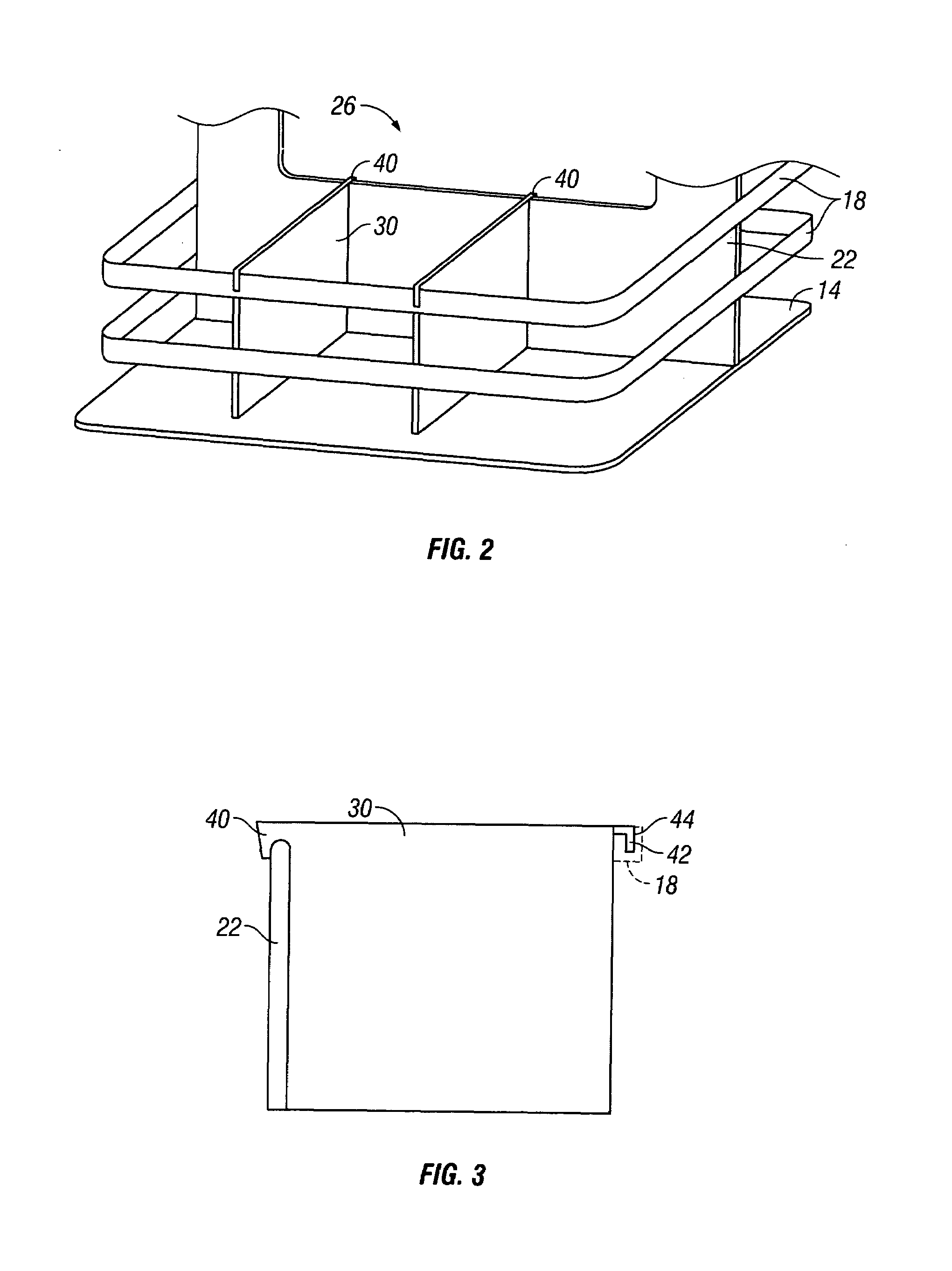

药品收纳架用于存储和组织药品。具有第一搁板、第一壁和第一分隔器的底层可滑动且可旋转地安装在底座上。具有第二搁板、第二壁和第二分隔器的第二层附接到第一壁。屏障封闭第一和第二壁的侧面。第一和第二壁中间的切口允许分隔器上的分隔器钩可滑动且可移除地附接到第一和第二壁。屏障顶部的屏障槽可滑动且可移除地接收附接到分隔器的屏障钩。第二实施例在第一和第二壁之间具有旋转接头，并且其分隔器仅可滑动地附接到第一和第二壁。标签作为穿孔片提供，并通过标签保持器附接到屏障以识别药品。
Original abstractMedicine caddies store and organize medicines. A bottom tier with a first shelf, a first wall, and a first divider is slidably and rotatably mounted on a base. A second tier with a second shelf, a second wall, and a second divider is attached to the first wall. Barriers enclose the sides of the first and second walls. Cutouts present in the middle of the first and second walls allow divider hooks on the dividers to be slidably and removably attached to the first and second walls. Barrier slots in the top of the barriers slidably and removably receive barrier hooks attached to the dividers. A second embodiment has a rotation joint between the first and second walls and has its dividers slidably attached to only the first and second walls. Tabs are provided as a perforated sheet and are attached to the barriers by tab holders to identify medicines.
专利附图（8）
