来源记录显示 Expired
可拆卸便携式隔断系统
Knock-down portable partition system
US-7565772-B2可快速拆装的便携式隔断系统。
专利摘要
一种可拆卸便携式隔断系统，具有由立柱和横梁框架支撑的覆盖板，设计用于快速简便的现场手动组装。框架包括至少两个立柱和至少两个结构梁，它们刚性地但可拆卸地互连立柱。连接器将梁固定到立柱上，使得隔断系统可以手动组装和拆卸。隔断系统可包括用于容纳电线、电缆等的线槽，以向系统提供电力和/或通信。线槽的相对两端成形为可拆卸地安装到立柱上。
Original abstractA knock-down portable partition system has cover panels supported on a post and beam framework designed for quick and easy on-site manual assembly. The framework includes at least two vertical posts and at least two structural beams rigidly, yet detachably interconnecting the vertical posts. Connectors secure the beams to the posts, such that the partition system can be assembled and disassembled manually. The partition system may include utility troughs shaped to retain wires, cabling, etc. therein to provide power and/or communication to the system. The utility troughs have opposite ends shaped to be detachably mounted to the posts.

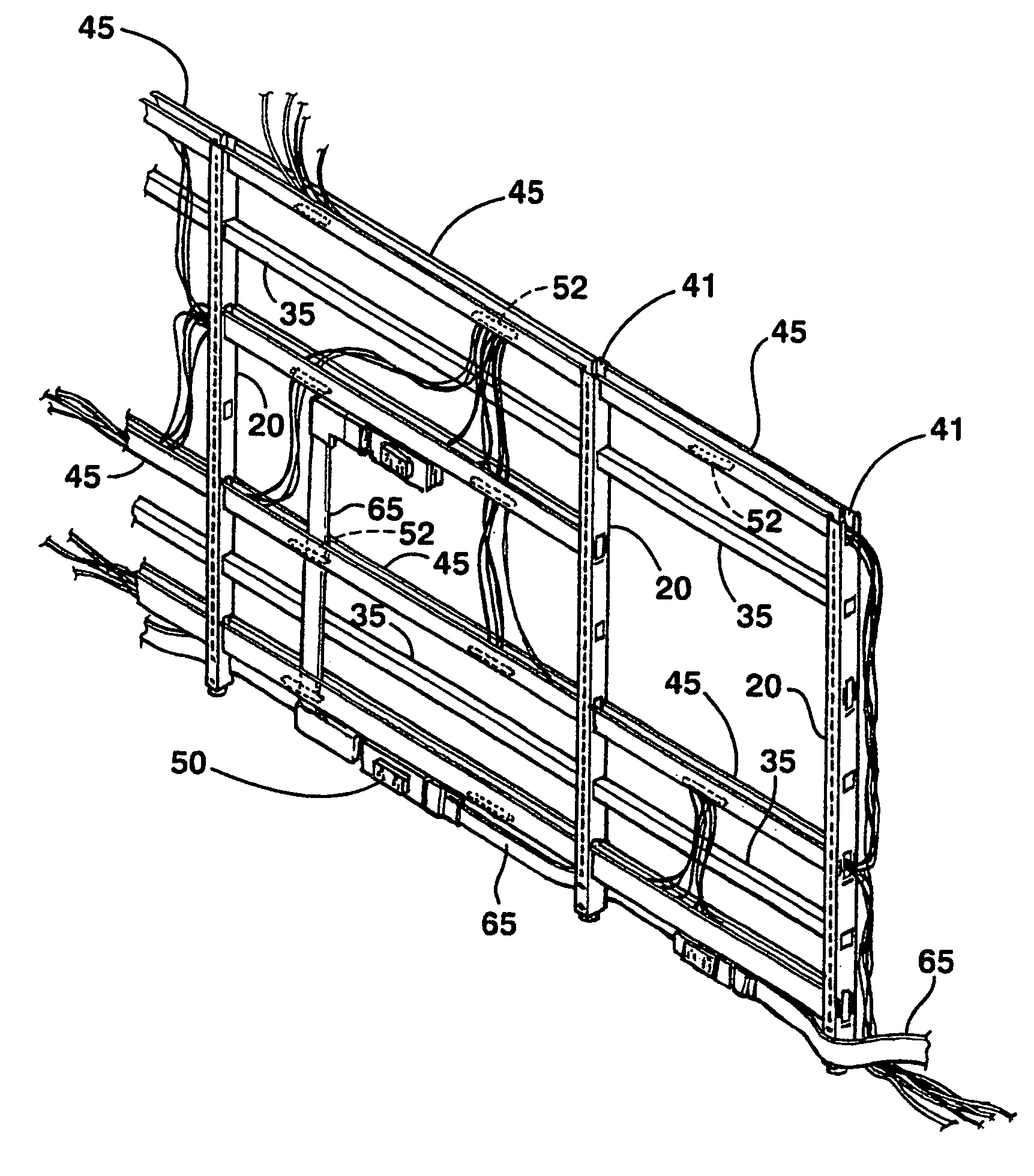

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
