用于组装壁柜，连接侧板和搁板。
专利摘要

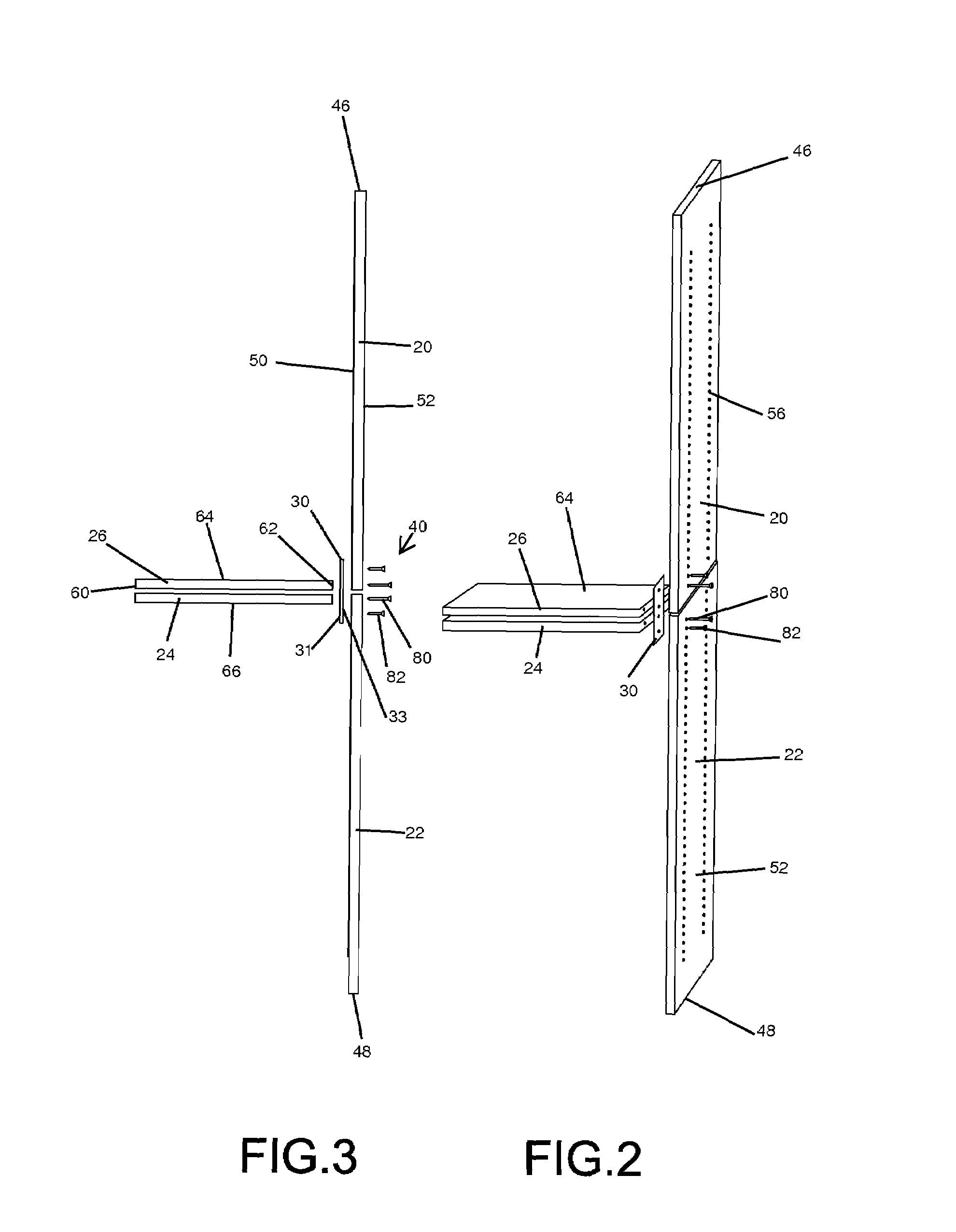

一种壁柜系统包括支架和多个紧固件，用于连接第一和第二侧板以及第一和第二搁板。支架包括多个紧固件接收孔。第一紧固件延伸穿过上侧板和第一紧固件接收孔；第二紧固件延伸穿过下侧板和第二紧固件接收孔；第三紧固件延伸穿过上侧板、第三紧固件接收孔和上搁板；第四紧固件延伸穿过下侧板、第四紧固件接收孔和下搁板。
Original abstractA wall cabinet system includes a bracket and a plurality of fasteners for connecting first and second side panels and first and second shelves. The bracket includes a plurality of fastener receiving holes. A first fastener extends through an upper side panel and a first fastener receiving hole; a second fastener extends through the lower side panel and a second fastener receiving hole; a third fastener extends through the upper side panel, a third fastener receiving hole, and the upper shelf; and a fourth fastener extends through the lower side panel, a fourth fastener receiving hole, and the lower shelf.
专利附图（8）
