洗衣皂分配装置

Laundry soap dispensing apparatus

US-7559442-B1

用于定量分配洗衣皂。

专利摘要

一种洗衣皂分配装置包括壳体,该壳体具有后壁、底壁、前壁、第一侧壁和第二侧壁。前壁中具有杯开口,该杯开口邻近底壁定位并配置为接收杯子。槽安装在壳体内并具有朝向底壁的倾倒开口,杯子延伸穿过杯开口。倒入壳体的肥皂被引导到槽中并朝向倾倒开口。测量组件安装在壳体中并与倾倒开口流体连通。测量组件配置为将多种可选量的洗衣皂中的一种分配到杯子中。通过致动测量组件,可以将位于槽内的洗衣皂倒入杯子中。

Original abstractA laundry soap dispensing apparatus includes a housing that has a back wall, a bottom wall, a front wall, a first side wall and a second side wall. The front wall has a cup opening therein positioned adjacent to the bottom wall and configured for receiving a cup. A trough is mounted within the housing and has a pour opening therein directed toward the bottom wall and a cup extended through the cup opening. Soap poured into the housing is directed into the trough and toward the pour opening. A measuring assembly is mounted in the housing and is in fluid communication with the pour opening. The measuring assembly is configured to dispense one of a plurality of selectable amounts of laundry soap into the cup. Laundry soap positioned within the trough may be poured into the cup by actuating the measuring assembly.

专利附图(8)

US-7559442-B1 figure 1
1
US-7559442-B1 figure 2
2
US-7559442-B1 figure 3
3

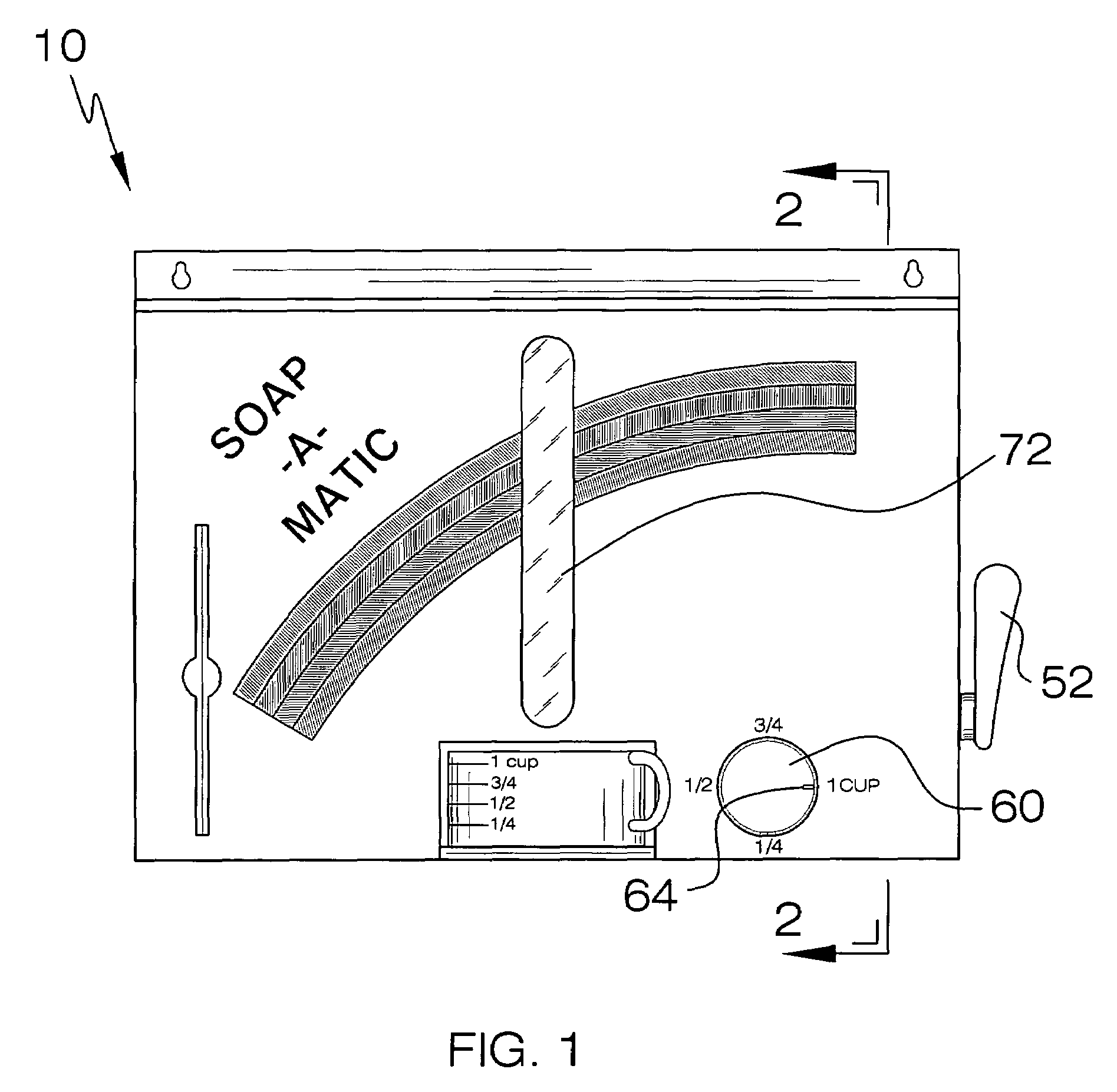

US-7559442-B1 figure 4
4
US-7559442-B1 figure 5
5

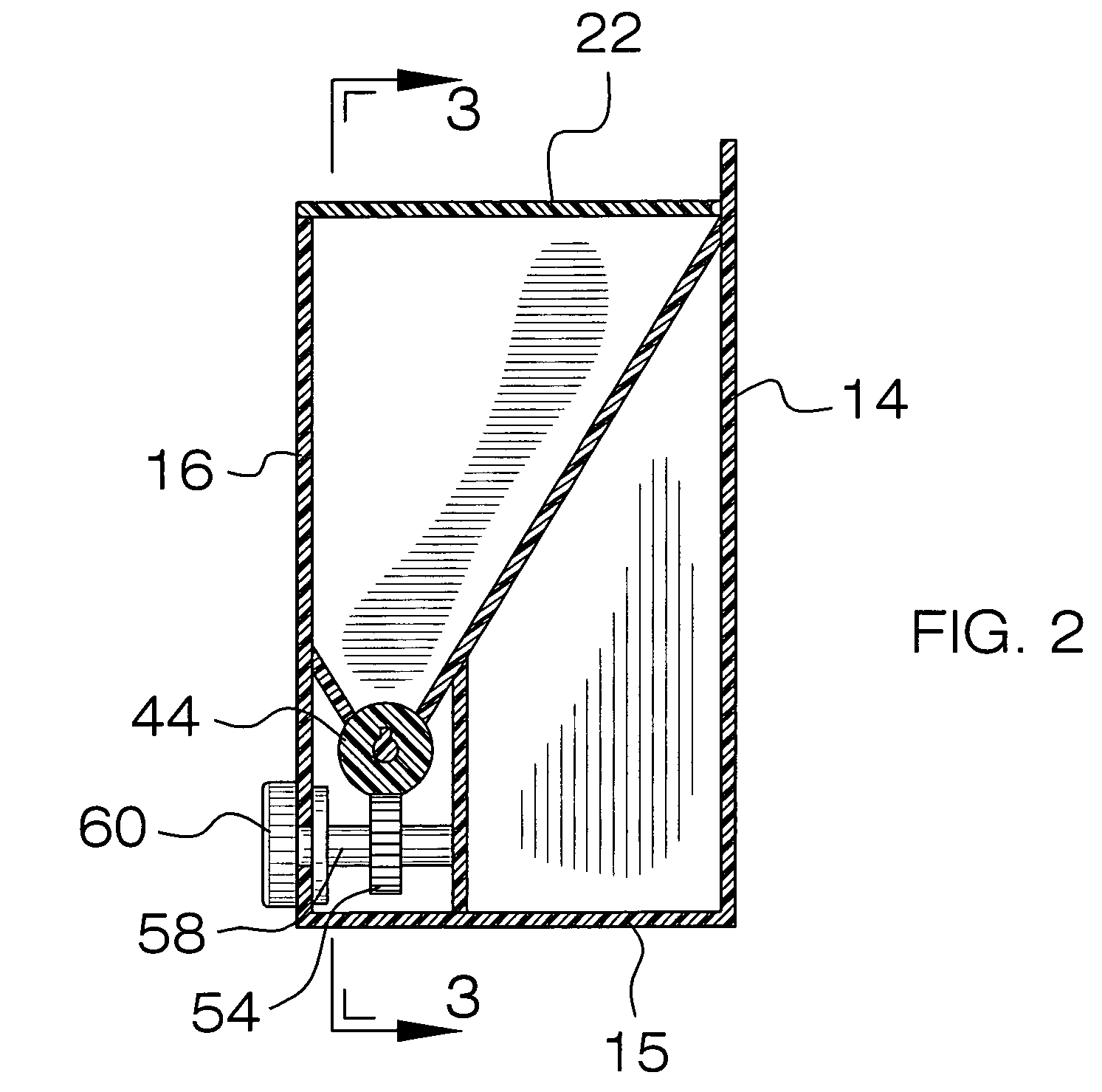

US-7559442-B1 figure 6
6
US-7559442-B1 figure 7
7

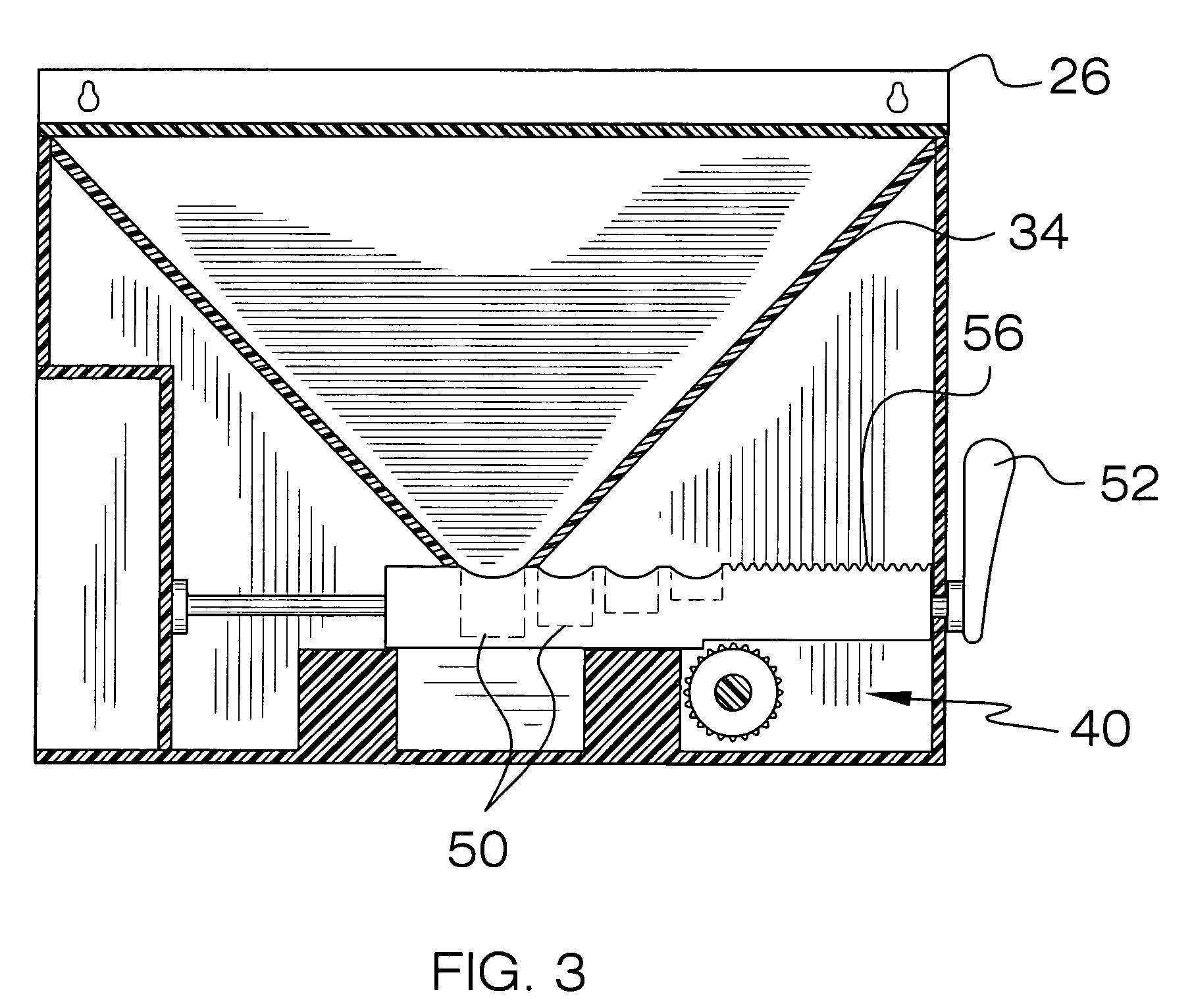

US-7559442-B1 figure 8
8
