用于饮用容器，通过吸吮流出液体。
专利摘要
根据本发明，一种饮用容器（10）包括适于容纳液体的大致圆柱形容器（11）和适于封闭容器的大致圆柱形盖（12）。盖包括大致圆柱形外部构件（20）、位于外部构件内的大致圆柱形内部构件（22），从而在内部构件的外表面和外部构件的内表面之间限定大致圆柱形孔（50），以及位于孔中的大致圆柱形密封元件（21）。密封元件通常在内部构件的外表面和外部构件的内表面之间形成密封，但可在孔远离容器的一端通过抽吸而变形，从而使容器内的液体在抽吸作用下从孔靠近容器的一端通过孔流出。
Original abstractAccording to the invention a drinking vessel ( 10 ) comprises a generally cylindrical container ( 11 ) adapted to contain liquid and a generally cylindrical lid ( 12 ) adapted to close the container. The lid comprises a generally cylindrical outer member ( 20 ), a generally cylindrical inner member ( 22 ) located within the outer member so as to define a generally cylindrical aperture ( 50 ) between the outer surface of the inner member and the inner surface of the outer member, and a generally cylindrical sealing element ( 21 ) located in the aperture. The sealing element normally forms a seal between the outer surface of the inner member and the inner surface of the outer member but is deformable by suction at the end of the aperture remote from the container so as to cause liquid within the container to flow, from the end of the aperture adjacent to the container, out through the aperture under the action of the suction.

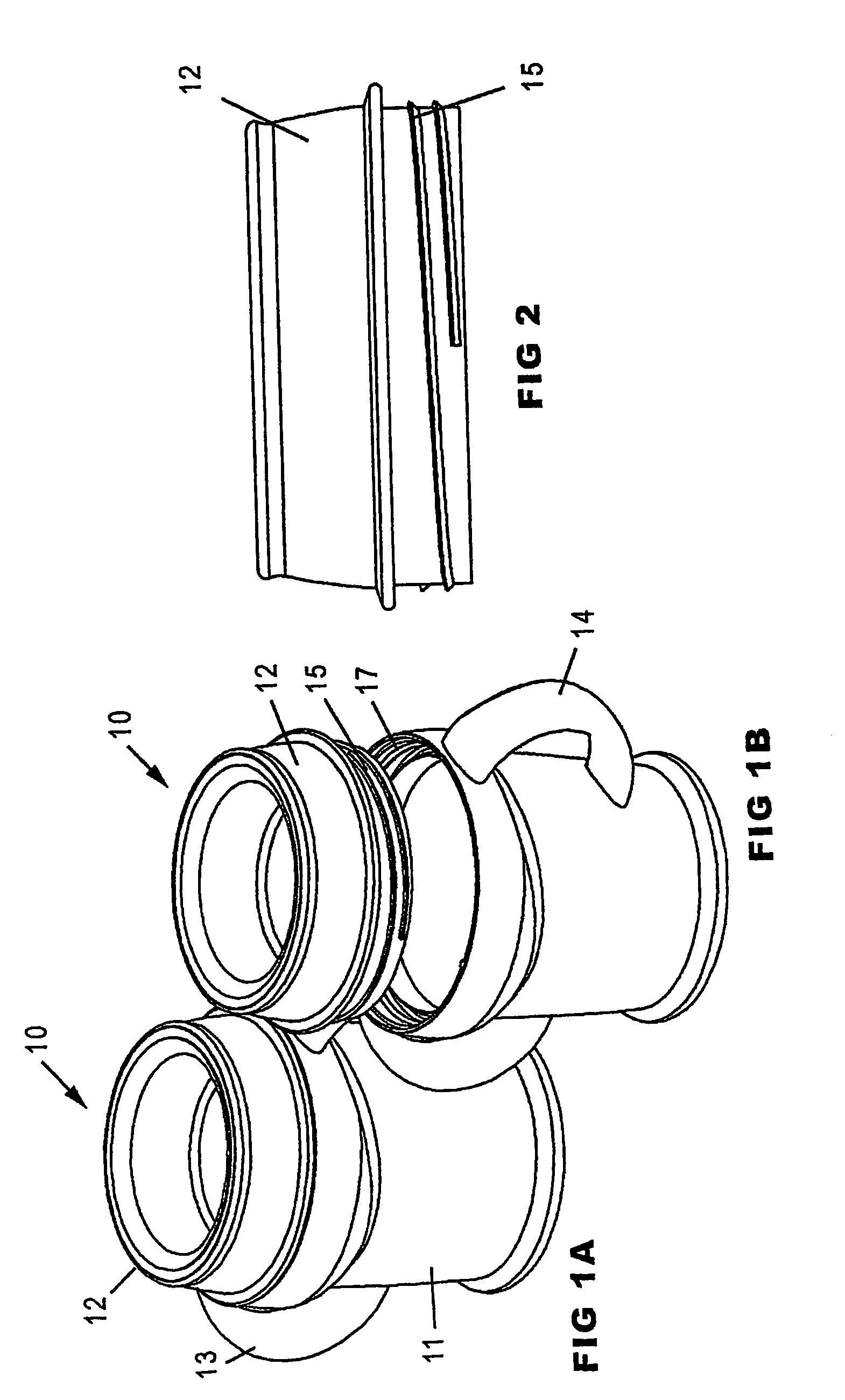

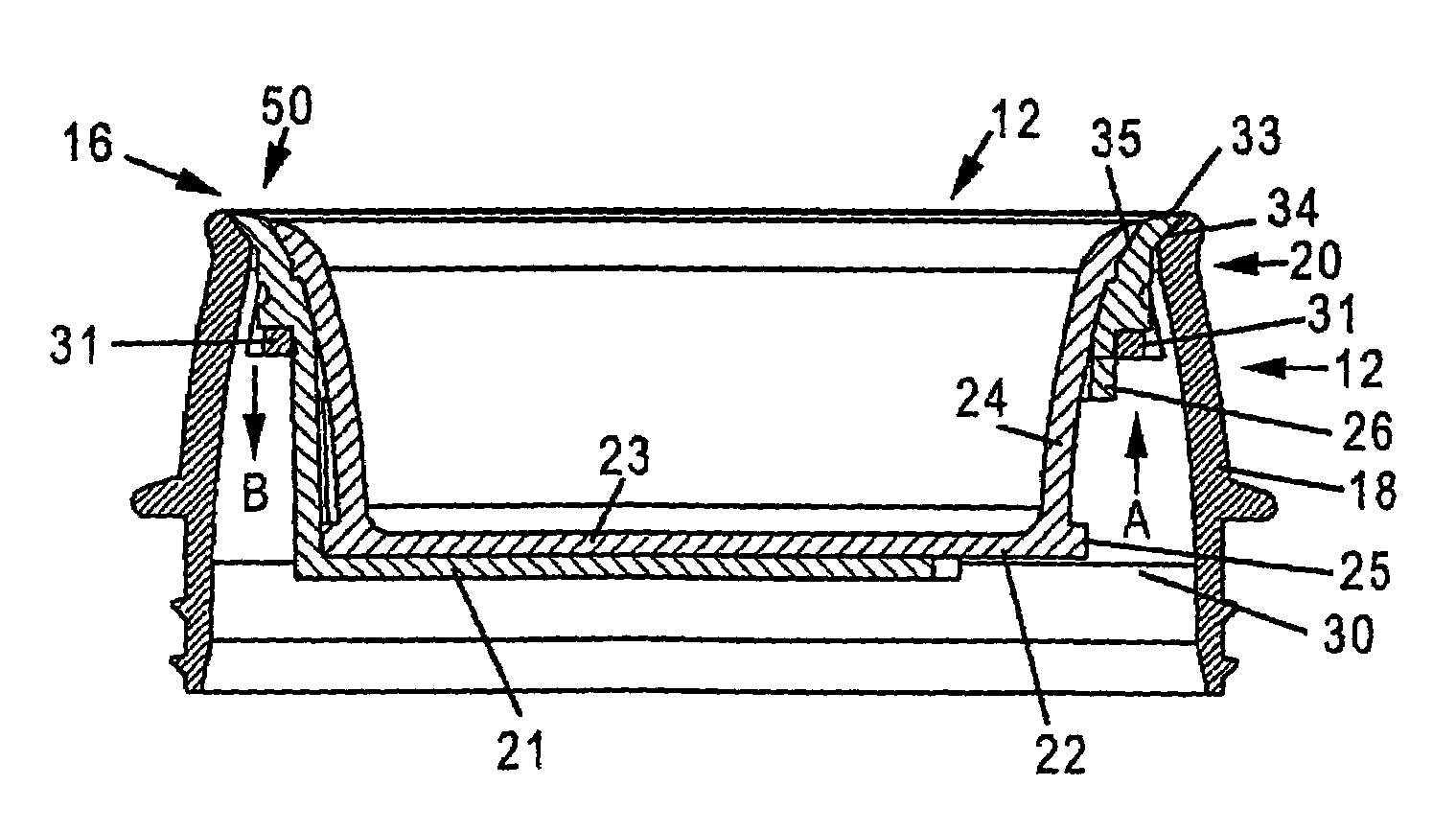

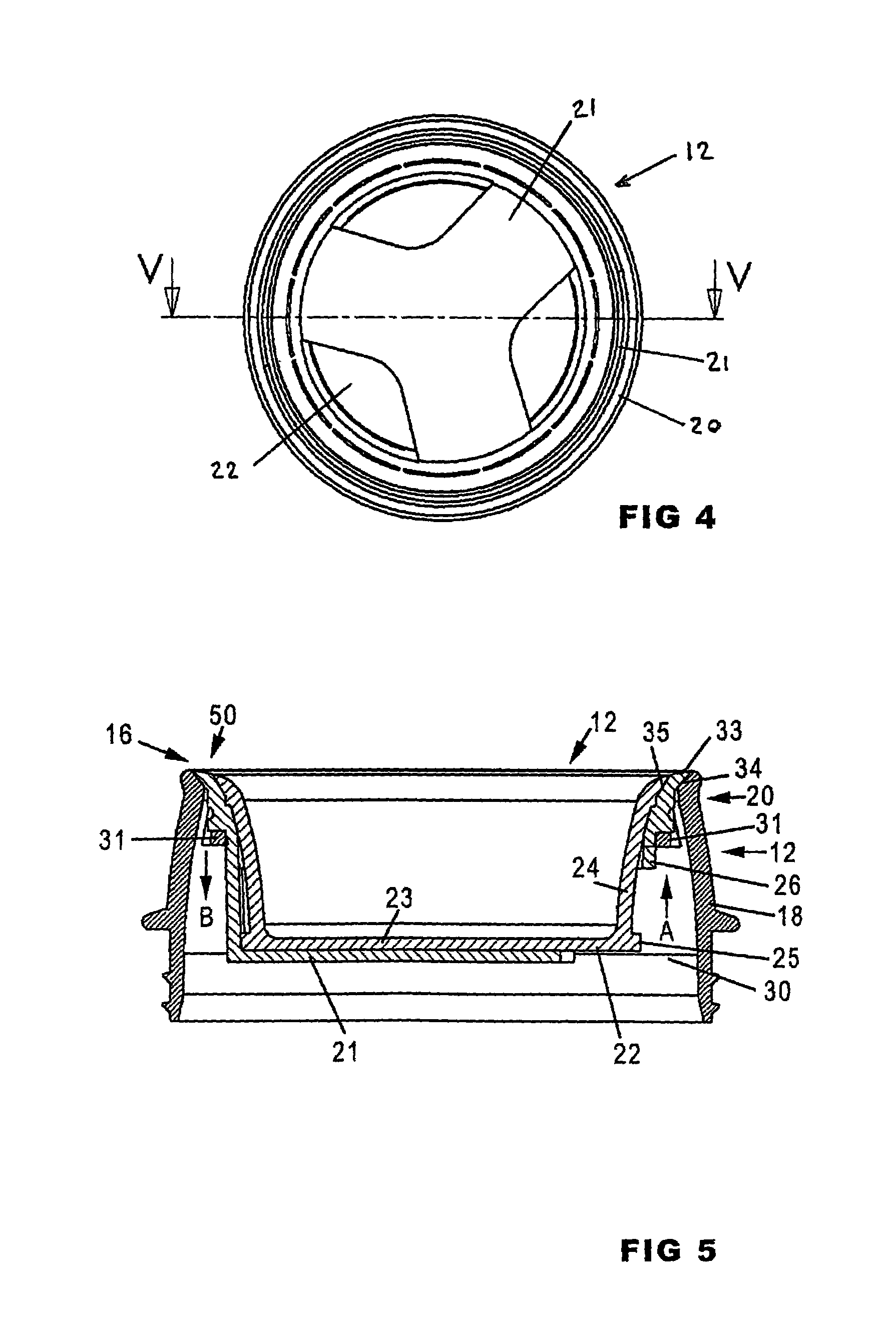

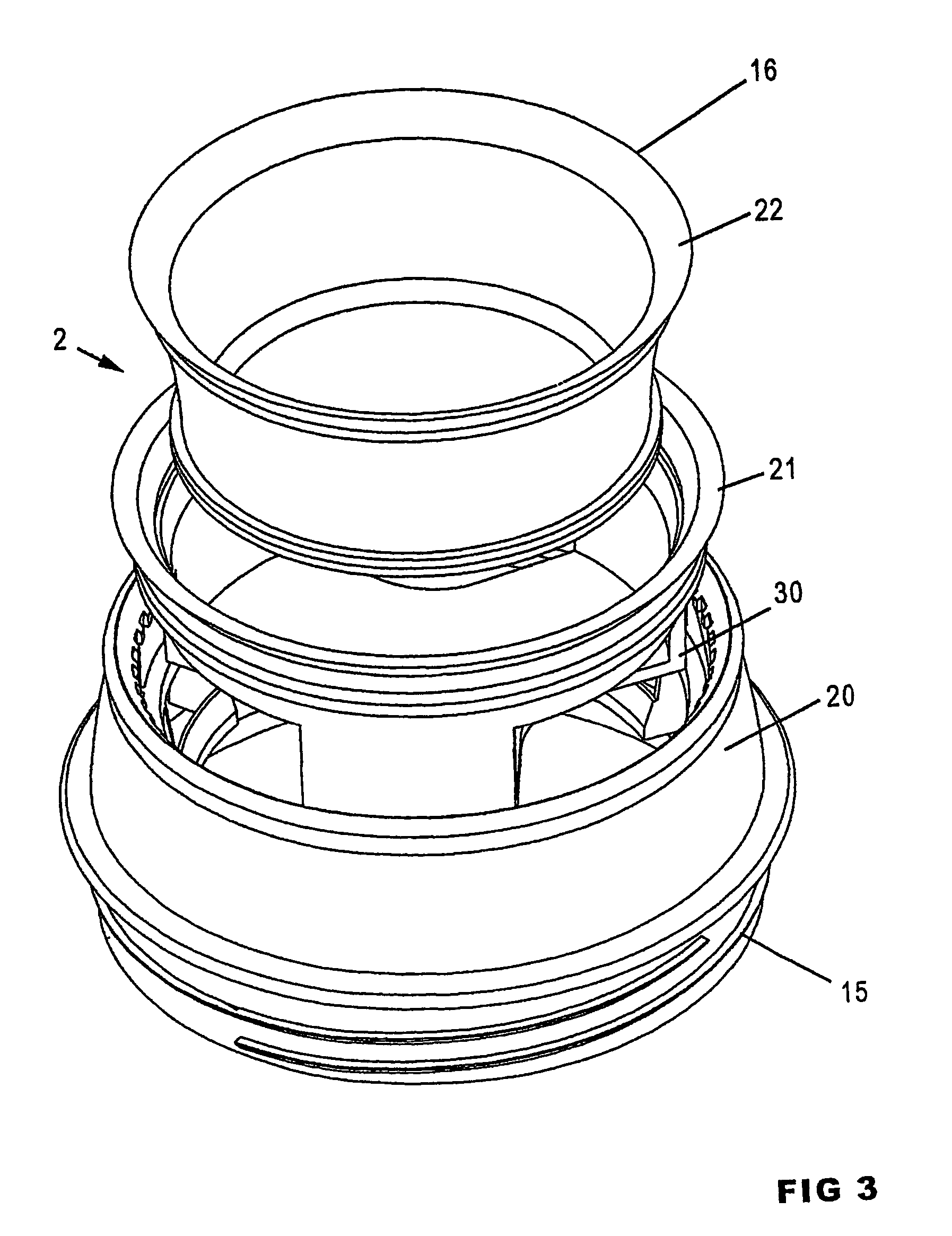

专利附图（8）
