用于橱柜的拉出式托盘安装系统
Rollout tray mounting system for cabinet
US-7547080-B2用于在橱柜中安装抽屉或托盘的连接器。
专利摘要
一种用于支撑一个或多个安装构件的连接器，可用于将抽屉安装在橱柜内，包括：垂直伸长的底座，配置为邻接橱柜壁的内表面；以及垂直伸长的第一和第二安装板，连接到底座并从底座向外突出。第二安装板可与第一安装板间隔开并基本平行，第一和第二安装板可从垂直于第一和第二安装板的底板延伸。连接器还可包括端板，该端板将第一安装板的远端连接到第二安装板的远端。
Original abstractA connector for supporting one or more mounting members that may be used in mounting a drawer within a cabinet includes: a vertically elongated base configured to abut an interior face of a wall of the cabinet and vertically elongated first and second mounting panels that are connected to and projecting outwardly from the base. The second mounting panel may be spaced apart from, and substantially parallel to, the first mounting panel, and the first and second mounting panels may extend from a base panel that extends perpendicular to the first and second mounting panels. The connector may also include an end panel that connects the distal end of the first mounting panel to the distal end of the second mounting panel.

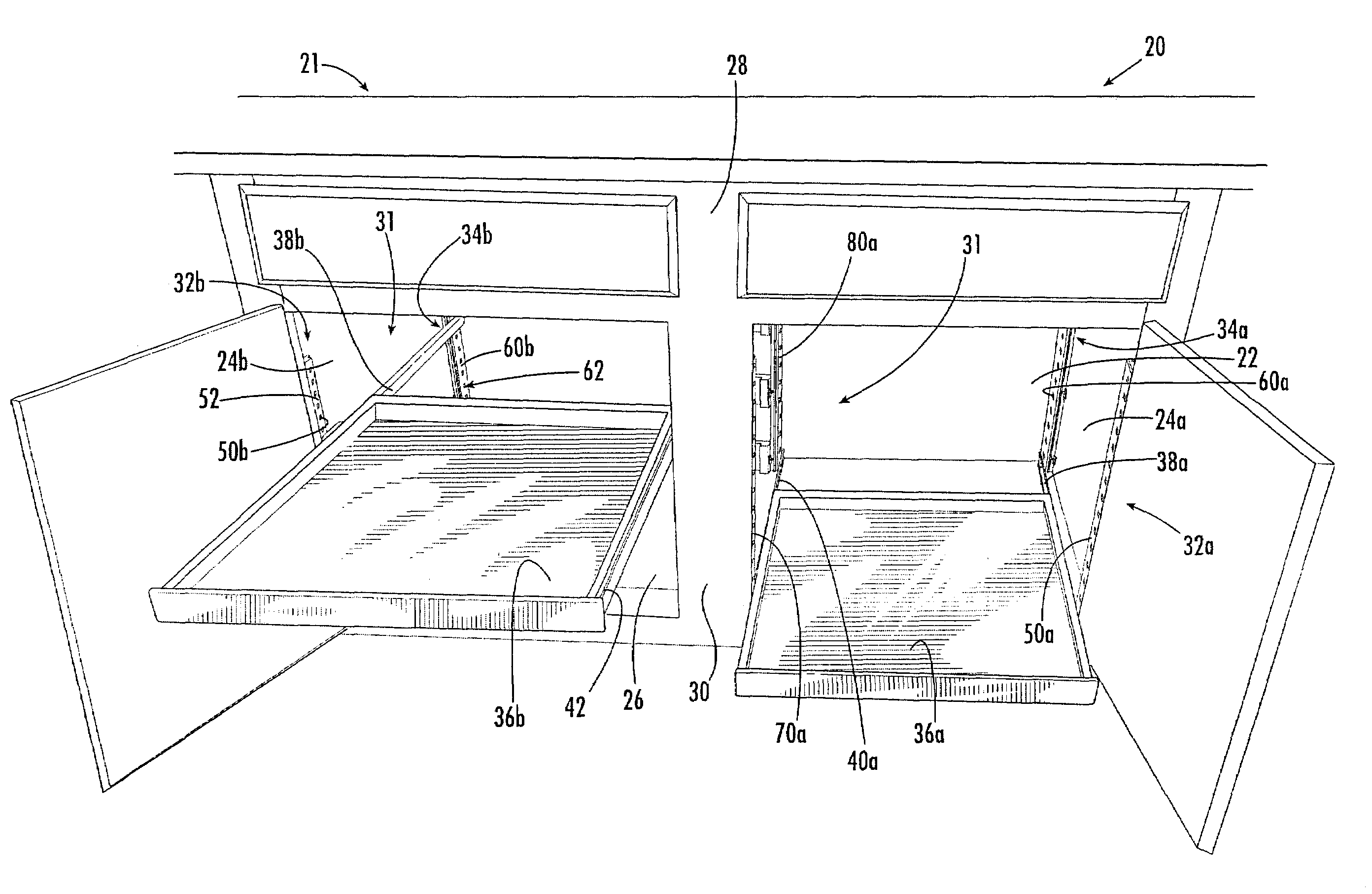

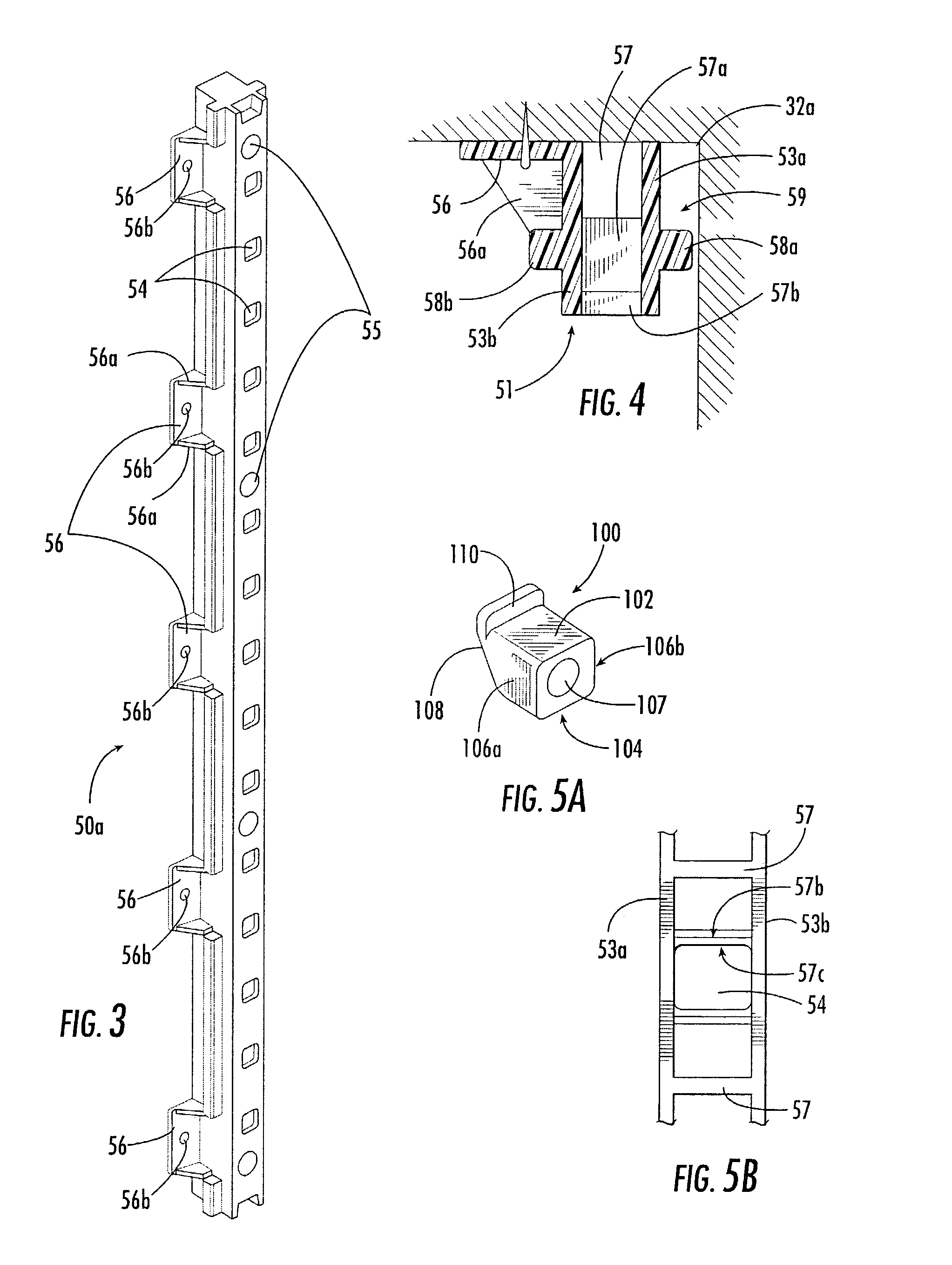

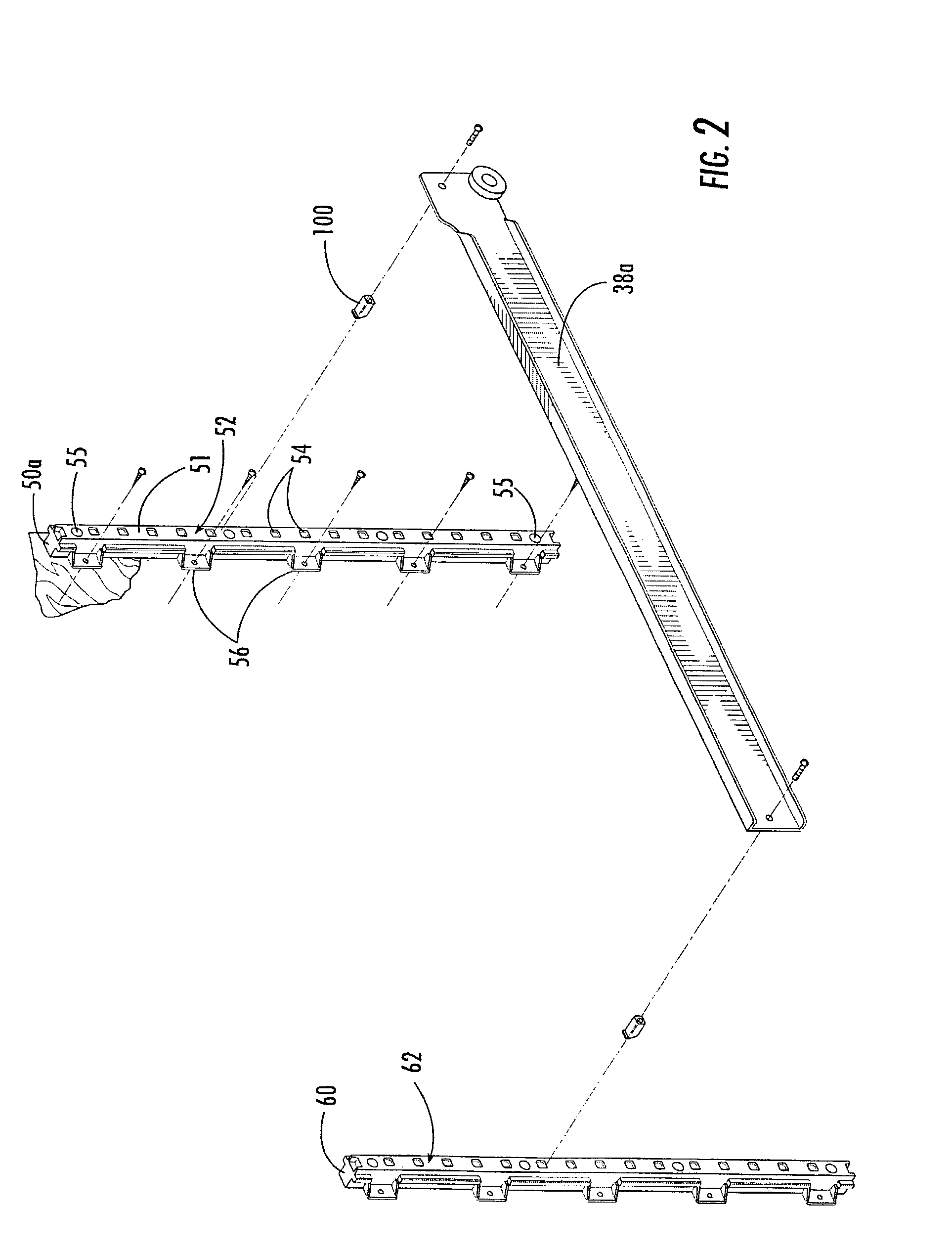

专利附图（8）
