用于盘子和饮料容器的单手支撑架
One-handed support for a plate and a beverage container
US-7543869-B2用于单手同时拿盘子和饮料。
专利摘要
一种用于盘子和饮料容器的单手支撑架，包括水平定向的平行上支撑架和下支撑架，其间附接有垂直的可手抓握的连接构件。下支撑架适于搁置在平面支撑表面上。上支撑架和下支撑架各自具有近似圆形的前部和后部，其间具有狭窄连接部分，连接构件锚定在狭窄连接部分中。上支撑架的尺寸设计为容纳一次性盘子，并包括将盘子固定到位的夹子。后部各自具有限定环形抓握部的孔，其尺寸设计为容纳饮料容器。支撑架包括可移除的饮料容器保持器，其适于以倒置位置保持高脚杯。替代实施方式包括附接到上支撑架的可旋转高脚杯保持器和可旋转辅助盘子支撑架。
Original abstractA one-handed support for a plate and a beverage container includes horizontally oriented parallel upper and lower supports having a vertical hand-grippable connecting member attached therebetween. The lower support is adapted to rest on a planar support surface. The upper and lower supports each having approximately circular front and rear sections with a narrow connecting portion therebetween with the connecting member being anchored in the narrow connecting portions. The upper support is sized to hold a disposable plate and includes a clip to hold the plate in place. The rear sections each have an aperture therein defining annular grips sized to receive a beverage container. The support includes a removable beverage container holder which is adapted to hold stemware in an inverted position. An alternative embodiment includes a rotatable stemware holder attached to the upper support and a rotatable auxiliary plate support.

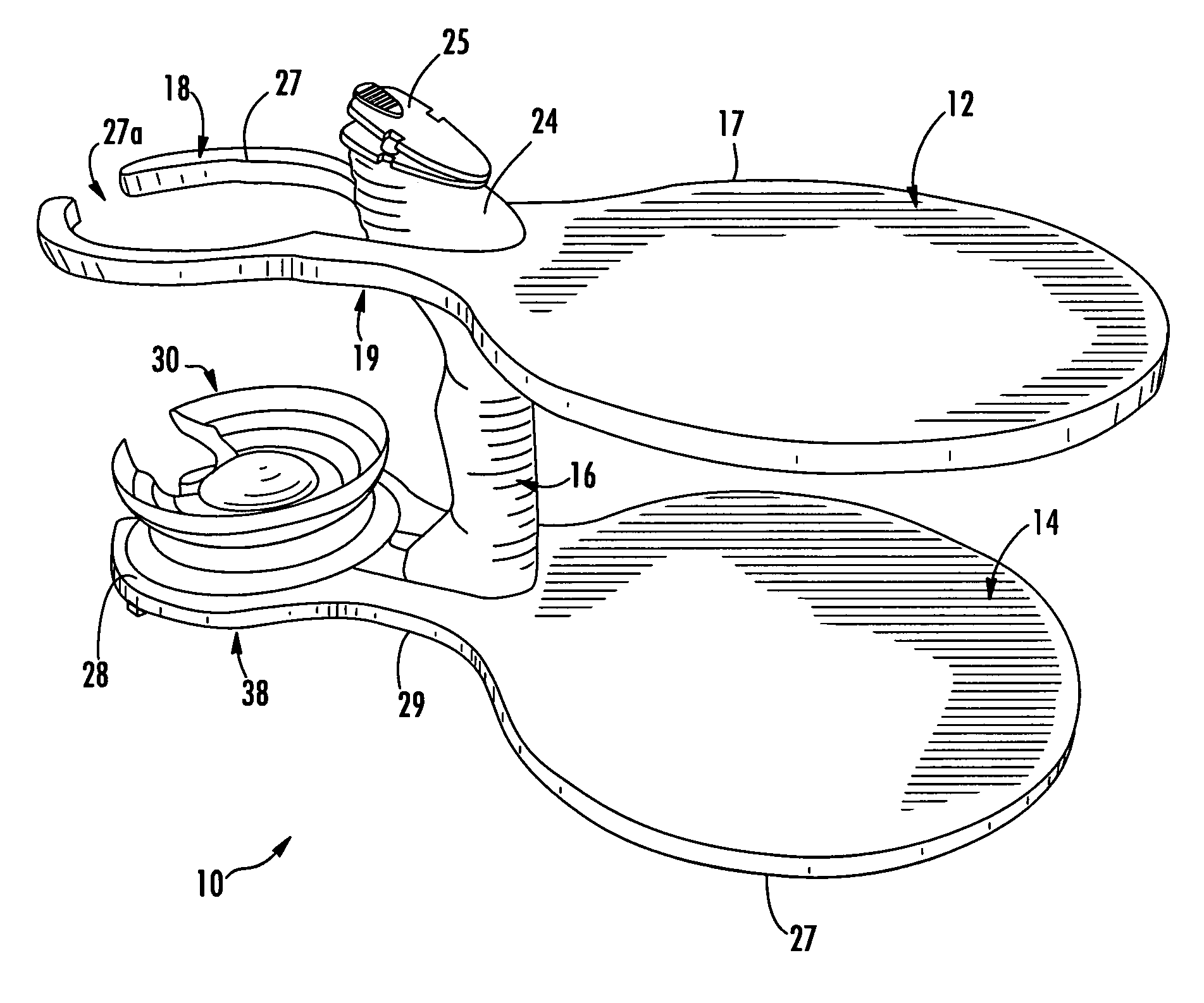

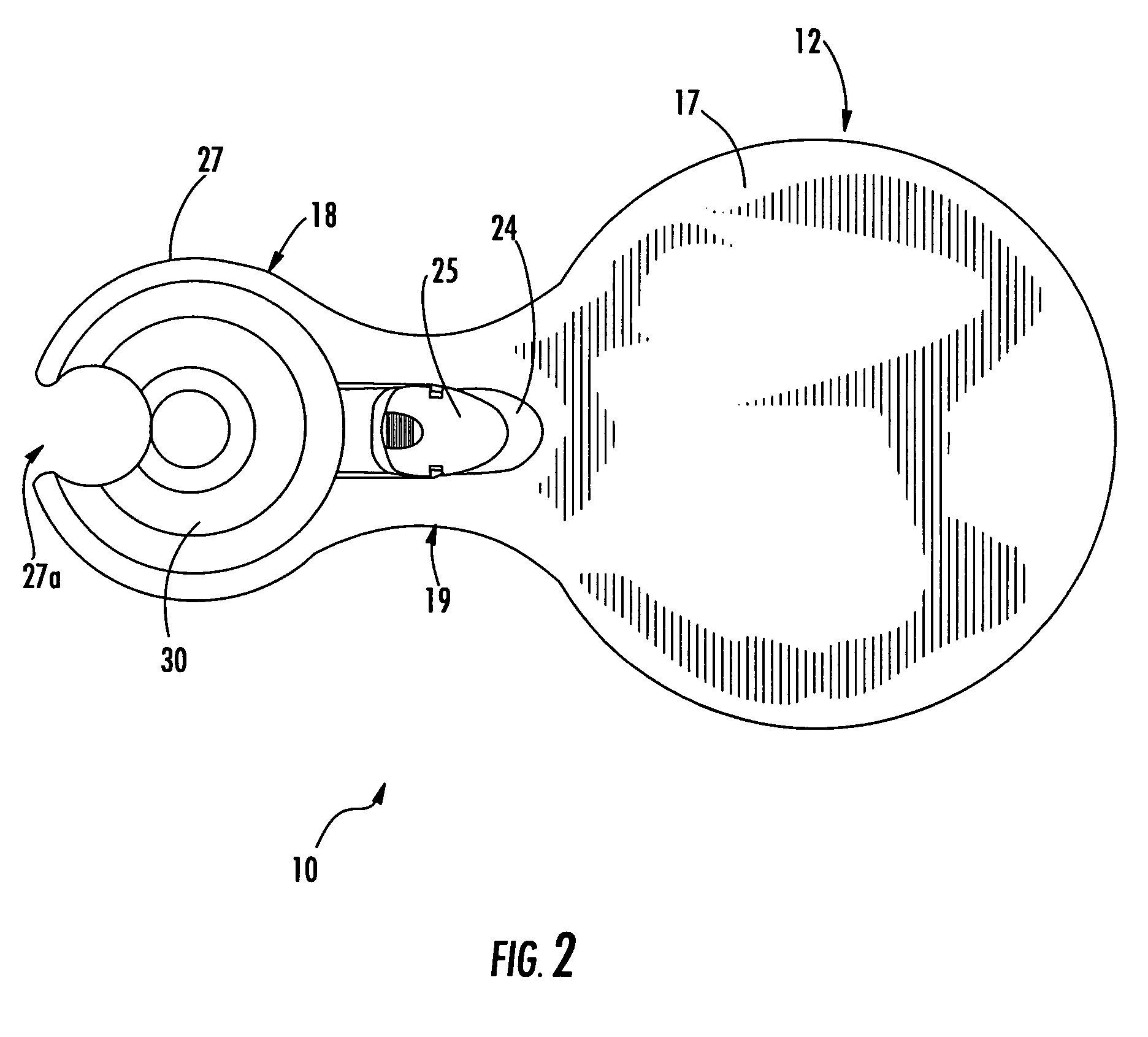

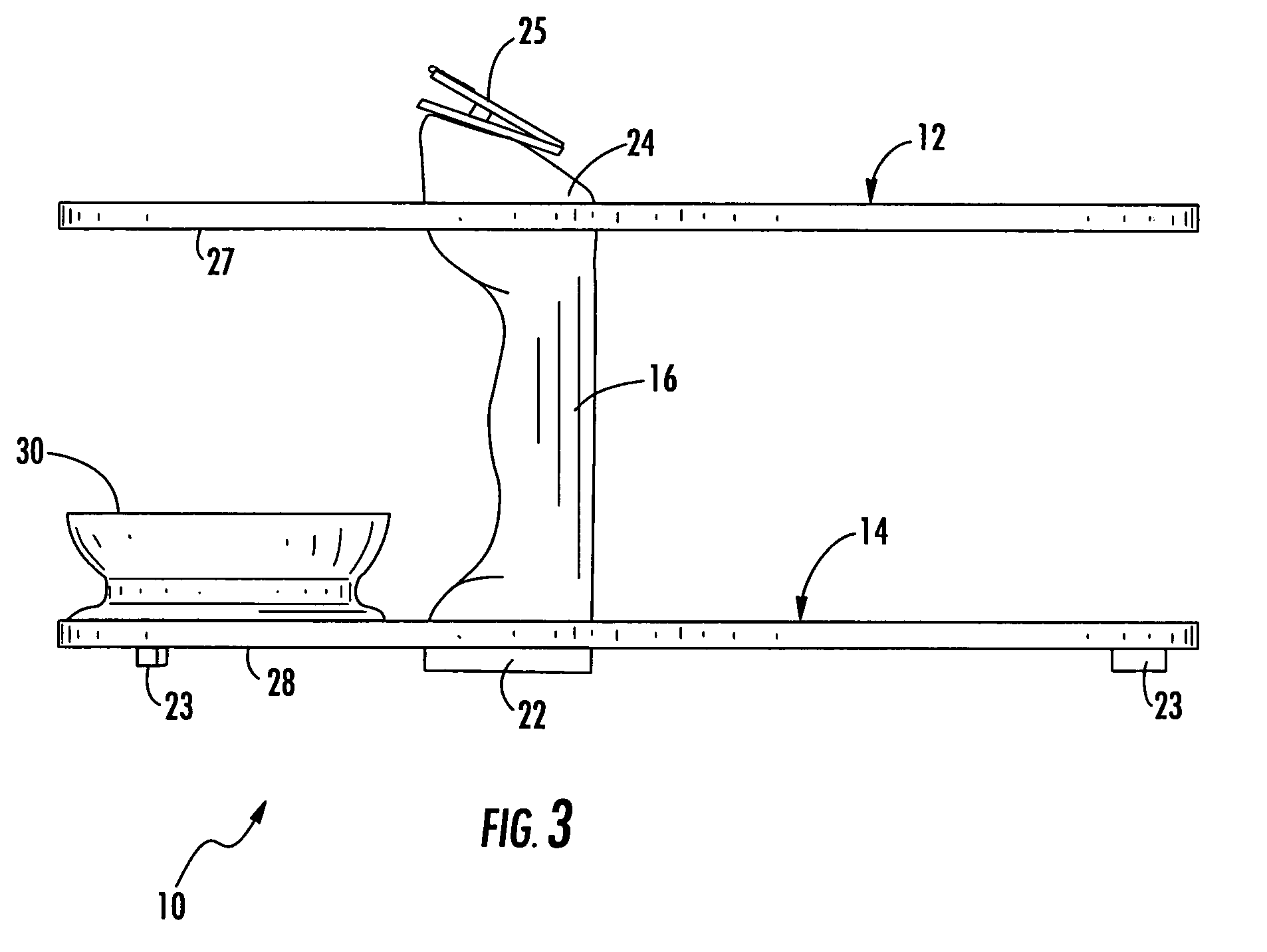

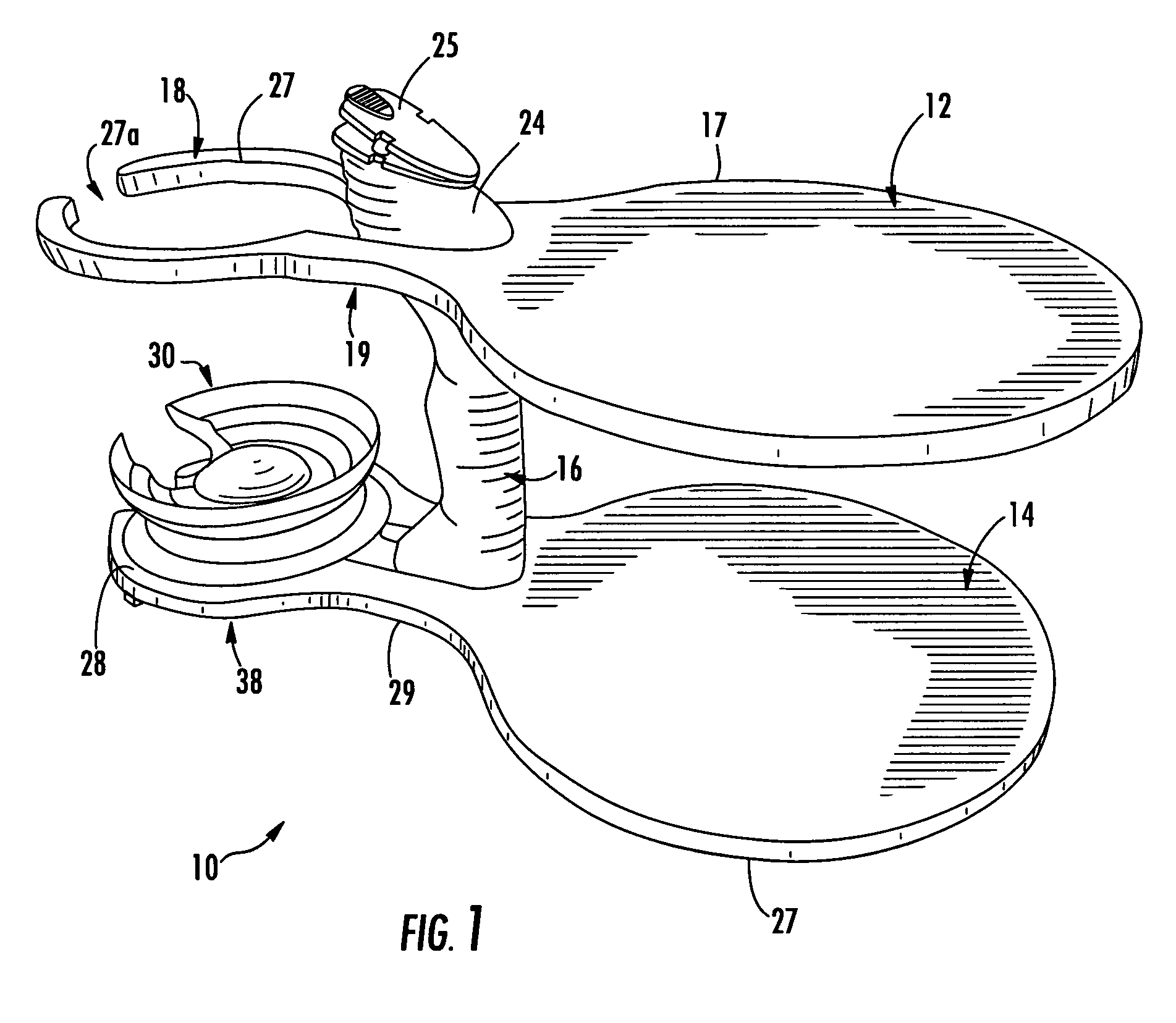

专利附图（8）
