用于在天花板下提供存储空间。
专利摘要

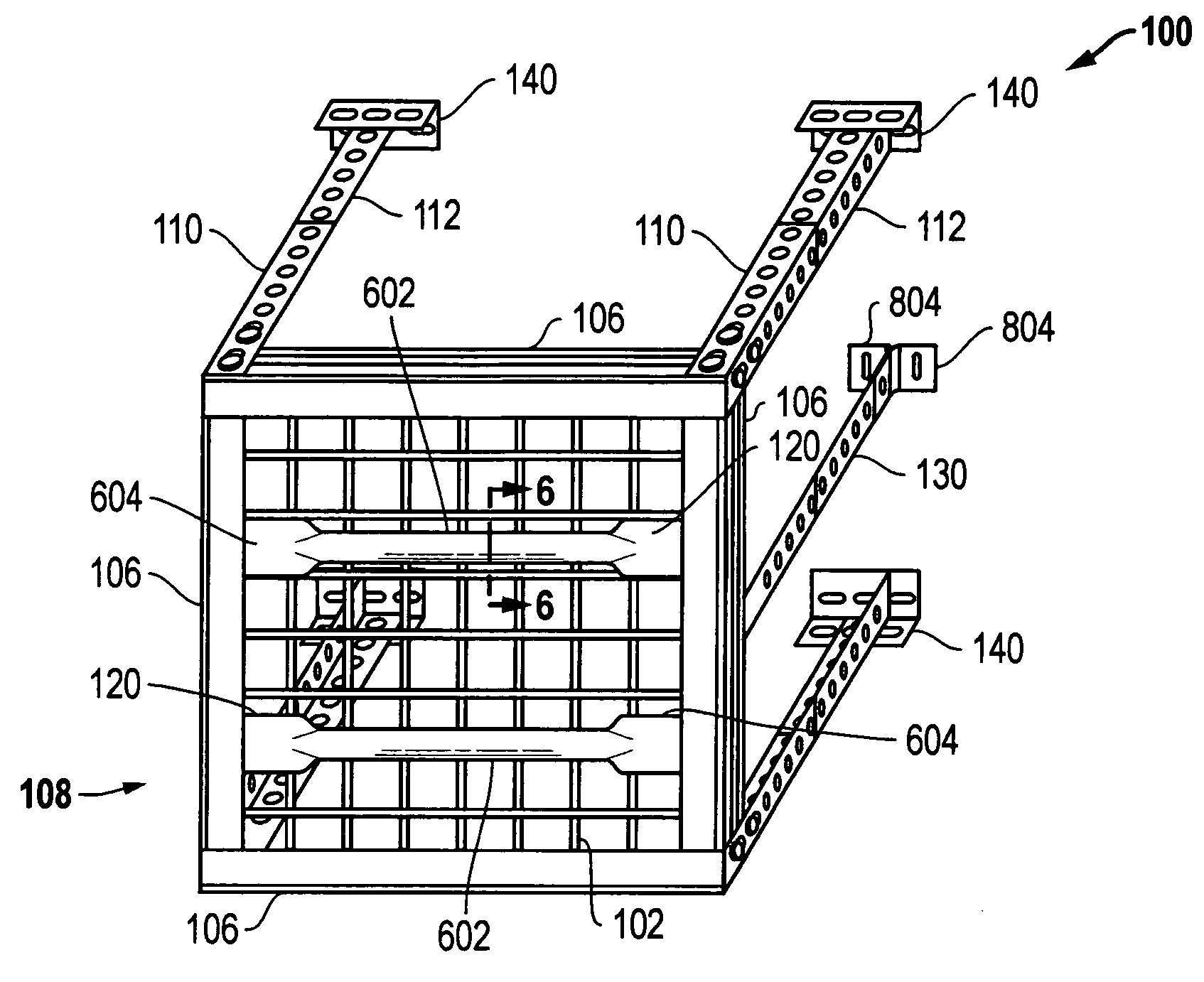

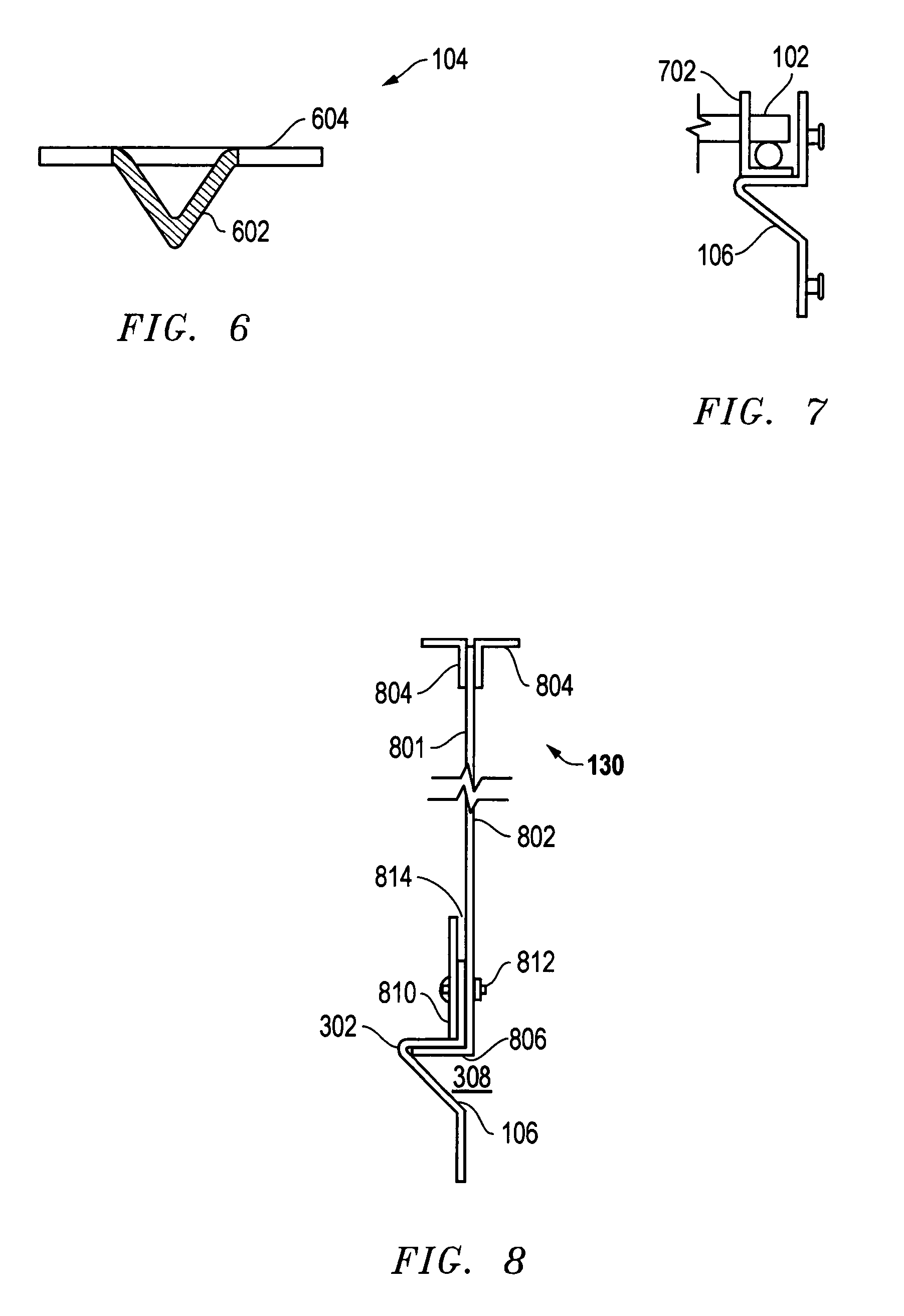

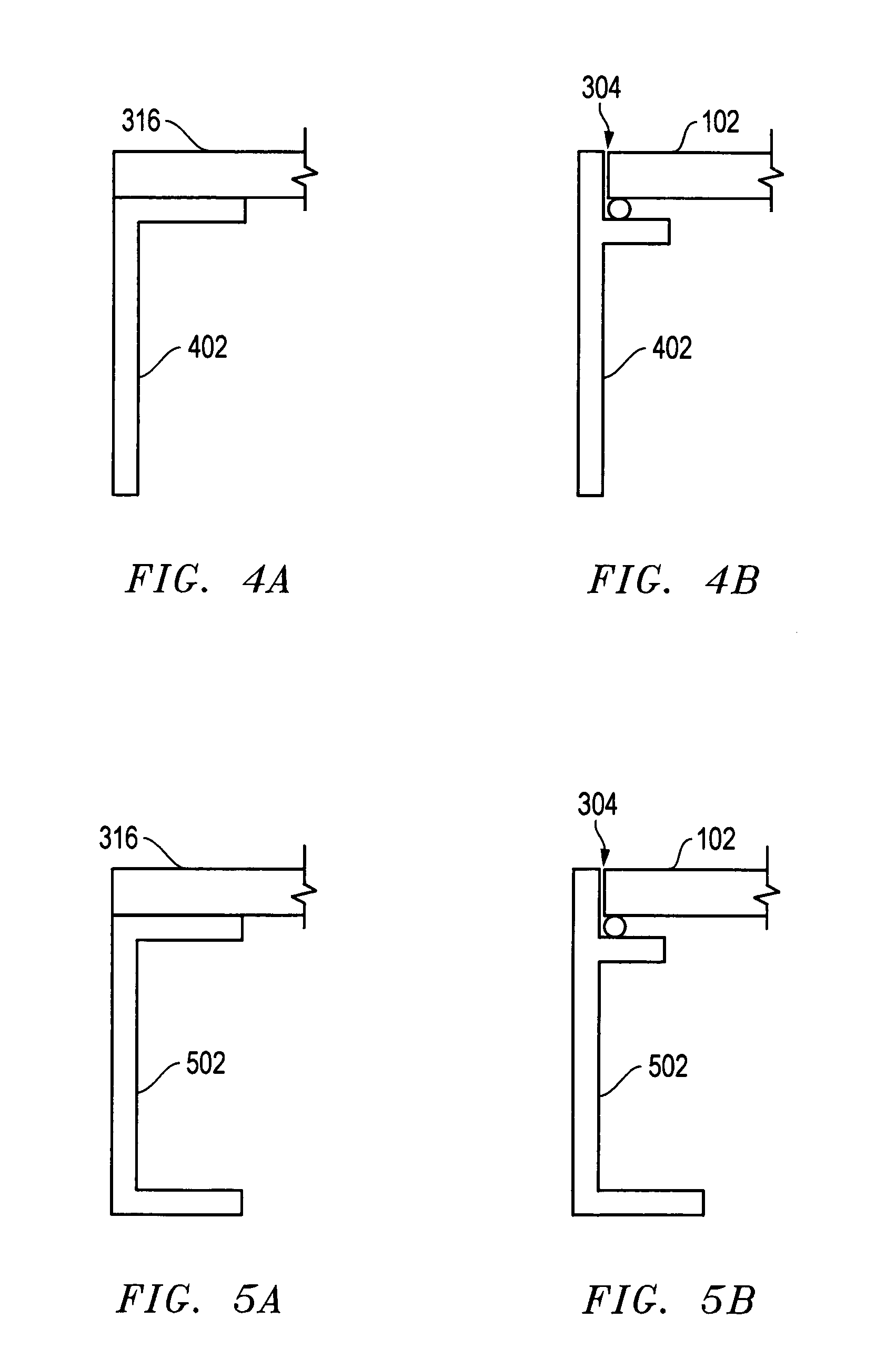

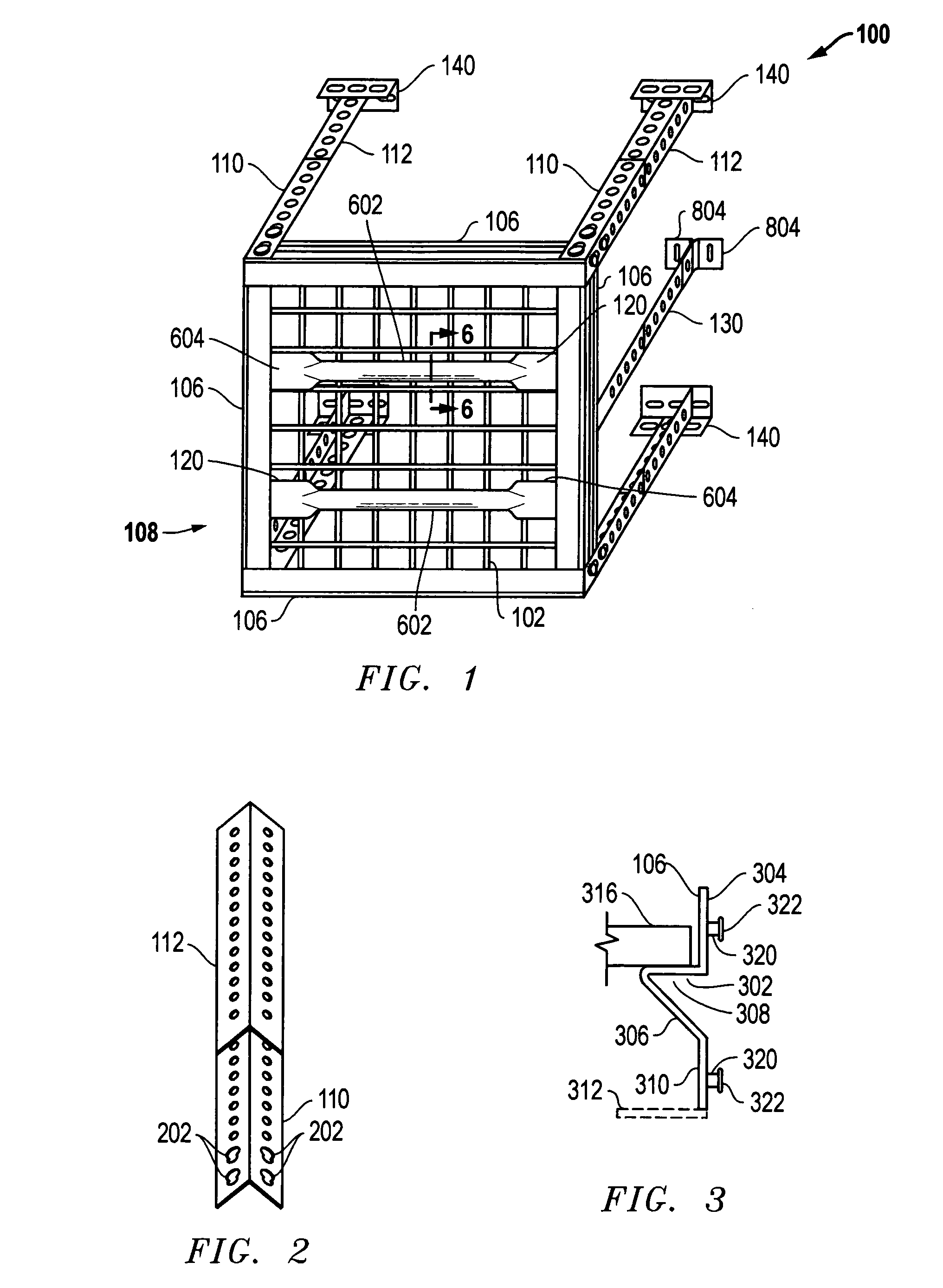

一种头顶存储系统包括支撑梁，形成围绕甲板周边的框架，以及四个角部垂直安装件，用于将甲板悬挂在天花板上。框架优选由Z形梁制成，并由垂直的L形角支撑件支撑，以为甲板提供强有力的支撑。Z形梁提供强度和一个水平表面，甲板可搁置其上。焊接金属丝甲板可通过粘合到肋条上来加固。在一些实施例中，中心支撑件可优选地沿着支撑梁的长度定位在任何位置，并且不需要在梁上打孔进行安装。梁优选地连接到垂直角支架，无需使用螺纹紧固件，从而使得房主更容易组装。
Original abstractAn overhead storage system includes support beams forming a frame to a deck around its perimeter and four corner vertical mounts for suspending the deck from a ceiling. The frame is preferably made of Z-shaped beams supported by vertical L-shaped corner supports to provide strong support for a deck. The Z-shaped beams provide strength and a horizontal surface on which a deck can be rested. A welded wire deck can be strengthened by bonding it to ribs. In some embodiments, center supports can preferably be positioned anywhere along the length of the support beams, and do not require holes in the beams for mounting. The beams are preferably connected to the vertical corner brackets without using threaded fasteners, thereby making the assembly easier for assembly by a homeowner.
专利附图（8）
