用于食品设备的可调节高度货架。
专利摘要

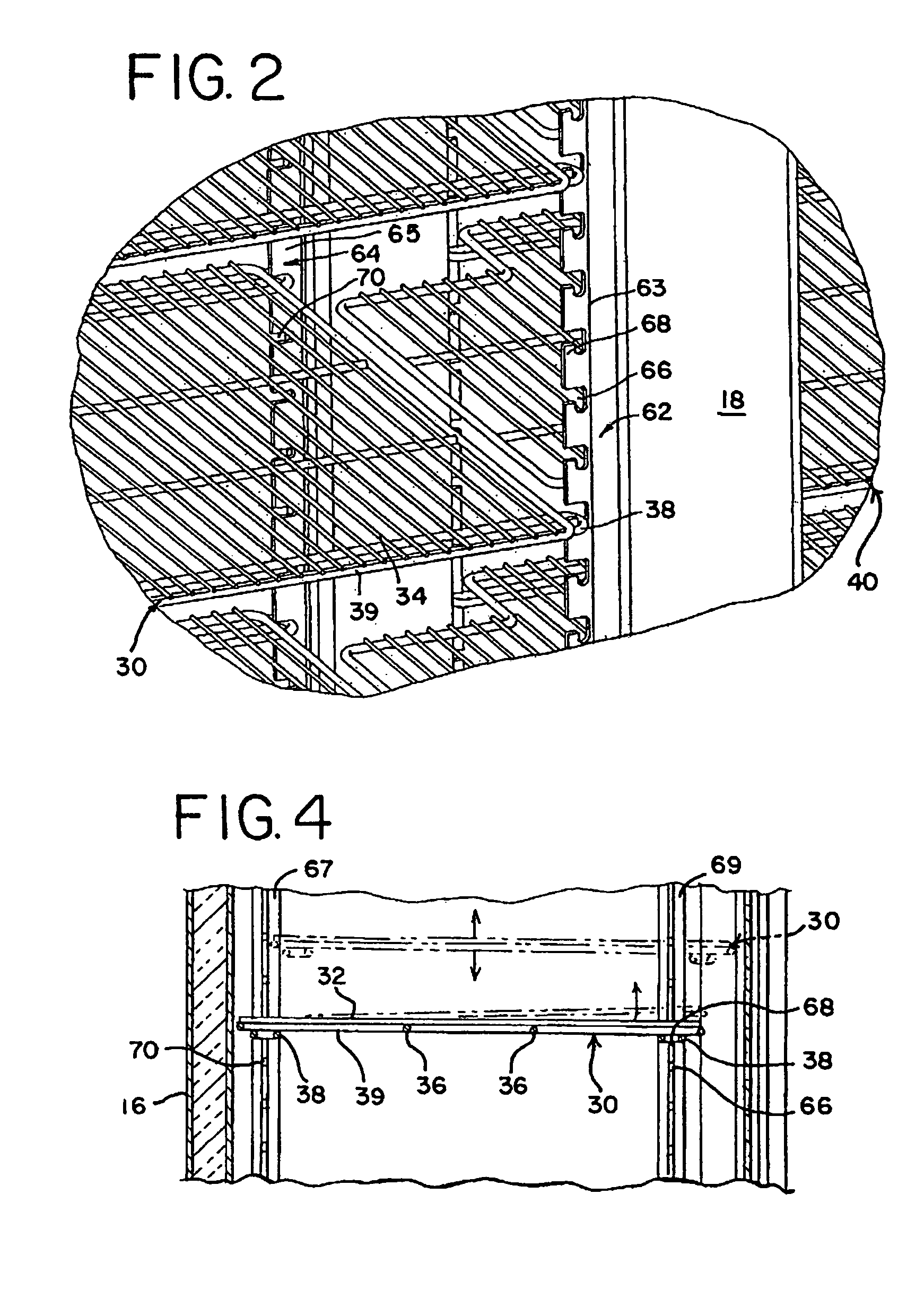

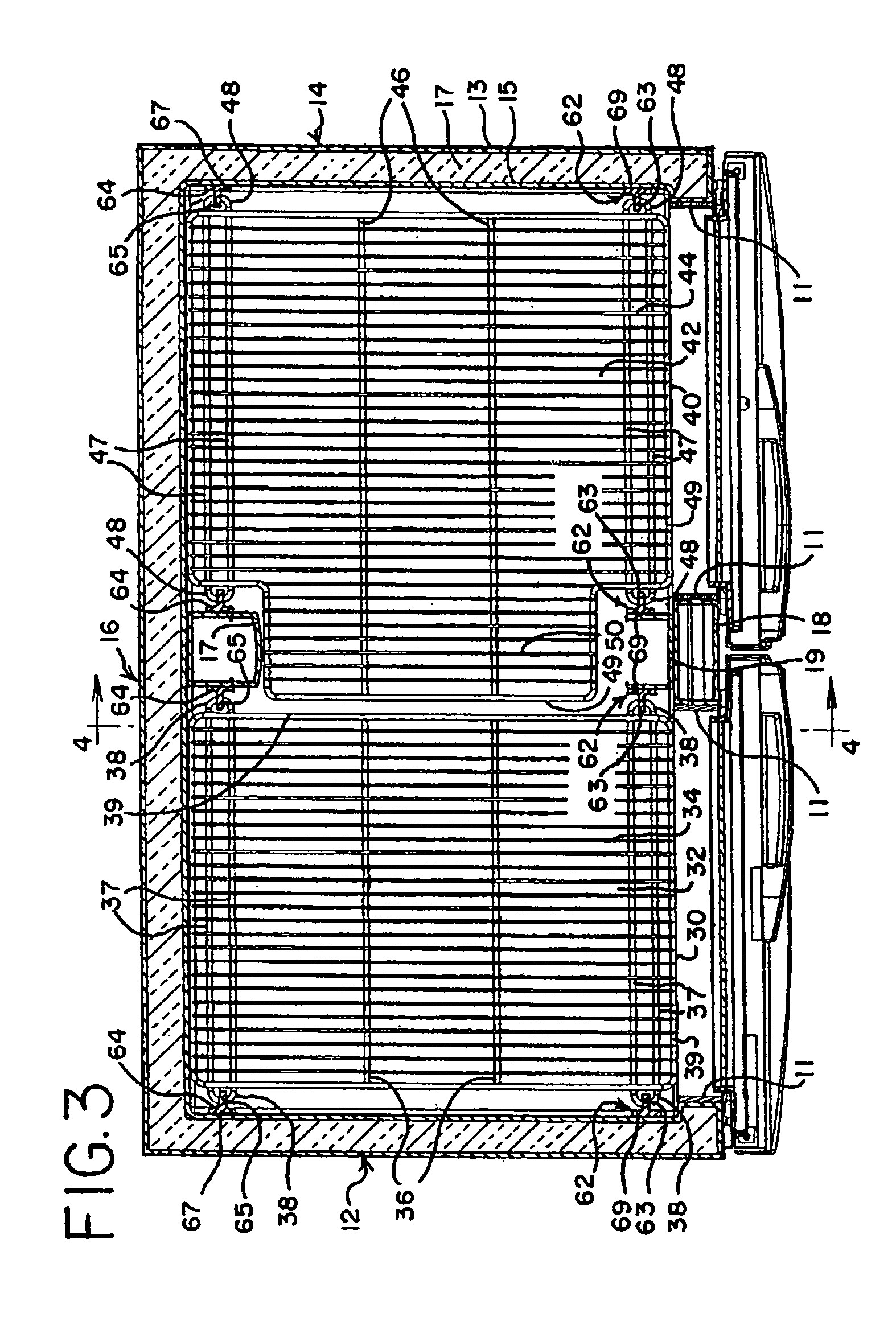

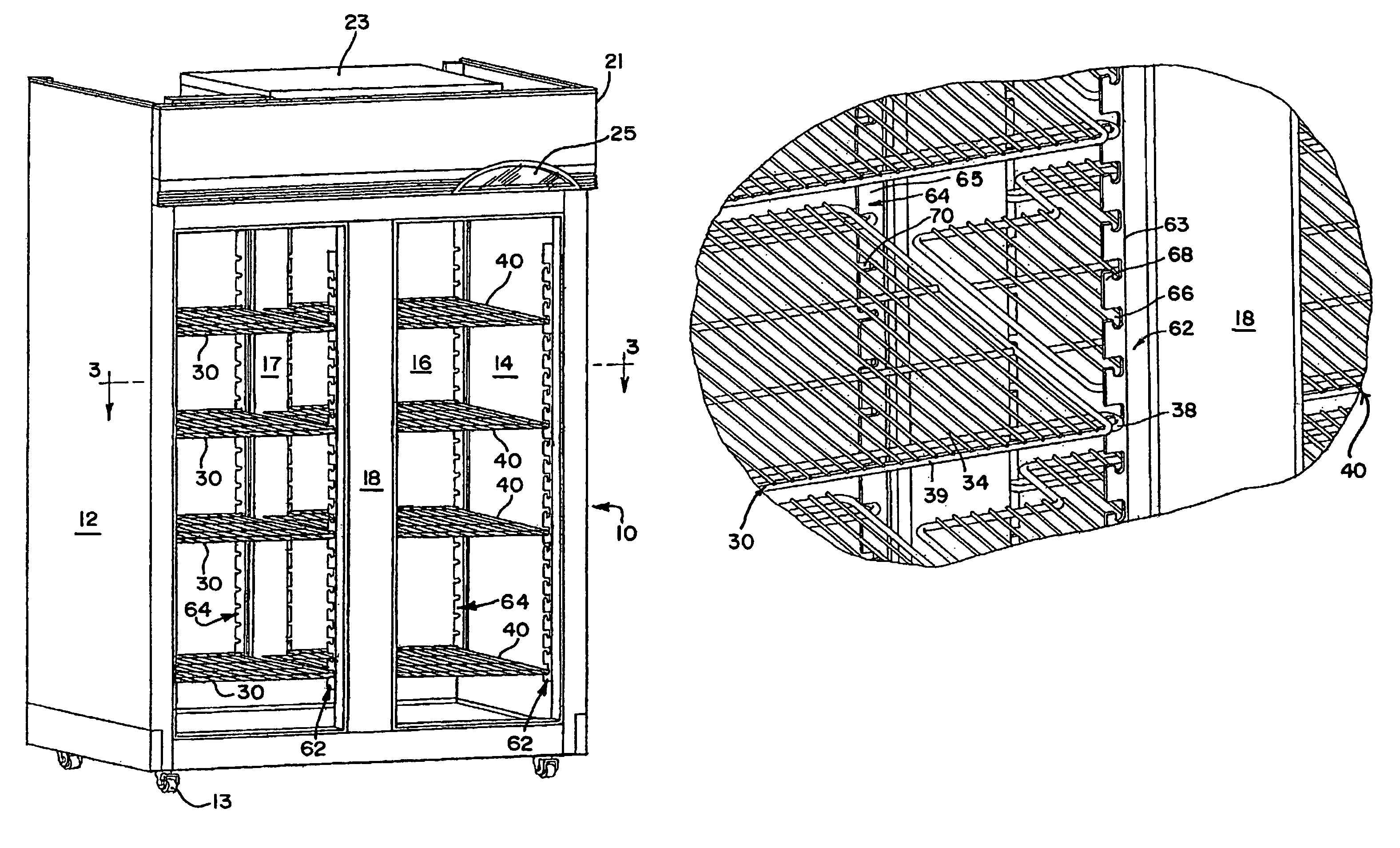

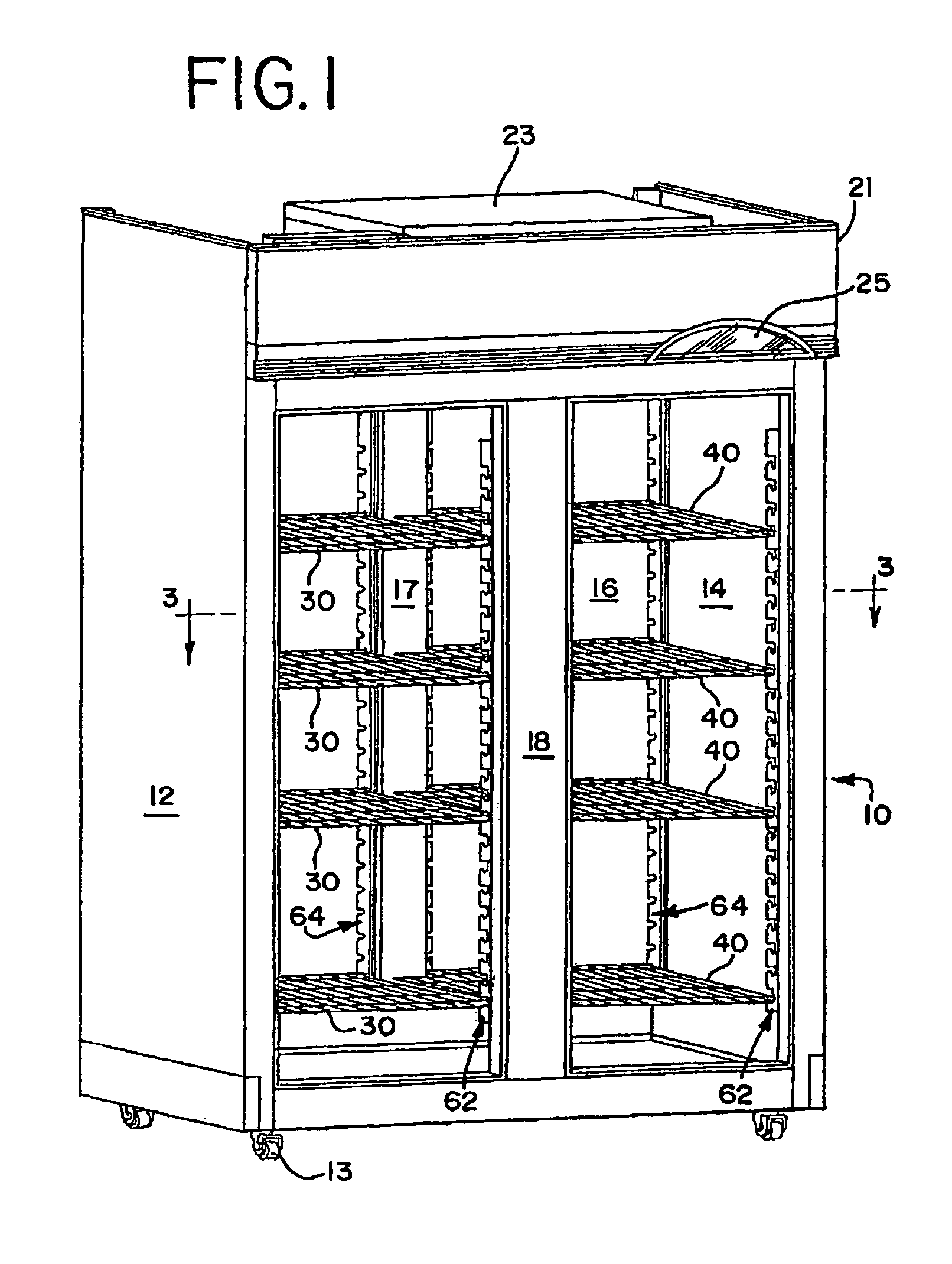

一种用于食品设备的可调节货架系统包括至少两个前支架，每个前支架具有基座和从基座延伸的支撑构件。支撑构件具有外边缘和一系列垂直间隔的凹口。前支架被安装成使得带凹口的支撑表面大致朝向彼此延伸，方向大致平行于与两个前支架相交的垂直平面。货架由前支架支撑，延伸部从货架侧面向外延伸。货架前部可以被抬起，允许货架横向移动到后部不再由后支撑表面支撑且延伸部脱离前支架凹口的位置，从而允许货架在保持水平的同时垂直移动到不同高度。
Original abstractAn adjustable shelf system for food equipment includes at least two front brackets, each having a base and a support member extending from the base. The support member has an outer edge and a series of vertically spaced notches. The front brackets are mounted such that the notched support surfaces extend substantially toward each other in a direction generally parallel with a vertical plane that intersects both of the front brackets. A shelf is supported by the front brackets, with extensions extending outwardly from the sides of the shelf. The front of the shelf can be lifted, allowing the shelf to be moved laterally to a position in which the back of the shelf is no longer supported by back support surfaces and the extensions are clear of the notches in the front brackets, thereby allowing the shelf to be moved vertically to a different height while being held horizontal.
专利附图（8）
