用于保护地板并固定家具腿。
专利摘要
一种家具脚垫，可安装在家具腿的脚上。该脚垫围绕一个脚垫基座构建，基座具有内部部分和脚支撑表面。多个弹簧指定位在脚垫基座上，具有连接端和远端。远端沿向内方向朝向脚垫基座的内部部分延伸。远端还沿向外方向远离脚支撑表面延伸。每个弹簧指远端附近定位的头部使得当脚向脚支撑表面移动时，弹簧指接收向外膨胀力。弹簧指定位为当脚接触脚支撑表面时沿向内方向朝向脚垫基座的内部部分移动，以将脚锁定到家具脚垫。
Original abstractA furniture glide is mountable on the foot of a furniture leg. The glide is constructed around a glide base having an inner portion and foot support surface. A plurality of spring fingers positioned on the glide base have attached and distal ends. The distal ends extend in an inward direction toward the inner portion of the glide base. The distal ends also extend in an outward direction away from the foot support surface. The positioning of heads at about the distal end of each spring finger allows the spring fingers to receive an outward expansion force when the foot is moved toward the foot support surface. The spring fingers are positioned to move in an inward direction toward the inner portion of the glide base to lock the foot to the furniture glide when the foot contacts the foot support surface.

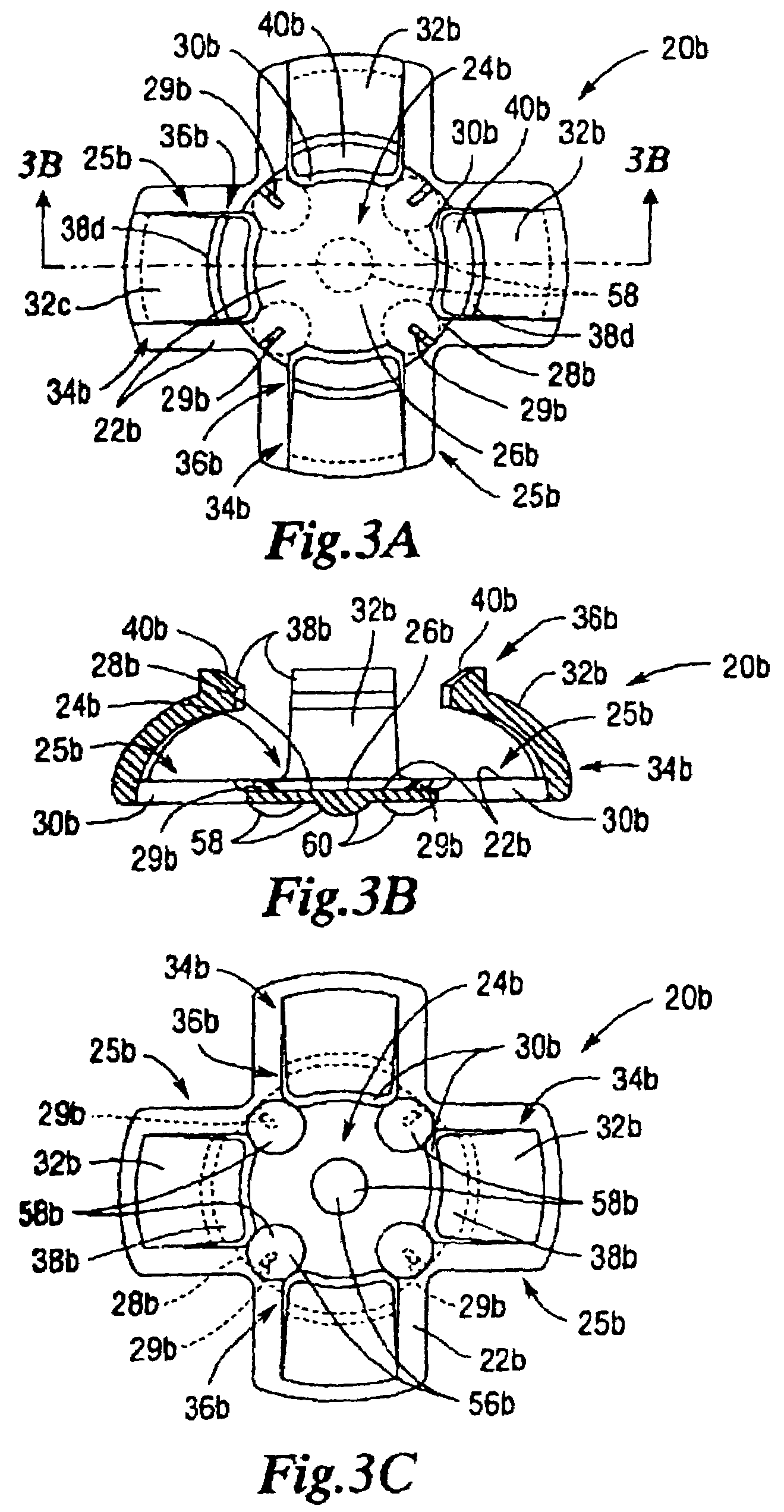

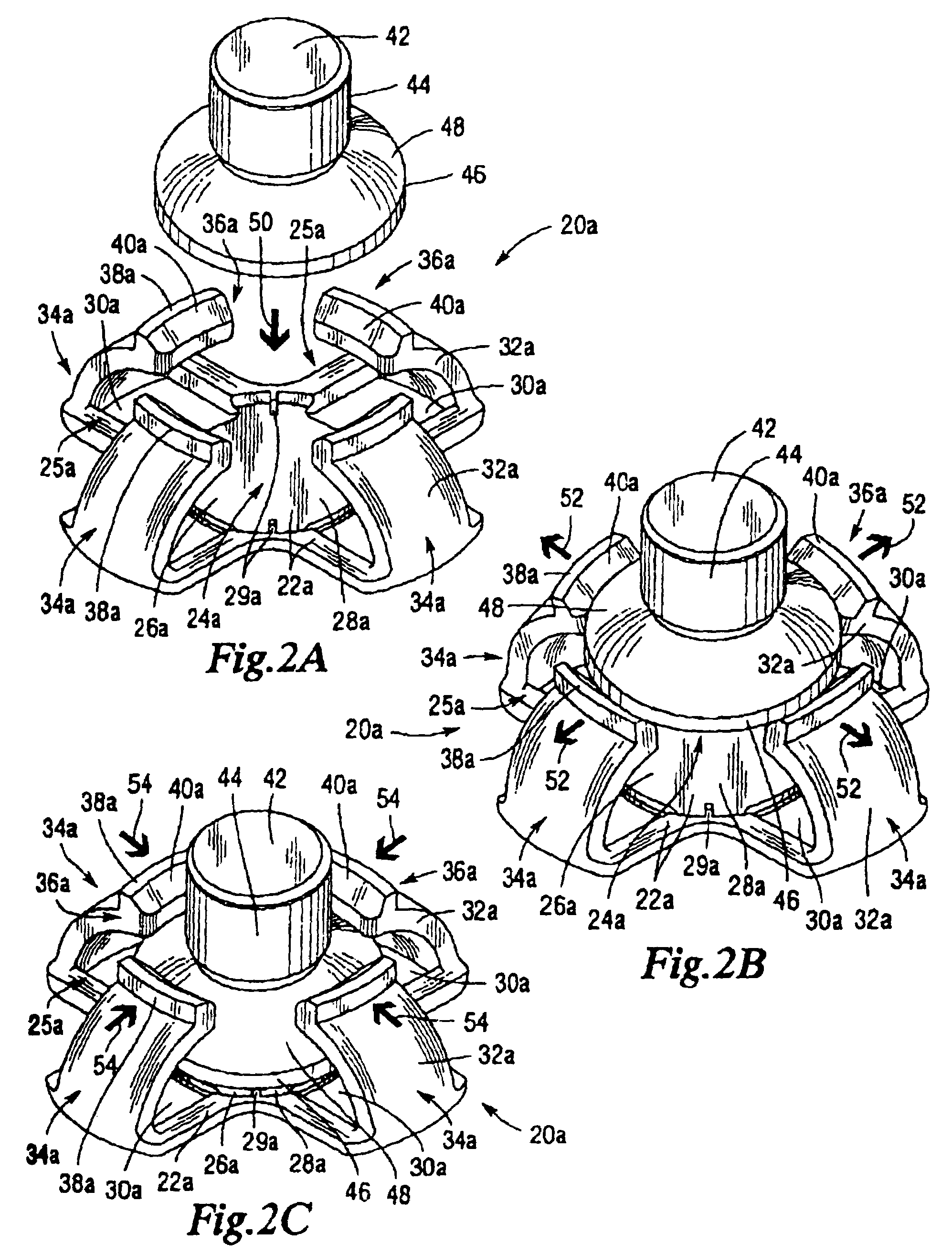

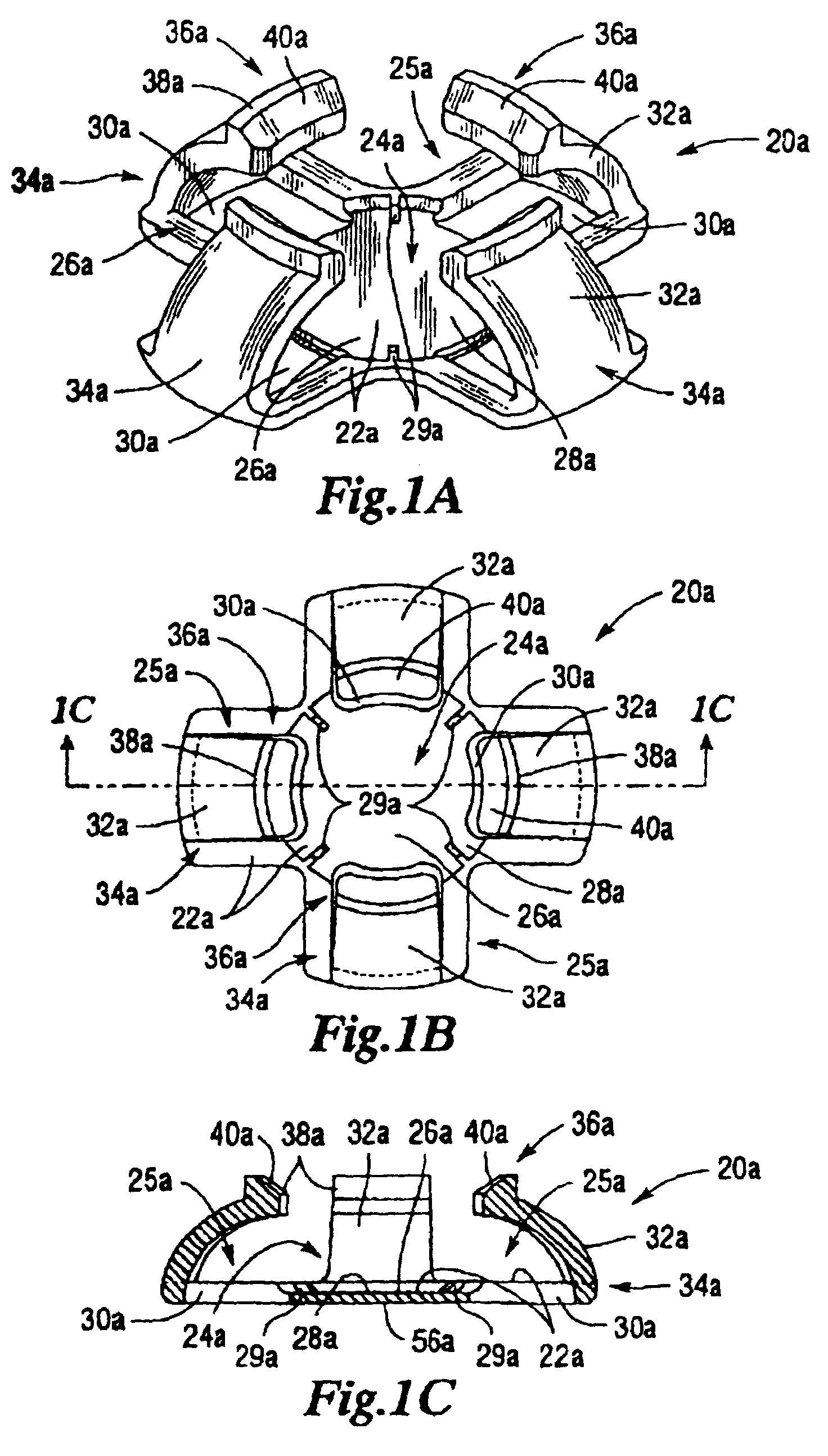

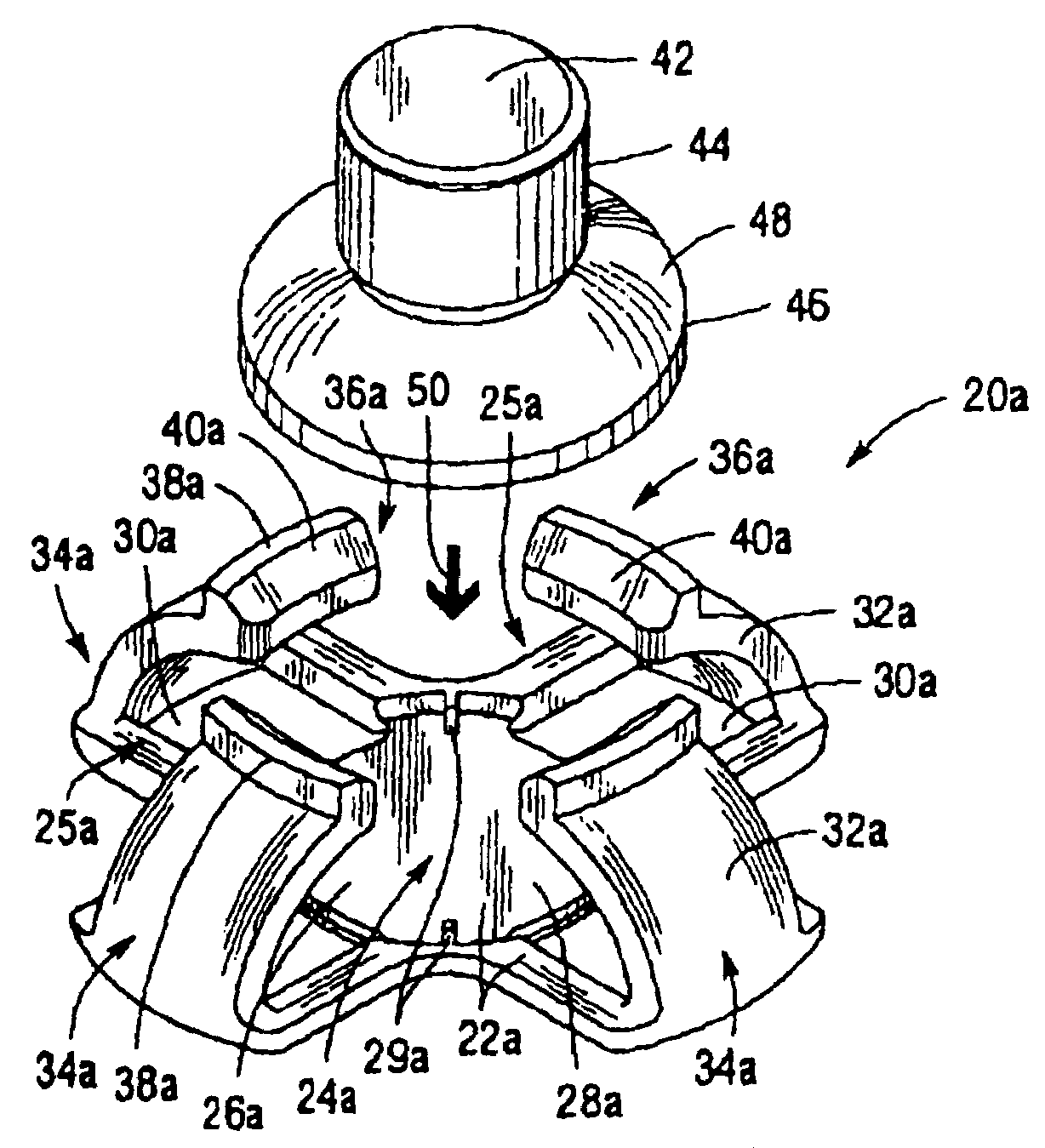

专利附图（8）
