用于可调节的存储货架。
专利摘要
存储货架包括至少两个基础元件，每个基础元件由基本上水平的基座支撑件和若干存储格栅组成，存储格栅的侧轨基本上垂直布置，格栅条基本上垂直于侧轨延伸。存储格栅可围绕轨的纵向轴线或平行于轨的轴线在不同角度位置移动，并且两个或更多个基础元件刚性且可拆卸地互连。每个基座支撑件上相邻设置有至少两个具有侧轨的存储格栅，并且所有侧轨都固定到从基座支撑件基本垂直突出的杆上，或者一个侧轨固定到基座支撑件，第二个或额外的侧轨固定到第一个侧轨。
Original abstractStorage shelving includes at least two base elements consisting of an essentially horizontal base support and several storage grilles, whose side rails are arranged substantially vertically and whose grille bars run substantially perpendicular to the side rails. The storage grilles can be displaced about the longitudinal axis of the rails or about an axis lying parallel to the rails in different angular positions and the two or more base elements are rigidly and detachably interconnected. At least two storage grilles having side rails adjoin one another on each base support and either both or all side rails are fixed to a rod that projects essentially vertically from the base support, or one side rail is fixed to the base support and the second or additional side rail(s) is/are fixed to the first side rail.

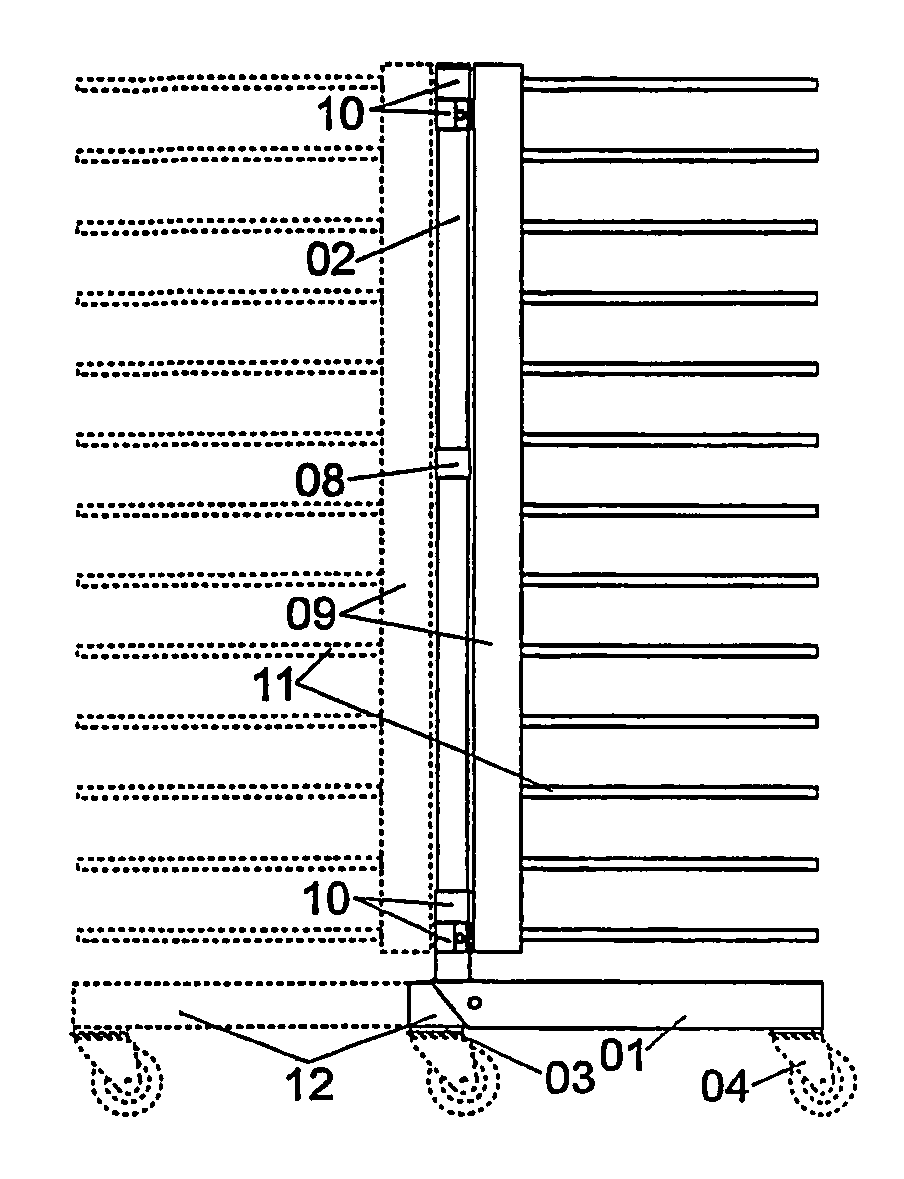

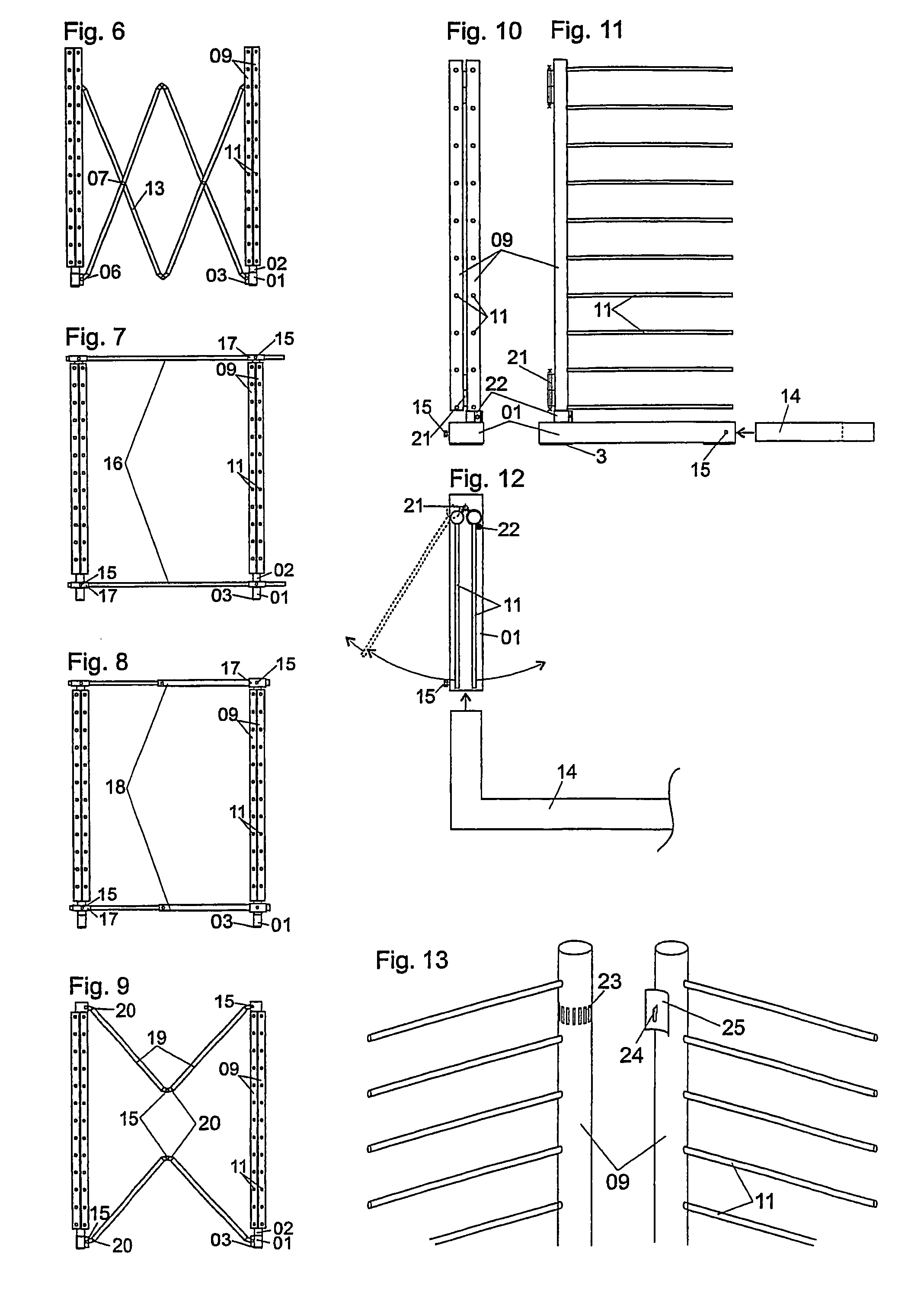

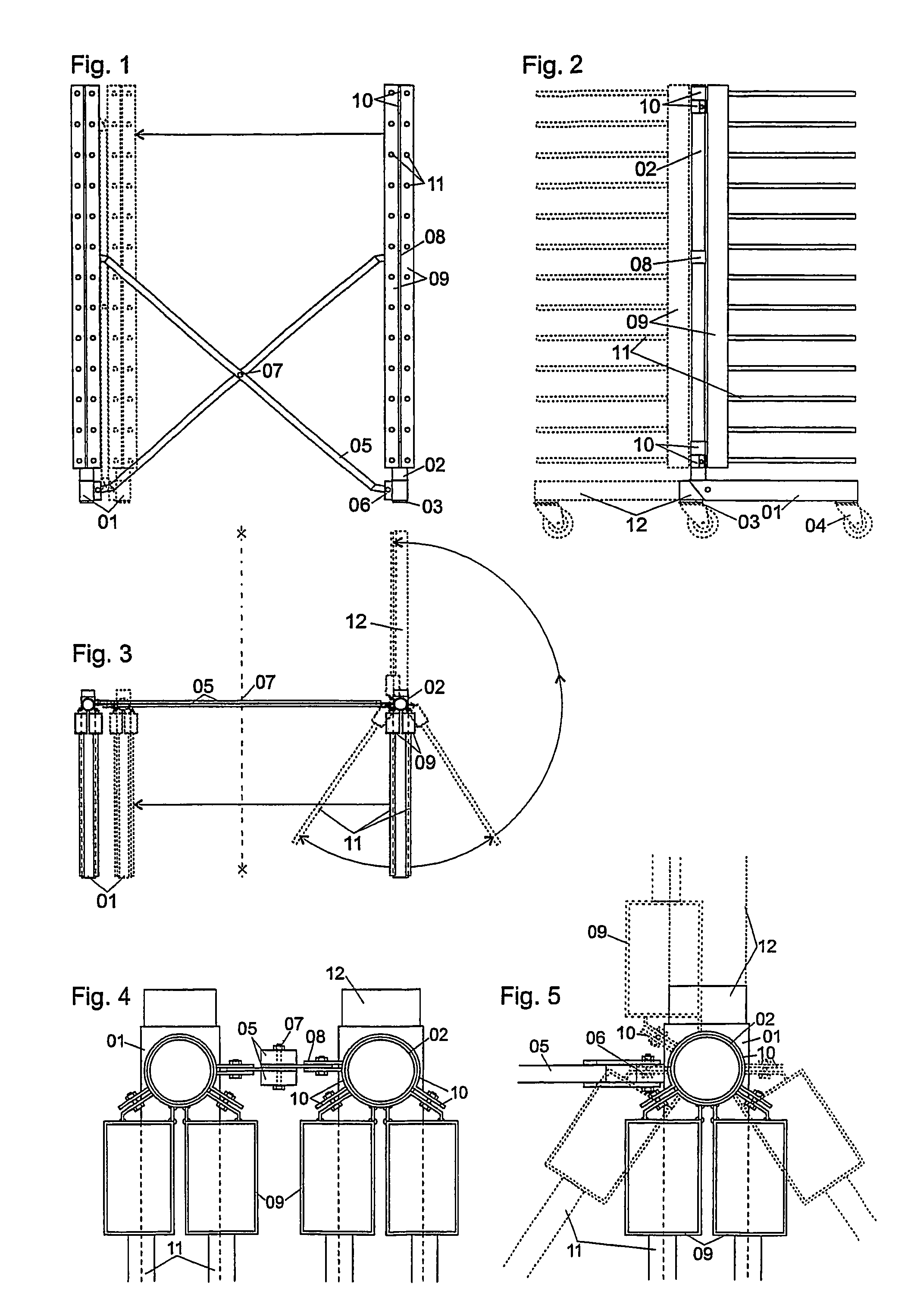

专利附图（6）
