一种可收集溢出液体的防洒饮用杯。
专利摘要
一种饮用装置。该饮用装置包括用于容纳液体的流体容器，还包括附接的底座单元，其设计用于收集来自流体容器的任何溢出液体。底座单元的顶部边缘是弯曲的，其最高点邻近附接的提手，最低点与提手相对。在流体容器和底座单元之间定位有一对滑动面板，其安装在多个凹槽内。在液体已被倒入但尚未饮用之前，滑动面板用于覆盖流体容器和底座单元之间的区域，使得在个人饮用流体容器内的流体时，已经进入底座单元内的流体储器中的任何溢出液体不会离开流体储器。
Original abstractA drinking apparatus. The drinking apparatus includes a fluid container for containment of liquid and also includes an attached base unit that is designed to collect any overflow of liquid from the fluid container. The top rim of the base unit is curved, having its highest point adjacent to an attached handle and the lowest point opposite the handle. Between the fluid container and the base unit is located a pair of sliding panels that are mounted within a number of grooves. After liquid has been poured but before it is to be drunk, the sliding panels are used to cover the area in between the fluid container and the base unit so that any spilled liquid that has already entered into a fluid reservoir within the base unit will not exit the fluid reservoir while the fluid within the fluid container is being drunk by an individual.

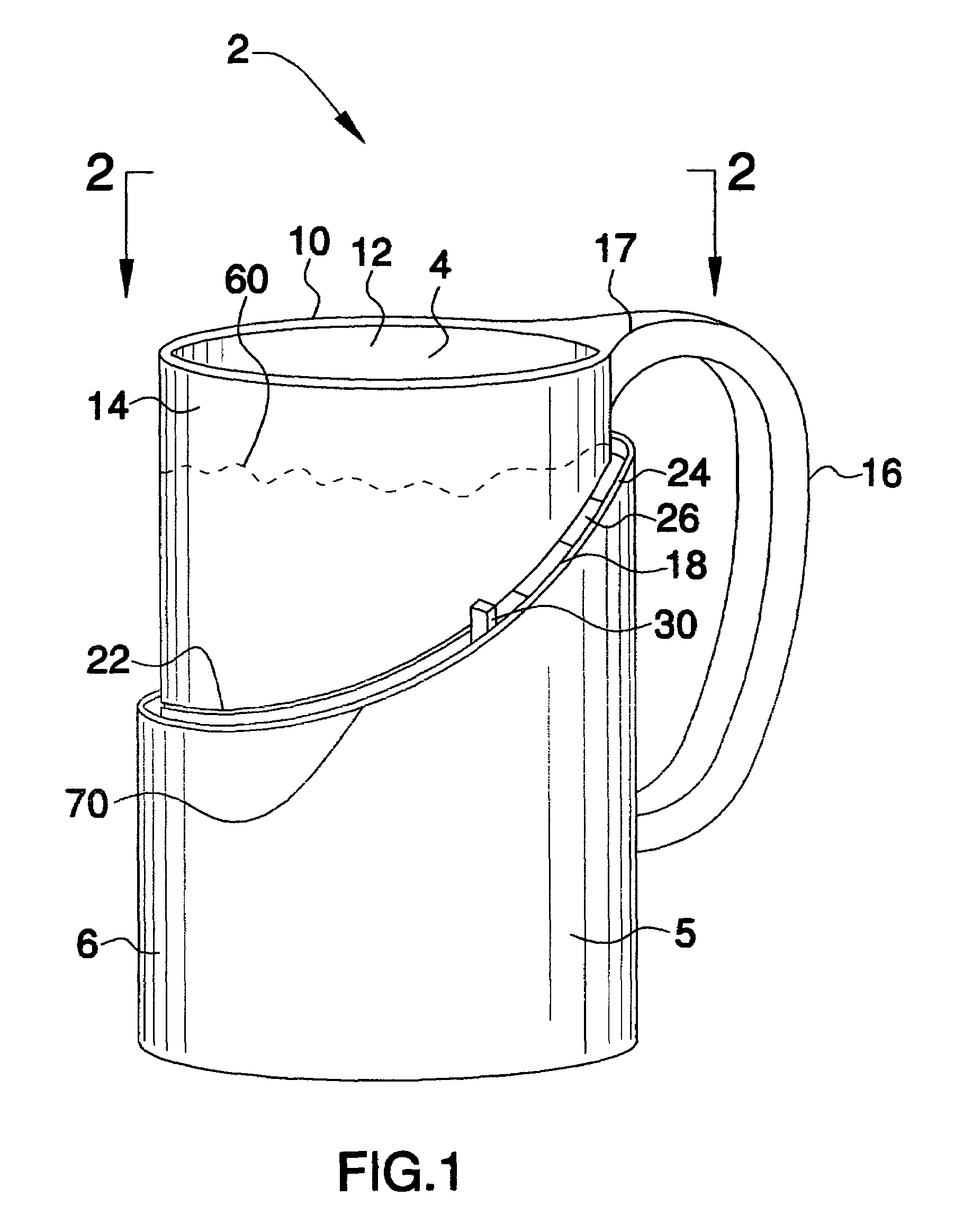

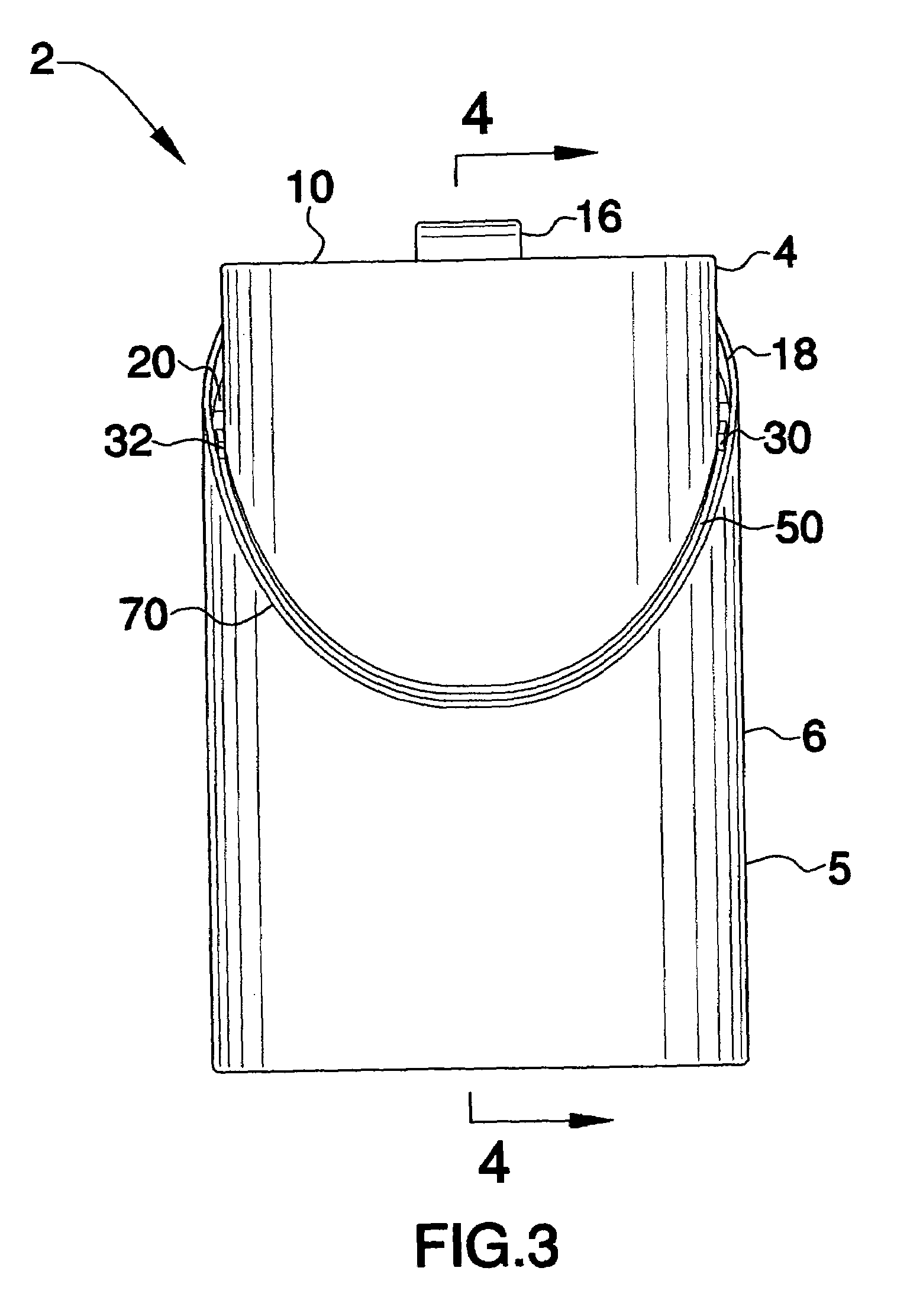

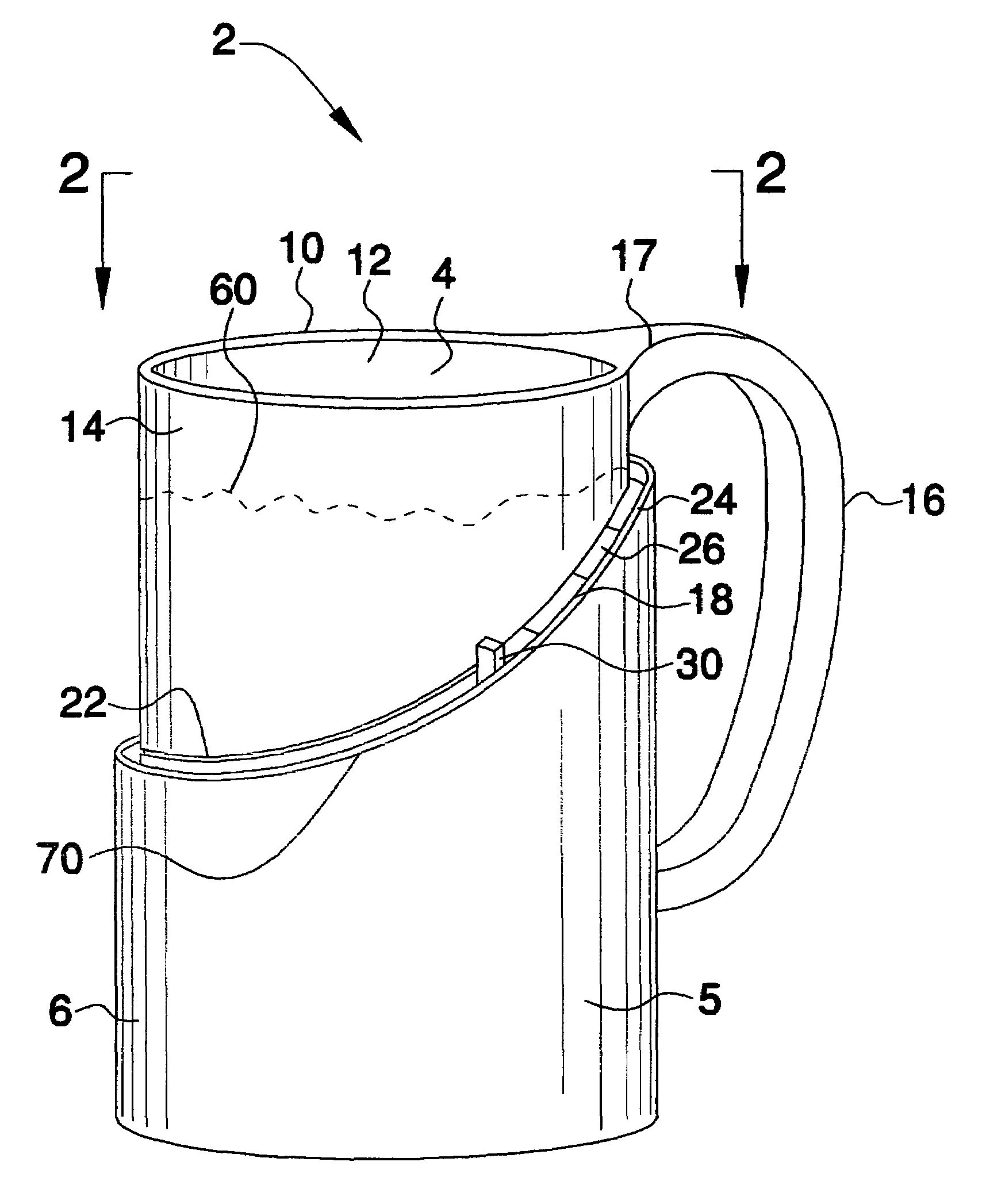

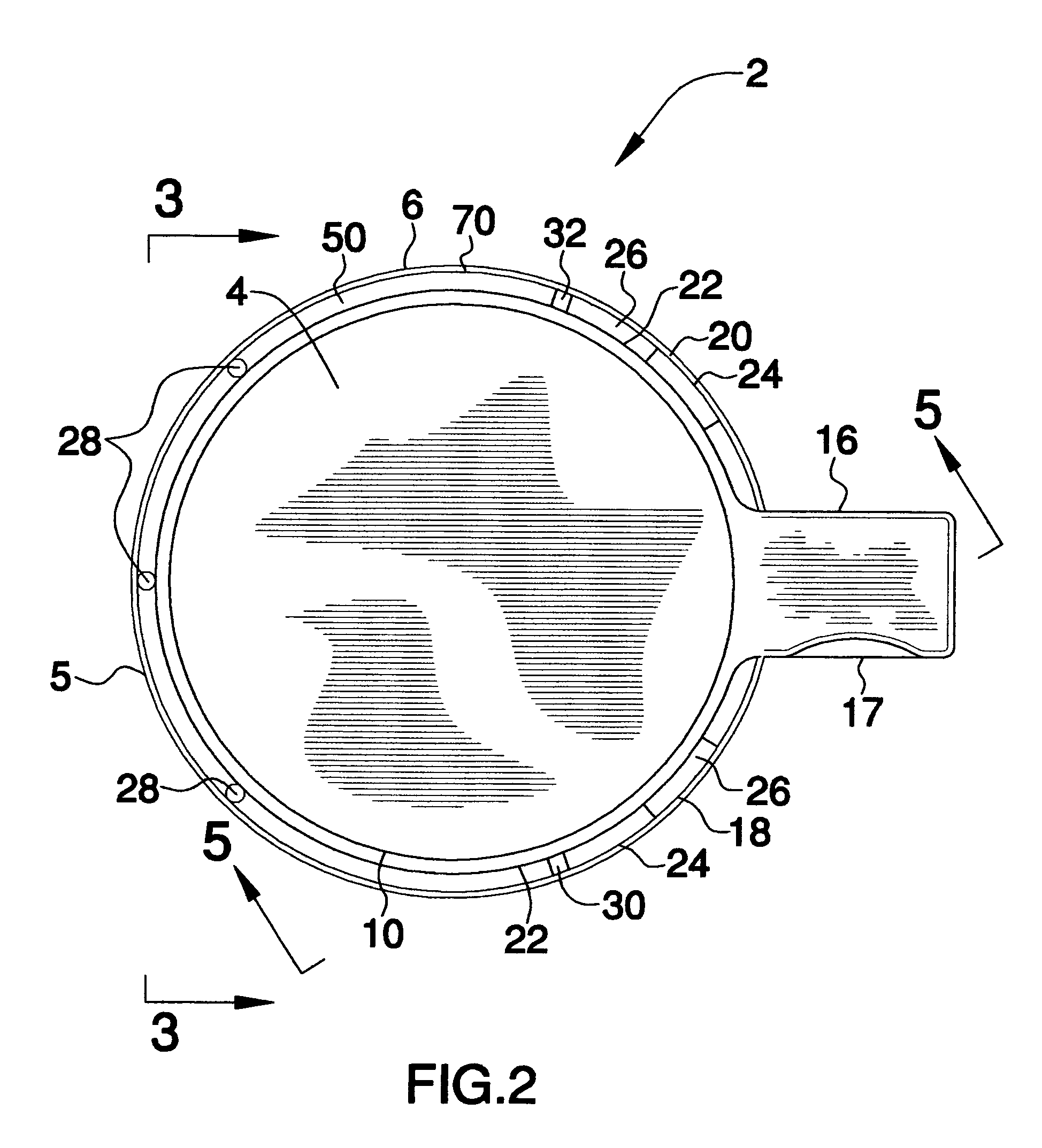

专利附图（8）
