信息库卫浴用品便携式一次性排尿捕获装置系统及其使用方法
来源记录显示 Expired

便携式一次性排尿捕获装置系统及其使用方法

Portable disposable urination capture device system and method of using

US-7530121-B2

用于便携式收集尿液,适合旅行或应急使用。

专利摘要

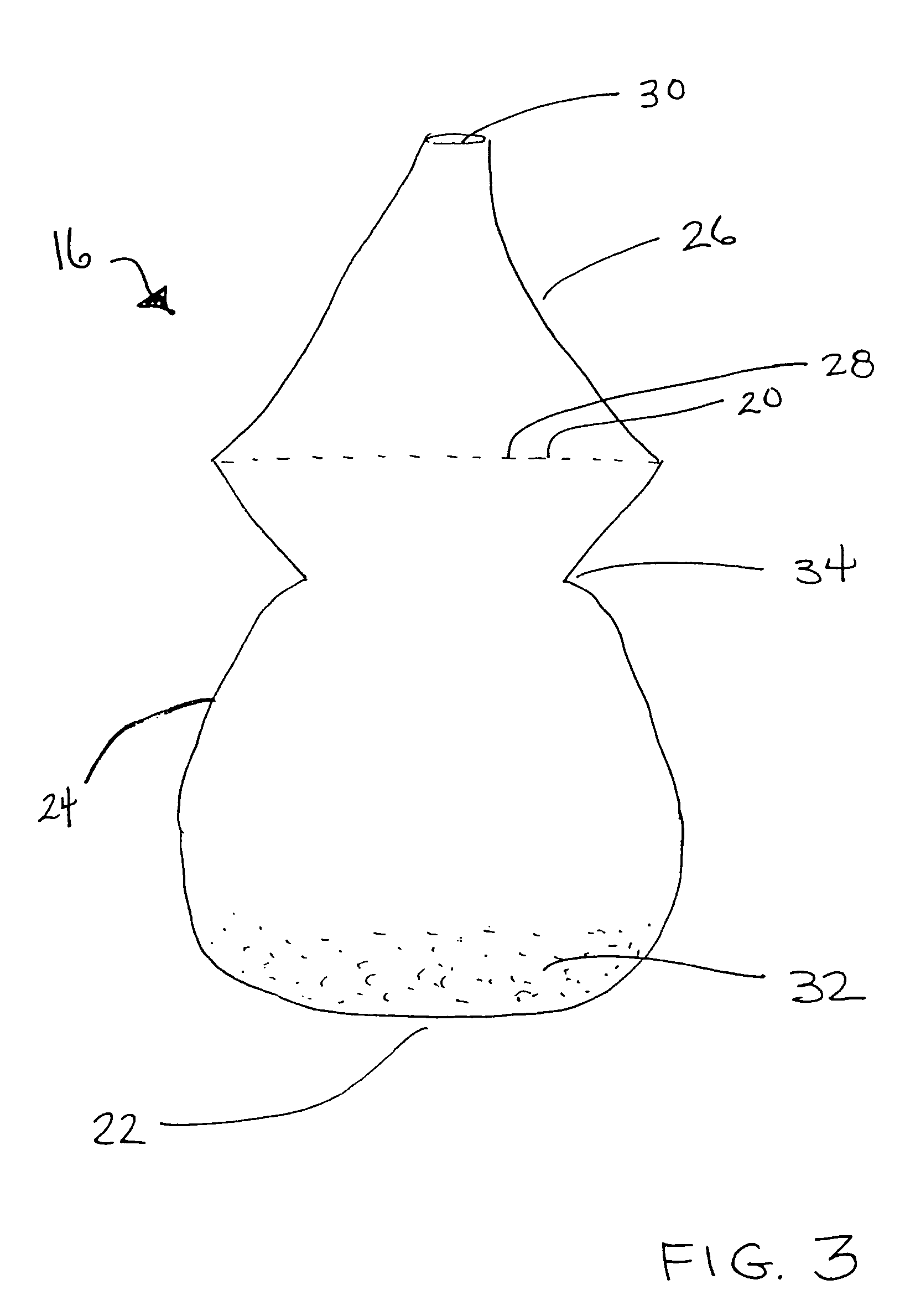

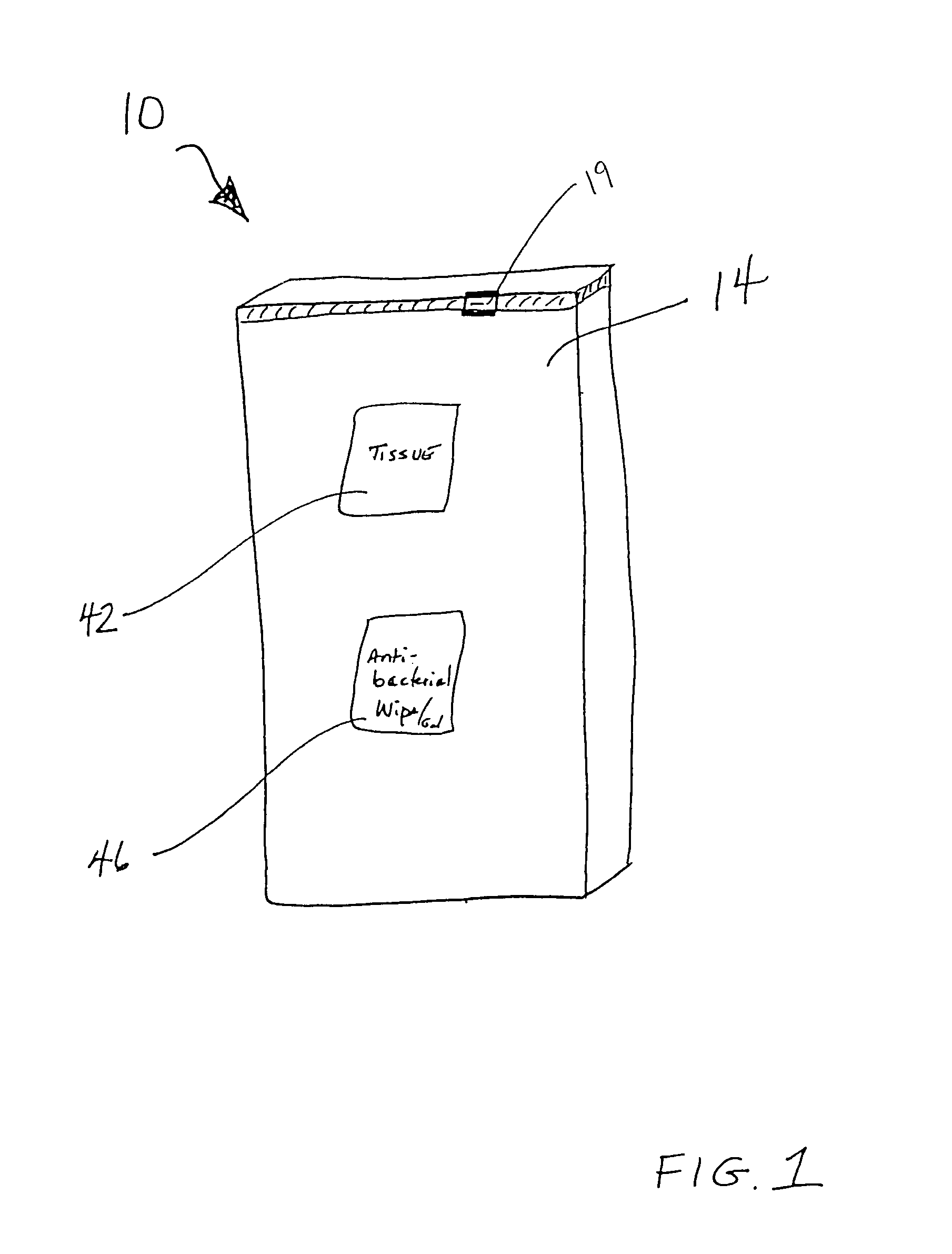

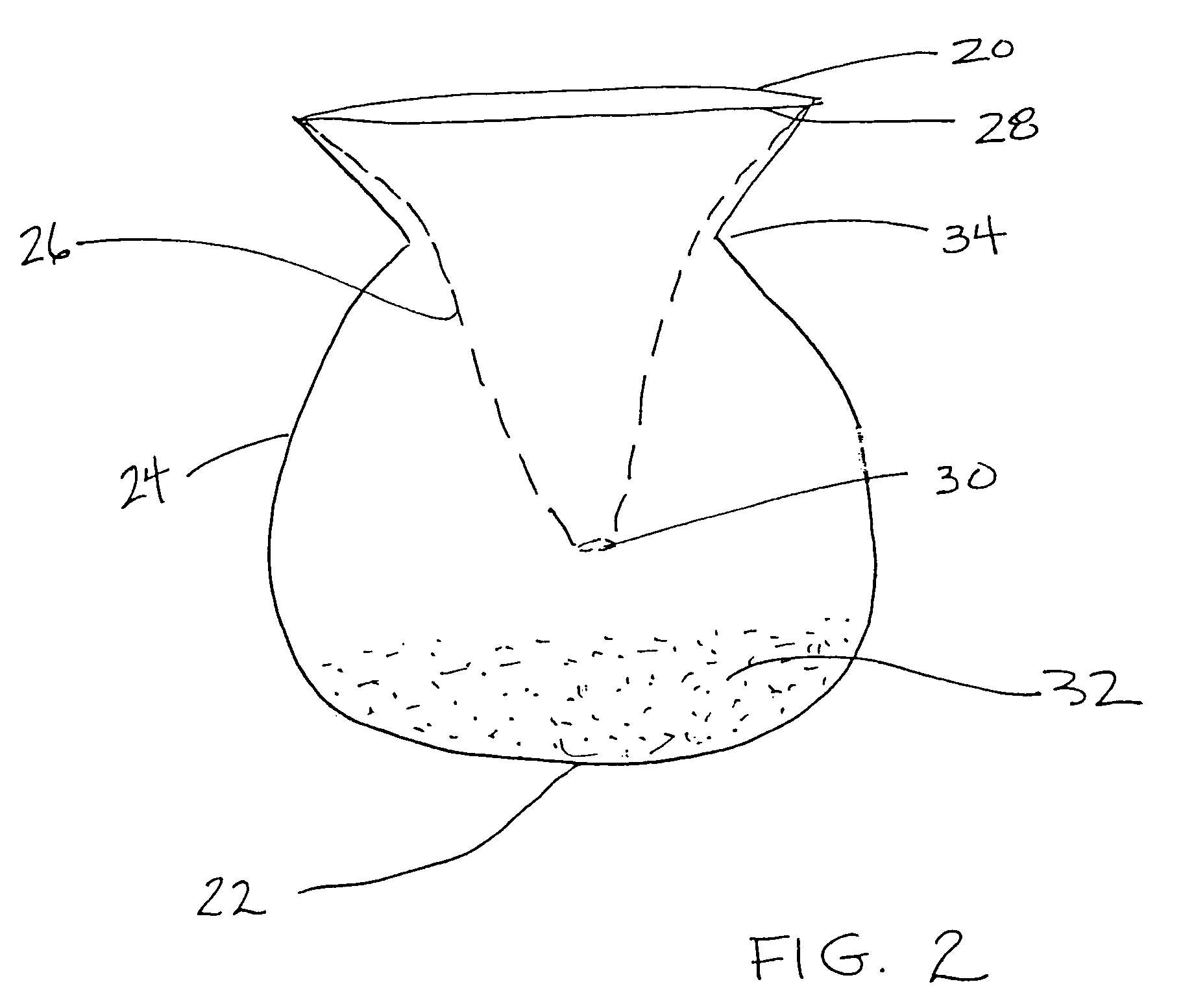

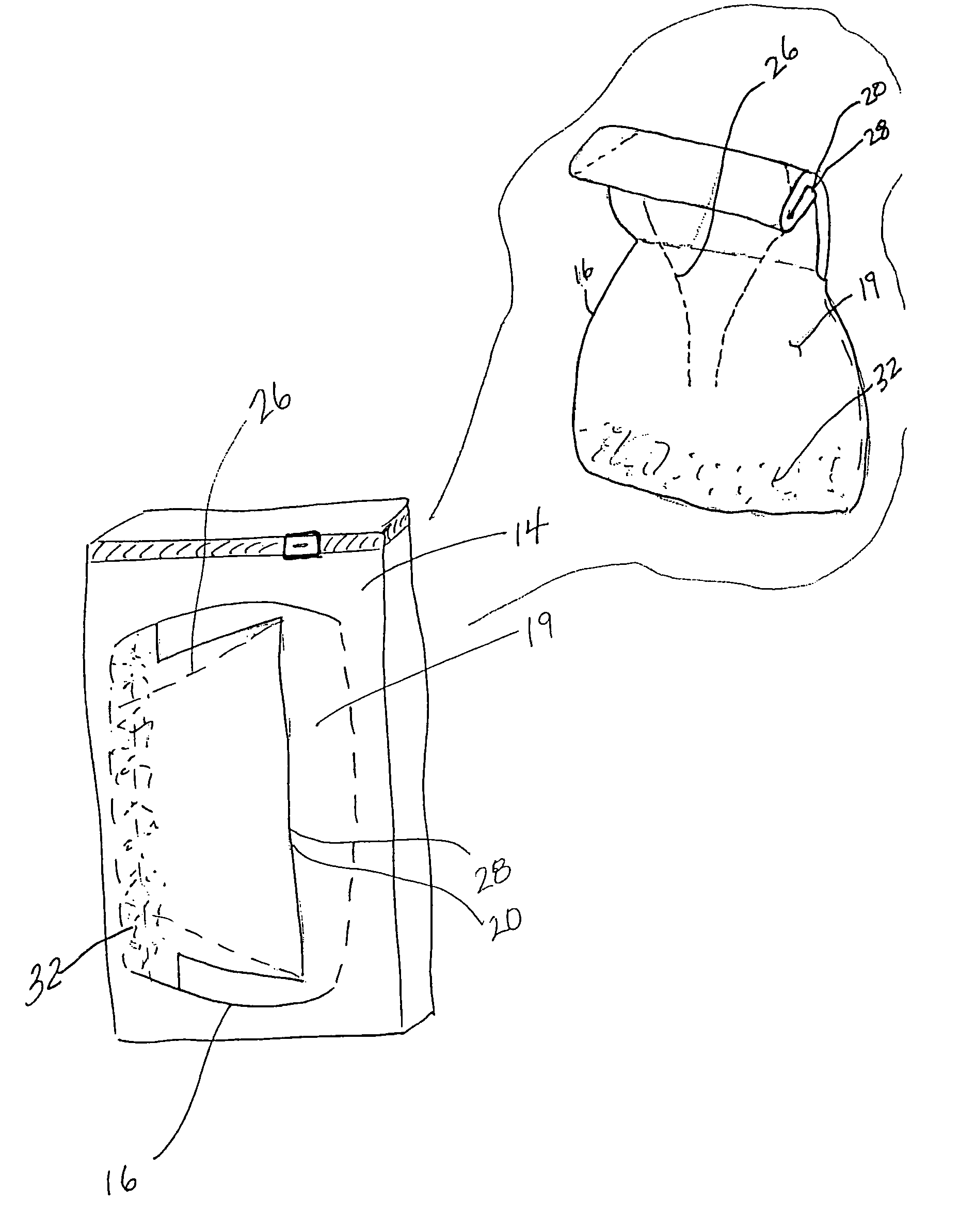

一种便携式一次性尿液捕获装置系统,包括具有内表面和外表面的外部容器,内部收集机构,其中内部收集机构包括开口端、形成底座的封闭端、封闭侧面以及整体附接的基本锥形细长轴,该轴具有上开口和下开口,定向在内部收集机构内部,使得排出的尿液通过所述轴被引导远离使用者身体,该轴构造成接收并引导排出的尿液流入底座;保持在内部收集机构底座中的吸收性物质,其与排出的尿液结合;用于在使用系统期间遮蔽使用者的帘布;使用后用于吸收使用者身体多余液体的一个或多个纸巾;以及使用后用于卫生清洁使用者双手的抗菌物质。

Original abstractA portable disposable urine capture device system, comprising a exterior container having an interior surface and an exterior surface, an interior collection mechanism wherein the interior collection mechanism includes an open end, a closed end forming a base, closed sides, and an integrally attached substantially conical elongate shaft with an upper opening and a lower opening, oriented inside the interior collection mechanism such that discharged urine is directed away from the body of a user, via said shaft configured to receive and direct the flow of the discharged urine into the base; an absorbent substance maintained in the base of the interior collection mechanism which binds with the discharged urine, a drape for shielding the user during the system use, one or more tissue wipes to absorb excess fluid from the user's body after use, and an antibacterial substance for hygienically cleansing the user's hands after use.

专利附图(8)

US-7530121-B2 figure 1
1
US-7530121-B2 figure 2
2
US-7530121-B2 figure 3
3
US-7530121-B2 figure 4
4
US-7530121-B2 figure 5
5
US-7530121-B2 figure 6
6
US-7530121-B2 figure 7
7
US-7530121-B2 figure 8
8
