用于自动分配粘性液体（如皂液）。
专利摘要
一种电子自包含粘性液体分配器包括限定内部液体储存器的外壳。分配泵机构由外壳承载并与储存器液体连通。泵机构具有输送端，用于从储存器输送计量剂量的粘性液体。安装组件被配置为安装在支撑壁结构上，外壳可释放地附接至安装组件。电子致动机构由安装组件承载，并且包括马达驱动的致动器，该致动器在外壳插入安装组件时与泵机构接合。马达和相关的电源电路由安装组件承载，马达与马达驱动的致动器驱动接合。
Original abstractAn electronic self contained viscous liquid dispenser includes a housing defining an internal liquid reservoir. A dispensing pump mechanism is carried by the housing and disposed in liquid communication with the reservoir. The pump mechanism has a delivery end disposed for delivering metered doses of viscous liquid from the reservoir. A mounting assembly is configured for mounting on a supporting wall structure, with the housing being releasably attachable to the mounting assembly. An electronic actuating mechanism is carried by the mounting assembly and includes a motor driven actuator that engages with the pump mechanism upon insertion of the housing into the mounting assembly. A motor and associated power supply circuitry is carried by the mounting assembly, with the motor being in driving engagement with the motor driven actuator.

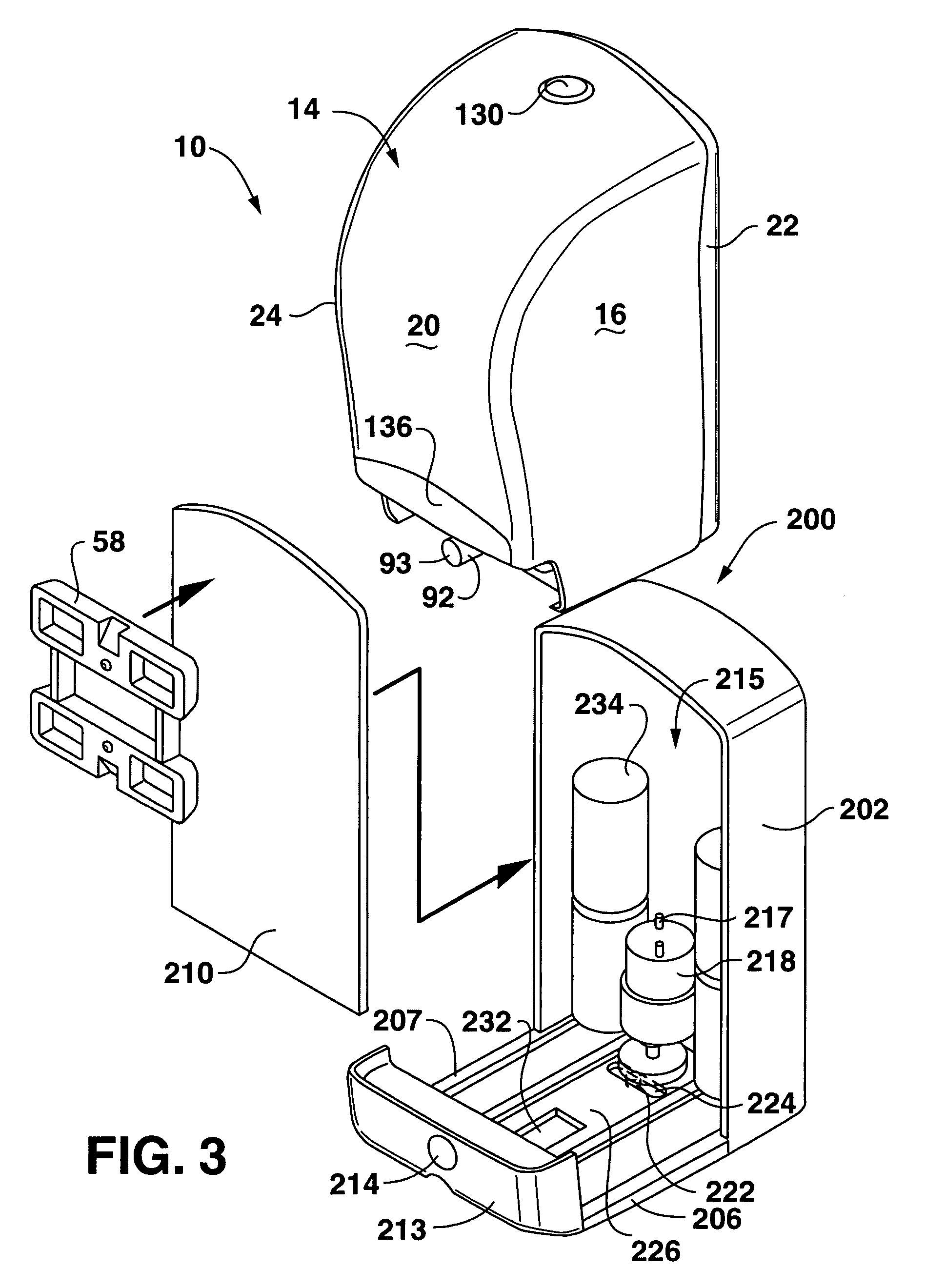

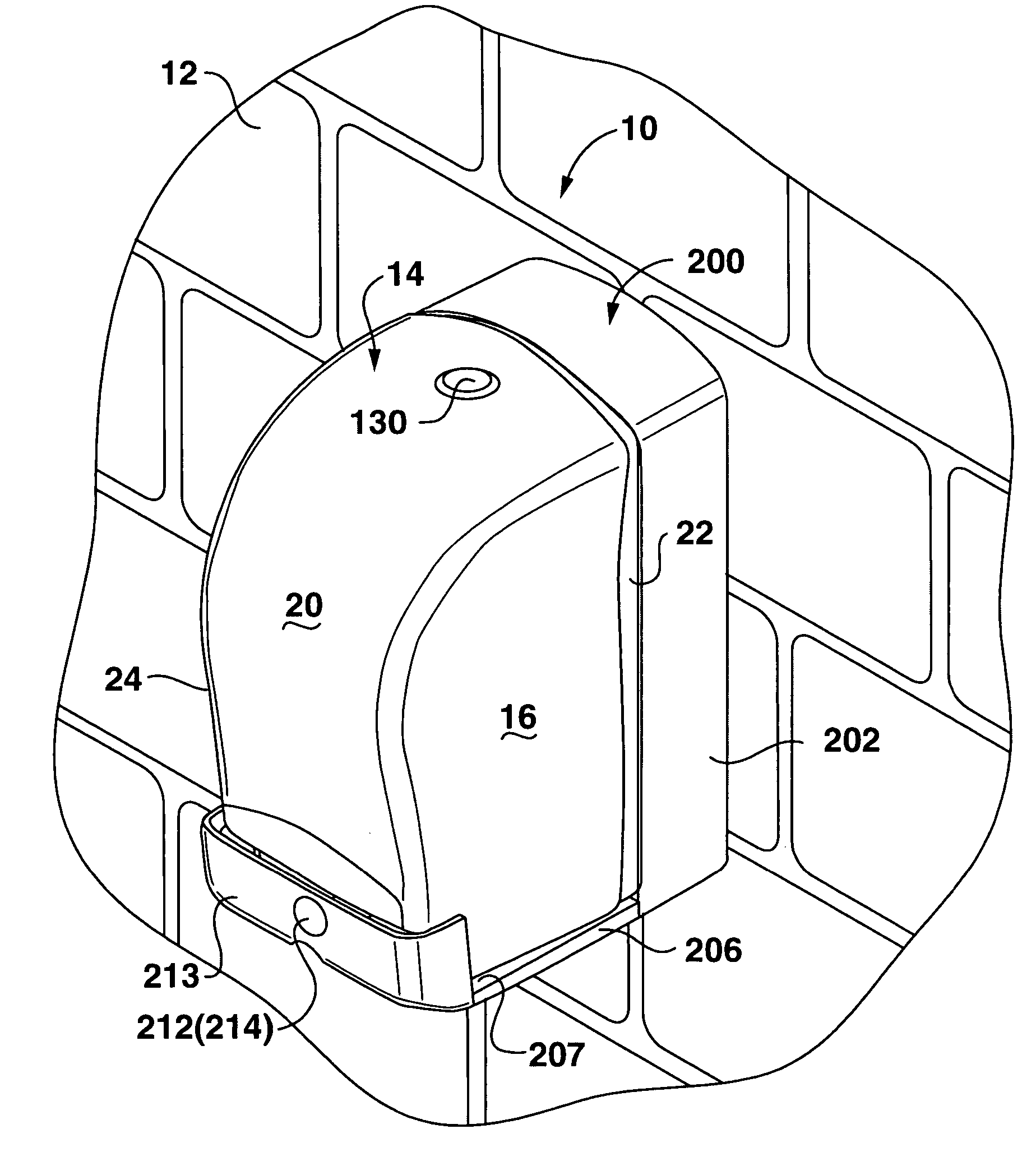

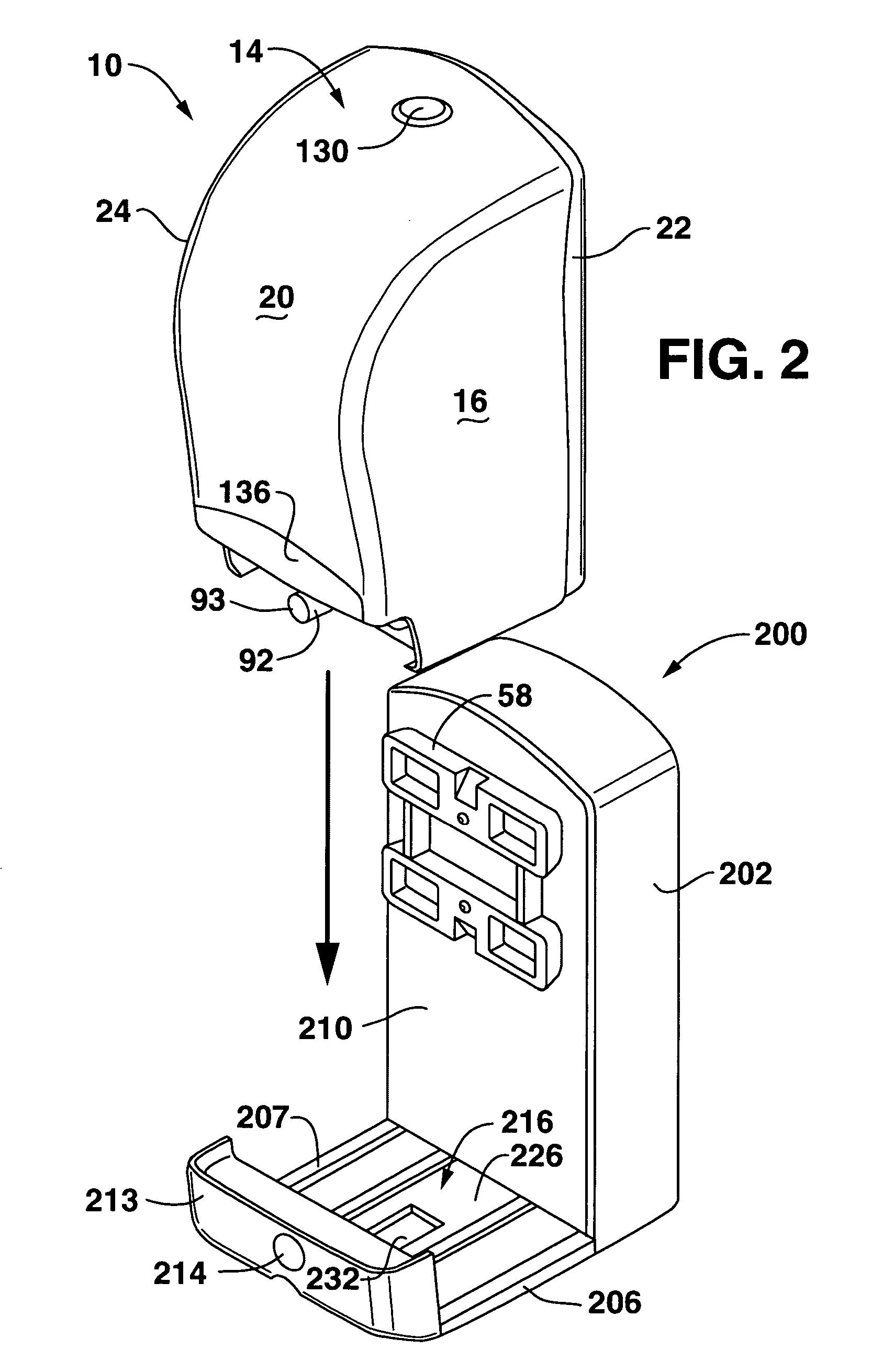

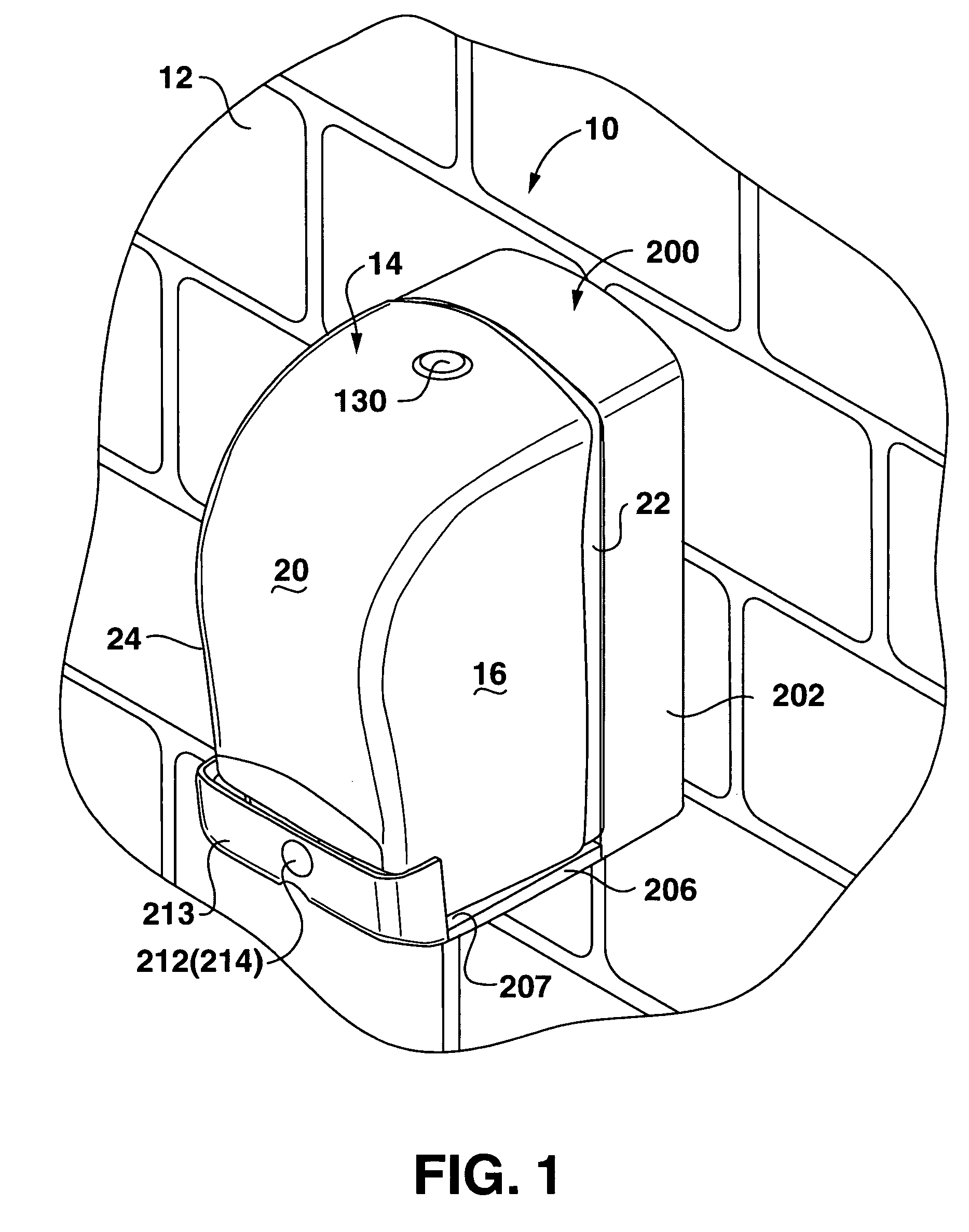

专利附图（8）
