用于旋转存放鞋子，可置于床下或安装于鞋架。
专利摘要
一种旋转式鞋子存放装置，包括基座构件和从基座构件向外延伸并附接到基座构件的枢轴。用于支撑鞋子的搁架具有倾斜表面和连接到搁架并从搁架向外延伸的轮毂。轮毂设有用于接合枢轴的孔，从而使搁架能够围绕基座构件枢转。轮毂还设有多个表面槽，用于接收分隔件，分隔件将搁架分成可调节的隔间，以适应各种鞋子尺寸。搁架设有周边凸缘，以将鞋子大致限制在每个隔间内。该装置可放置在传统床下或安装到床的底面。搁架可设有夹具，用于安装到旋转鞋架的垂直设置的轴上。
Original abstractA rotary shoe storage device includes a base member and a pivot extending outwardly from and attached to the base member. A shelf for supporting shoes has an inclined surface and a hub connected to and extending outwardly from the shelf. The hub is provided with an aperture for engaging the pivot thus enabling pivoting of the shelf about the base member. The hub is further provided with a plurality of surface slots for receiving partitions which divide the shelf into adjustable compartments to accommodate various shoe sizes. The shelf is provided with a peripheral flange to generally confine the shoes within each compartment. The device can be placed beneath a conventional bed or mounted to an underside of the bed. The shelf can be provided with a clamp for mounting to a vertically disposed shaft of a rotary shoe rack.

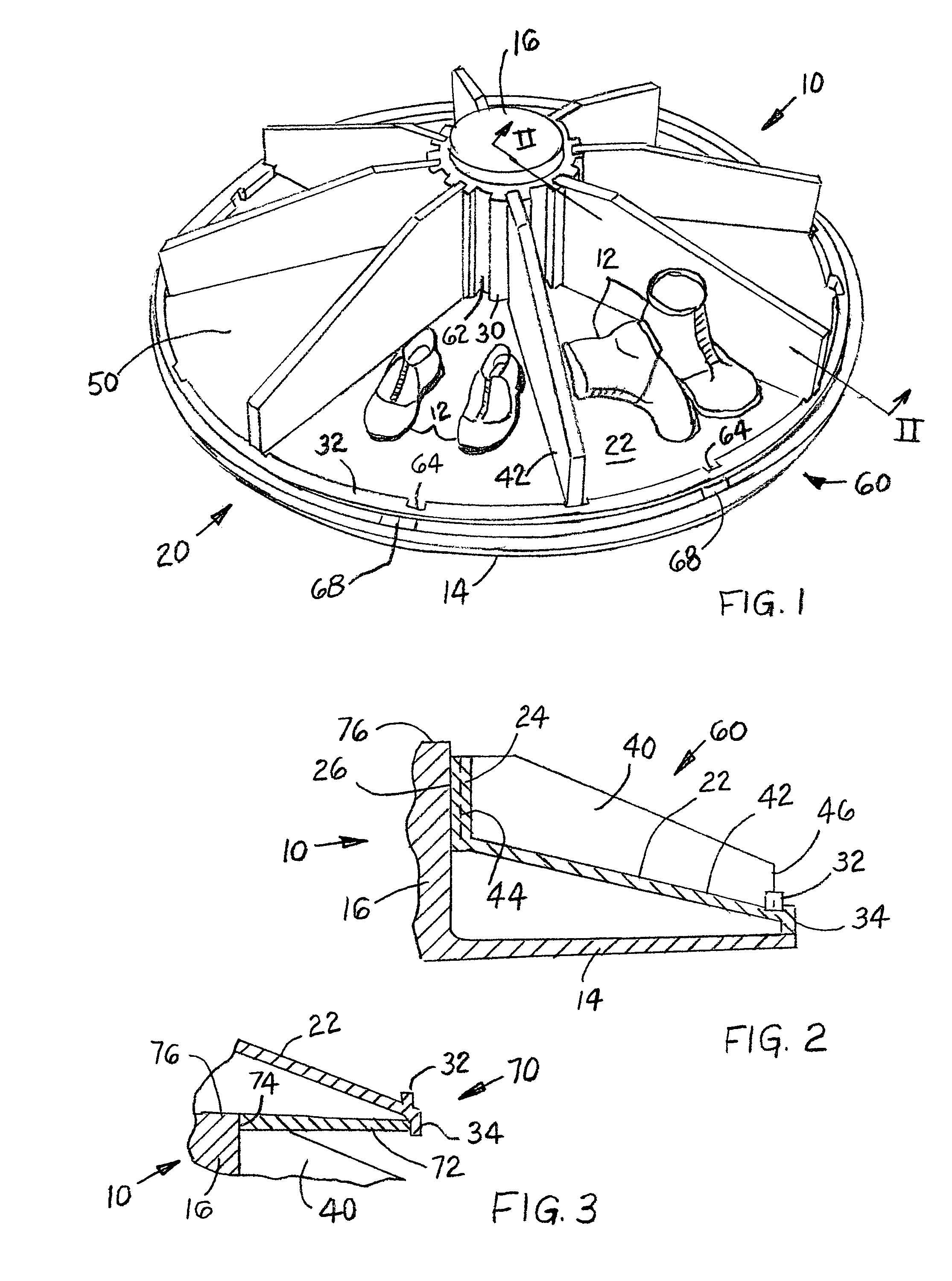

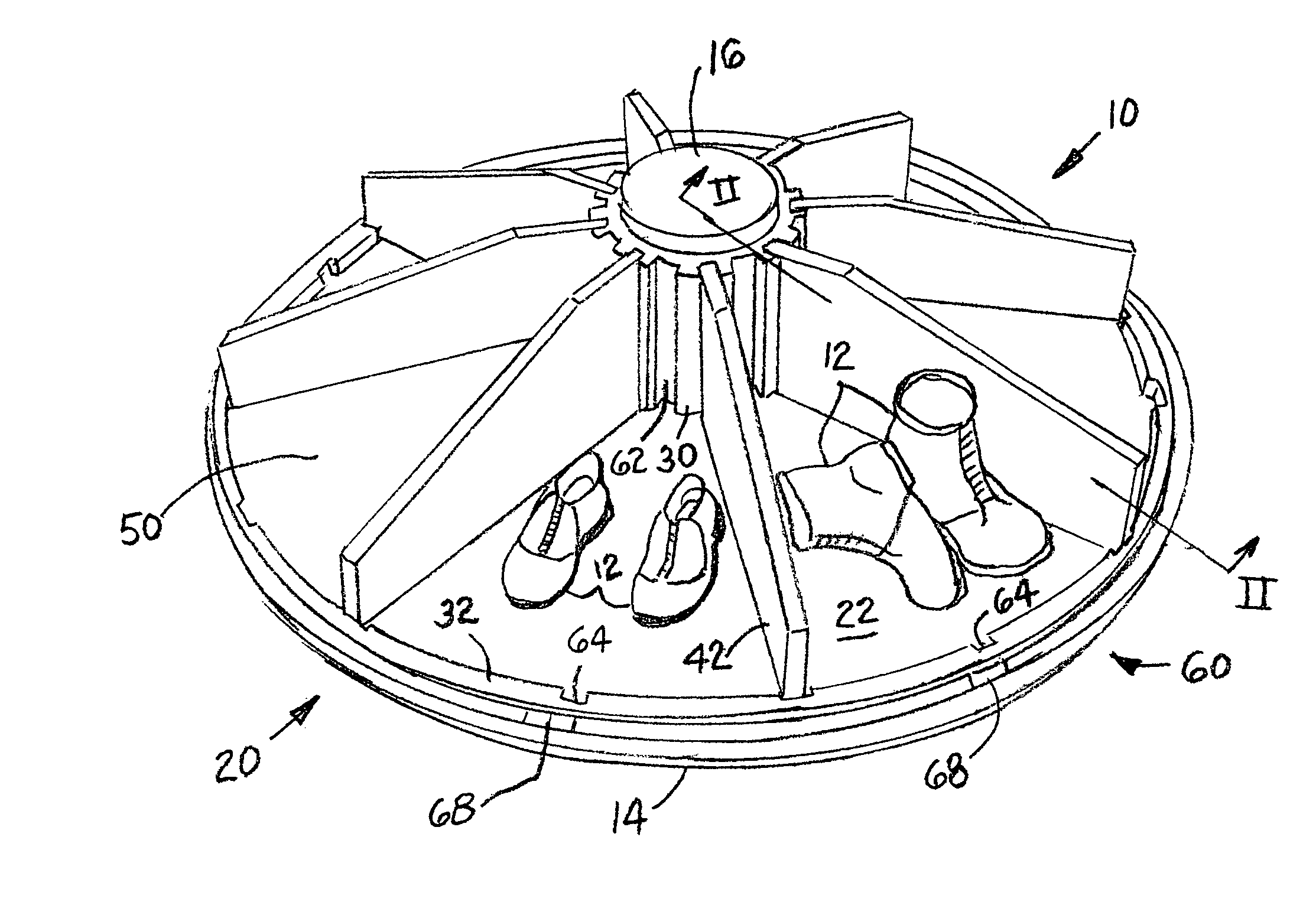

专利附图（4）
