悬挂装置

Hanging device

US-7513375-B2

用于悬挂衣物等物品。

专利摘要

一种悬挂装置,具有可连接到墙壁的基座,多个水平设置的保持器延伸跨过基座的前表面,其中每个保持器包括一对保持器构件,所述一对保持器构件朝向彼此偏置,并且所述构件被配置为可移动地彼此移位,以便容易地允许将待悬挂的物品(例如衣物)插入其间。

Original abstractA hanging device has a base that can be connected to a wall, a plurality of horizontally disposed retainers extend across a front face of the base, wherein each retainer includes a pair of retainer members which are biased toward one another and the members are configured to be movably displaced from one another to readily permit the insertion of an article to be hung, such as a garment, therebetween.

专利附图(8)

US-7513375-B2 figure 1
1

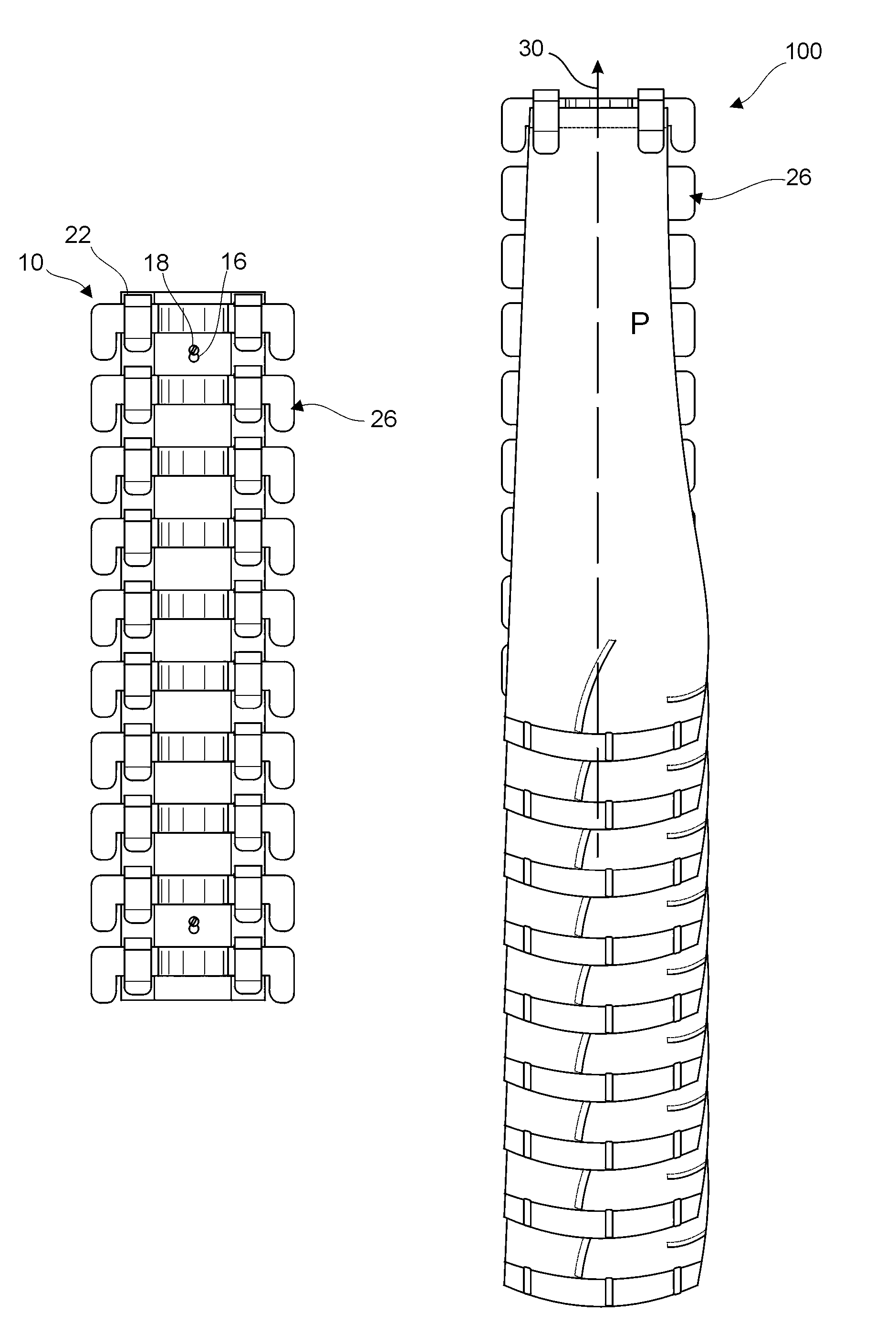

US-7513375-B2 figure 2
2
US-7513375-B2 figure 3
3

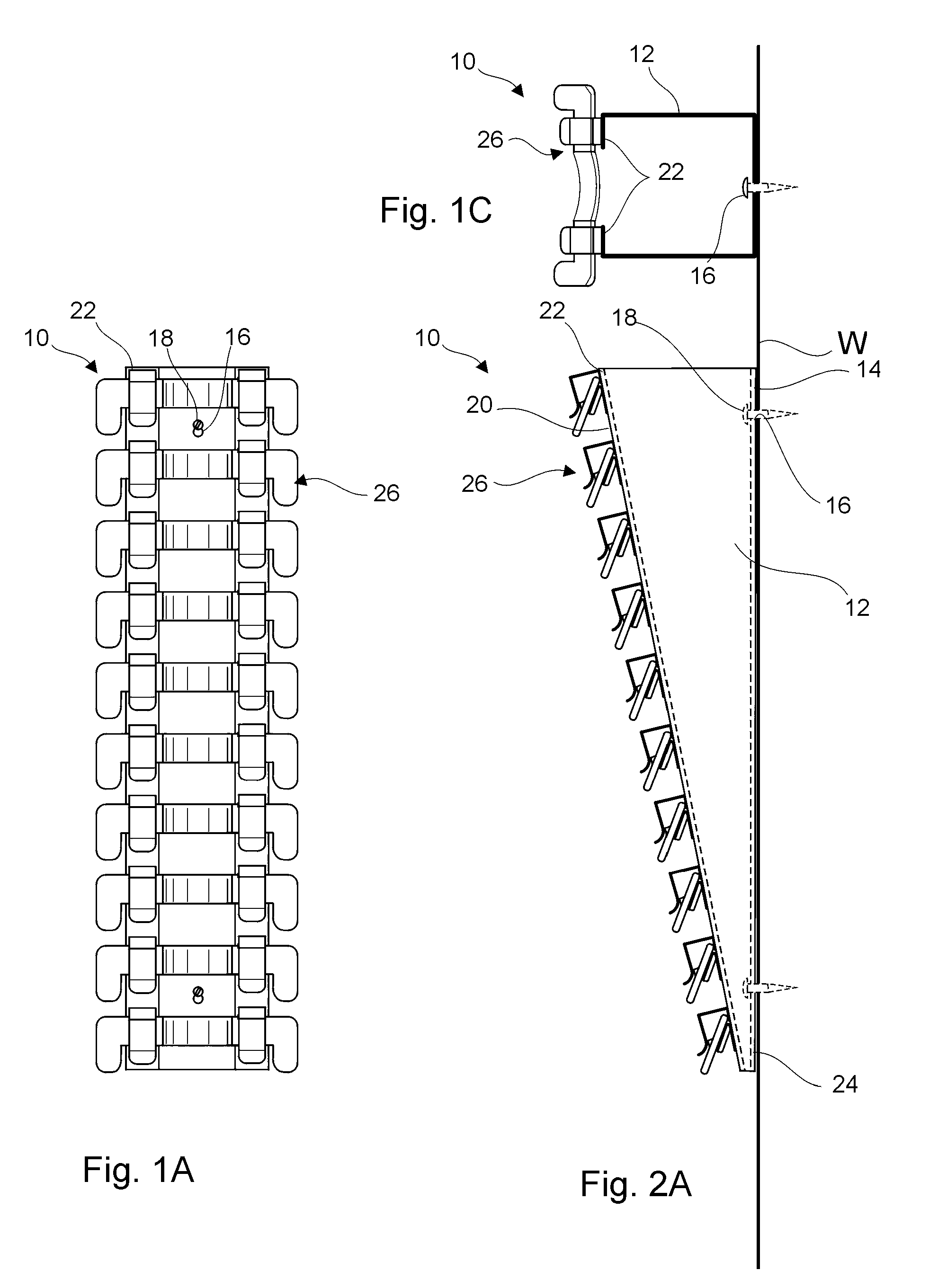

US-7513375-B2 figure 4
4
US-7513375-B2 figure 5
5

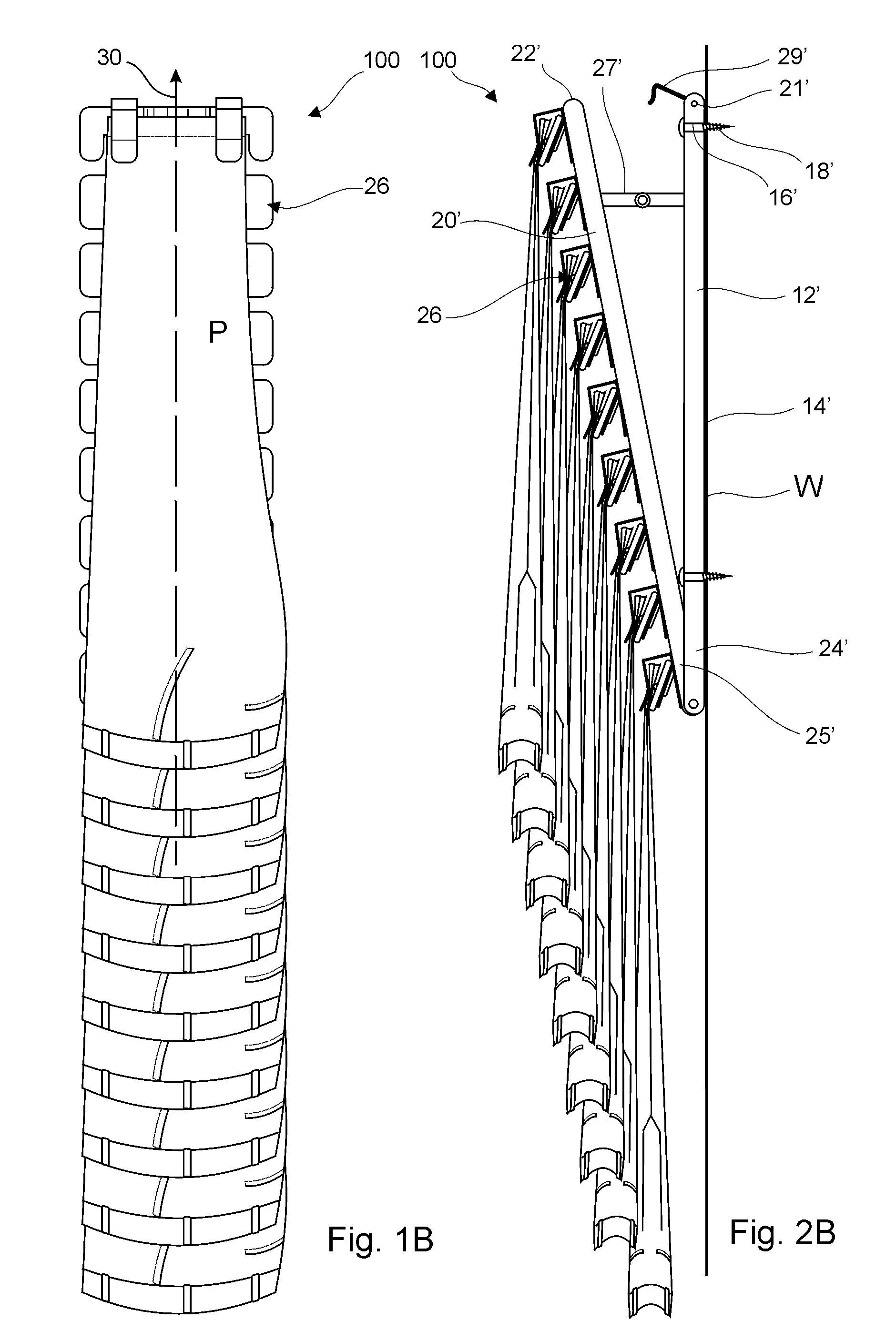

US-7513375-B2 figure 6
6
US-7513375-B2 figure 7
7

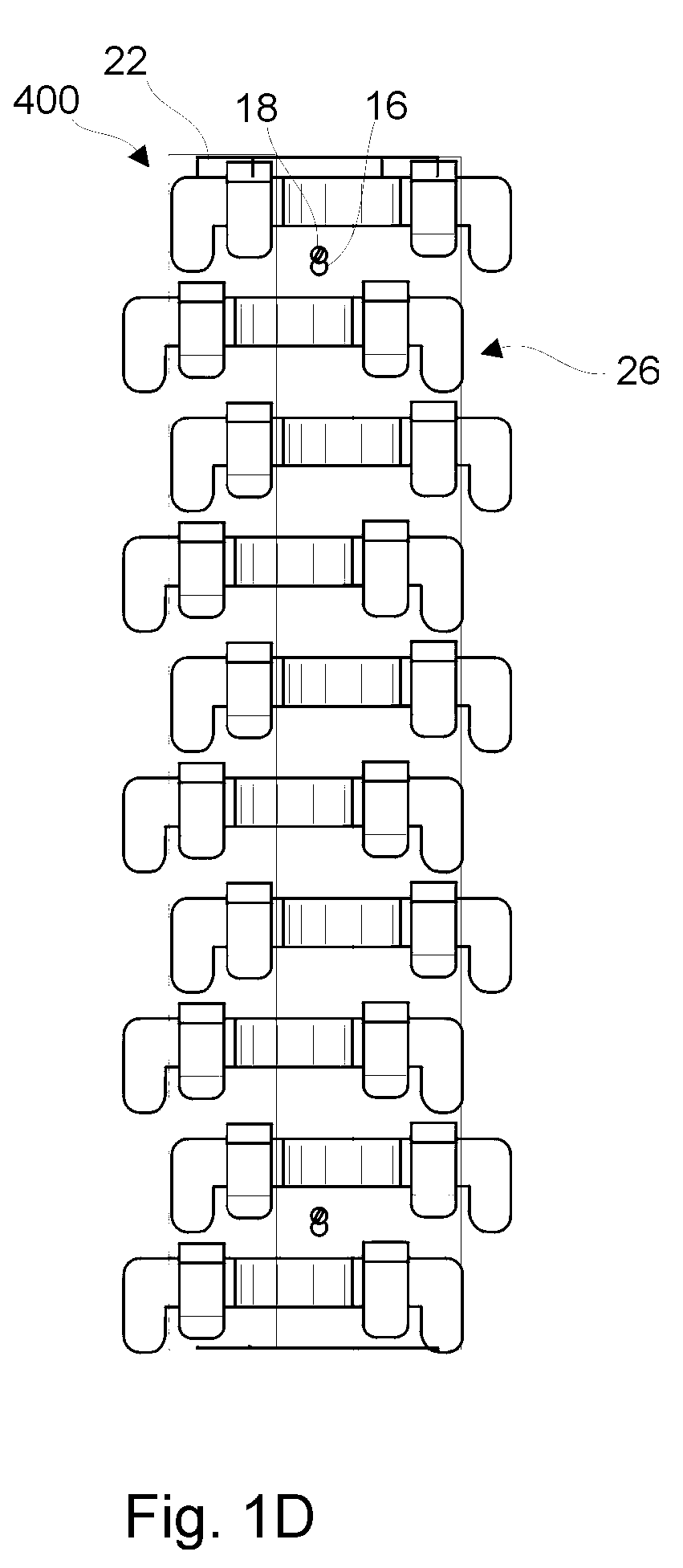

US-7513375-B2 figure 8
8
