用于安装在伞杆周围的冷却器桌托盘

Cooler table tray for installation around an umbrella pole

US-7503265-B1

在伞杆周围提供带冷却功能的托盘。

专利摘要

一种托盘-冷却器组合,用于放置在诸如庭院桌的表面上,围绕诸如伞杆的向上延伸的突出物。该托盘-冷却器组合包括上托盘构件和下托盘构件,每个具有中心孔、外周边缘以及在中心孔和周边边缘之间延伸的径向开口。上托盘构件可包括多个内部隔间,用于接收诸如蔬菜和蘸料、调味品等物品。上托盘构件还可可释放地附接到下托盘构件。当组合在一起时,下托盘构件可容纳冰或其他冷却装置以冷却或冷藏上托盘构件的内容物。还可设置闭合构件以封闭每个托盘构件中的径向槽,与托盘构件一起限定中心孔,伞杆等容纳于其中。闭合构件与托盘构件的连接容易释放,允许每个托盘构件的槽打开,以便容易地围绕伞杆或其他向上延伸的类似构件插入或从其移除。

Original abstractA tray-cooler combination for positioning upon a surface, such as a patio table, about an upwardly extending projection, such as an umbrella pole. The tray-cooler combination includes upper and lower tray members, each having a central aperture, an outer peripheral edge and a radial opening extending between the central aperture and the peripheral edge. The upper tray member may include a plurality of interior compartments for receiving items such as vegetables and dips, condiments, etc. The upper tray member may also be releasably attached to the lower tray member. When joined in combination, the lower tray member can hold ice or other cooling means cool or chill the contents of the upper tray member. Closure members can also be provided to close the radial slots in each tray member to, in combination with the tray member, define the central aperture in which an umbrella pole or the like is received. The connection of the closure members to the tray members is readily released, allowing the slot of each tray member to be opened to permit ready insertion around or removal from the umbrella pole or other upwardly extending like member.

专利附图(8)

US-7503265-B1 figure 1
1

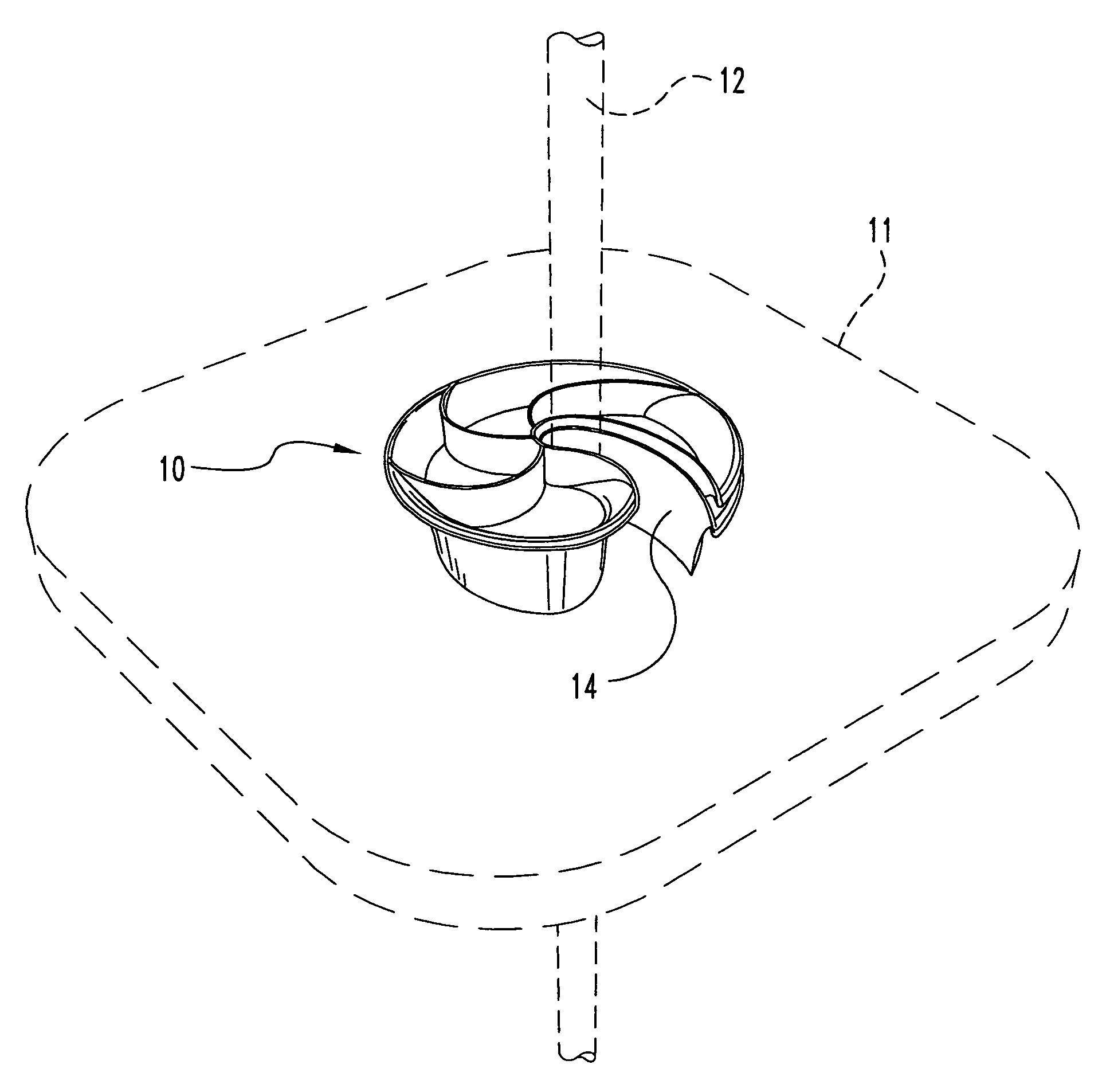

US-7503265-B1 figure 2
2
US-7503265-B1 figure 3
3

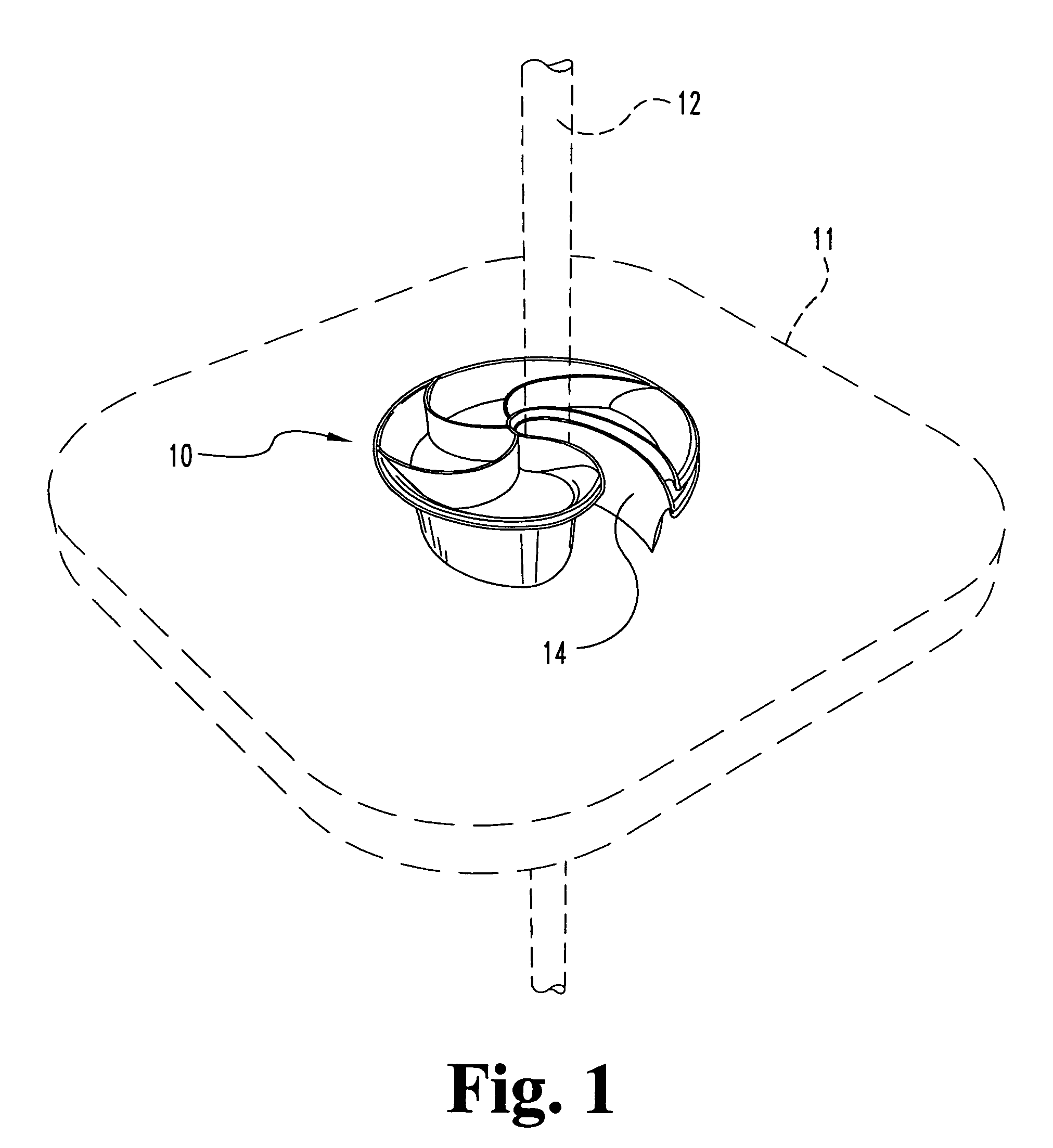

US-7503265-B1 figure 4
4
US-7503265-B1 figure 5
5

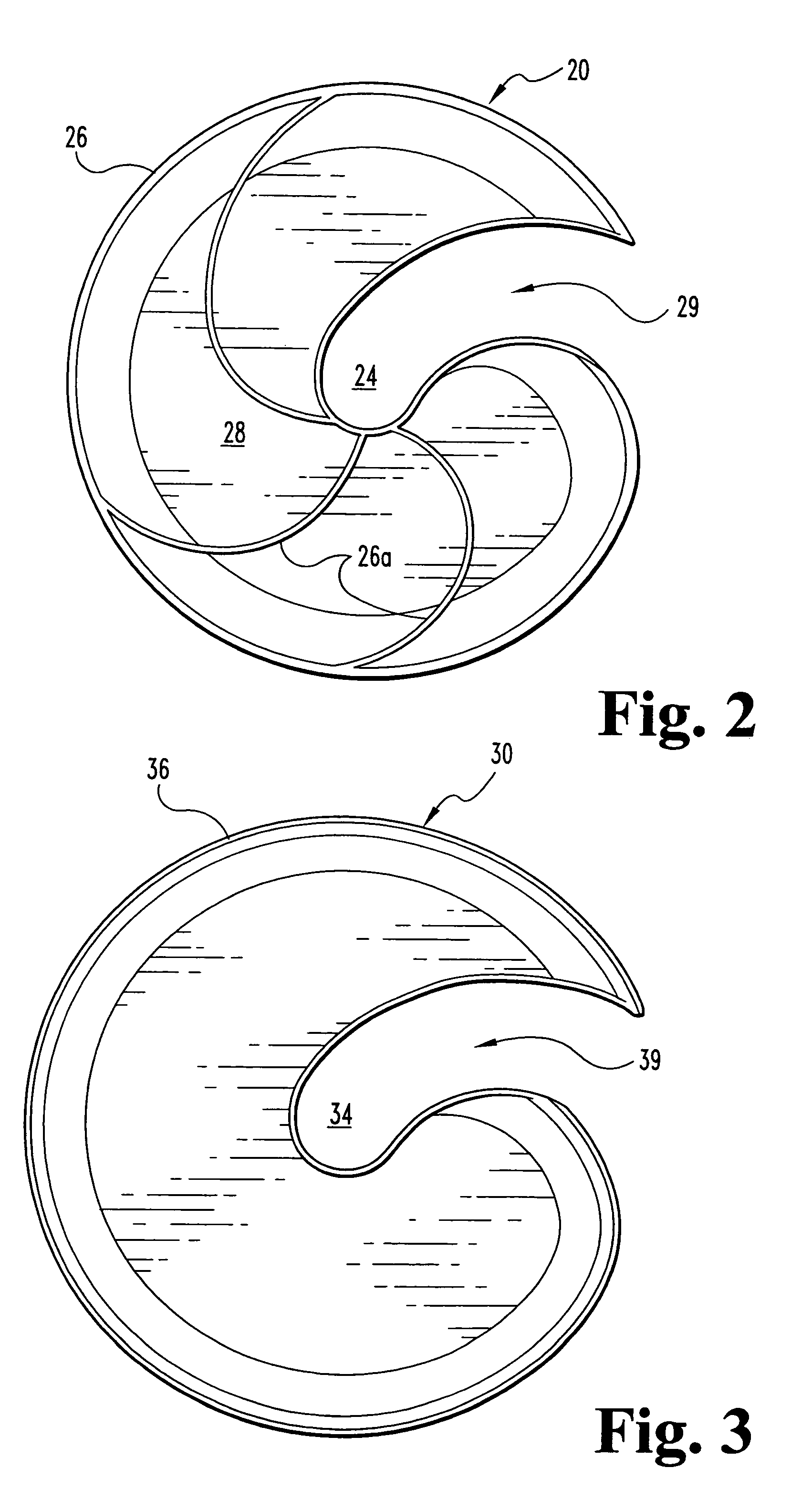

US-7503265-B1 figure 6
6
US-7503265-B1 figure 7
7

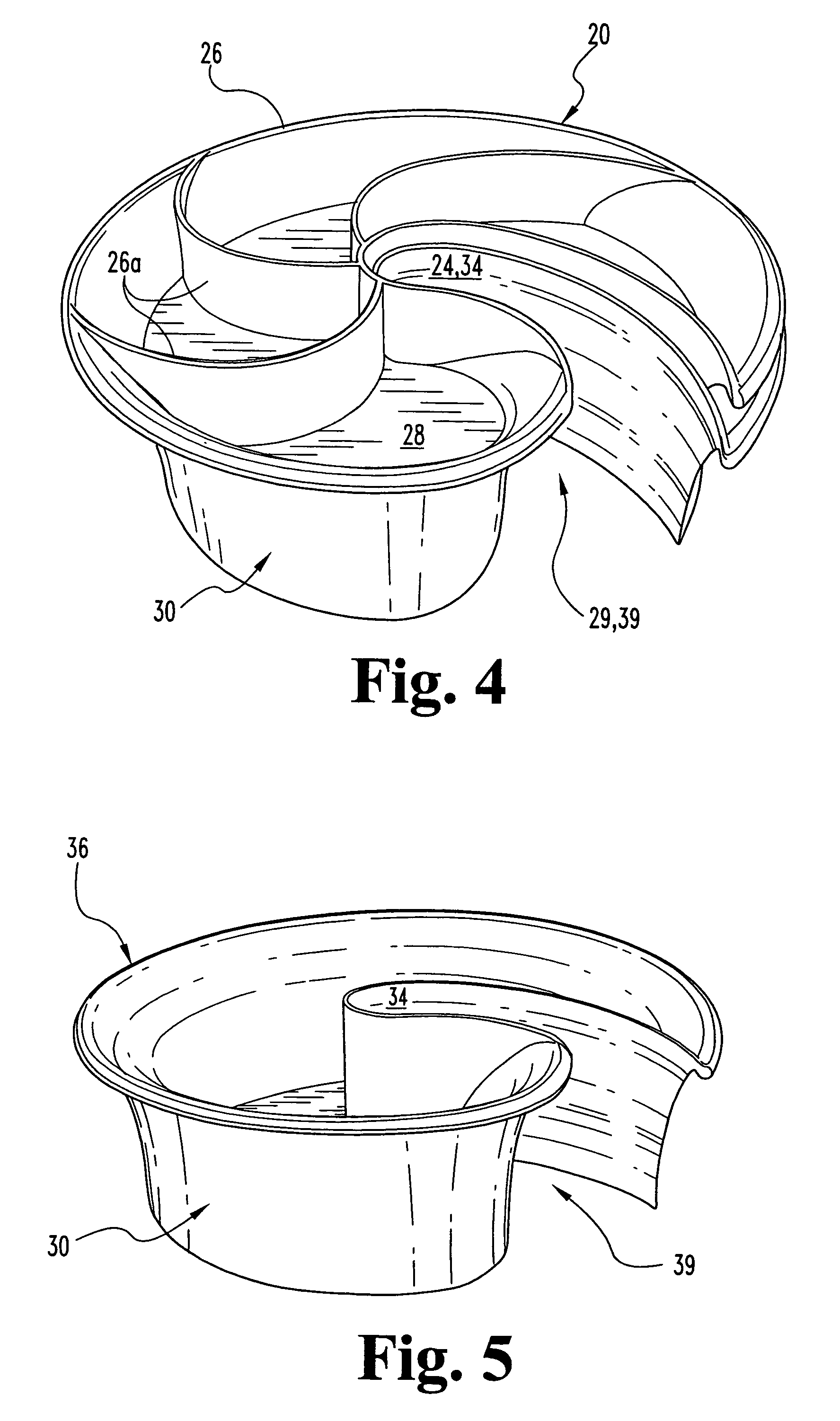

US-7503265-B1 figure 8
