搁板、弹性抽屉止动件以及用于支撑搁板和抽屉的抽屉支架
Shelves, resilient drawer stops, and drawer brackets for supporting shelves and drawers
US-7497533-B2用于壁挂式存储系统，支撑搁板和抽屉并防止抽屉滑落。
专利摘要
根据本公开的各个方面，提供了可安装到壁挂式立柱上以支撑搁板和抽屉的搁板、弹性抽屉止动件和抽屉支架的各种示例性实施例。在一个示例性实施例中，一种设备包括至少一个搁板构件、至少一个支架和至少一个弹性抽屉止动件。支架包括至少一个接合构件，用于接合立柱以将支架安装到立柱上；一个支撑表面，当支架安装到立柱上时大致水平设置，以可滑动地支撑抽屉的一部分；以及一个邻近支撑表面的搁板支撑件，用于支撑搁板构件。弹性抽屉止动件配置为阻止抽屉从支架的支撑表面完全滑出。
Original abstractAccording to various aspects of the present disclosure, there are provided various exemplary embodiments of shelves, resilient drawer stops, and drawer brackets mountable to wall-mounted standards for supporting shelves and drawers. In one exemplary embodiment, an apparatus includes at least one shelf member, at least one bracket, and at least one resilient drawer stop. The bracket includes at least one engagement member for engaging a standard to mount the bracket to the standard, a support surface disposed generally horizontally when the bracket is mounted to the standard to slidably support a portion of a drawer, and a shelf support adjacent the support surface for supporting the shelf member. The resilient drawer stop is configured to resist completely sliding a drawer from the bracket's support surface.

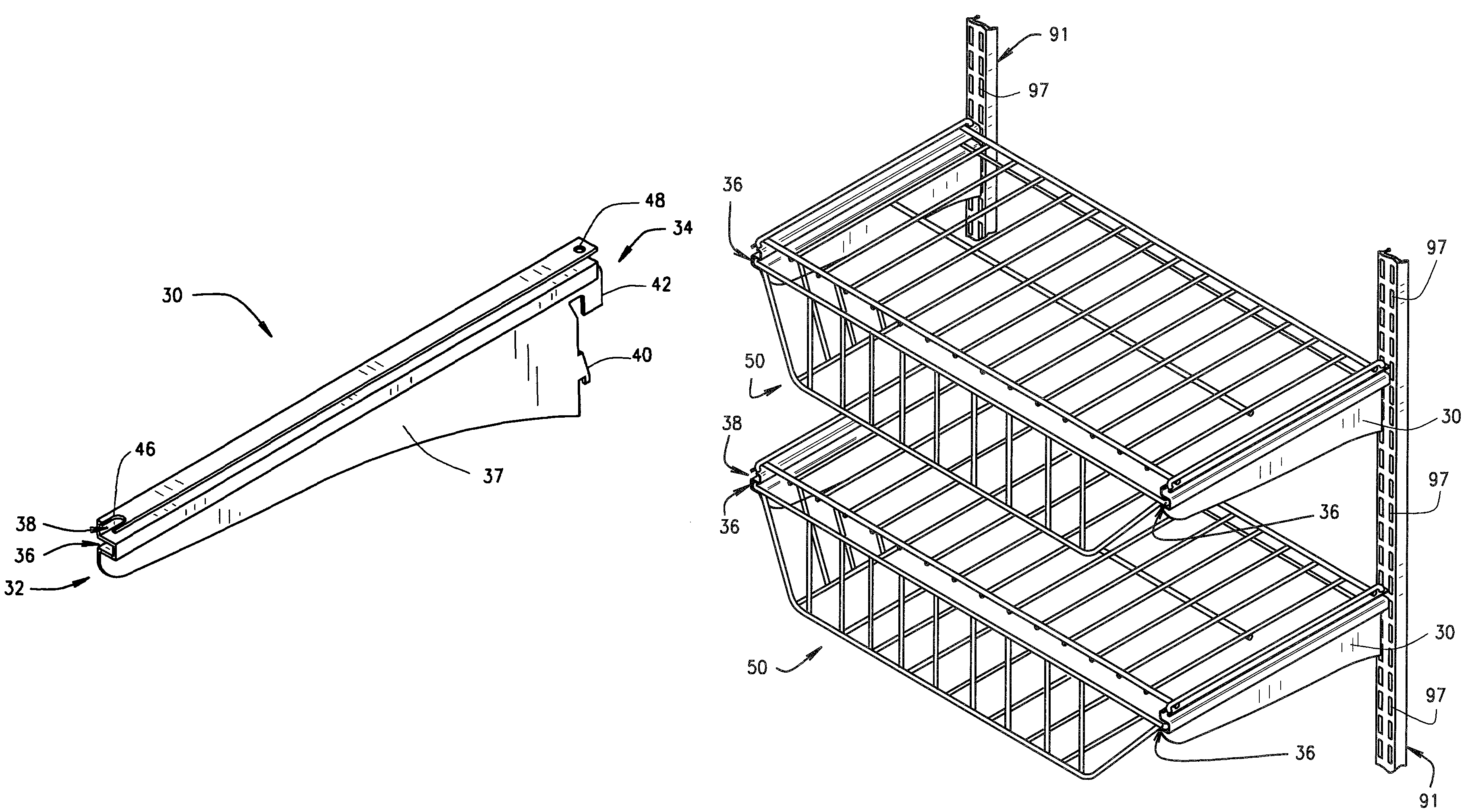

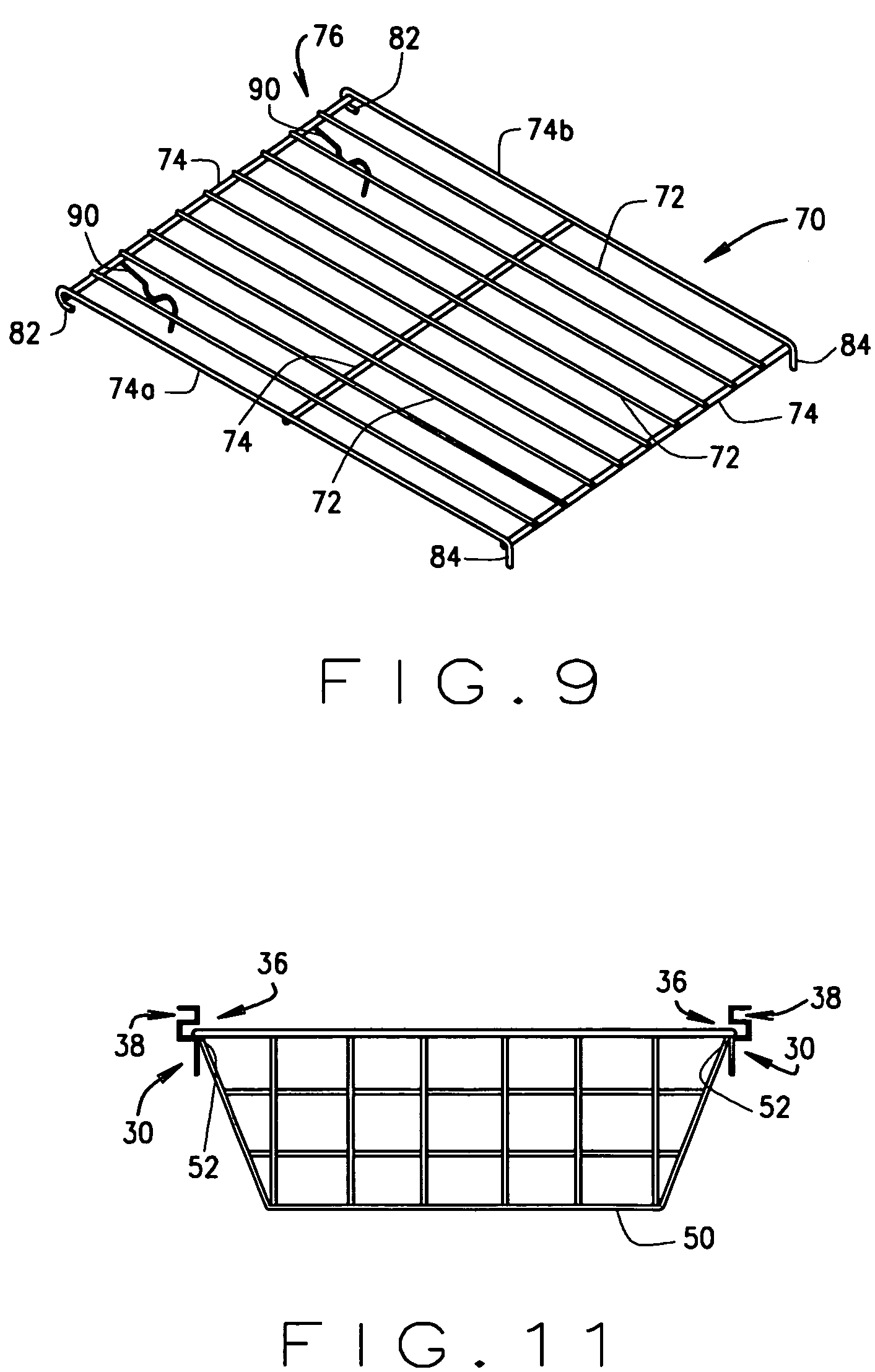

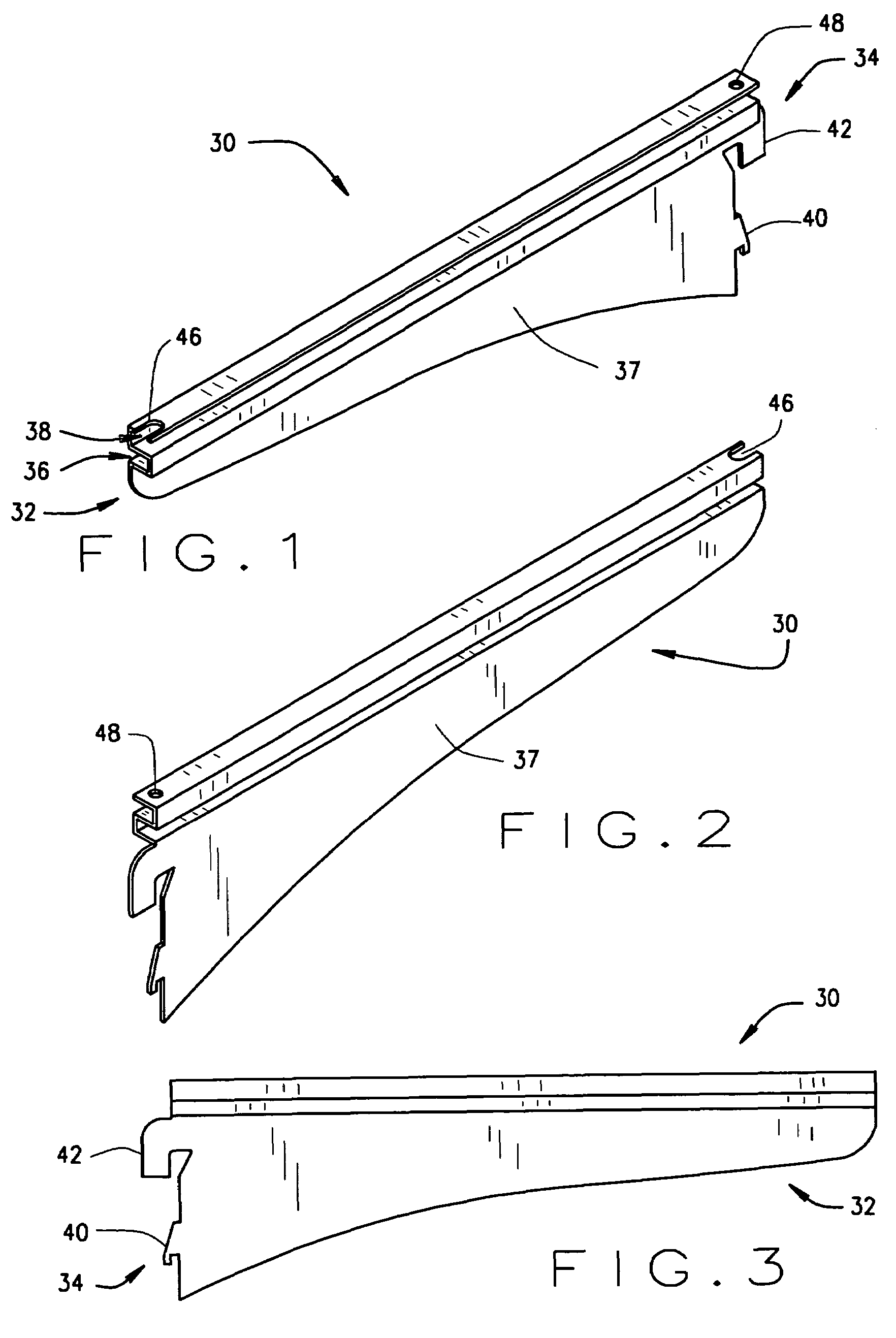

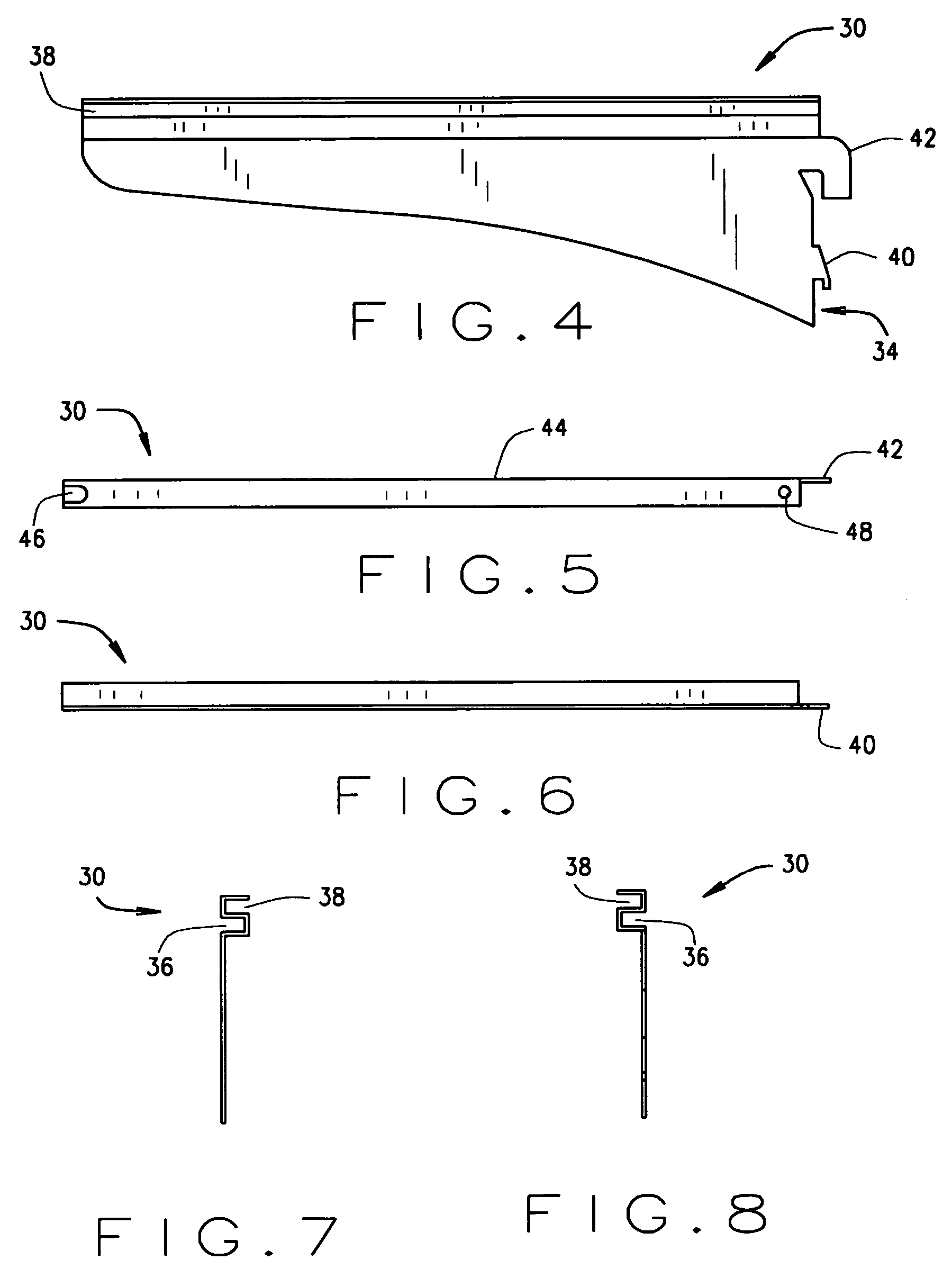

专利附图（8）
