用于壁挂式机架的支撑支架
Supporting bracket for wall-mount rack
US-7497344-B2用于壁挂式机架，支撑搁板、抽屉或衣架等。
专利摘要

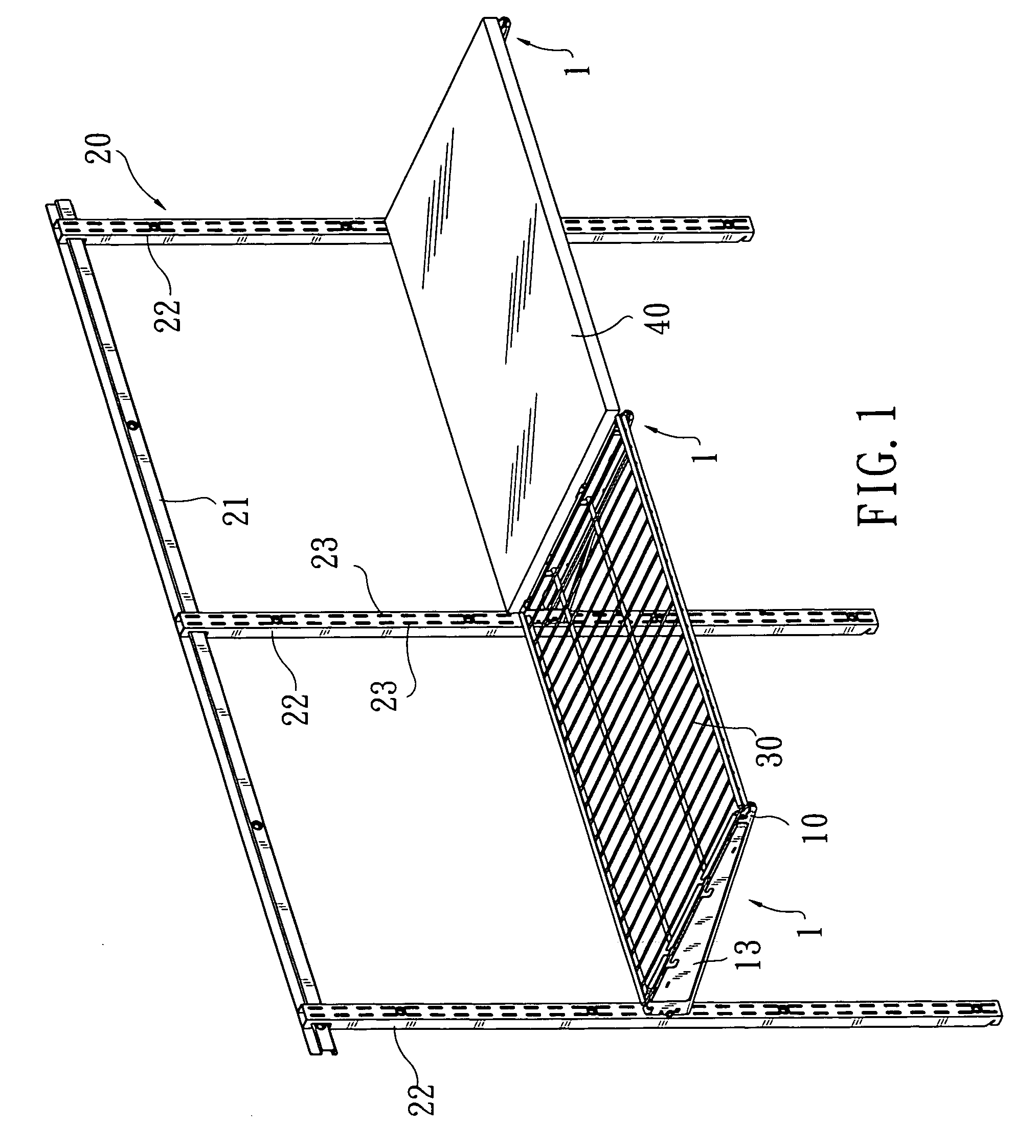

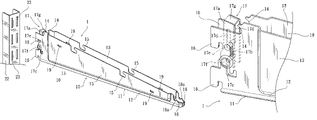

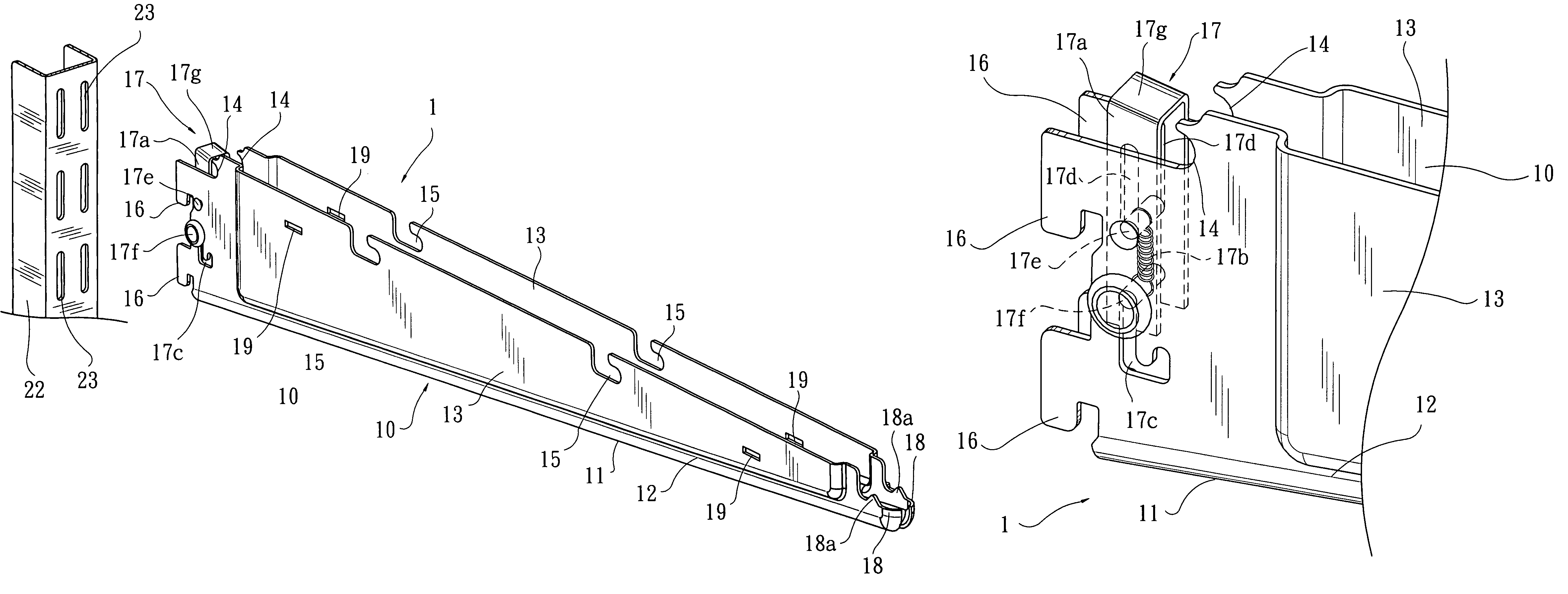

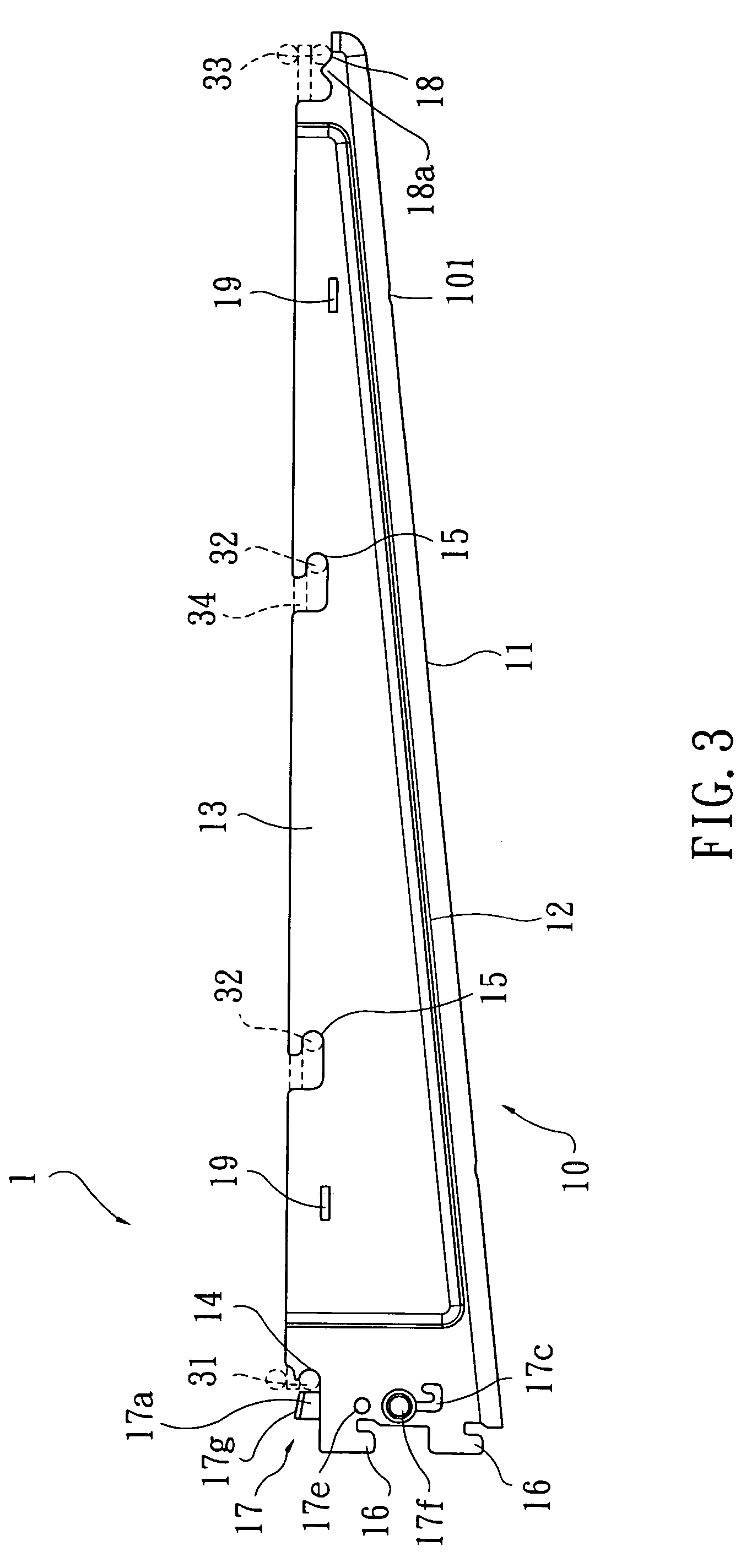

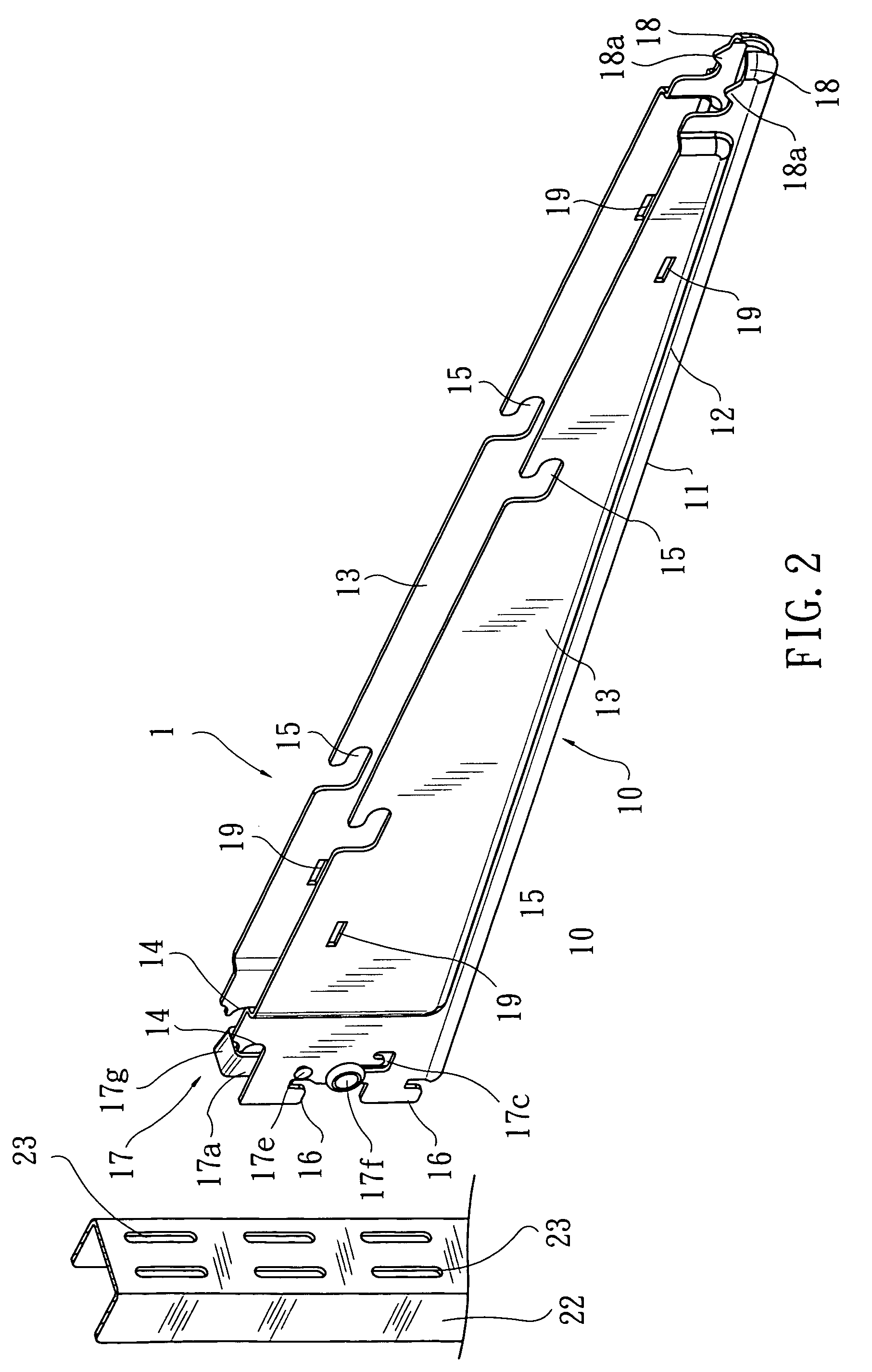

一种支撑支架，设计为通过将支架后端设置的钩插入壁挂式机架的垂直柱前侧设置的孔中而连接到壁挂式机架。该支撑支架包括两个平行间隔的侧壁部分，其顶部边缘上形成有保持槽，以能够在支架的两个相对侧支撑两个搁板。两个轨道可以连接到支架的两侧，用于支撑抽屉式容器。一个悬挂件可以连接到支架的下侧，以支撑用于保持衣架的横杆。因此，该支撑支架是一种多用途且高效的支撑构件，非常实用地用于壁挂式机架上以支撑不同类型的保持构件。
Original abstractA supporting bracket is designed to connect to a wall-mount rack by inserting hooks provided at a rear end of the bracket into holes provided on a front side of a vertical post of the wall-mount rack. The supporting bracket includes two parallelly spaced side wall portions, on top edges of which retaining slots are formed to enable the support of two shelves at two opposite lateral sides of the bracket. Two rails may be connected to two sides of the bracket for supporting a drawer-type container. A hanger may be connected to a lower side of the bracket to support a crossbar for holding suit hangers. The supporting bracket is therefore a multipurpose and highly efficient supporting member very practical for use on the wall-mount rack for supporting different types of holding members.
专利附图（8）
