将导轨稳固钩挂在货架柱上，支撑抽屉滑动。
专利摘要

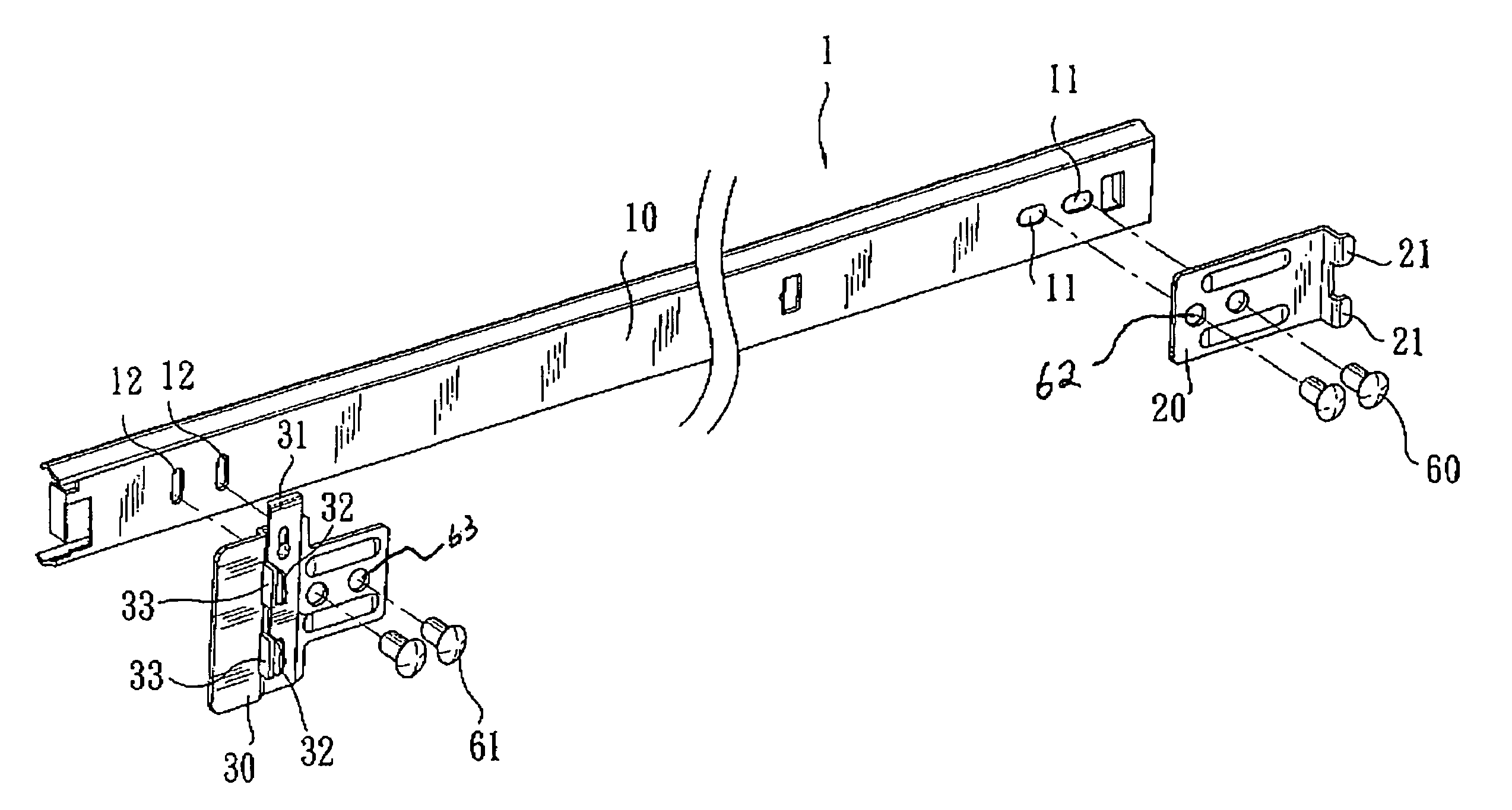

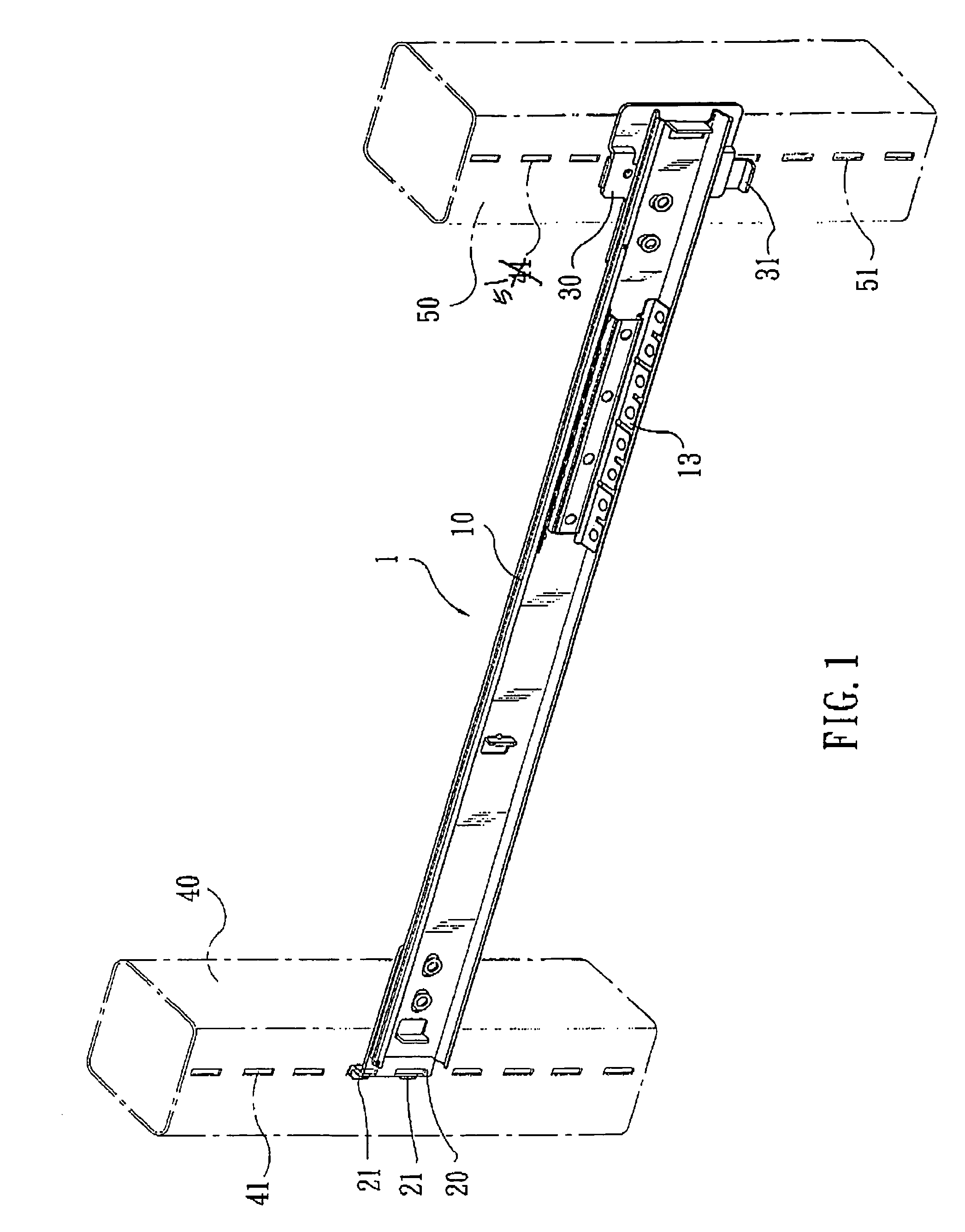

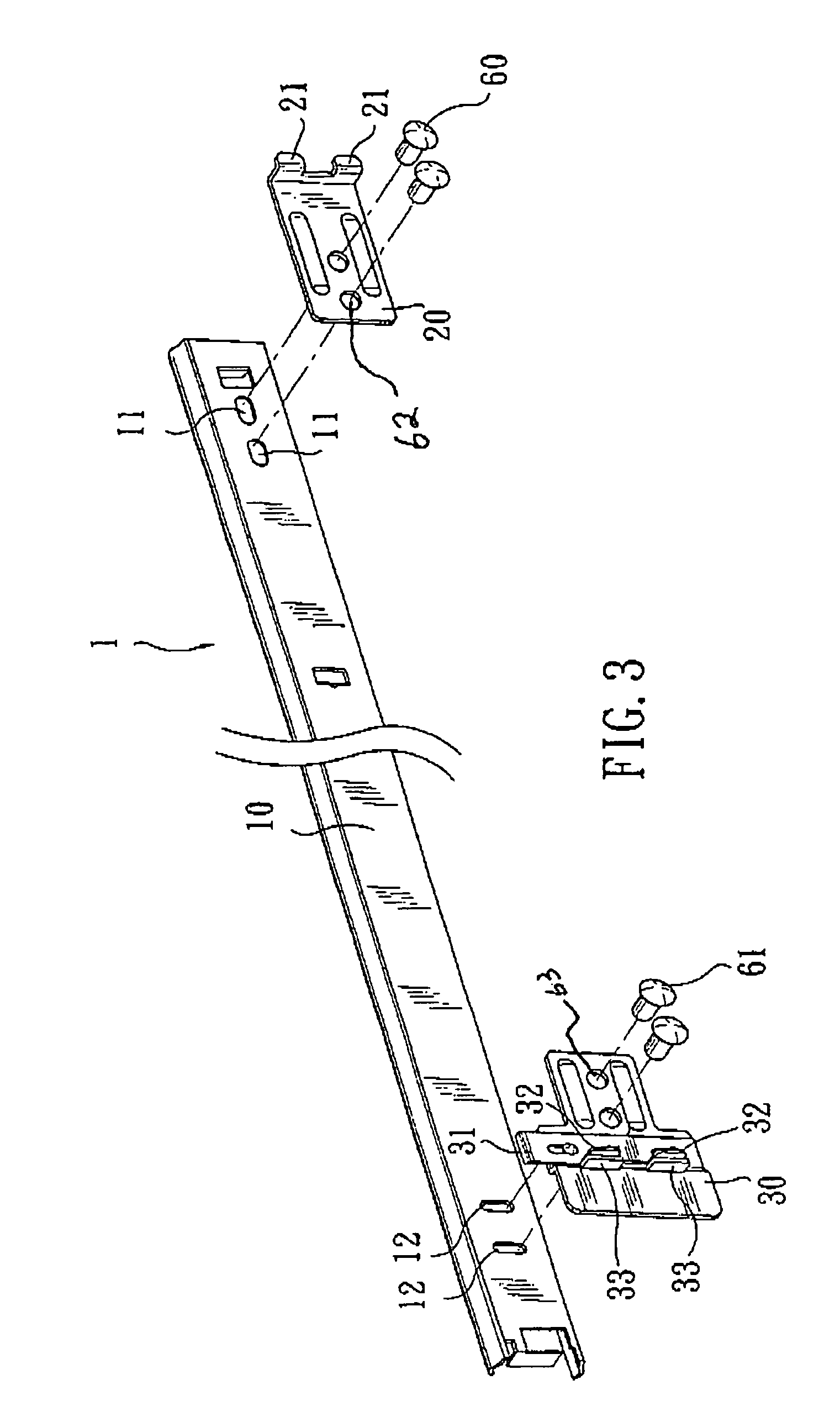

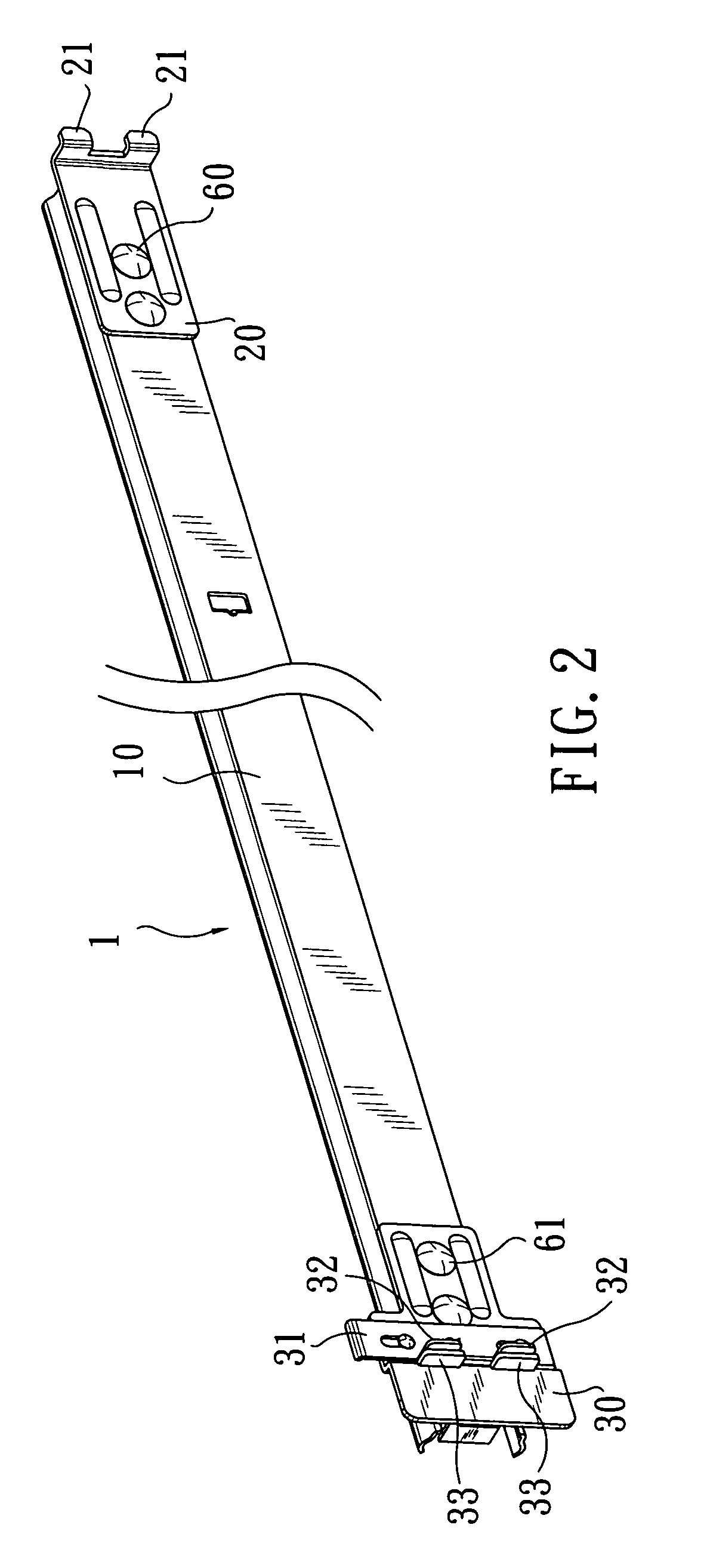

一种钩挂式导轨，包括主体、可调节地连接到主体后端的前钩挂构件以及可调节地连接到主体前端的第二钩挂构件。第一钩挂构件具有两个侧向突出的钩，用于牢固地定位在组合架后柱上的两个插入孔中。第二钩挂构件包括两个侧向突出的凸耳，用于配合地插入组合架前柱上的两个插入孔中以防止导轨上下移动，以及两个可垂直移动的钩，其抵靠两个凸耳的一侧，用于伸入并钩挂在相同的插入孔上以将导轨牢固地保持在前柱上。因此，导轨可以稳定地钩挂在组合架的柱上，供抽屉等在其上安全滑动。
Original abstractA hook-on type rail includes a main body, a front hooking member adjustably connected to a rear end of the main body, and a second hooking member adjustably connected to a front end of the main body. The first hooking member has two sideward projected hooks for firmly located in two insertion holes on a rear post of a sectional rack. The second hooking member includes two sideward projected lugs for fitly inserting into two insertion holes on a front post of the sectional rack to prevent the rail from moving up or down, and two vertically movable hooks bearing against one side of the two lugs for extending into and hooking on the same insertion holes to firmly hold the rail to the front post. Therefore, the rail may be stably hooked on the posts of the sectional rack for a drawer or the like to safely slide thereon.
