用于袋子开合,防止金属表面受损。
专利摘要
一种用于袋子的紧固件,包括固定在袋子盖子(11)侧的接合件(12)和固定在袋子主体(13)侧的闩锁机构(19),该闩锁机构适于可拆卸地接纳接合件。由于接合件的一部分被防止造成伤害的构件(15)包覆,因此在打开或关闭过程中盖子不会对设置在闩锁机构侧的金属表面(28)造成任何伤害。因此,金属表面可以始终保持美观。
Original abstractA fastener for bags includes an engaging piece ( 12 ) fixed on a lid ( 11 ) side of a bag and a latch mechanism ( 19 ) fixed on a main body ( 13 ) side of the bag and adapted to admit the engaging piece detachably. Since part of the engaging piece is clad with a member ( 15 ) for preventing infliction of injury, the lid in the process of being opened or closed has no possibility of inflicting any injury on a metallic surface ( 28 ) disposed on the latch mechanism side. Thus, the metallic surface can always be kept beautiful.

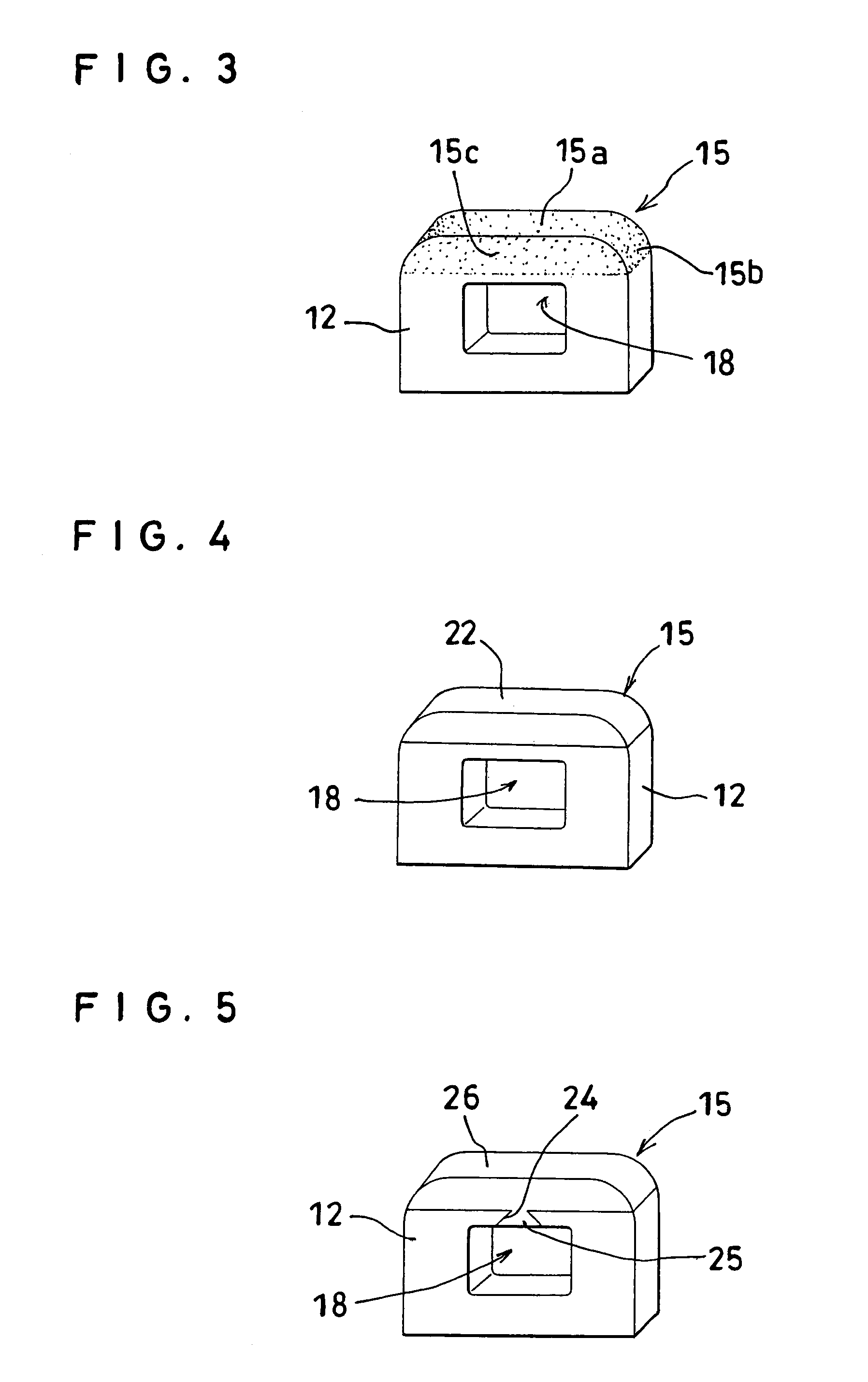

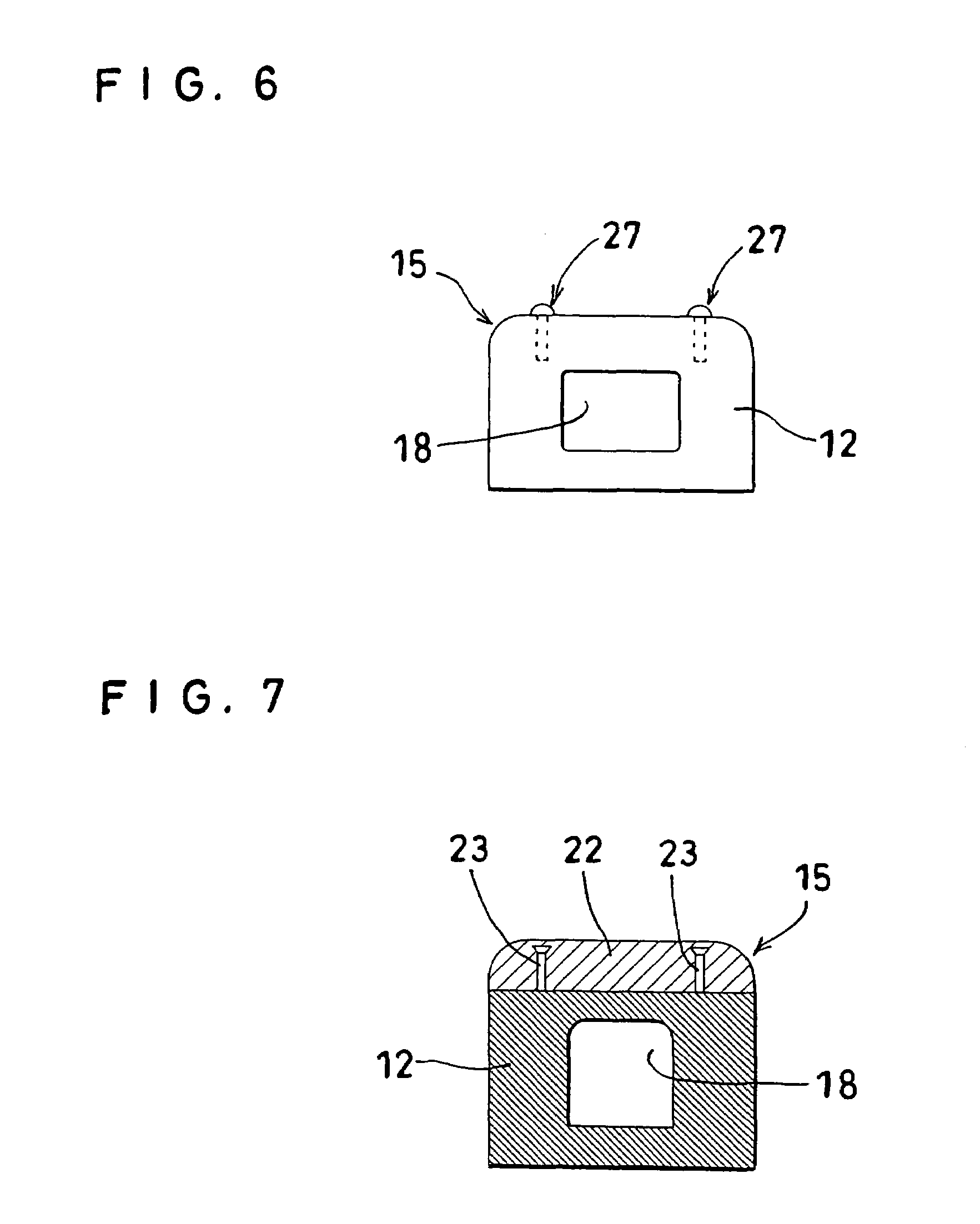

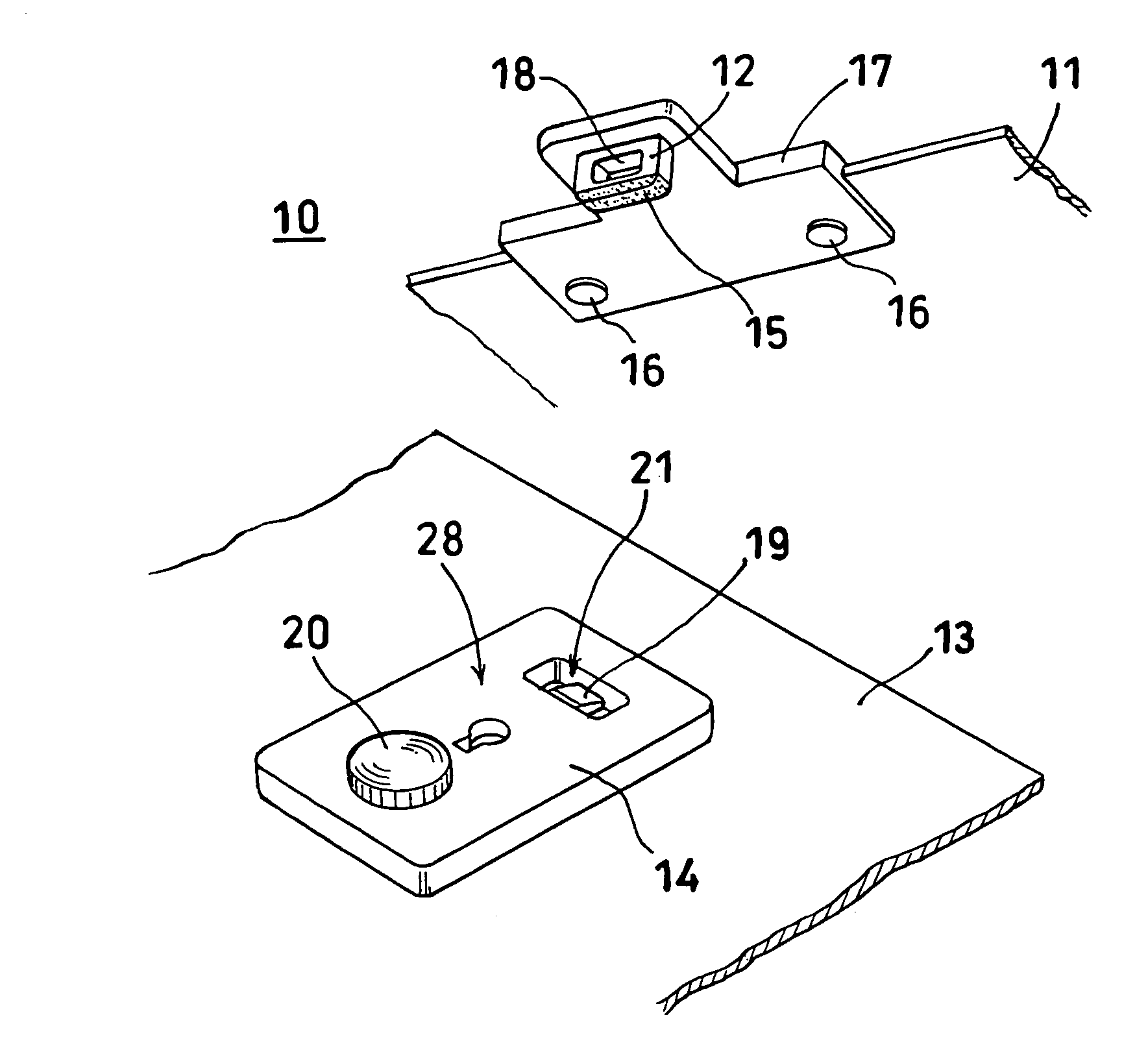

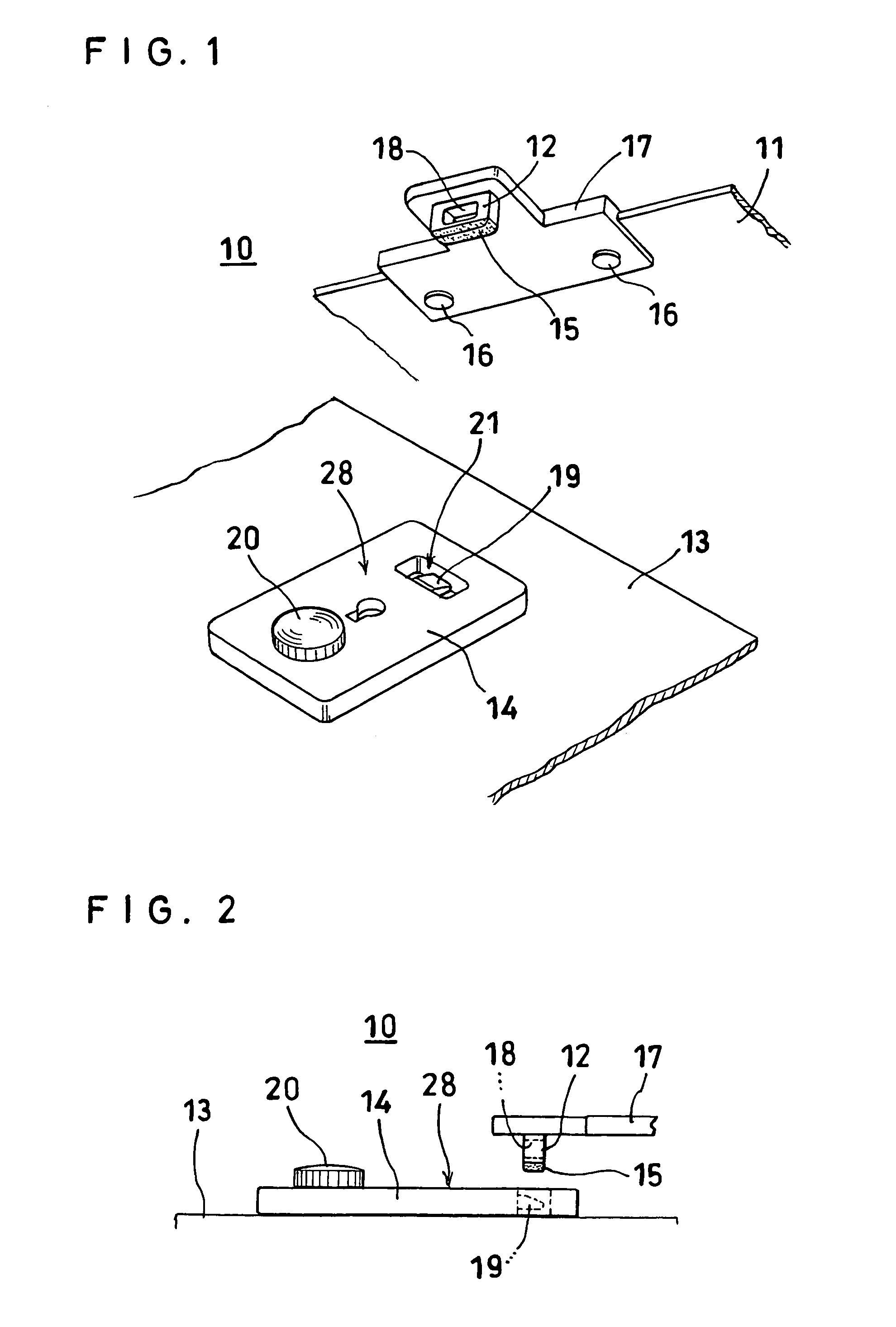

专利附图(8)
