一种可折叠的容器支撑架，用于倾斜排空容器内容物。
专利摘要

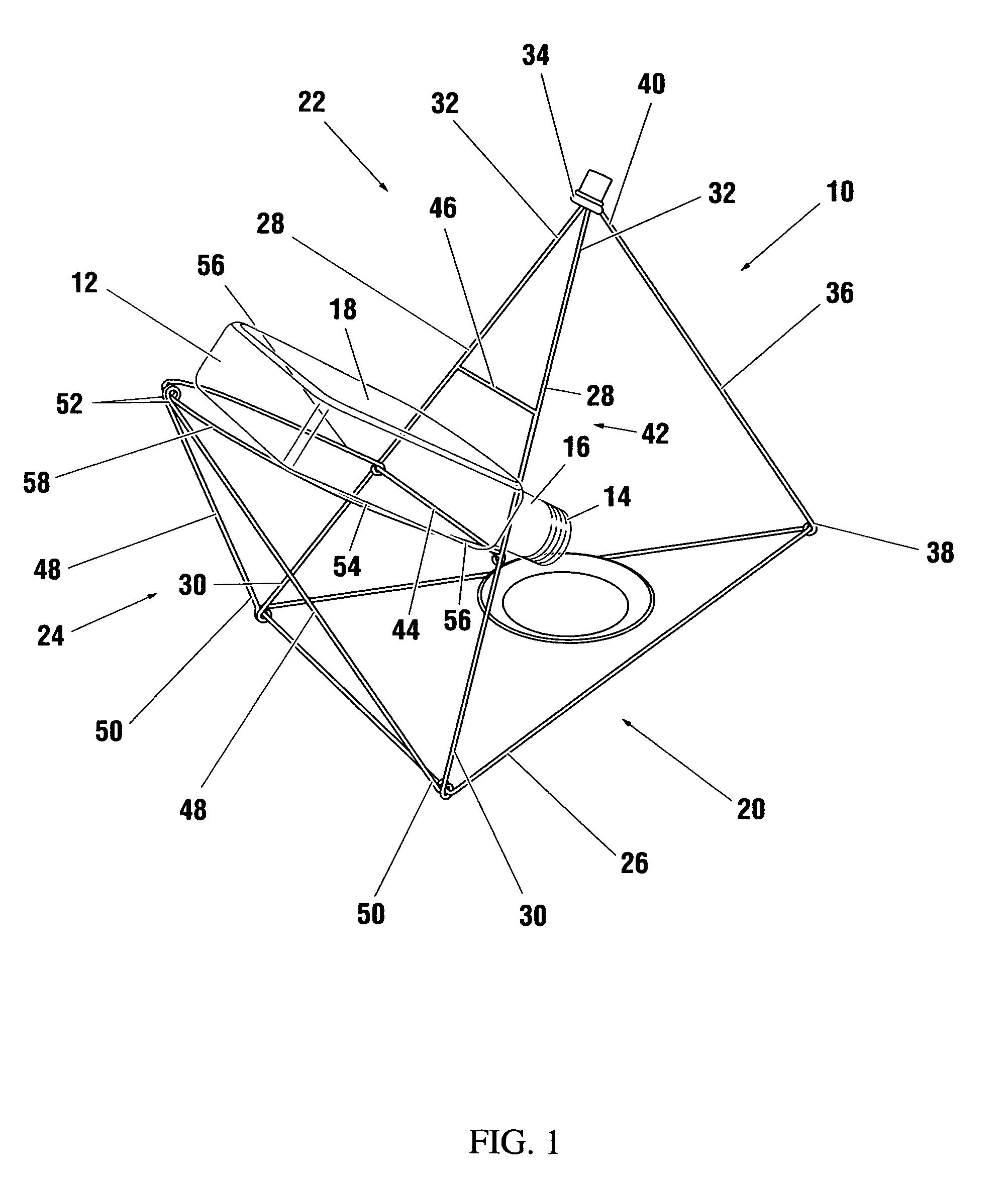

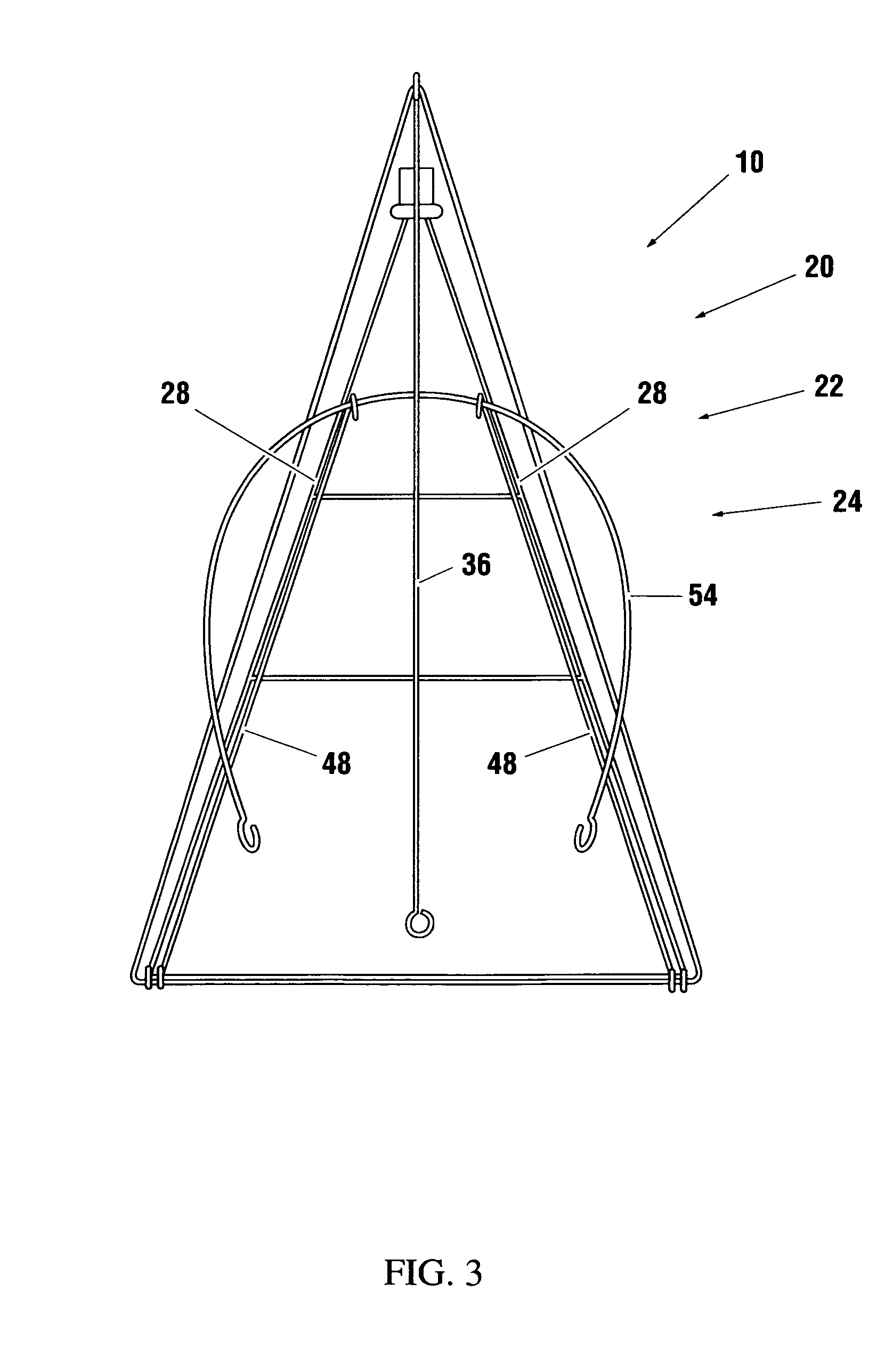

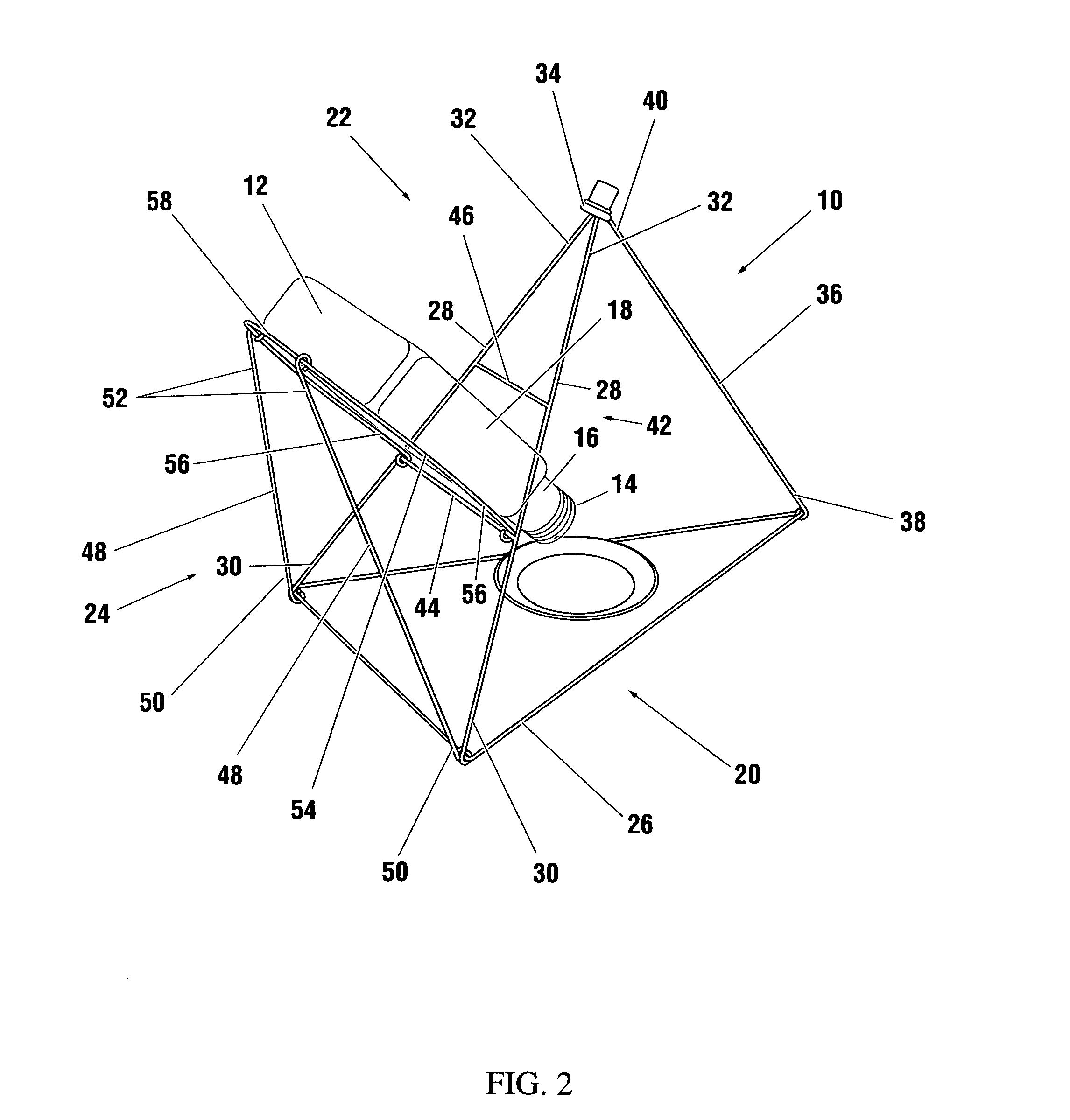

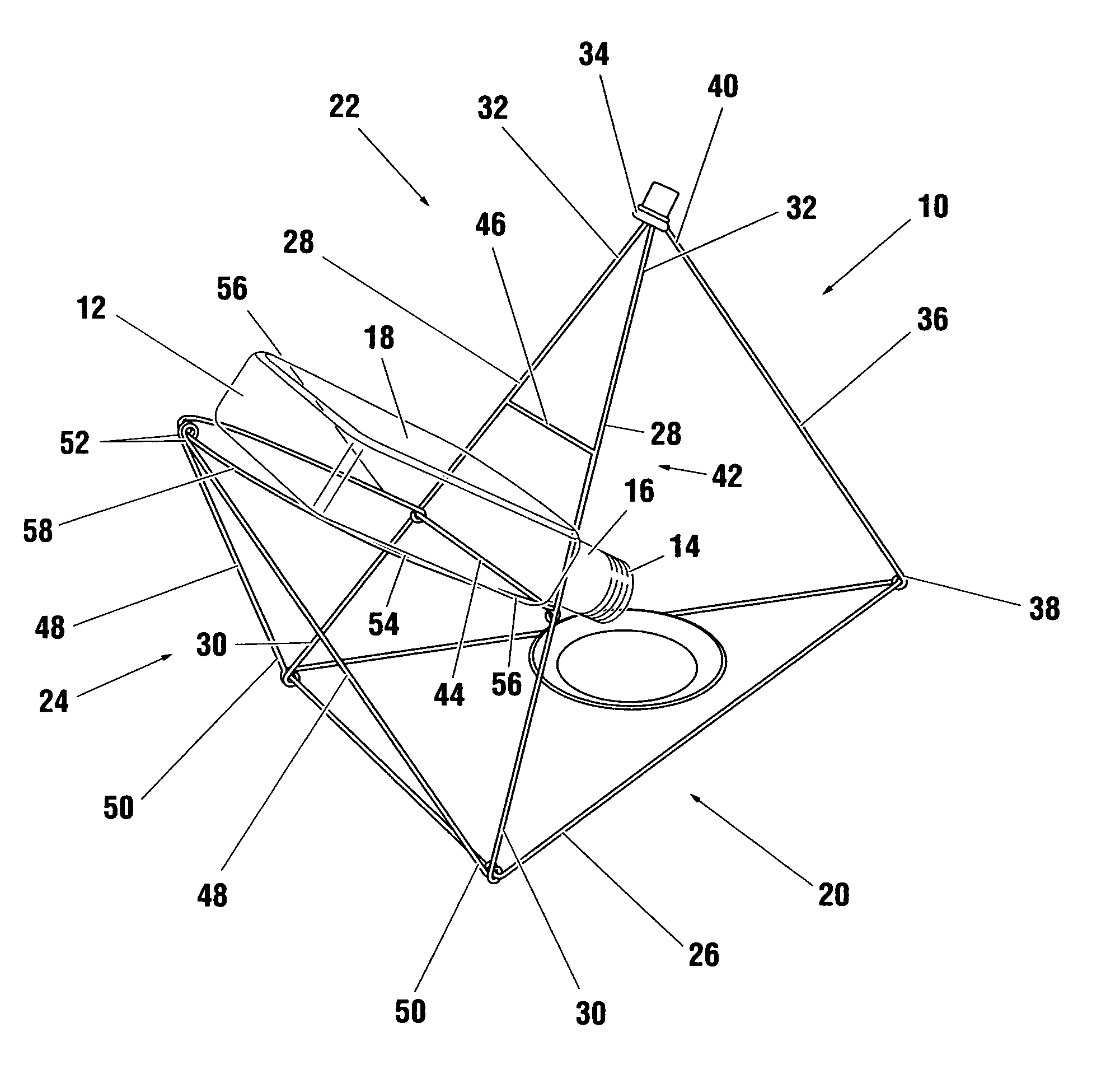

一种可折叠设备，用于以可调节的倾斜角度支撑容器以排空其内容物，包括底座、附接到底座用于支撑容器肩部的肩部支撑件，以及用于在肩部上方支撑容器主体的主体支撑件。肩部支撑件包括一对腿，该对腿在间隔开的铰链端处铰接地附接到底座，并在其相对端处连接，由铰接地连接到基座的支柱支撑，以及腿之间的间隔开的横档用作肩部止挡。主体支撑件包括一对臂，该对臂在间隔开的臂铰链端处铰接地附接到基座，并可滑动地附接到主体支撑构件，该主体支撑构件的端部可移除地附接到肩部支撑件。通过可滑动地调节臂之间的距离来调节倾斜角度。
Original abstractA collapsible apparatus for supporting a container at an adjustable angle of incline to drain its contents includes a base, a shoulder support attached to the base for supporting a shoulder of the container, and a body support for supporting the container body above the shoulder. The shoulder support includes a pair of legs hingedly attached to the base at spaced apart hinge ends and joined at its opposite ends supported by a strut hingedly connected to the base, and spaced apart crosspieces between the legs to act as a shoulder stop. The body support includes a pair of arms hingedly attached to the base at spaced apart arm hinge ends and slidably attached to a body support member which is removably attachable at its ends to the shoulder support. The angle of incline is adjusted by slidably adjusting the distance between the arms.
专利附图（8）
