用于淋浴间防积水与防漏的底盘。
专利摘要

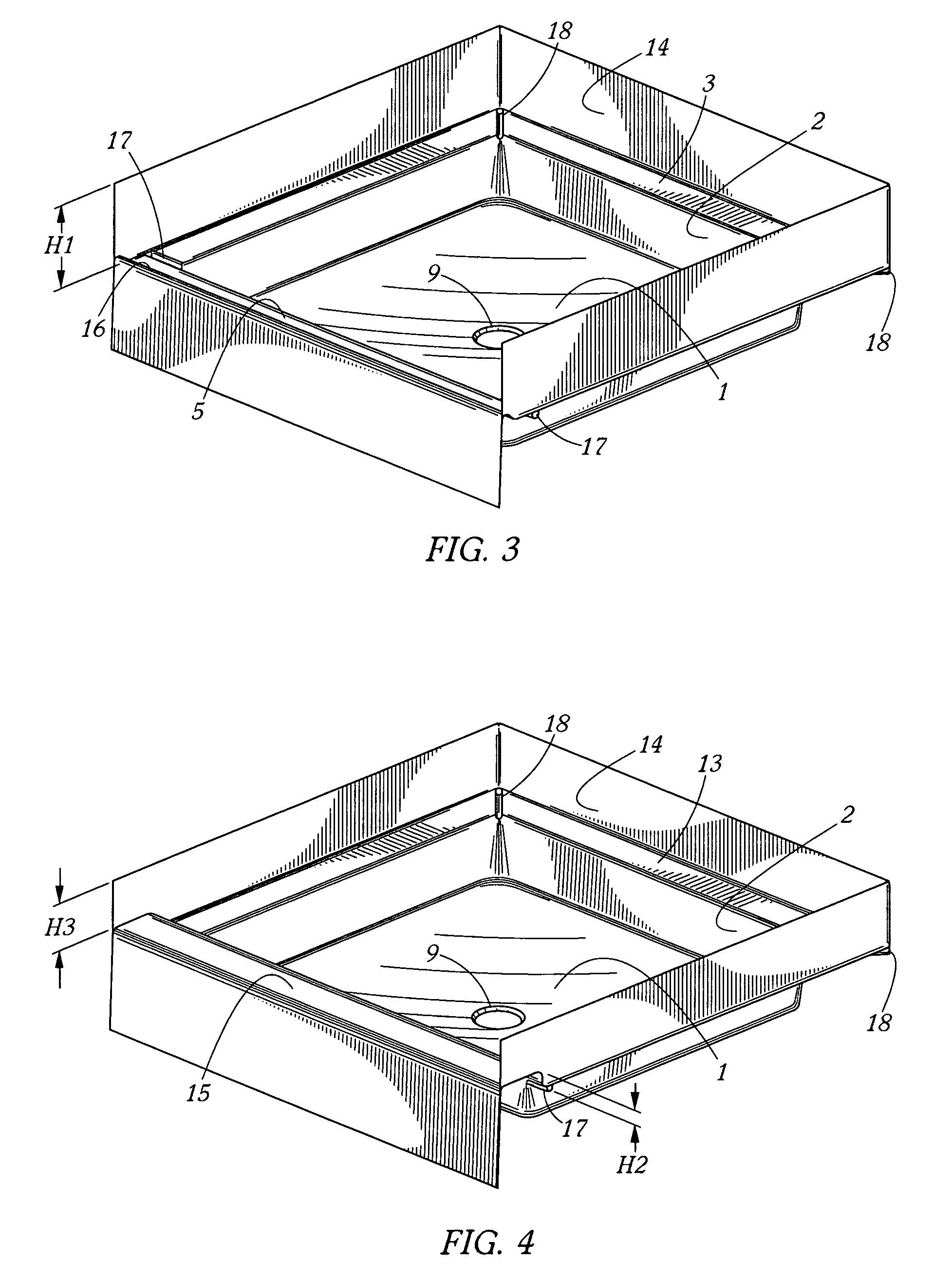

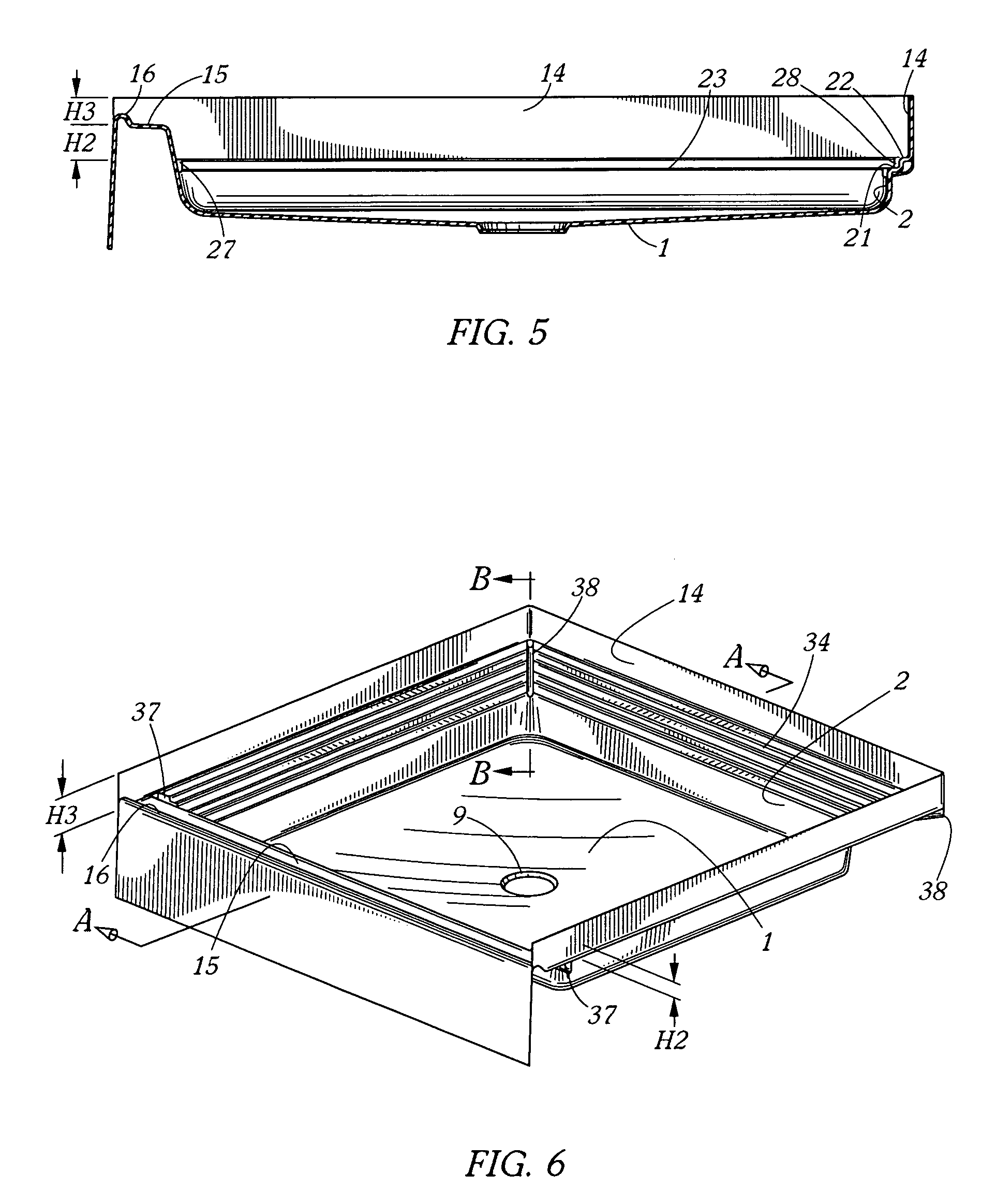

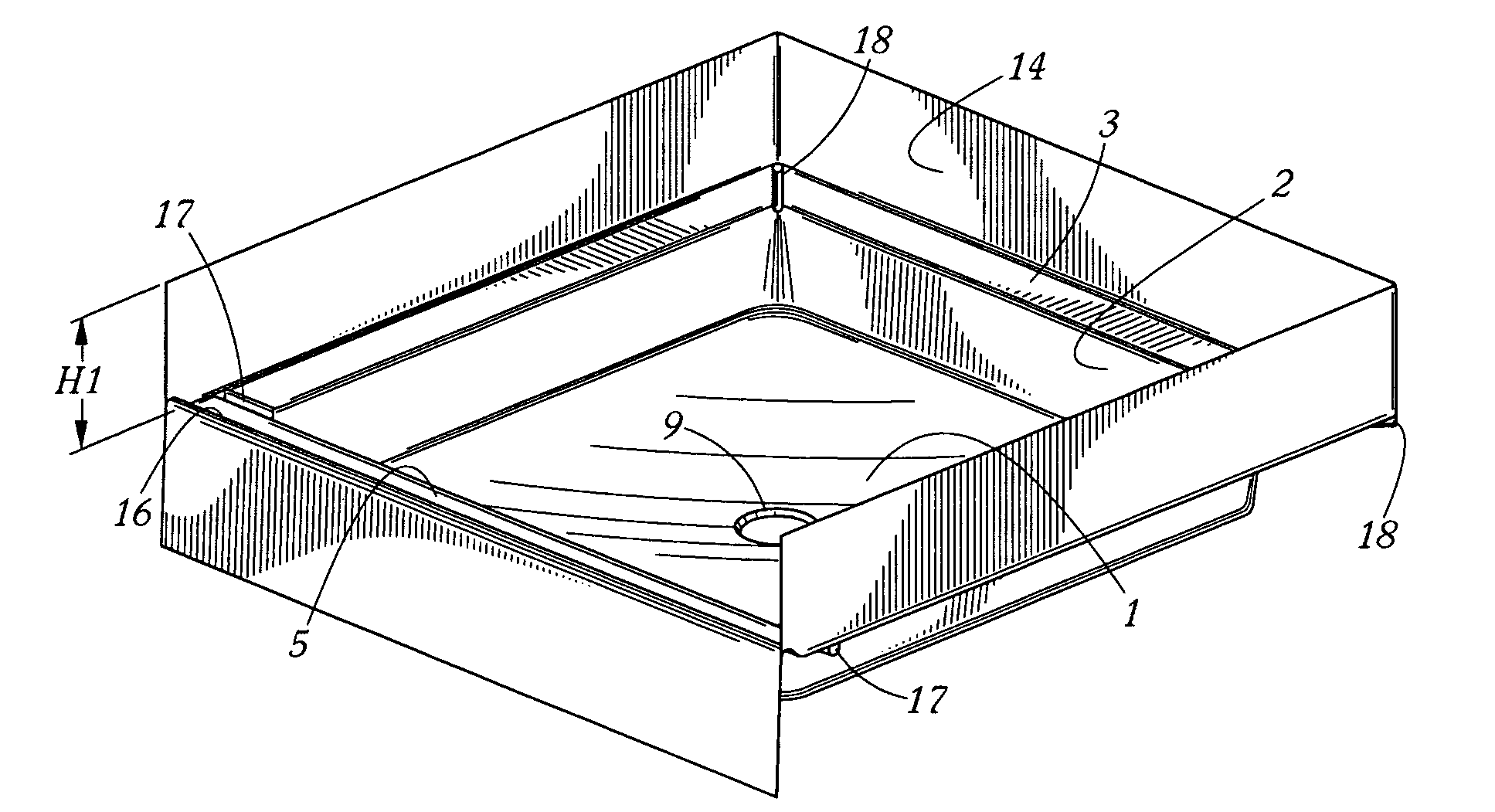

一种具有改进的湿气和积水控制的淋浴底盘，包括以下一项或多项改进：法兰显著高于现有技术底盘的阈值；阈值设置得高于淋浴壁材料与底盘相接的台阶区域；在台阶区域的角落以及台阶与阈值相接处设置排水谷；台阶区域包括多个台阶，适于与底壁和饰面壁材料相接，其中台阶朝向底部倾斜，且瓷砖台阶低于底壁台阶；沿阈值水平表面的外边缘设置升高的挡边，该挡边适于将从门围护结构泄漏的水重新引导回淋浴底盘。
Original abstractA shower receptor with improved control of moisture and trapped water comprising one or more of the following improvements: the flange is significantly higher above the threshold than prior art receptors; the threshold is disposed higher than the ledge area where the shower wall materials meet the receptor; weep valleys are provided in the corners of the ledge area and where the ledge meets the threshold; the ledge area comprises multiple steps adapted to meet the subwall and finish wall materials wherein the steps are sloped toward the base and the tile step is lower than the subwall step; a raised curb is provided along the outer edge of the horizontal surface of the threshold, the curb adapted to redirect water that leaks out of the door enclosure back into the shower receptor.
专利附图（8）
