用于操作单元后勤管理的模块化存储系统

Modular storage system for logistical management of operational units

US-7484631-B2

用于操作单元的后勤管理，通过推车和轨道实现模块化存储。

专利摘要

一种用于安装在地板上的模块化存储系统，包括多个推车。每个推车包括底座，该底座通常具有分隔底座相对端的长度；存储结构，可操作地附接到底座并由底座承载；至少三个可枢转轮组件，轮组件可操作地附接到底座并延伸到底座下方，以提供适于在地板上滚动的滚动表面；以及至少一个轨道从动机构，可操作地附接到底座的一端，其至少一部分可选择性地垂直移动以接合轨道。

Original abstractA modular storage system for installation on a floor includes a plurality of carts. Each cart includes a base that generally has a length that separates opposed ends of the base, a storage structure that is operably attached to and carried by the base, at least three pivotable wheel assemblies, the wheel assemblies being operably attached to and extending below the base to provide a rolling surface adapted to roll on the floor, and at least one track follower mechanism that is operably attached to one end of the base and having at least a portion of which is selectively vertically movable to engage the track.

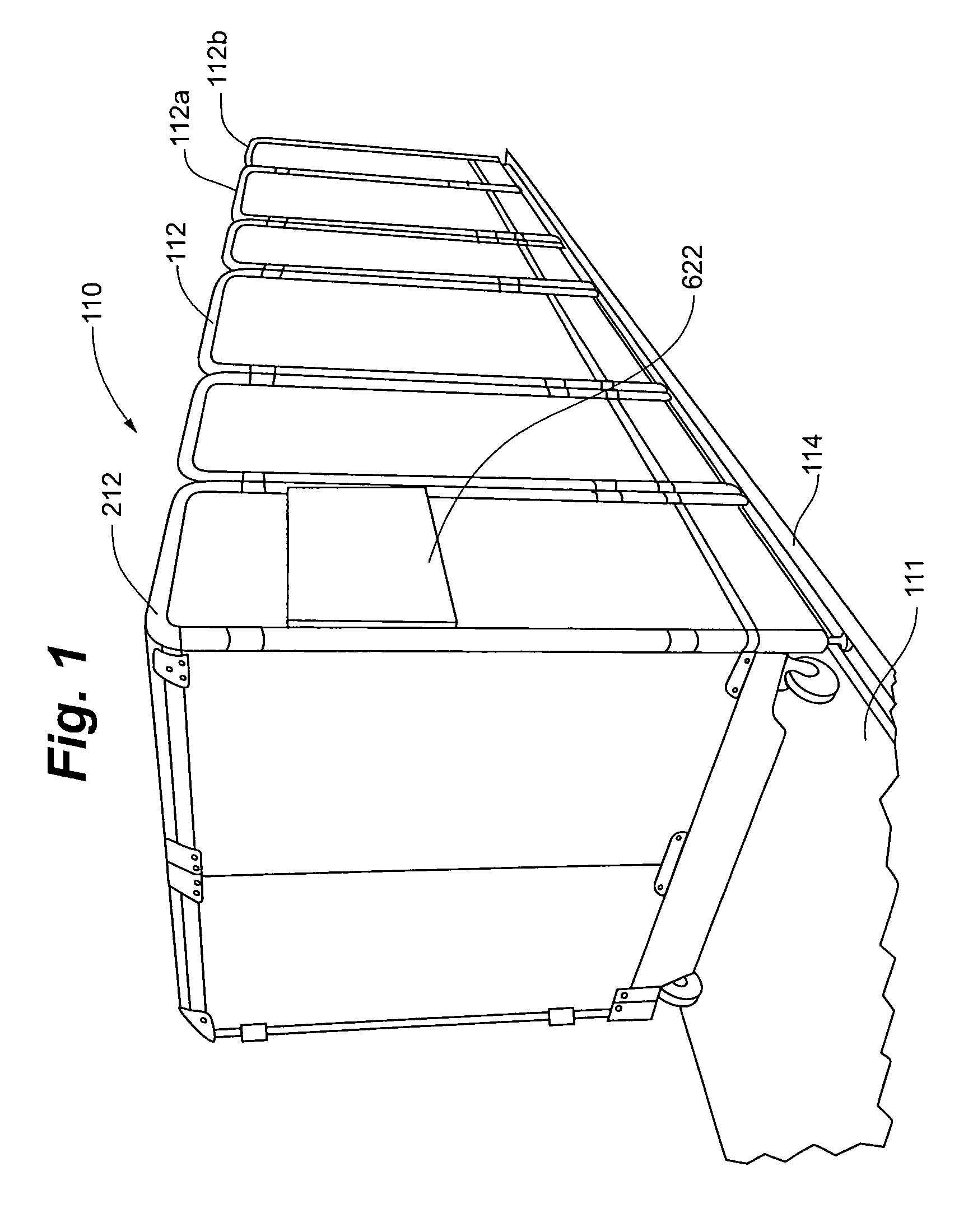

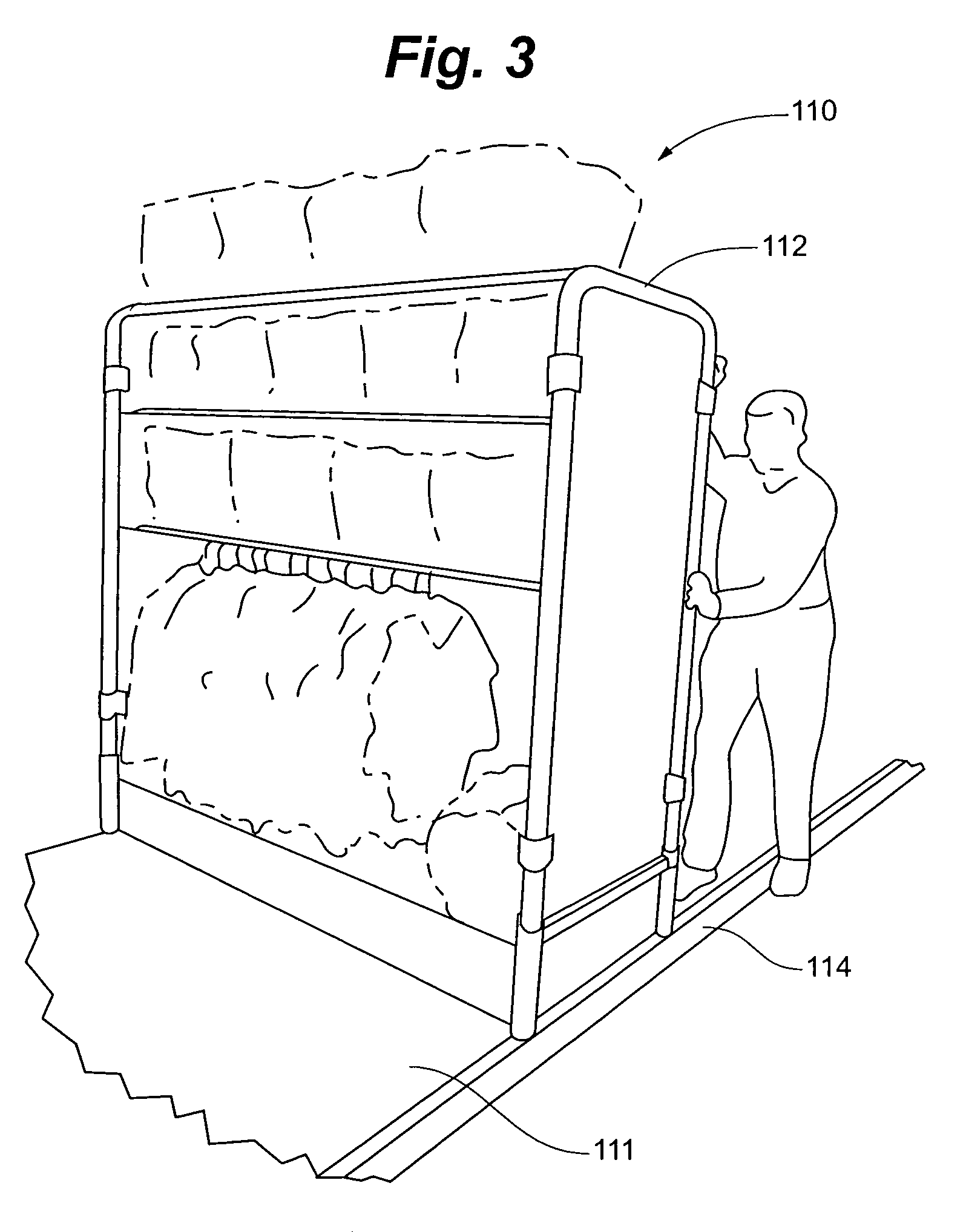

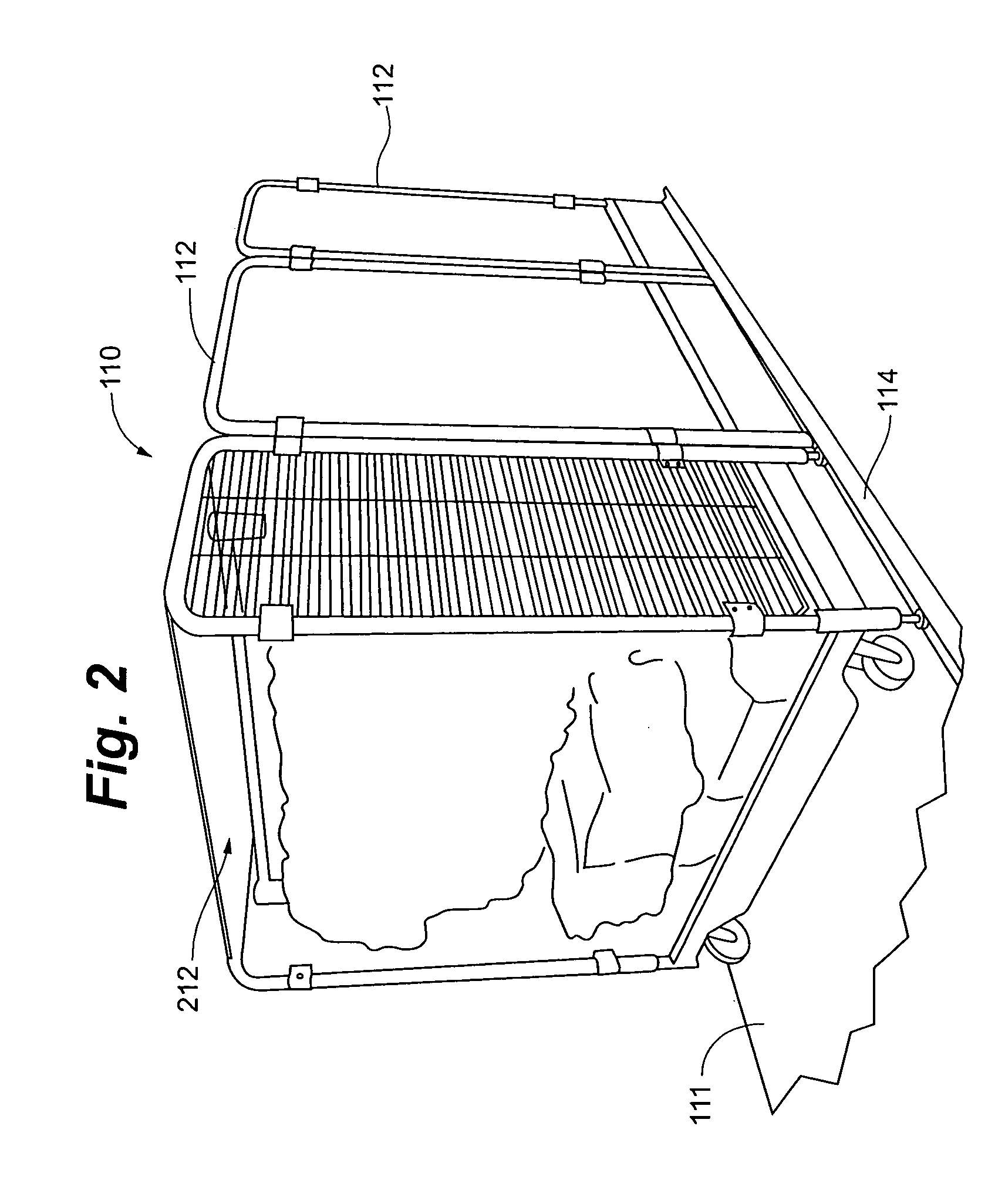

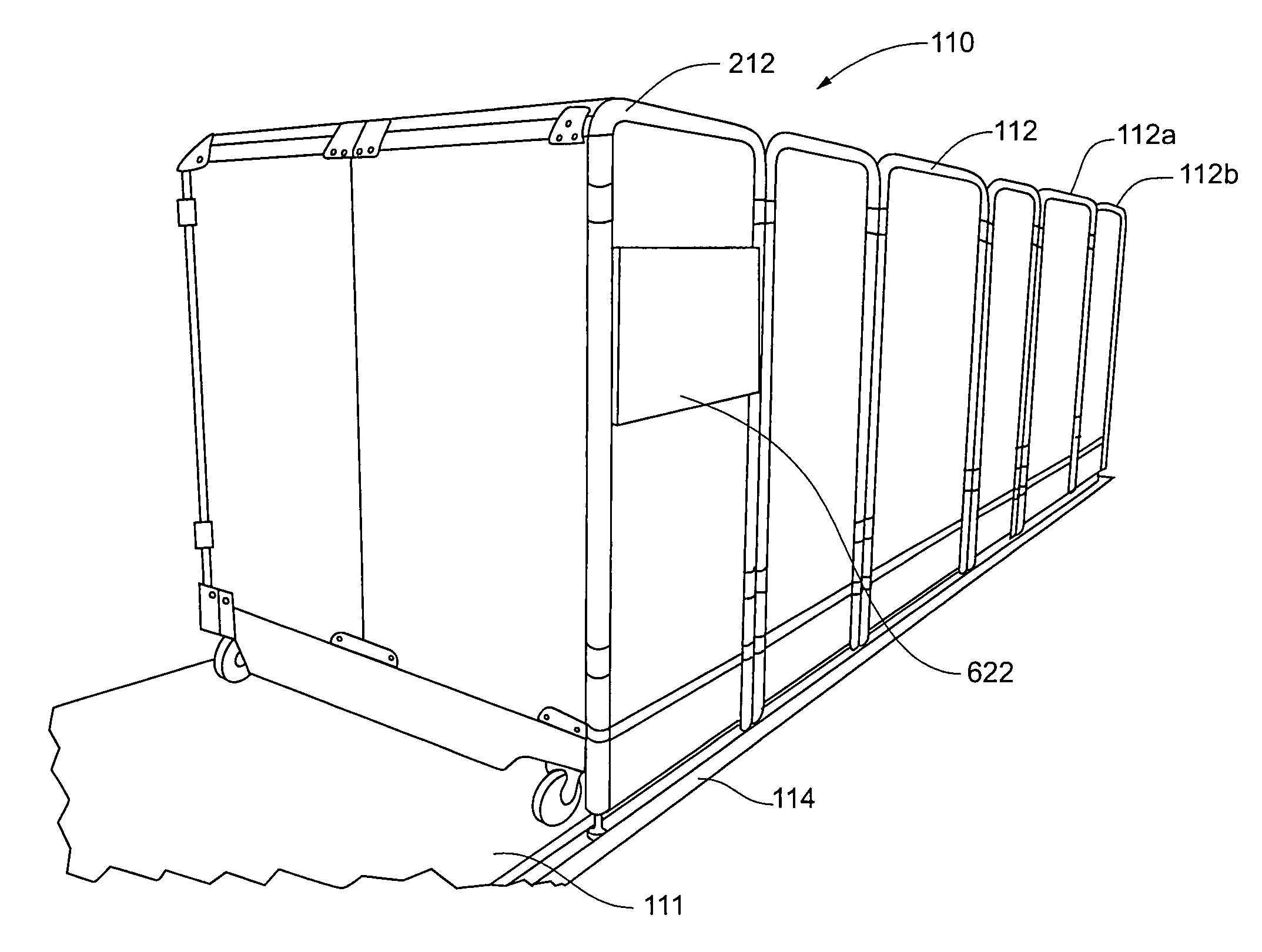

专利附图（8）
