来源记录显示 Expired
家具存储单元结构及构造方法
Furniture storage unit structure and construction method
US-7484465-B2用于家具存储，可灵活调整隔间尺寸和布局。
专利摘要
一种家具存储单元及其构造方法，配置为包括一个或多个存储隔间，每个隔间的尺寸（例如高度和宽度）可由用户容易地改变。该存储单元配置为使用户能够在存储单元内以多种配置或图案布置一个或多个隔间，以优化实用性和美学吸引力。存储隔间由细长柔性材料的悬挂网形成，该网具有第一和第二悬挂构件，分别沿网长度间隔开的位置固定到网上。第一和第二悬挂构件配置为由一个或多个轨道在沿轨道纵向间隔开的第一和第二位置处支撑。悬挂构件悬挂网，使得第一和第二间隔开的网部分基本垂直悬挂，由适合支撑各种物体（例如书籍）的中间网部分桥接。
Original abstractA furniture storage unit, and method of construction, configured to include one or more storage compartments each having dimensions (e.g., height and width) which can be readily varied by a user. The storage unit is configured to enable a user to arrange one or more compartments in a wide variety of configurations or patterns within the storage unit to optimize utility and aesthetic appeal. A storage compartment is formed by a suspended web of elongate flexible material having first and second hanger members respectively secured to the web at locations spaced along the web length. The first and second hanger members are configured to be supported by one or more rails at respective first and second locations longitudinally spaced along the rails. The hanger members suspend the web so that first and second spaced web portions hang substantially vertically bridged by an intermediate web portion suitable for supporting various objects, e.g., books.

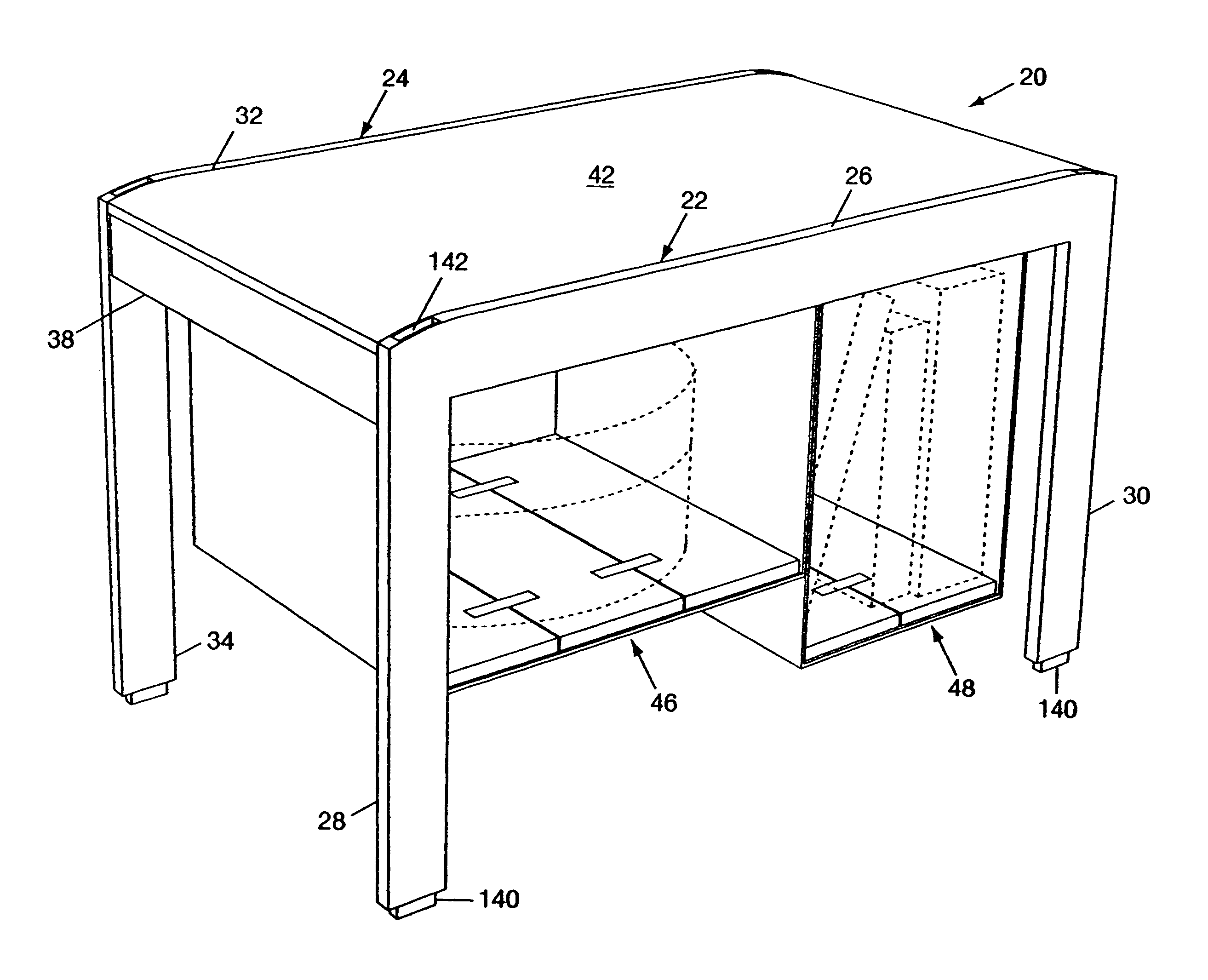

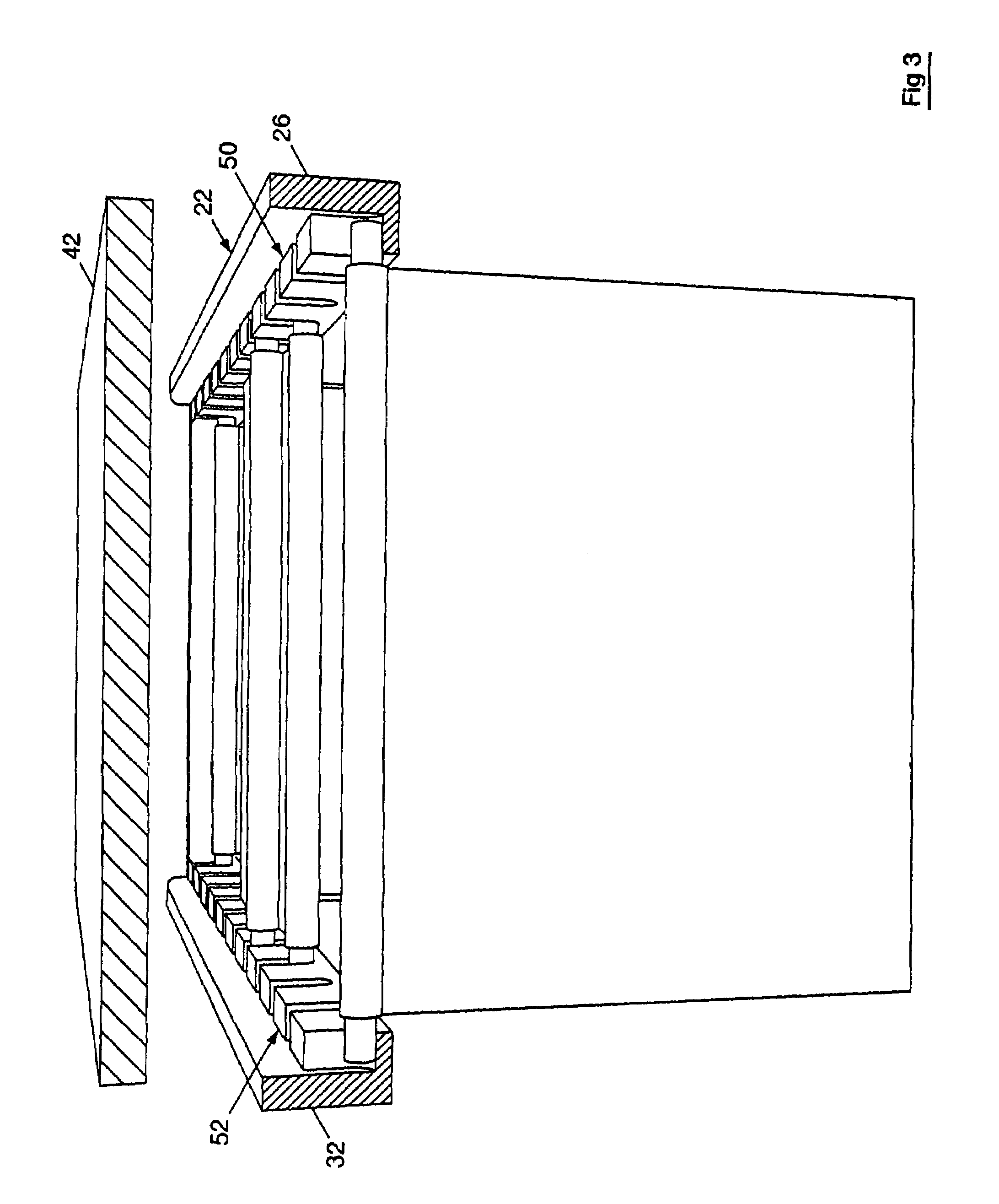

专利附图（8）
来源状态与事件
暂无可展示的状态事件记录。
