用于连接搁板与支撑杆，便于组装。
专利摘要

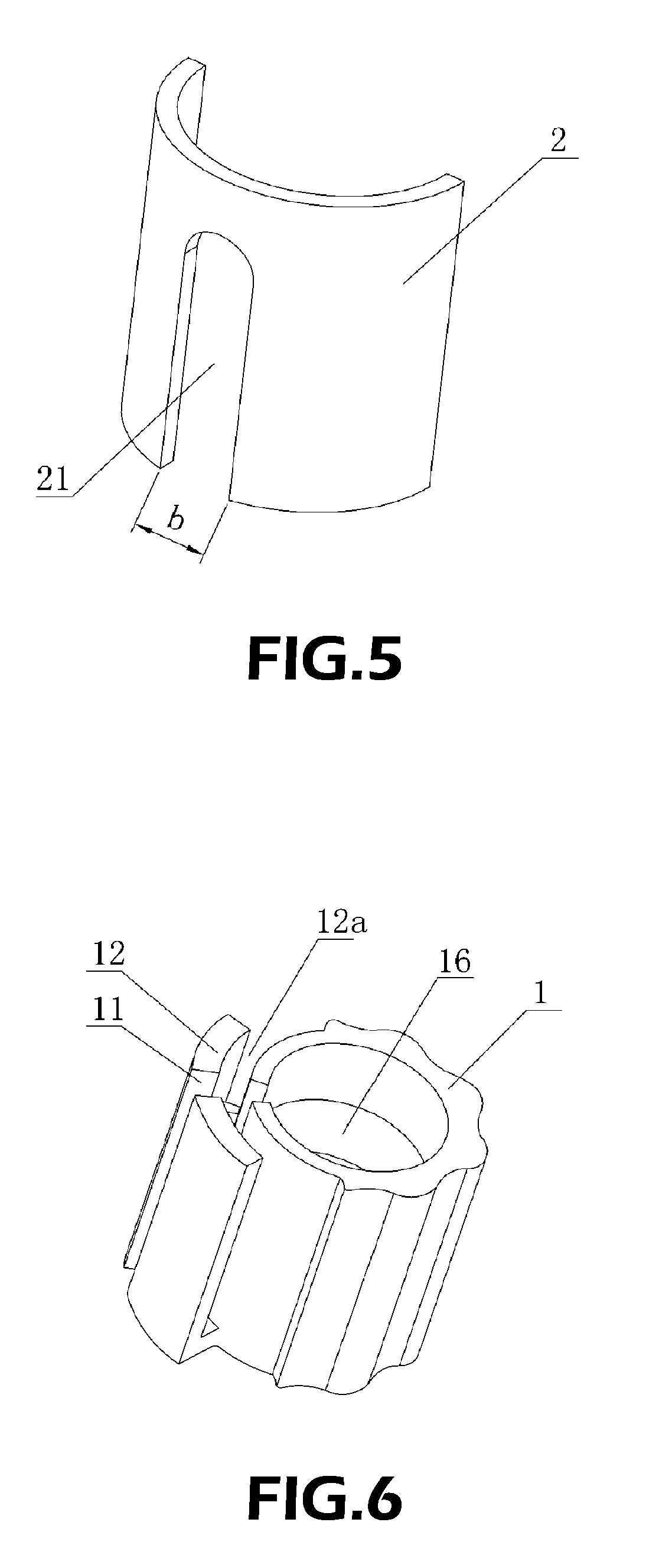

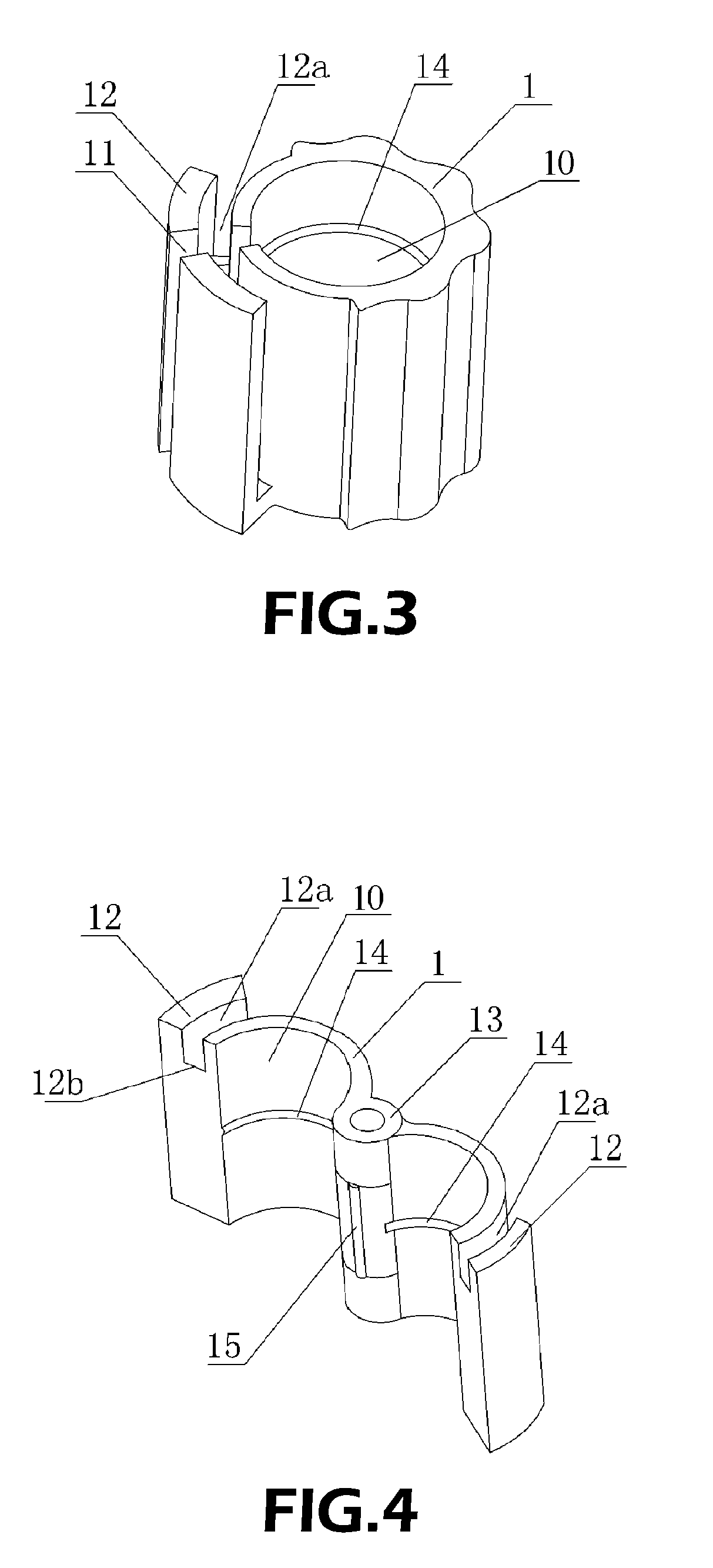

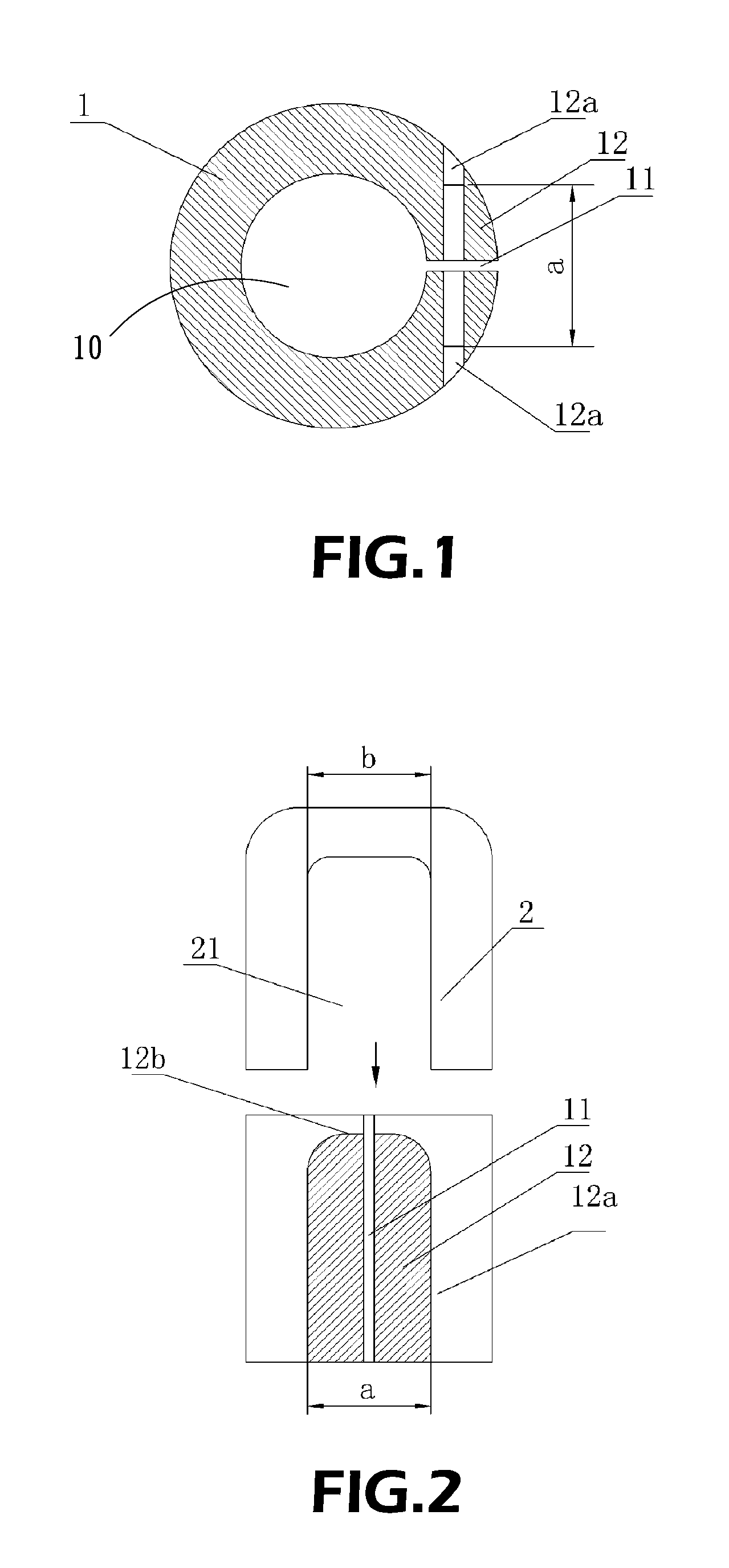

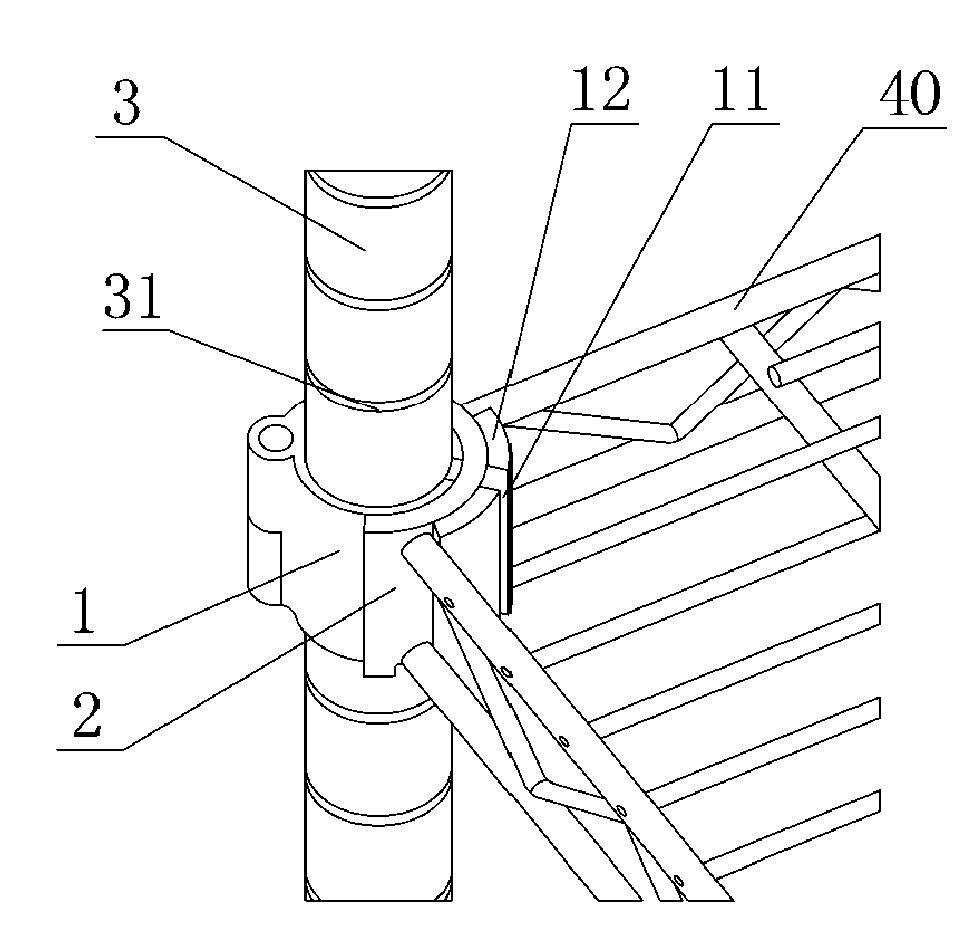

一种搁板连接器，包括滑动套筒和锁定套筒。滑动套筒上形成有锁定体。锁定体沿滑动套筒的轴向方向设有开口槽。锁定体在开口槽的两侧设有夹持部分。锁定套筒上设有锁定槽。在夹持部分插入锁定槽后，开口槽的宽度可以减小。通过上述布置，在组装时，滑动套筒可以方便地定位到支撑杆的任何合适位置，并通过插入锁定套筒而锁定到其上。由于锁定套筒本身具有用于与搁板的框架体配合的安装部分，或者锁定套筒本身是搁板的框架体的端部，所以整个搁板的连接变得非常简单。通过使用具有不同规格和用途的各种连接器，适用于连接各种搁板。
Original abstractA shelf connector includes a sliding sleeve and a locking sleeve. The sliding sleeve is formed with a locking body thereon. The locking body is provided with an open groove along the axial direction of the sliding sleeve. The locking body is provided on both sides of the open groove with clasping portions. The locking sleeve is provided with a locking groove thereon. After the clasping portion is inserted into the locking groove, the width of the open groove can be reduced. With the above arrangement, in assembling, the sliding sleeve can be conveniently positioned to any suitable position of the supporting rod and locked thereto with the insertion of the locking sleeve. Since the locking sleeve itself has mounting portions for mating with the frame body of the shelf, or the locking sleeve itself is the end portion of the frame body of the shelf, the connection of the whole shelf becomes very simple. By using various connectors having different specifications and purposes, it is suitable for connecting various kinds of shelf.
专利附图（8）
