用于多种不同尺寸存储卡的保护盒

Protective case for a plurality of different sized memory cards

US-7475816-B1

用于安全存放多种尺寸的存储卡，防止意外脱落。

专利摘要

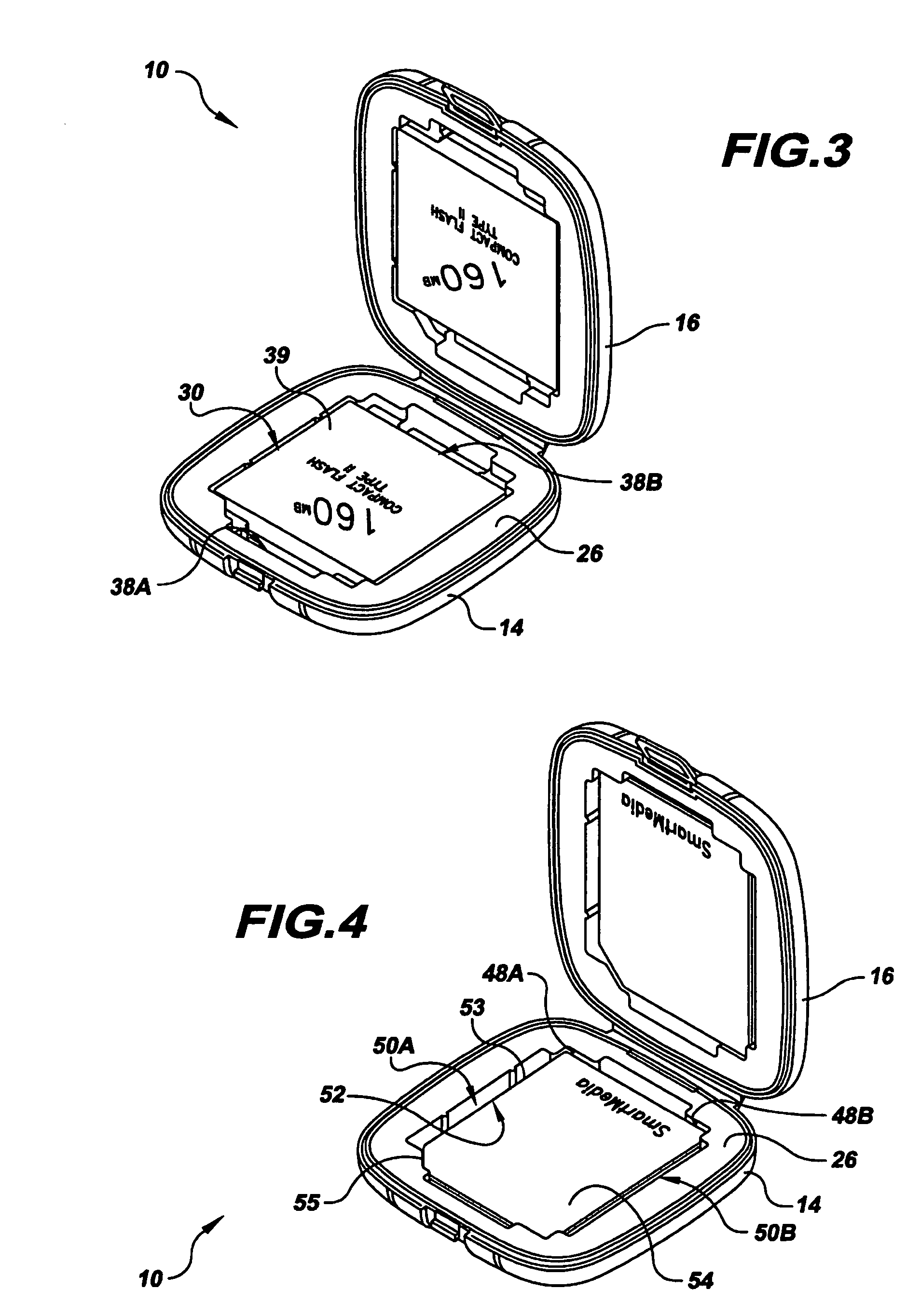

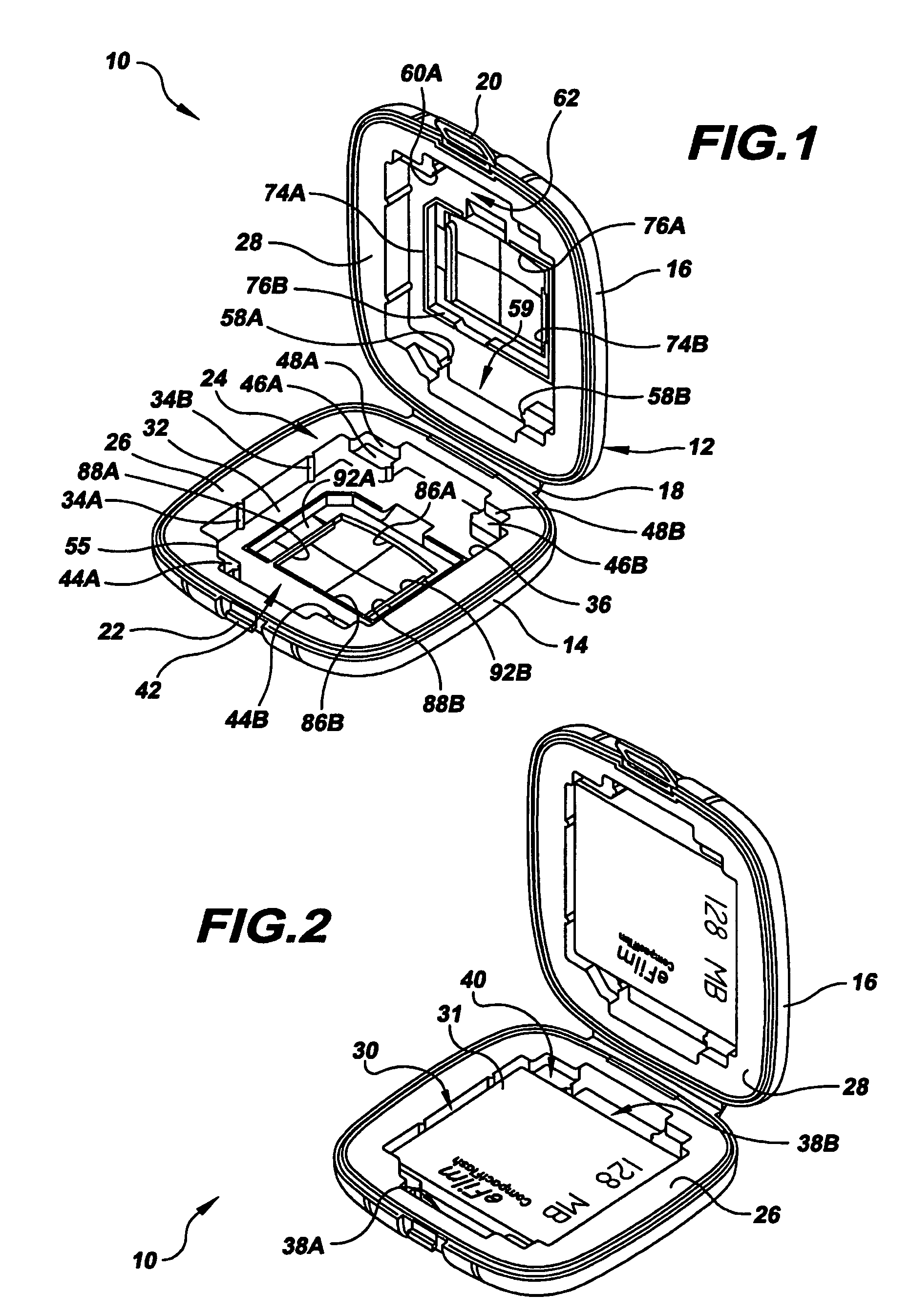

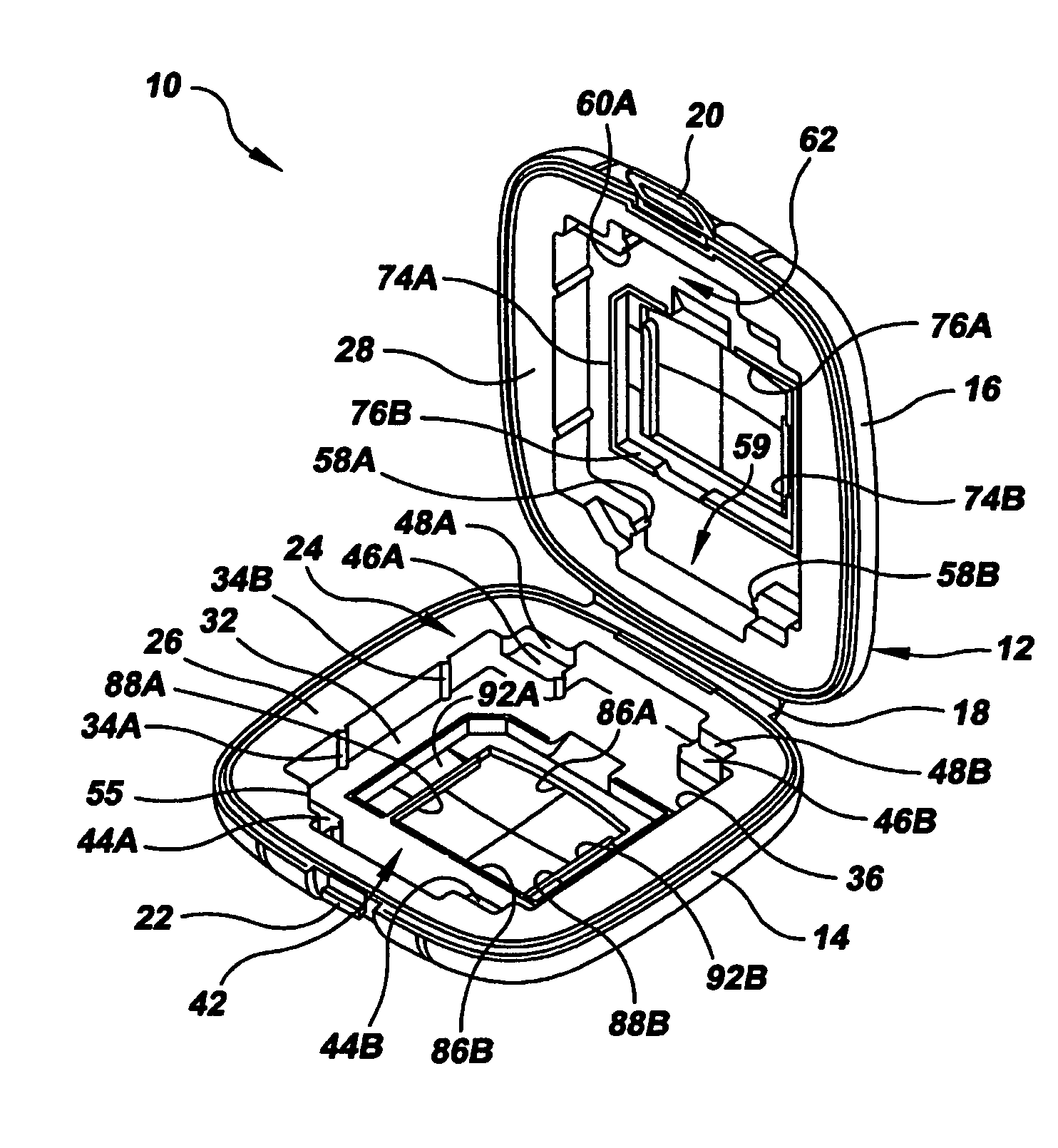

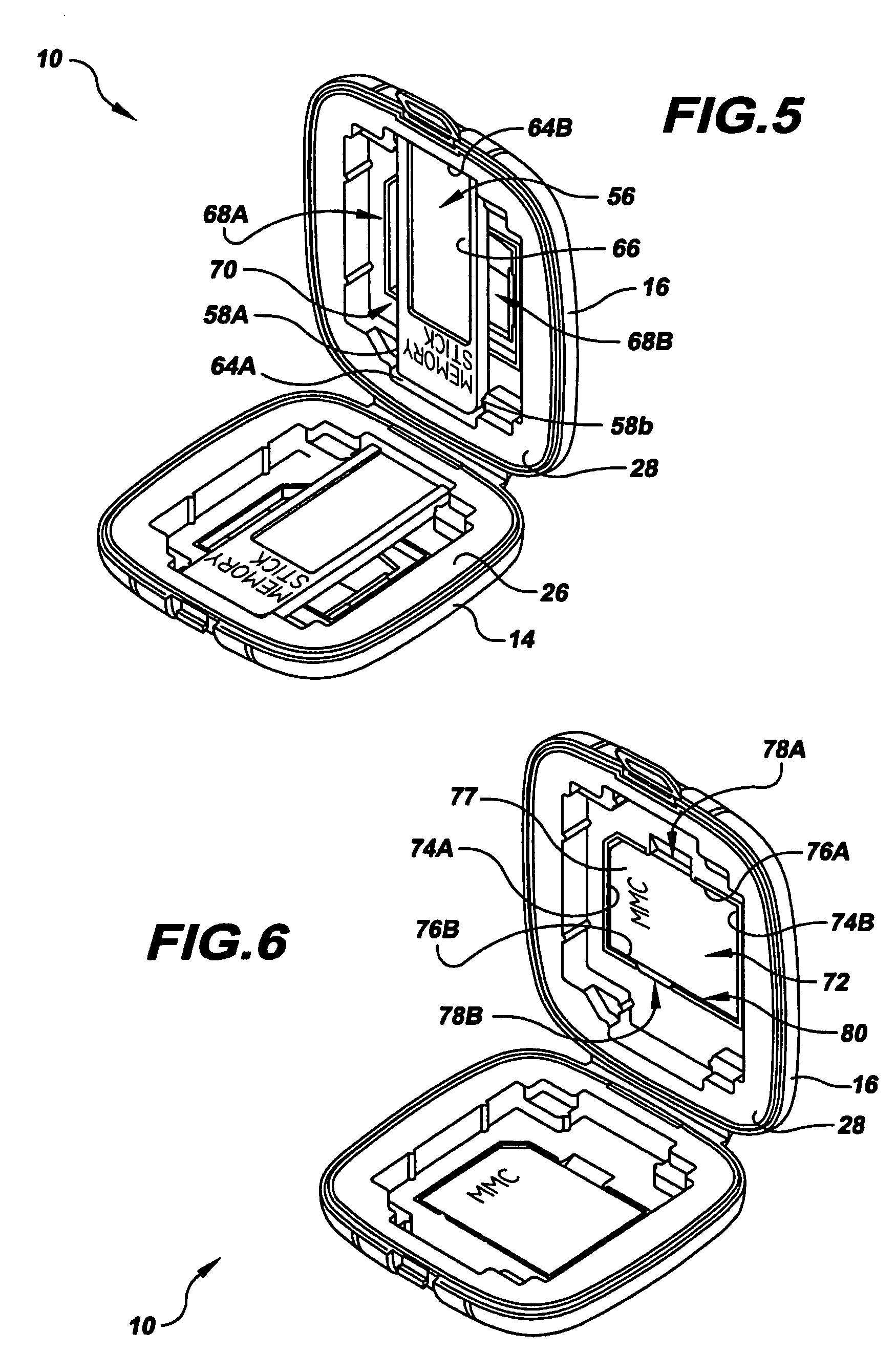

一种用于固定和保护多种不同尺寸存储卡(31, 39, 54, 66, 77, 82, 90)的保护盒(10)，包括具有第一壳(14)和第二壳(16)的刚性外部容器(12)。第一和第二弹性插入件(26, 28)的尺寸设计为嵌套在第一和第二壳(14, 16)内，并且插入件(26, 28)各自限定五个存储卡固定装置(30, 42, 56, 72, 84)，用于固定不同尺寸的存储卡(31, 39, 54, 66, 77, 82, 90)，防止其从盒中意外移除。限定抵接边缘(36, 48A, 48B)以接触由固定装置固定的存储卡的周边边缘。还在固定卡的相对边缘上限定提取腔(38A, 38B, 50A, 50B)，以便于从盒中取出存储卡。

Original abstractA protective case ( 10 ) for securing and protecting a plurality of different sized memory cards ( 31, 39, 54, 66, 77, 82, 90 ) includes a rigid exterior container ( 12 ) having a first shell ( 14 ) and a second shell ( 16 ). First and second resilient inserts ( 26, 28 ) are dimensioned to nest within the first and second shells ( 14, 16 ) and the inserts ( 26, 28 ) each define five memory card securing means ( 30, 42, 56, 72, 84 ) for securing differing sized memory cards ( 31, 39, 54, 66, 77, 82, 90 ) against unassisted removal from the case. Abutment edges ( 36, 48 A, 48 B) are defined to contact a peripheral edge of a memory card secured by the securing means. Extraction cavities ( 38 A, 38 B, 50 A, 50 B) are also defined on opposed edges of the secured cards for facilitating removal of the memory cards from the case.

专利附图（8）
