具有H形中心支撑组件的桌子
Table having H-center support assembly
US-7475642-B2用于提供稳定支撑的桌子。
专利摘要
一种桌子，包括桌面和桌架。桌架优选包括一个或多个侧轨、端轨、桌腿和支撑撑杆。桌子还包括设置在桌面下侧的安装结构。支撑组件的至少一部分连接到安装结构。理想地，安装结构和支撑组件设置在桌子的中心部分，但安装结构和/或支撑组件可以位于桌子的任何期望部分。优选地，支撑撑杆的一端枢转地附接到支撑组件，另一端枢转地附接到桌腿。有利地，支撑组件为桌面的一部分提供“平面”支撑区域。
Original abstractA table includes a table top and a table frame. The table frame preferably includes one or more side rails, end rails, table legs, and support braces. The table also includes a mounting structure that is provided on the underside of the table top. At least a portion of a support assembly is connected to the mounting structure. Desirably, the mounting structure and the support assembly are disposed towards the center portion of the table, but the mounting structure and/or support assembly could be located in any desired portion of the table. Preferably, one end of the support braces is pivotally attached to the support assembly and the other end is pivotally attached to a table leg. Advantageously, the support assembly provides a "planar" support area to a portion of the table top.

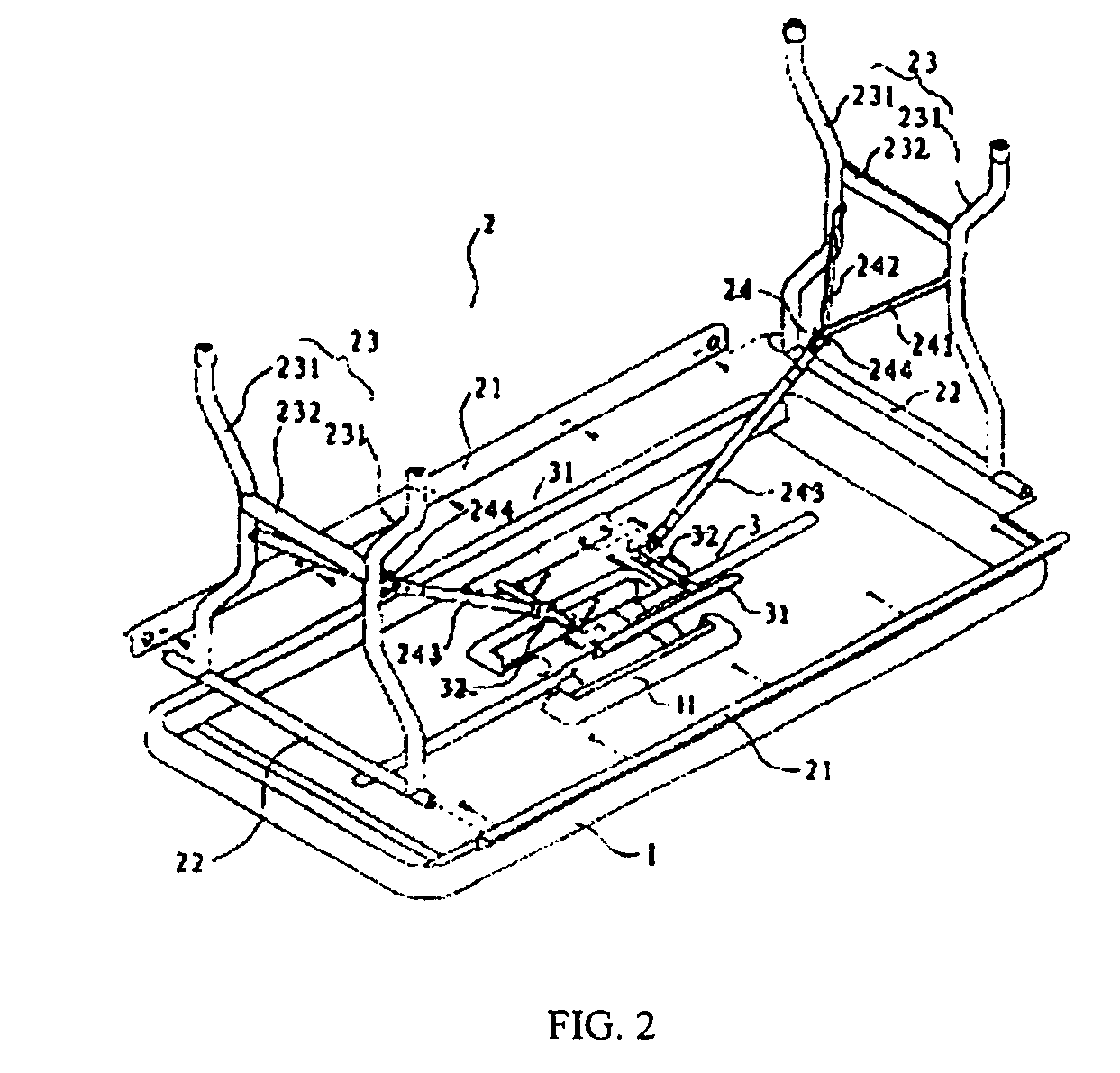

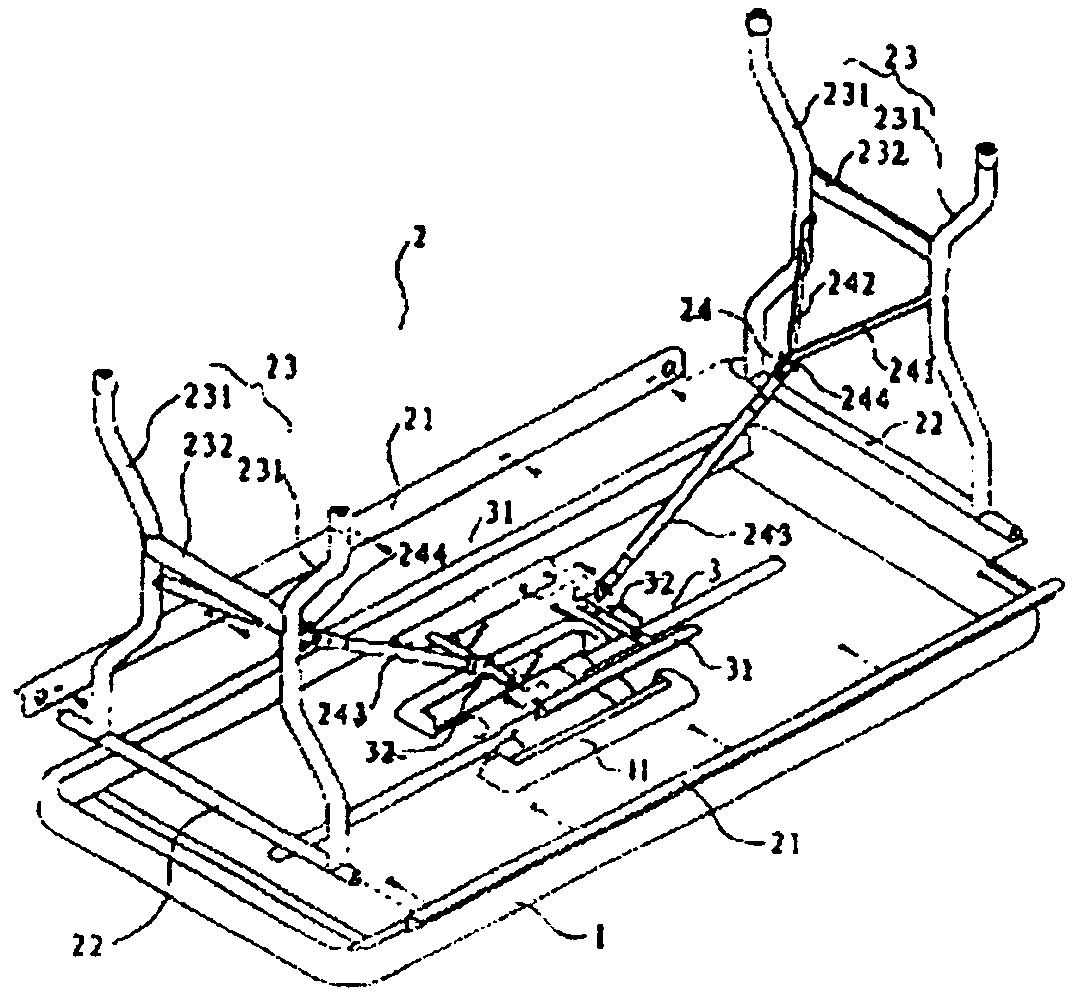

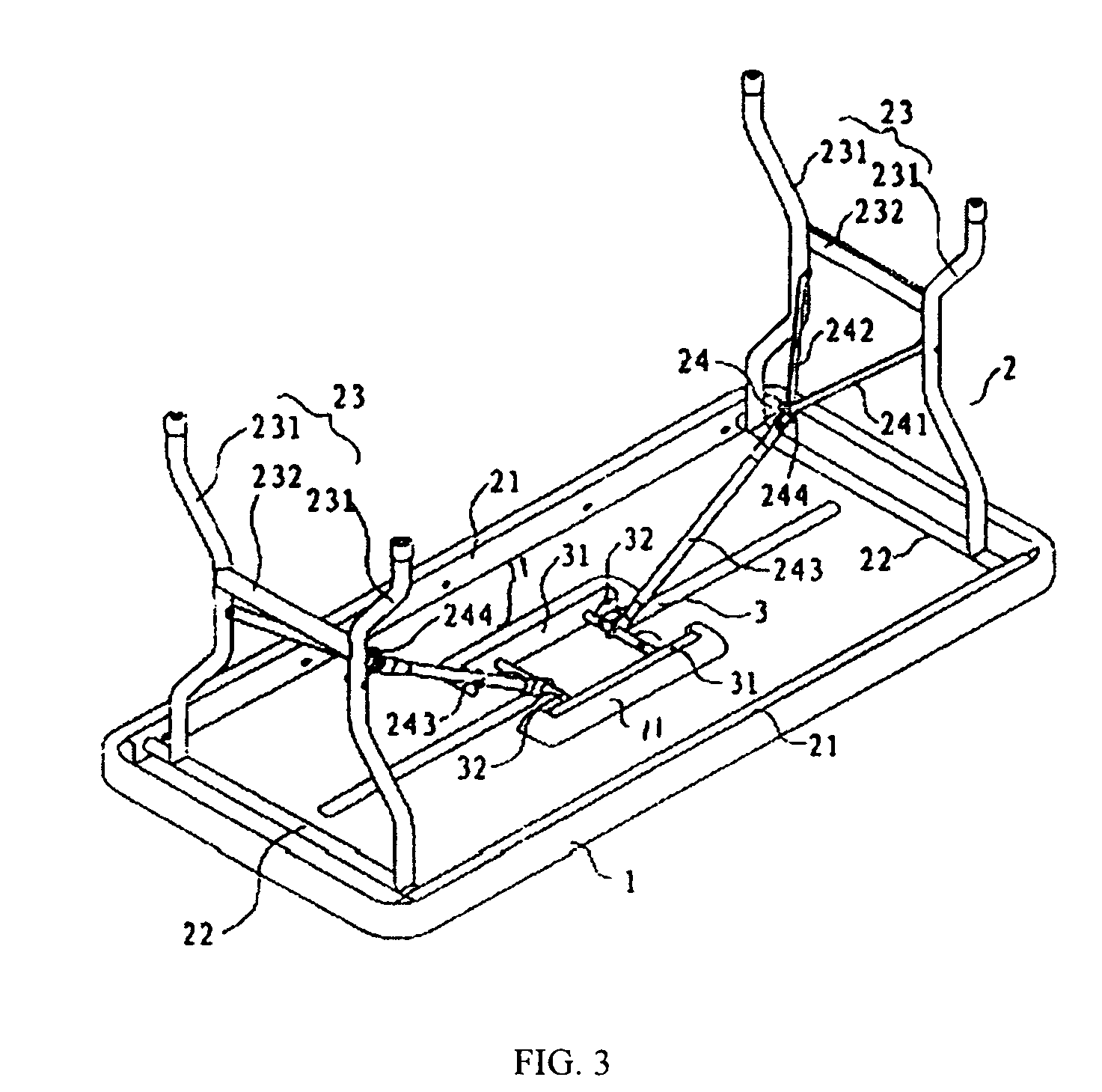

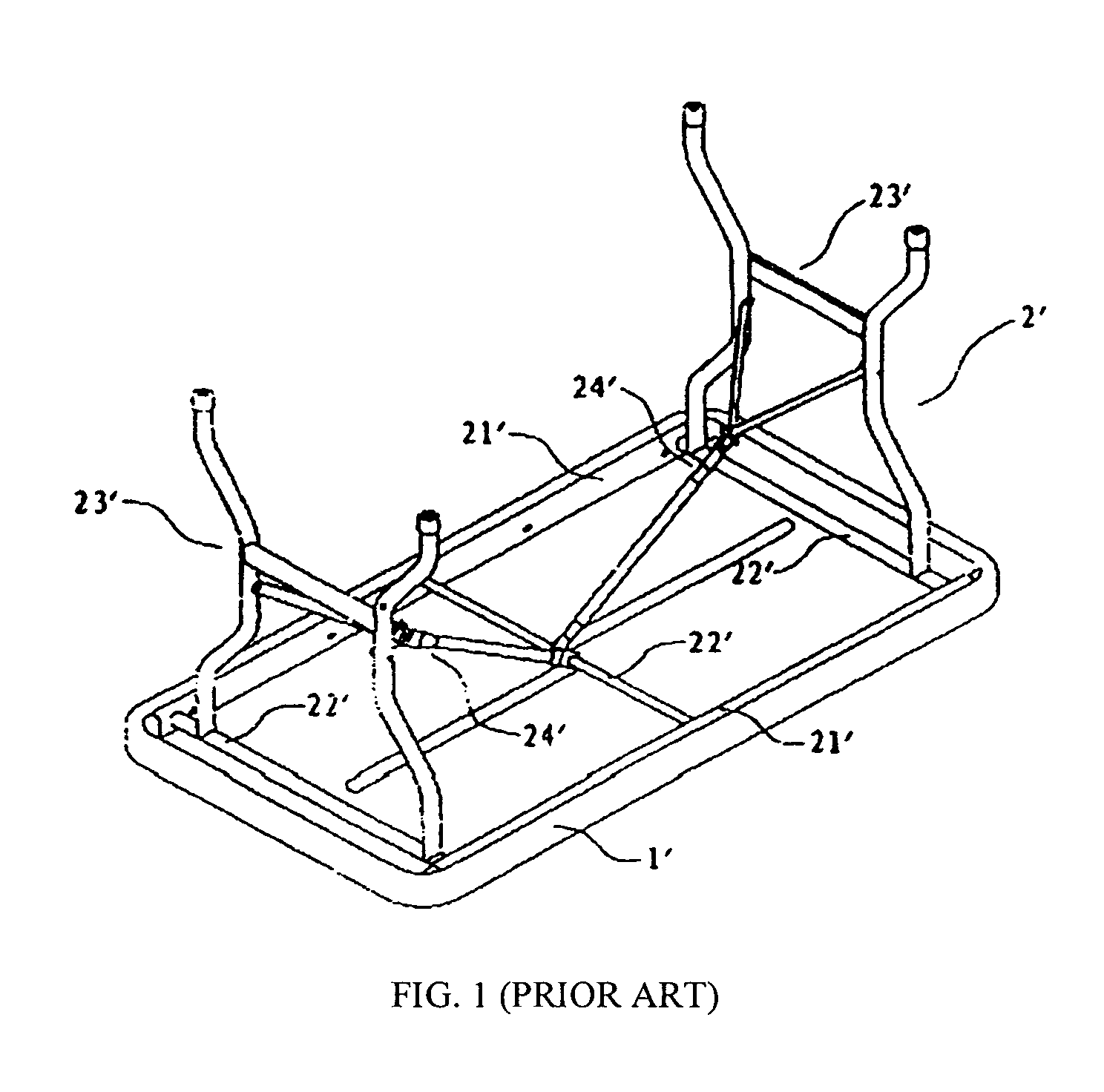

专利附图（8）
