用于个人使用，可调节高度和折叠。
专利摘要
提供了一种个人桌子，具有由支撑组件支撑的桌面。桌面优选由吹塑塑料制成，支撑组件优选包括枢转连接的第一腿和第二腿。当腿处于直立位置时，腿理想地具有大致X形构造，并且腿可以折叠到存储位置。每个腿可以包括下部、主体部和上部，上部优选可选择性地连接到桌面。例如，腿可以通过将腿的上部插入形成在桌面中的腿接收凹部而连接到桌面。腿接收凹部优选一体形成在桌面的底表面中，作为一件式构造的一部分。理想地，多个腿接收凹部形成在桌面的底表面中，并且腿可以选择性地附接到腿接收凹部，以便改变桌子的高度。
Original abstractA personal table is provided having a table top supported by a support assembly. The table top is preferably constructed from blow-molded plastic and the support assembly preferably includes a first leg and a second leg that are pivotally connected. The legs desirably have a generally X-shaped configuration when the legs are placed in an upright position and the legs can be collapsed into a storage position. Each of the legs may include a lower portion, a body portion and an upper portion that is preferably selectively connected to the table top. The legs, for example, can be connected to the table top by inserting the upper portions of the legs into leg receiving recesses formed in the table top. The leg receiving recesses are preferably integrally formed in the bottom surface of the table top as part of a one-piece construction. Desirably, a plurality of leg receiving recesses are formed in the bottom surface of the table top and the legs can be selectively attached to the leg receiving recesses in order to vary the height of the table.

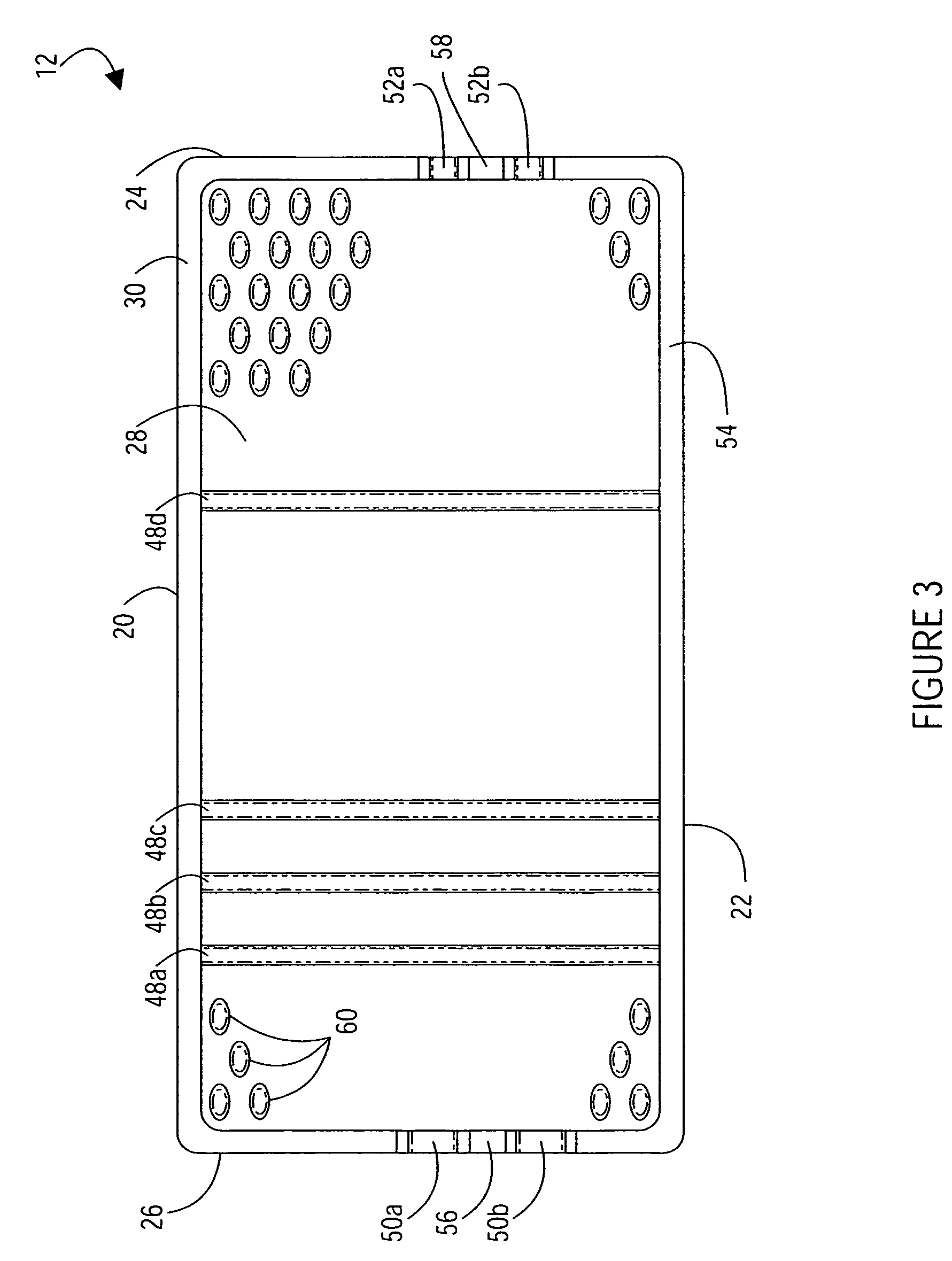

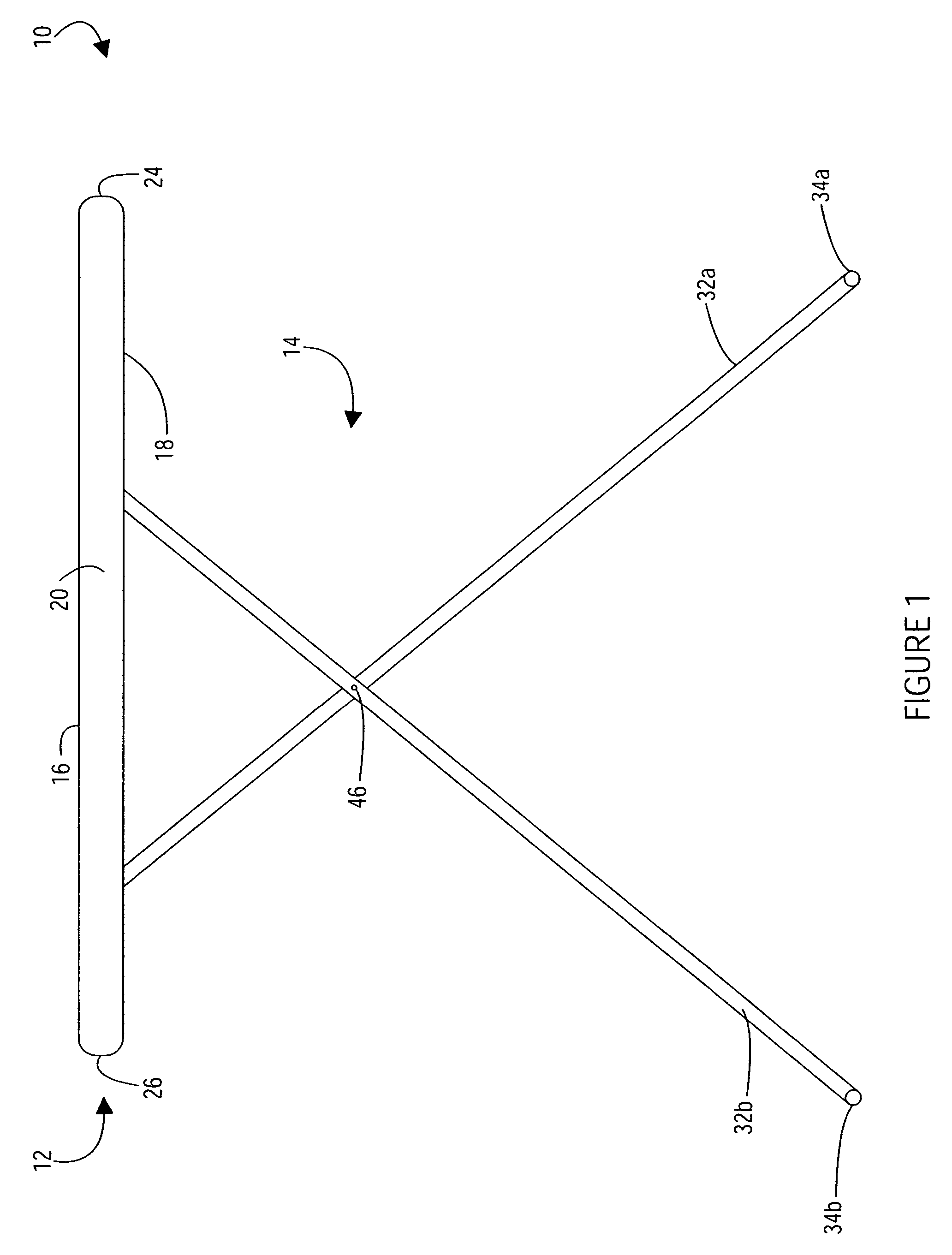

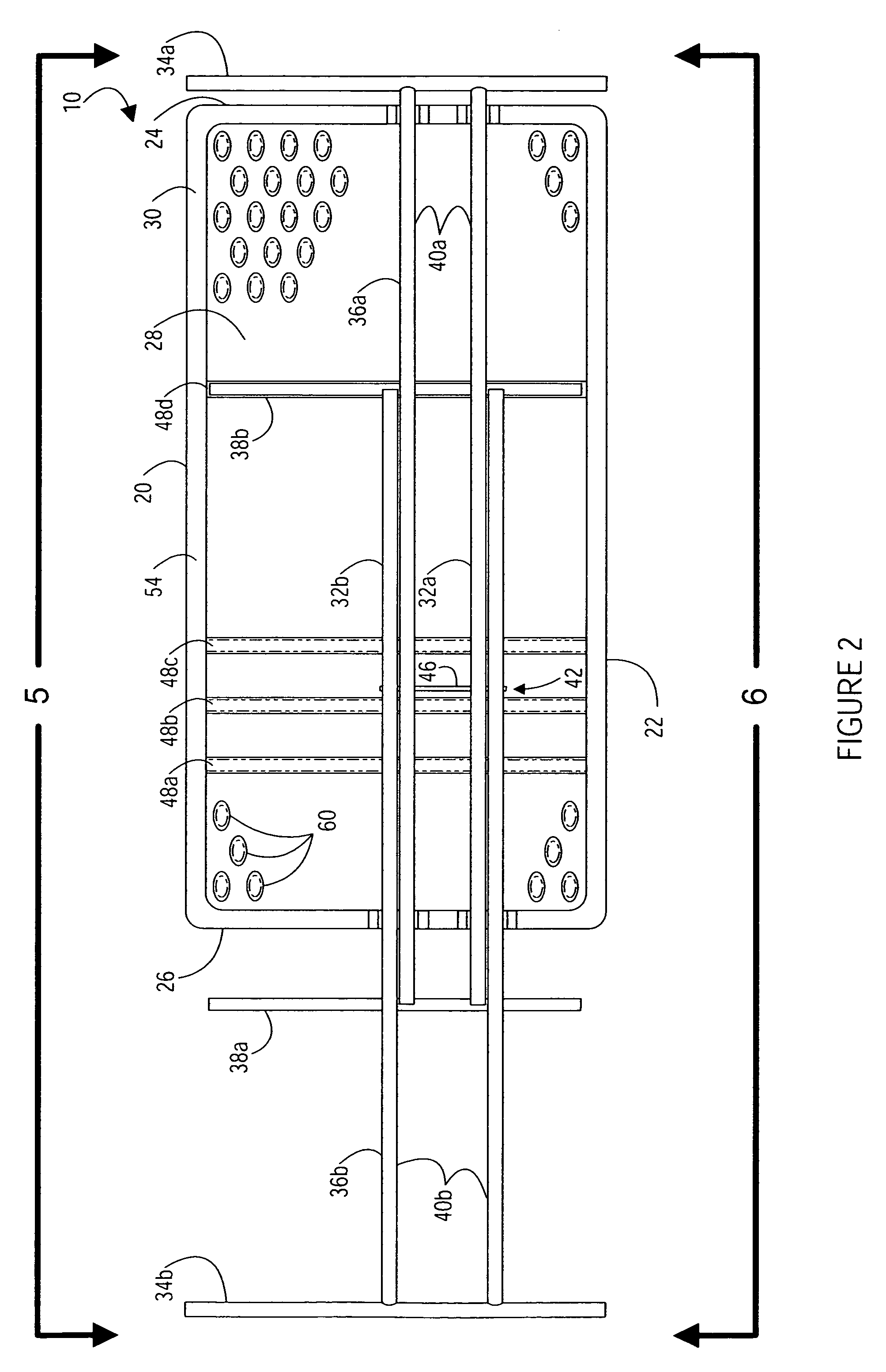

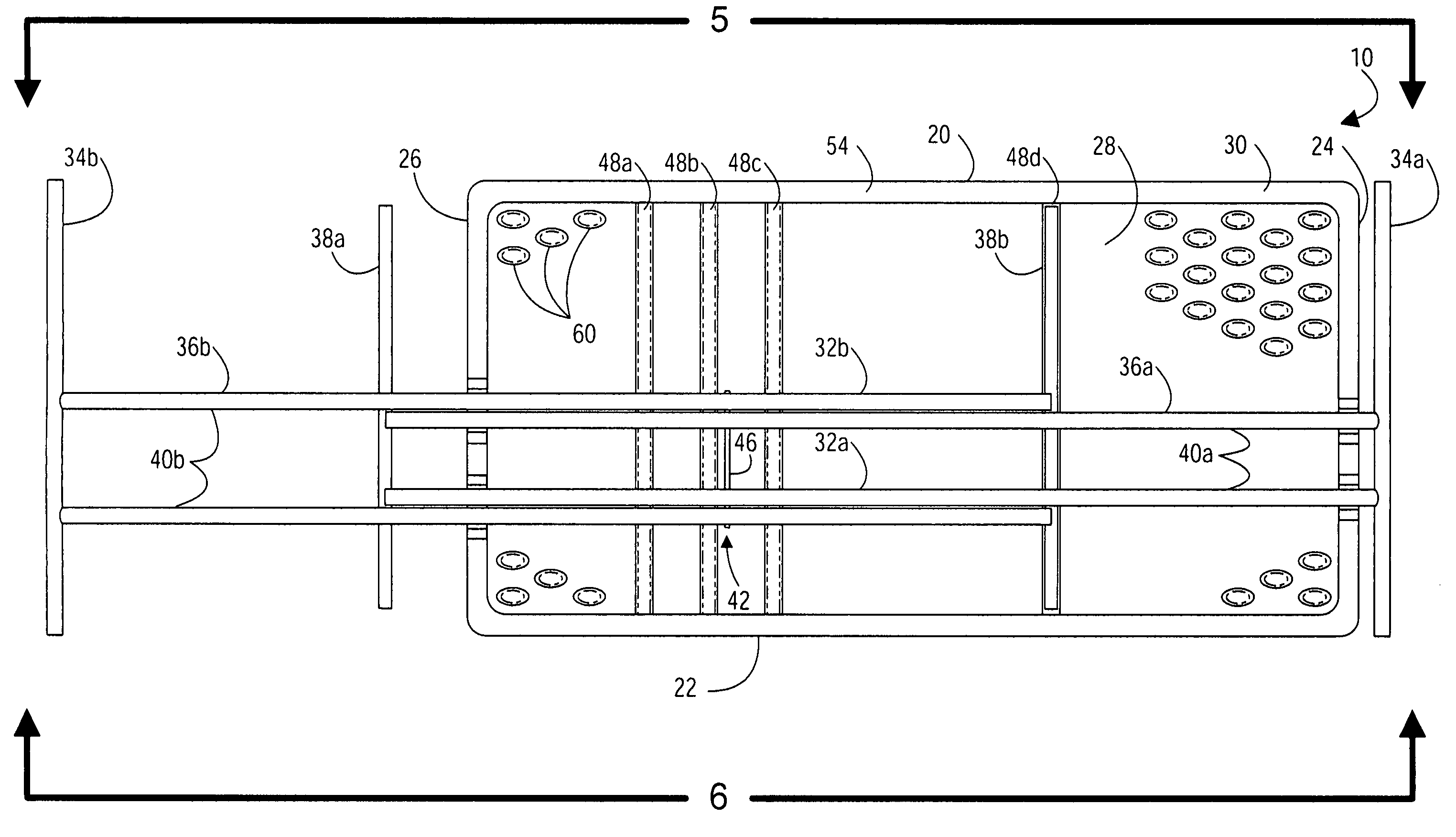

专利附图（8）
