用于免手操作升降马桶座圈。
专利摘要
描述了一种用于升降马桶座圈的装置，该装置具有位于马桶座圈下方的旋转轴，该旋转轴附接到马桶座圈或与其接触；附接到旋转轴的杠杆，用户移动杠杆以将其运动传递到旋转轴，旋转轴通过附接到座圈或与其接触而根据需要升高或降低座圈；旋转轴容纳在由马桶盖、座圈和铰链支架形成的现有铰链的管道中，或者旋转轴容纳在附接到任何马桶座圈中现有铰链支架的基板中设置的壳体内。
Original abstractA device is depicted to raise and lower a toilet seat, the device having a rotation axis located under the toilet seat and which is attached or comes into contact with it; a lever attached to the rotation axis and which is moved by a user in order to convey its motion towards the rotation axis which, by being attached to the seat or coming in contact to it, raises or lowers the seat as desired; the rotation axis is housed in the conduits of already existing hinges that are formed by the toilet cover, seat, and hinge supports, or the rotation axis is housed along a housing provided in a base plate that is attached to the hinge supports existing in any toilet seats.

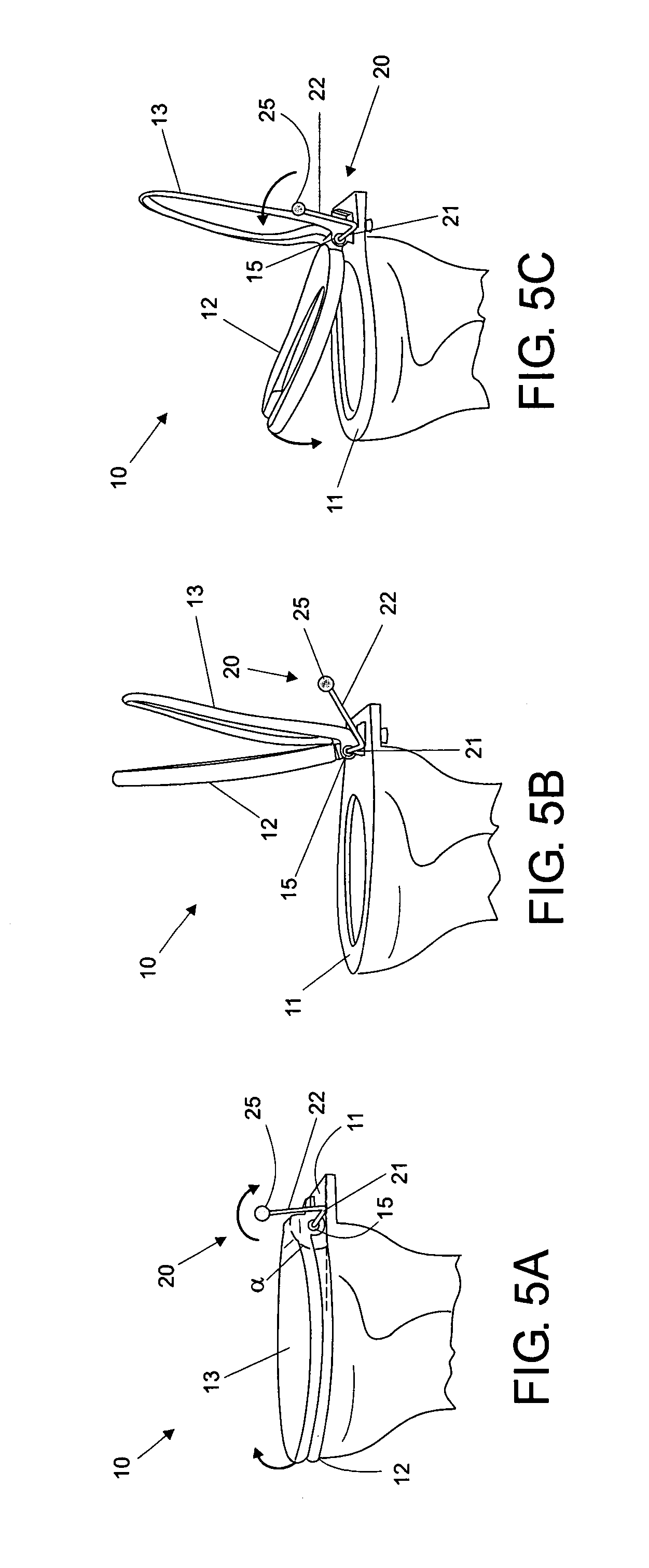

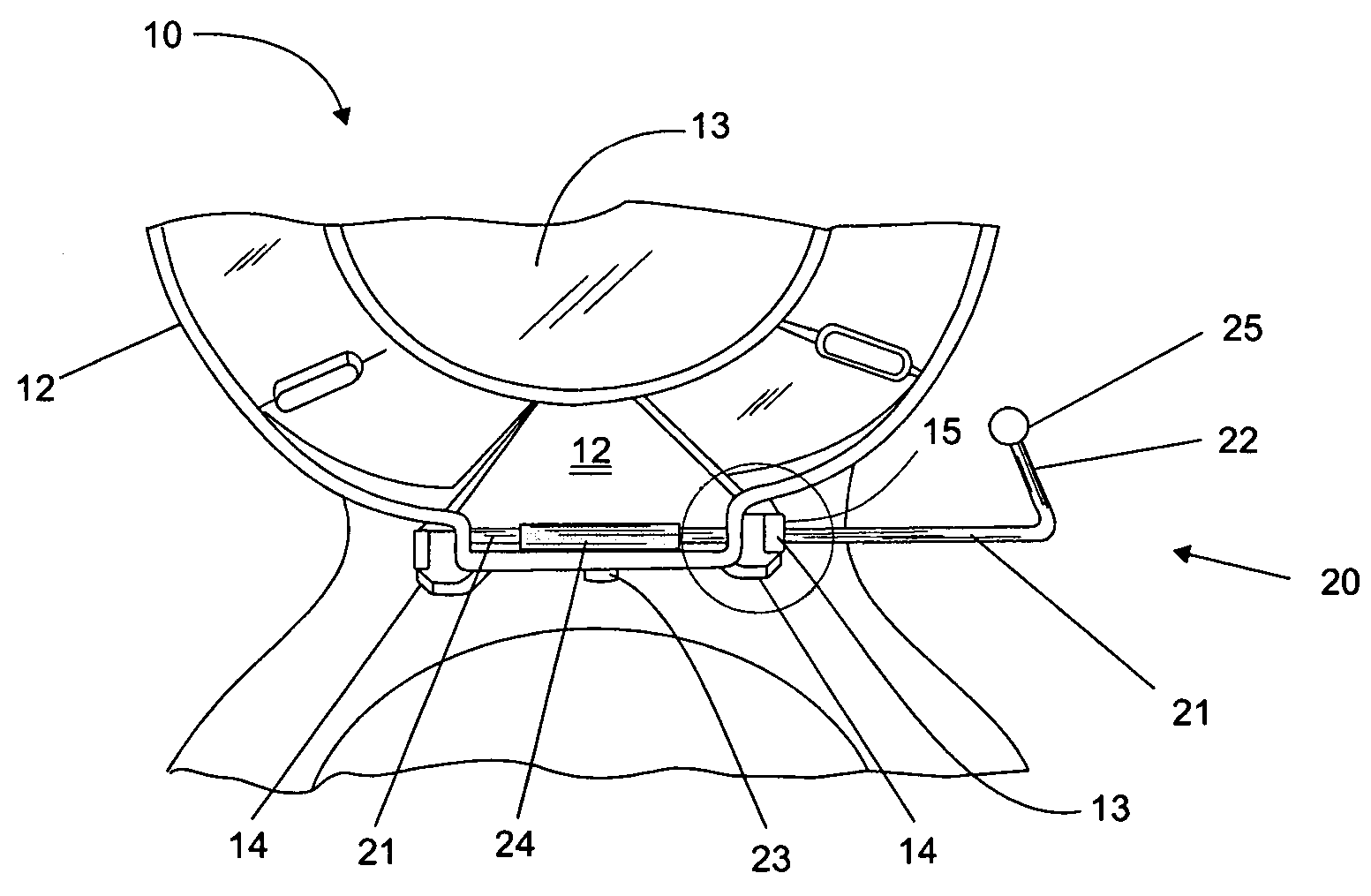

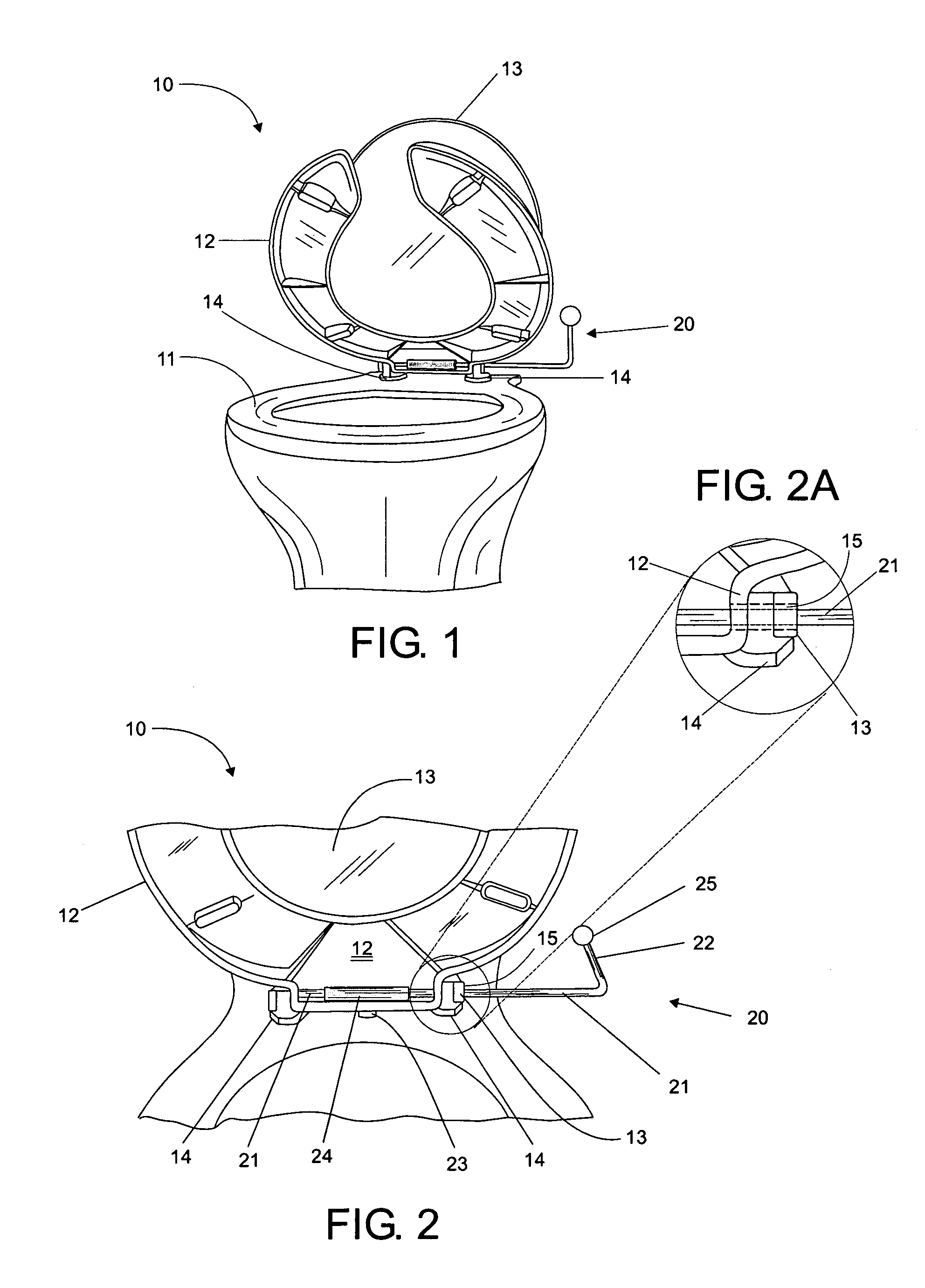

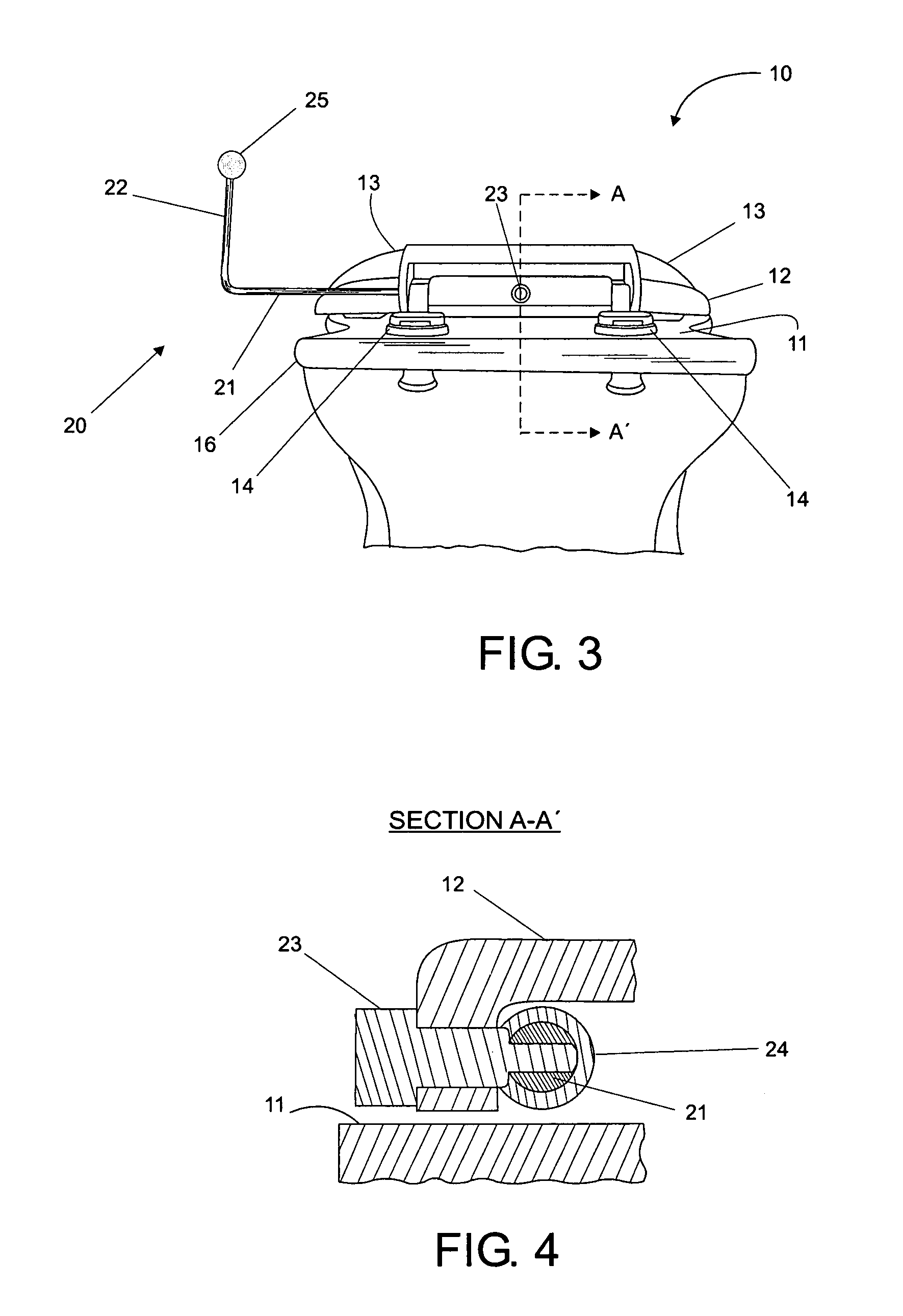

专利附图（8）
