用于将纸张等非磁性片材固定在磁性表面上的夹子。
专利摘要

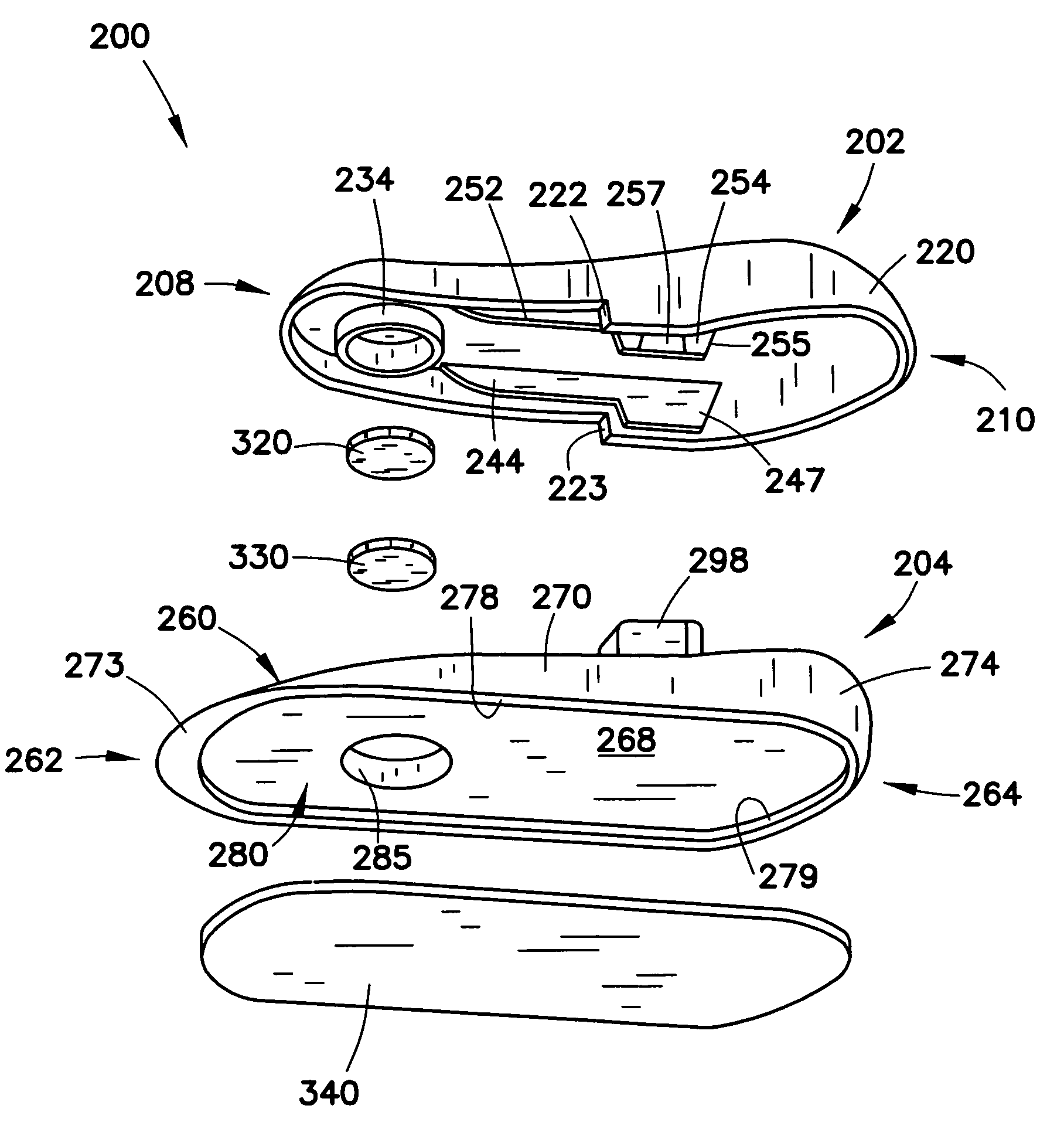

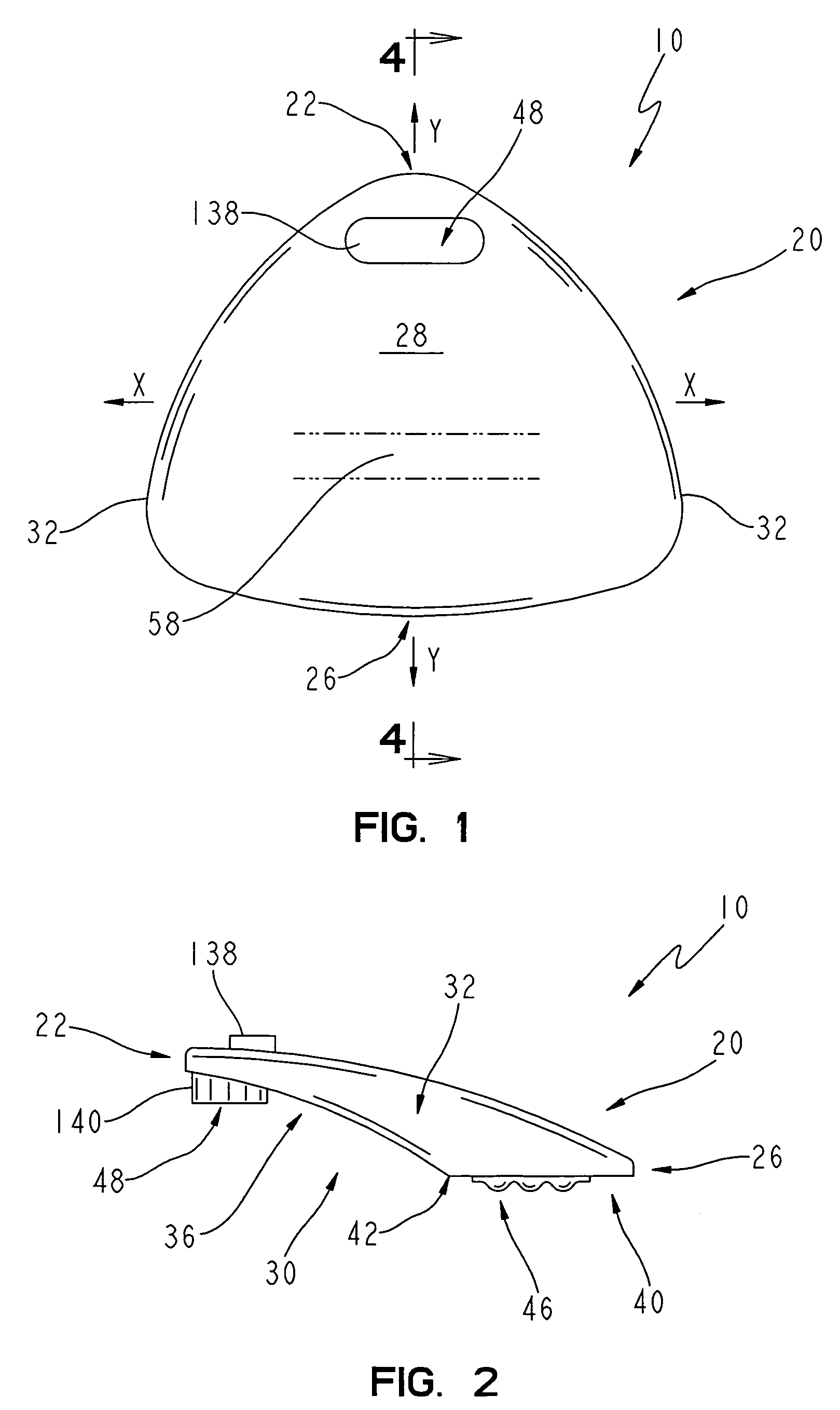

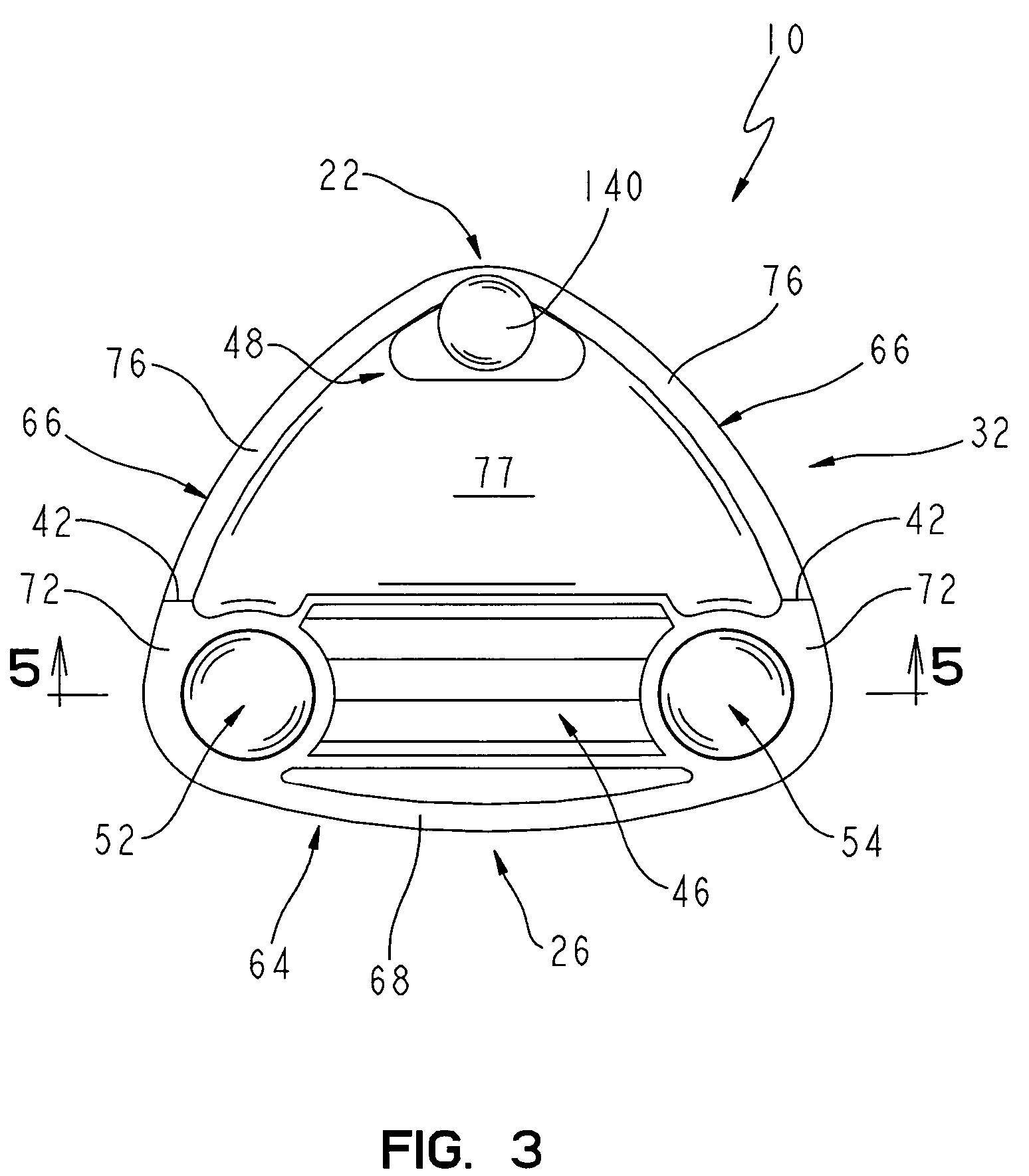

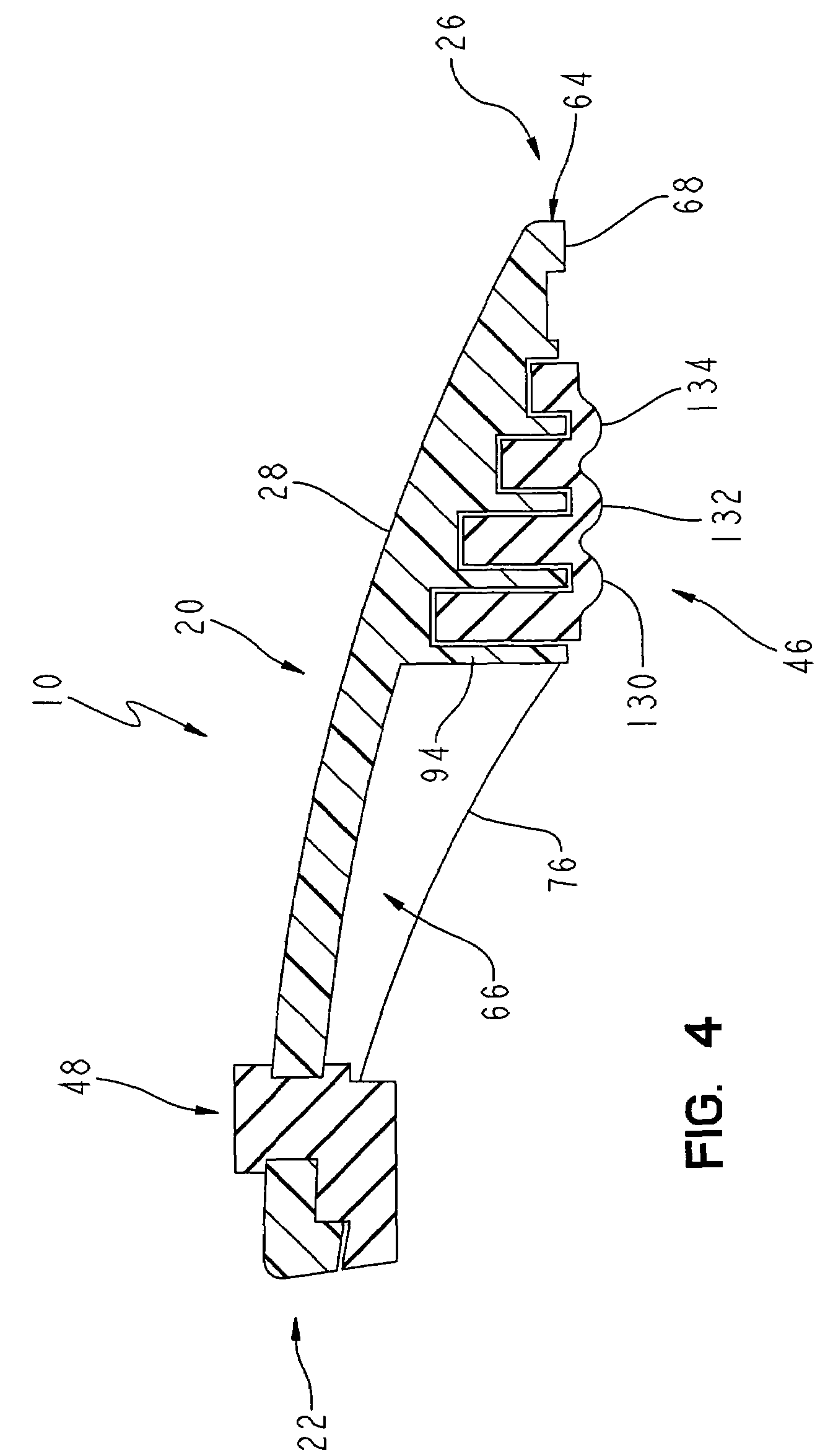

一种用于将非磁性片材保持在磁性吸引表面上的两件式磁性夹持器，包括在上半部和下半部，二者在可释放铰链处连接。下半部适于磁性保持到磁性吸引表面上，而上半部选择性地相对于下半部枢转，以允许从上半部和下半部的部分之间抓取和释放物体。第一磁体构件设置于夹持器的下半部中，用于将两件式夹持器磁性耦合到磁性吸引表面，而第二磁体构件设置于夹持器的上半部中，用于将上半部的第一端磁性耦合到下半部。上半部具有限定第一端和第二端的曲线主体。在闭合或物体抓取状态下，上半部的第一端被磁性吸引到下半部的第一端，而上半部的第二端与下半部的第二端间隔开。在打开或物体放置模式下，上半部的第一端与下半部的第一端间隔开。上半部被磁性偏置到闭合或物体抓取位置。
Original abstractA two-piece magnetic holder for holding a non-magnetic sheet onto a magnetically attractive surface includes an upper half and a lower half joined at a releasable hinge. The lower half is adapted for magnetic retention onto a magnetically attractive surface while the upper half selectively pivots relative to the lower half to allow gripping and releasing of an object from between portions of the upper and lower halves. A first magnet member is disposed in the lower half of the holder for magnetically coupling the two-piece holder to the magnetically attractive surface while a second magnet member is disposed in the upper half of the holder for magnetically coupling the first end of the upper half to the lower half. The upper half has a curvilinear body that defines a first end and a second end. In a closed or object gripping state, the first end of the upper half is magnetically attracted to the first end of the lower half, while the second end of the upper half is spaced from the second end of the lower half. In an open or object placement mode, the first end of the upper half is spaced from the first end of the lower half. The upper half is magnetically biased into the closed or object gripping position.
专利附图（8）
