一种用于悬挂靴子并保持其形状的挂架。
专利摘要

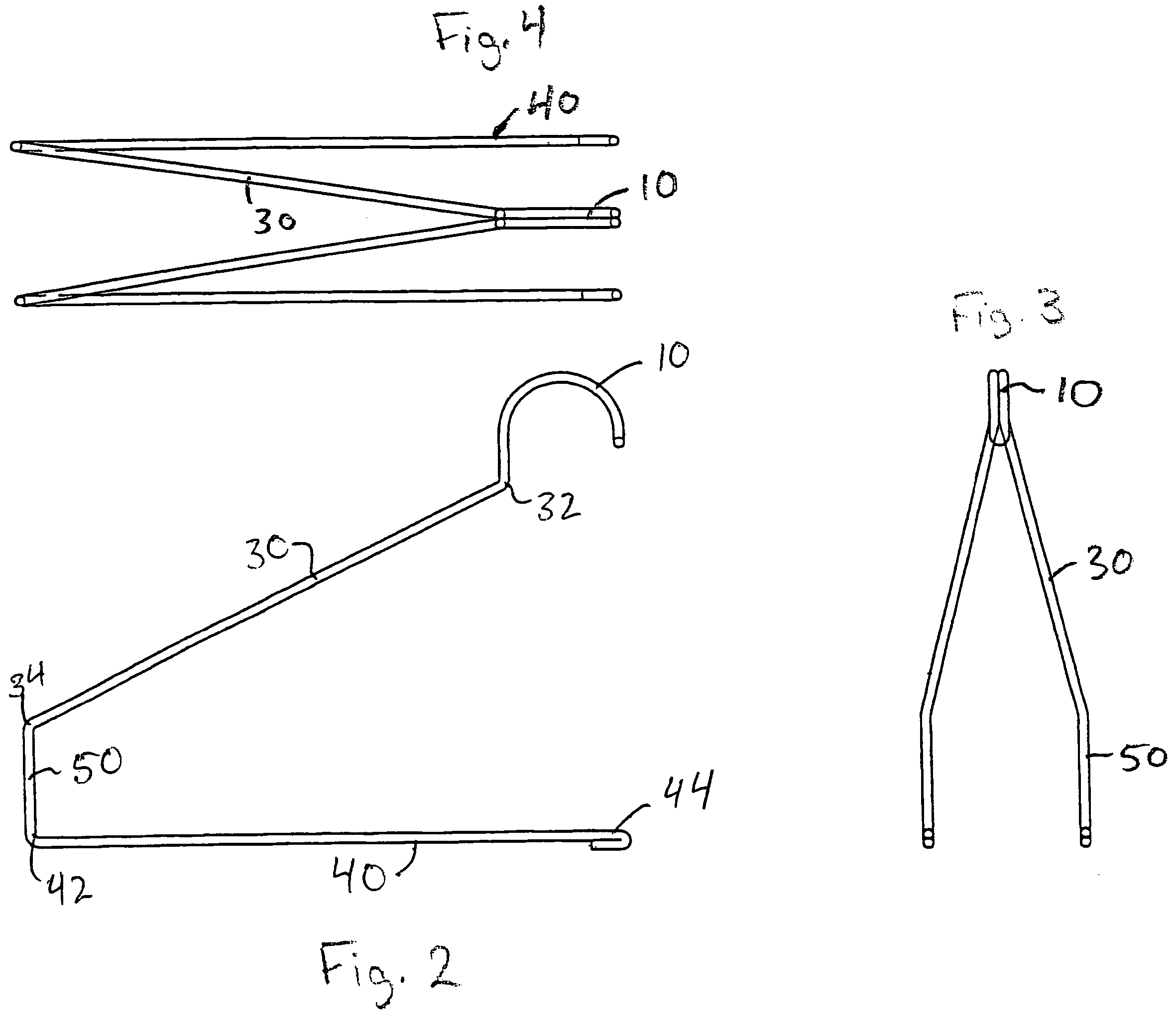

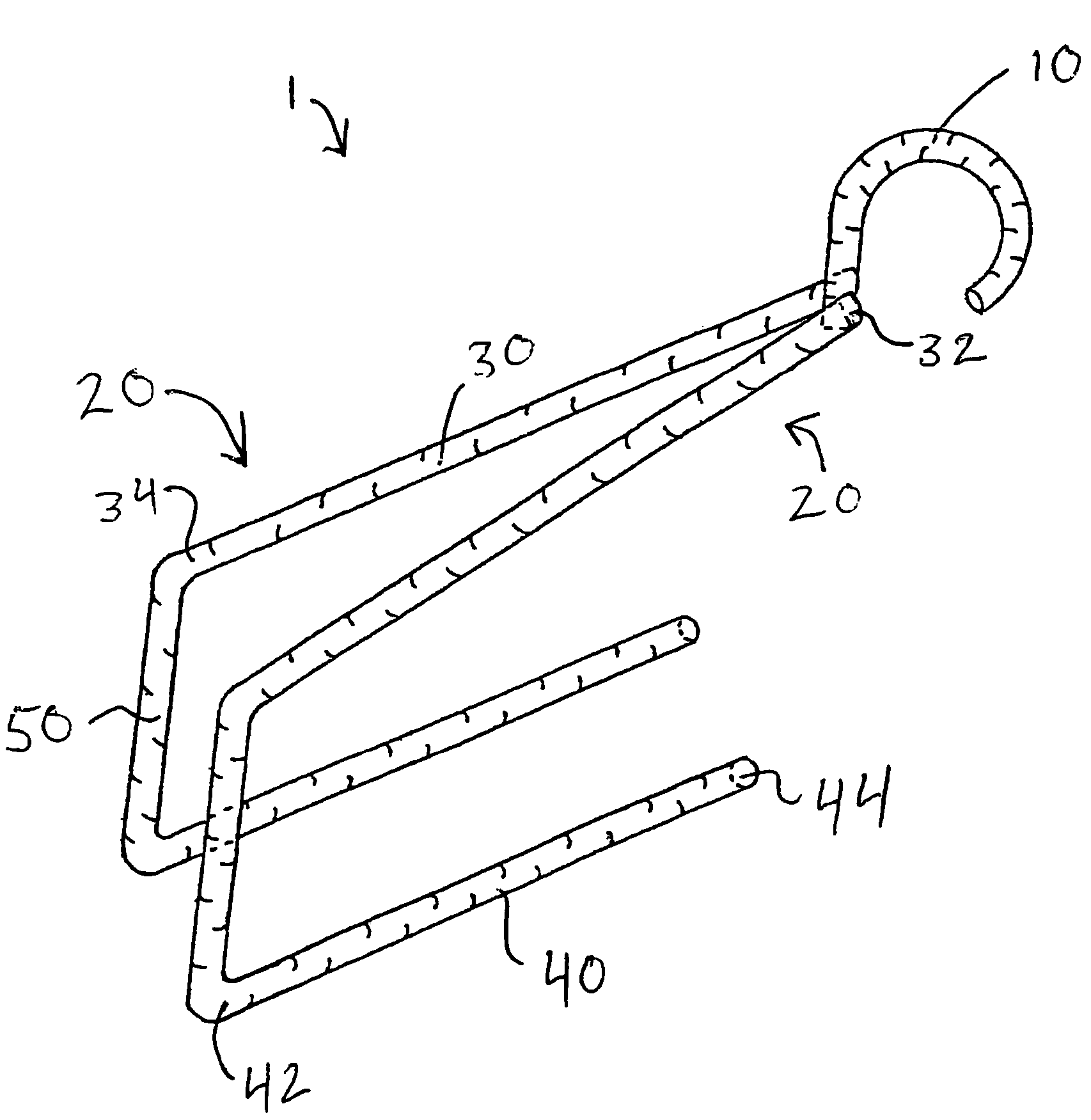

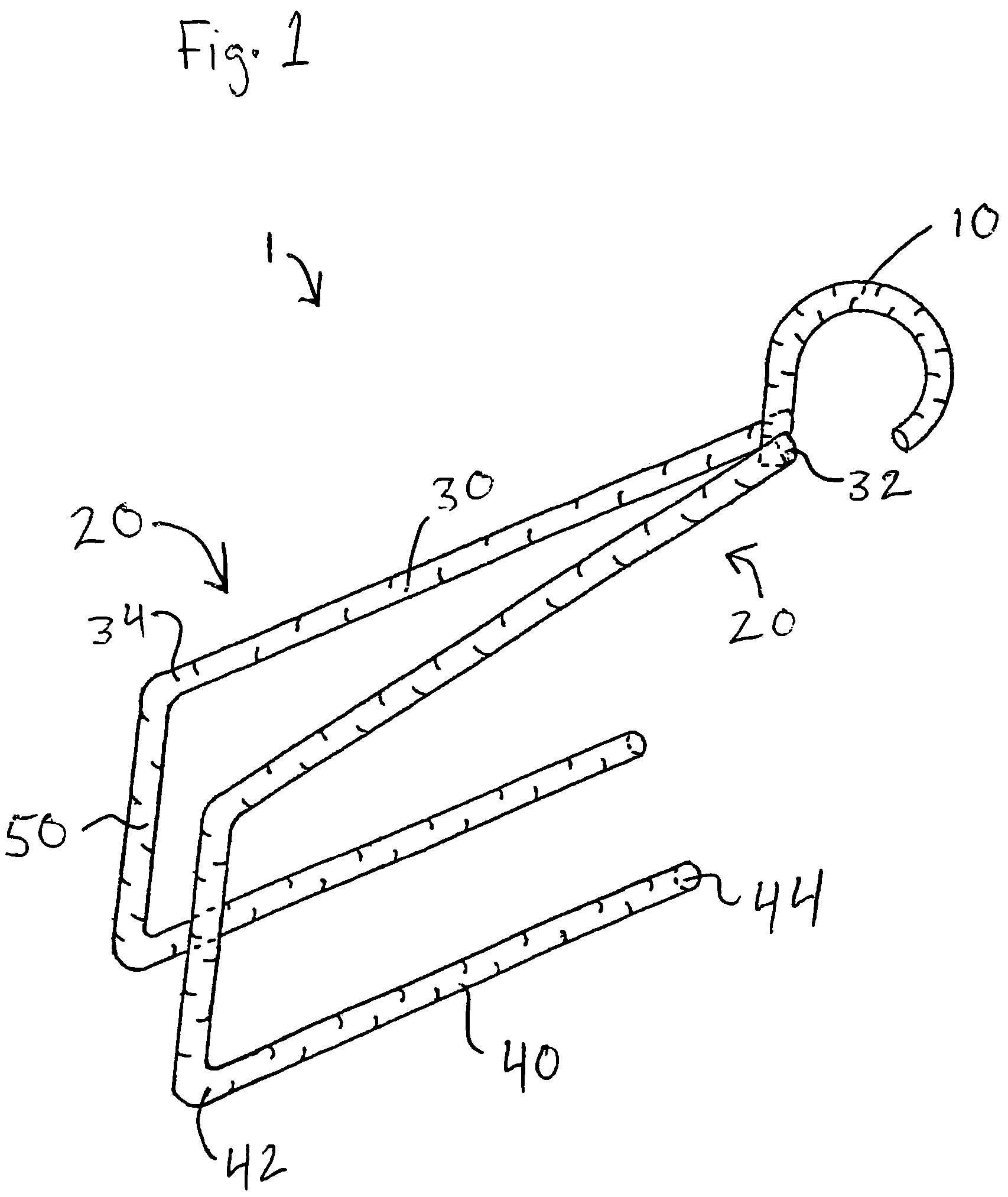

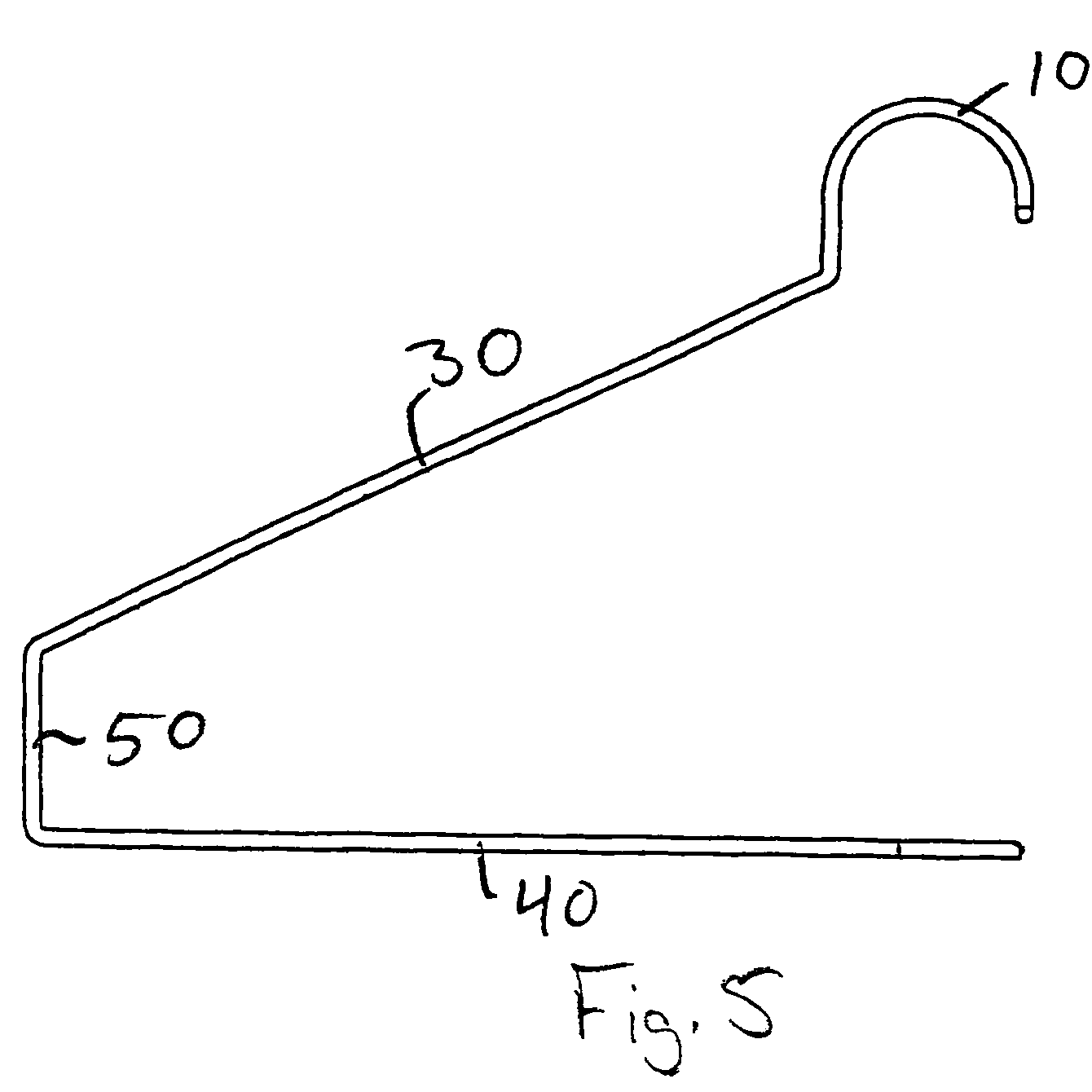

本发明涉及一种靴子挂架，包括钩和至少两个间隔开的支撑臂。每个支撑臂包括第一部分，其第一端刚性附接至钩的基部，第二端远离钩设置。第一部分从钩的基部向下倾斜延伸，使得当钩设置成挂架的高点时，第二端设置得低于第一端。此外，支撑臂包括第二部分，其第一端连接至第一部分的第二端，第二端设置在近似于钩下方的区域中。支撑臂的第一部分彼此成角度远离，共同形成锐角，该锐角的顶点位于钩的基部。支撑臂的第二部分彼此以大致恒定的距离间隔开，并且彼此大致平行。
Original abstractThe present invention is directed to a boot hanger which includes a hook and at least two spaced apart support arms. Each support arm includes a first section having a first end rigidly attached to a base of the hook and a second end disposed distal from the hook. The first section extends at a downward slope from the base of the hook, so that when the hook is disposed to be a high point of the hanger, the second end is disposed lower than the first end. Further, the support arms include a second section having a first end connected to the second end of the first section, and a second end disposed in a region approximately under the hook. The first sections of the support arms angle away from each other to collectively form an acute angle, with the vertex of the acute angle being at a base of the hook. The second sections of the support arms are spaced apart from each other at a generally constant distance, and are generally parallel to each other.
专利附图（8）
