用于将容器稳定地保持在支架中。
专利摘要

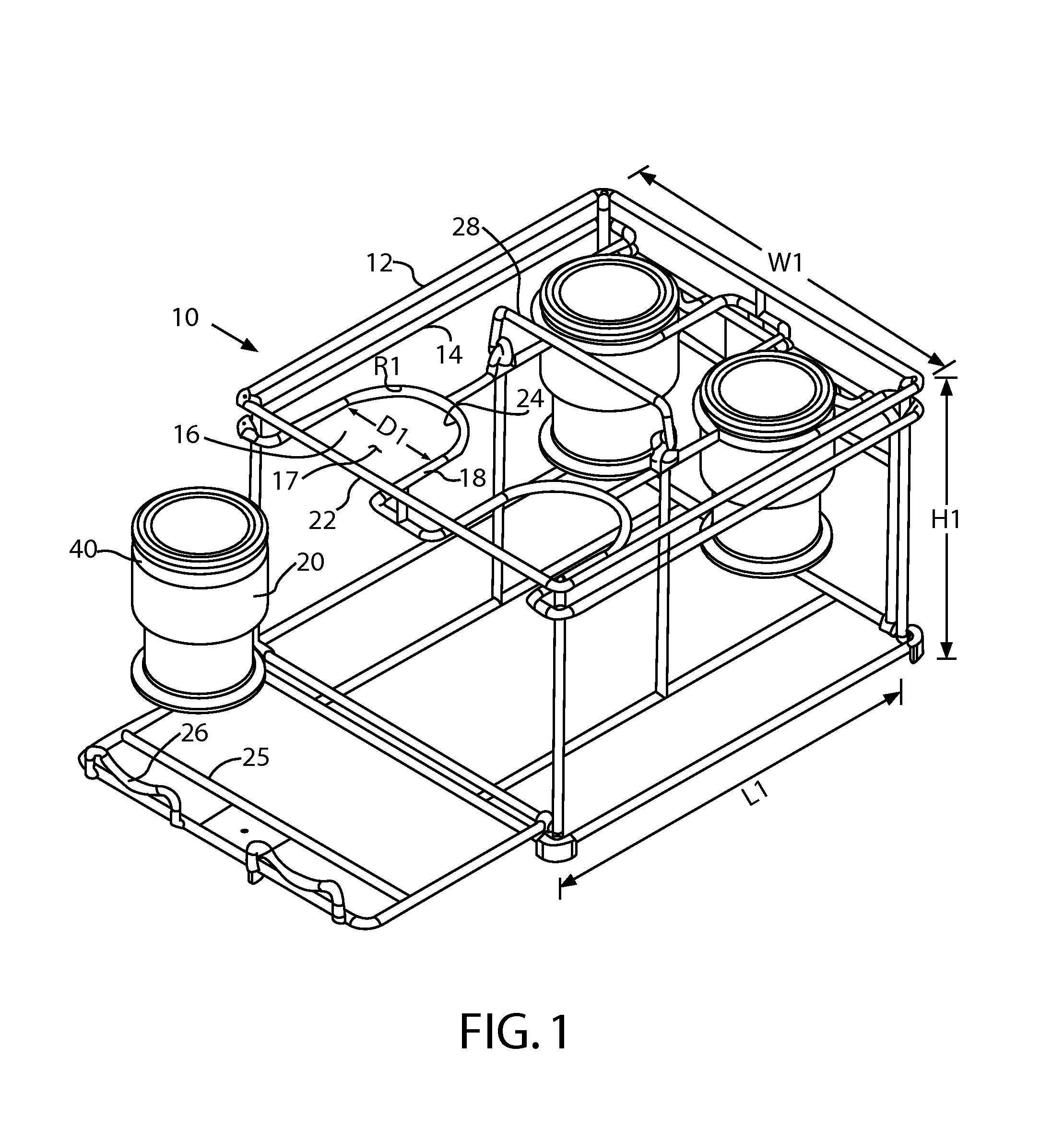

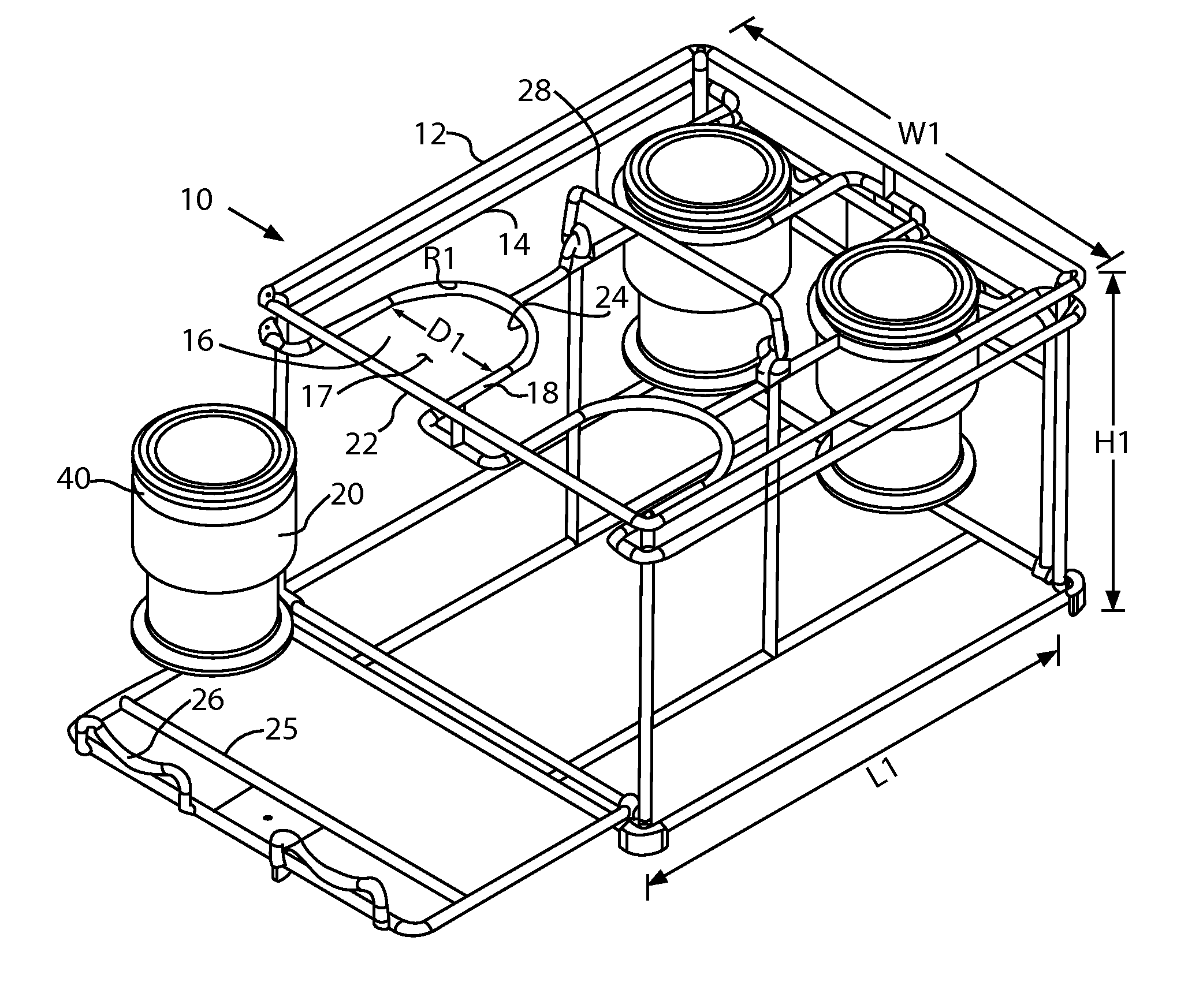

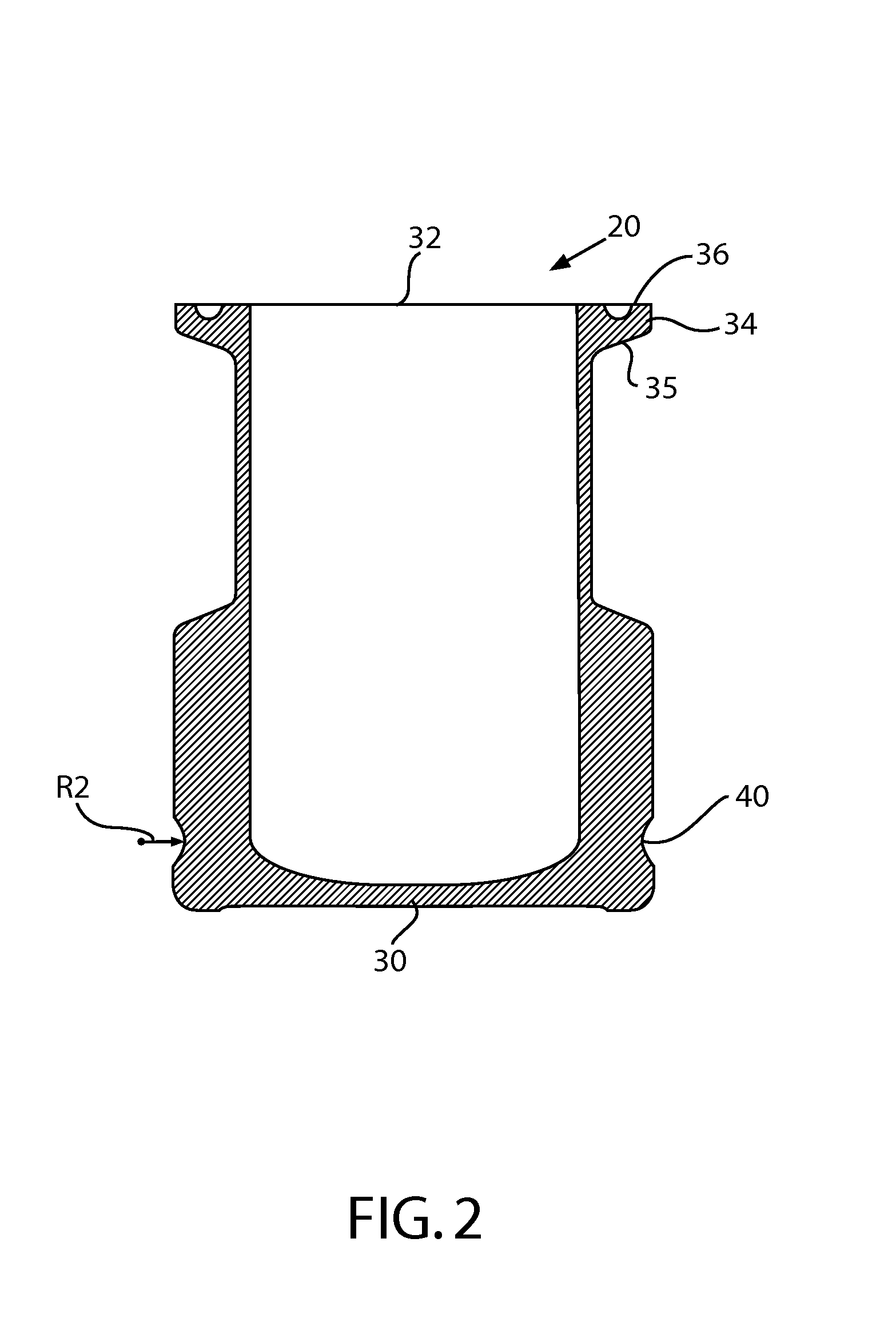

一种支架和容器组件以及将容器保持在支架中的相关方法。支架具有限定至少一个第一宽度的槽的框架元件。框架元件的横截面为圆形，具有第一曲率半径。每个容器的外表面具有大于支架中槽的宽度的第二宽度。在每个容器的外表面中形成有弧形凹槽。弧形凹槽使容器能够进入槽中。每个弧形凹槽的横截面具有第二曲率半径，该第二曲率半径至少与形成槽的框架元件的第一曲率半径一样大。当容器放置在槽中时，容器与支架物理接触的唯一区域是弧形凹槽的浅区域。
Original abstractA rack and container assembly and the associated method of holding the containers in the rack. The rack has frame elements that define at least one slot of a first width. The frame elements are rounded in cross-section having a first radius of curvature. Each of the containers has an exterior surface of a second width that is greater than the width of the slots in the rack. An arcuate groove is formed in the exterior surface of each container. The arcuate grooves enable the containers to pass into the slots. Each arcuate groove has a cross-section with a second radius of curvature that is at least as large as the first radius of curvature of the frame elements that form the slot. When the containers are placed in the slots, the only area of the containers that physically contacts the rack is the shallow area of the arcuate groove.
专利附图（8）
