带有可拆卸洗涤元件的擦洗器
Scrubber with removable washing element
US-7469442-B1用于辅助擦洗清洁表面。
专利摘要
本文提供了一种辅助用户将诸如海绵的擦洗装置施加到待清洁表面的工具。在优选布置中，本装置由两个部件组成：可拆卸擦洗器和细长手柄。本发明的擦洗器部分优选为海绵、网状球或类似的多孔和可渗透材料。附接到海绵的是绳子、丝带、弹性股线或其他适于与手柄结构接合的附接构件。手柄的一端具有纵向狭缝，附接构件穿过该狭缝，然后通过另一个狭缝或经由机械结构固定在手柄的背面。
Original abstractThere is provided herein a tool to assist a user in applying a scrubbing device such as a sponge to a surface that is to be cleaned. In the preferred arrangement, the instant device will consist of two components: a detachable scrubber and an elongate handle. The scrubber portion of the instant invention will preferably be a sponge, mesh ball, or similar porous and permeable material. Attached to the sponge will be a string, ribbon, stand of elastic or other attaching member suitable for engagement with the structure of the handle. The handle will have a longitudinal slit at one end through which the attaching member will pass before being secured on the reverse face of the handle by another slit or via a mechanical structure.

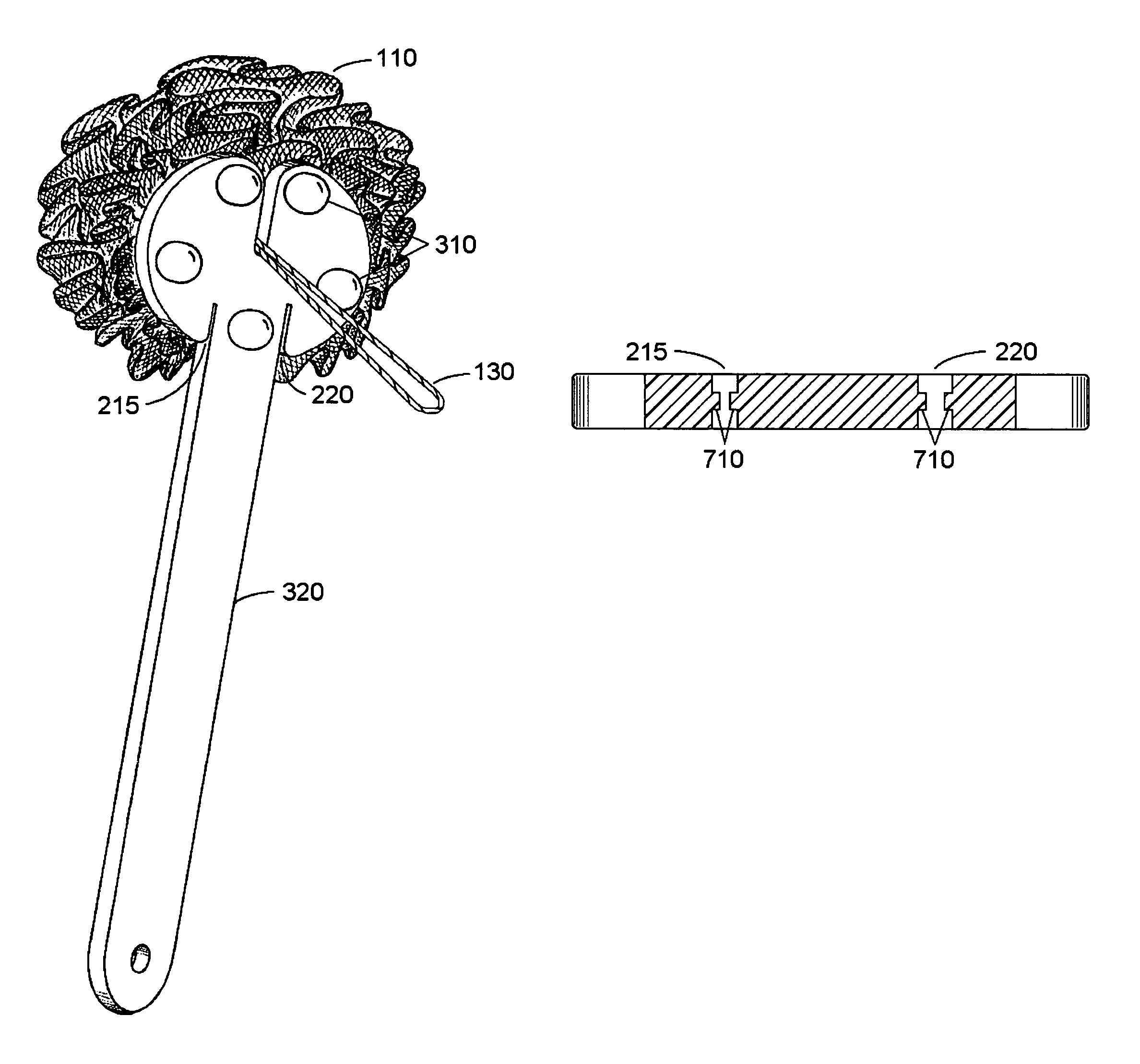

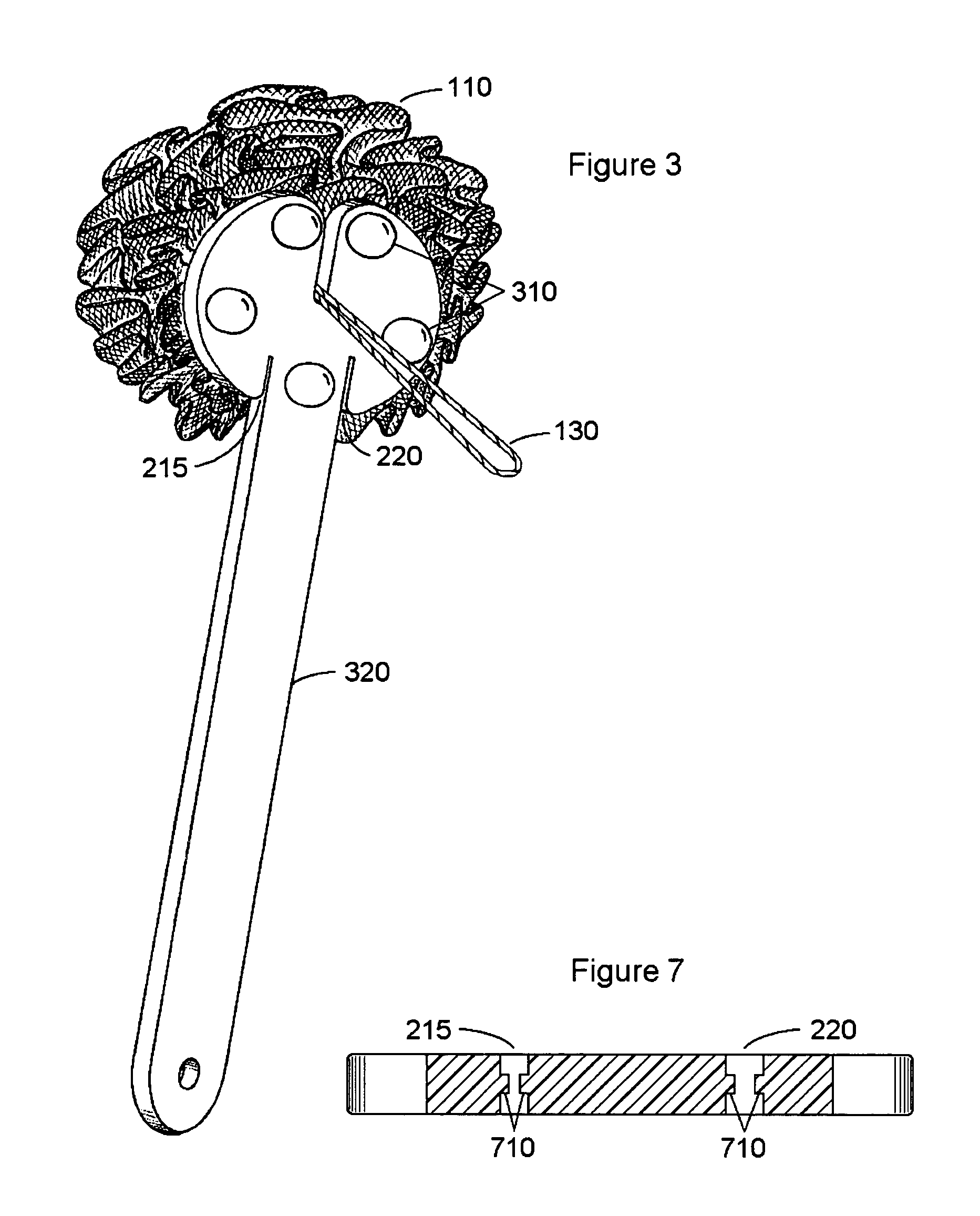

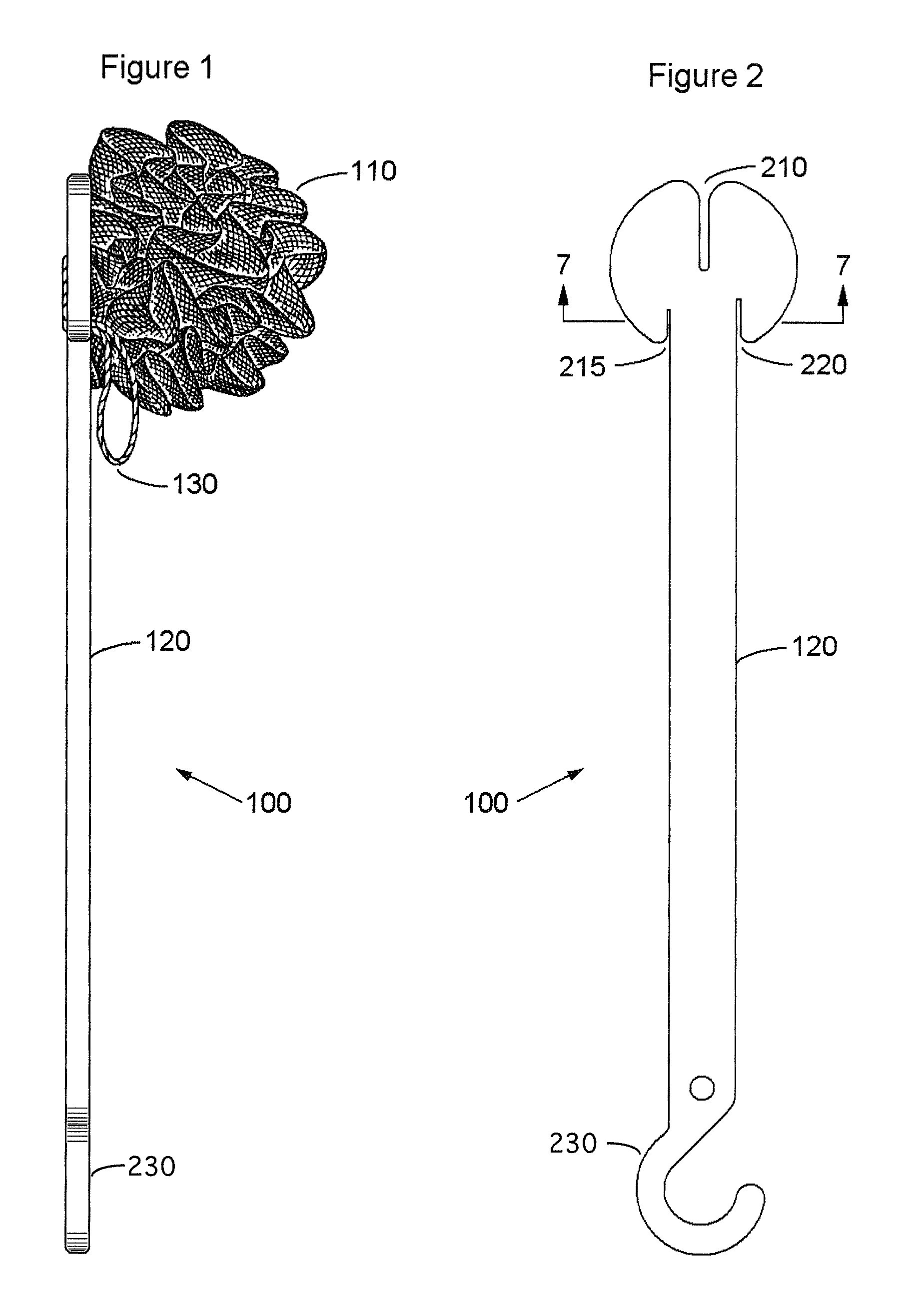

专利附图（8）
