来源记录显示 Expired
组合架的组合部件组件
Combined components assembly of a combined rack
US-7467721-B2一种可扩展组合架的连接部件，增强结构强度。
专利摘要
提供一种组合架的组合部件组件，其至少包括侧架板、立架板、扩展材料、强化架板和串联连接材料。侧架板和立架板可形成框架单元，并可通过串联连接材料串联固定；扩展材料可跨过立架板并对应于侧架板以连接其他框架单元或粘合强化架板，从而提供组合架的弹性扩展和变化功能。此外，通过串联连接材料的串联固定和强化架板的粘合，可增强组合架的结构强度。
Original abstractA combined components assembly of a combined rack is provided, which at least includes a lateral rack board, an erect rack board, an expansion material, an intensified rack board and a serial joint material. The lateral rack board and the erect rack board can form a frame unit and can be serial fixed by the serial joint material; and the expansion material can stride over the erect rack board and correspond to the lateral rack board to connect other frame units or bond the intensified rack board, such that elastic expansion and variation functions of the combined rack are provided. Furthermore, structural strength of the combined rack can be enhanced by the serial fixation of the serial joint material and the bond of the intensified rack board.

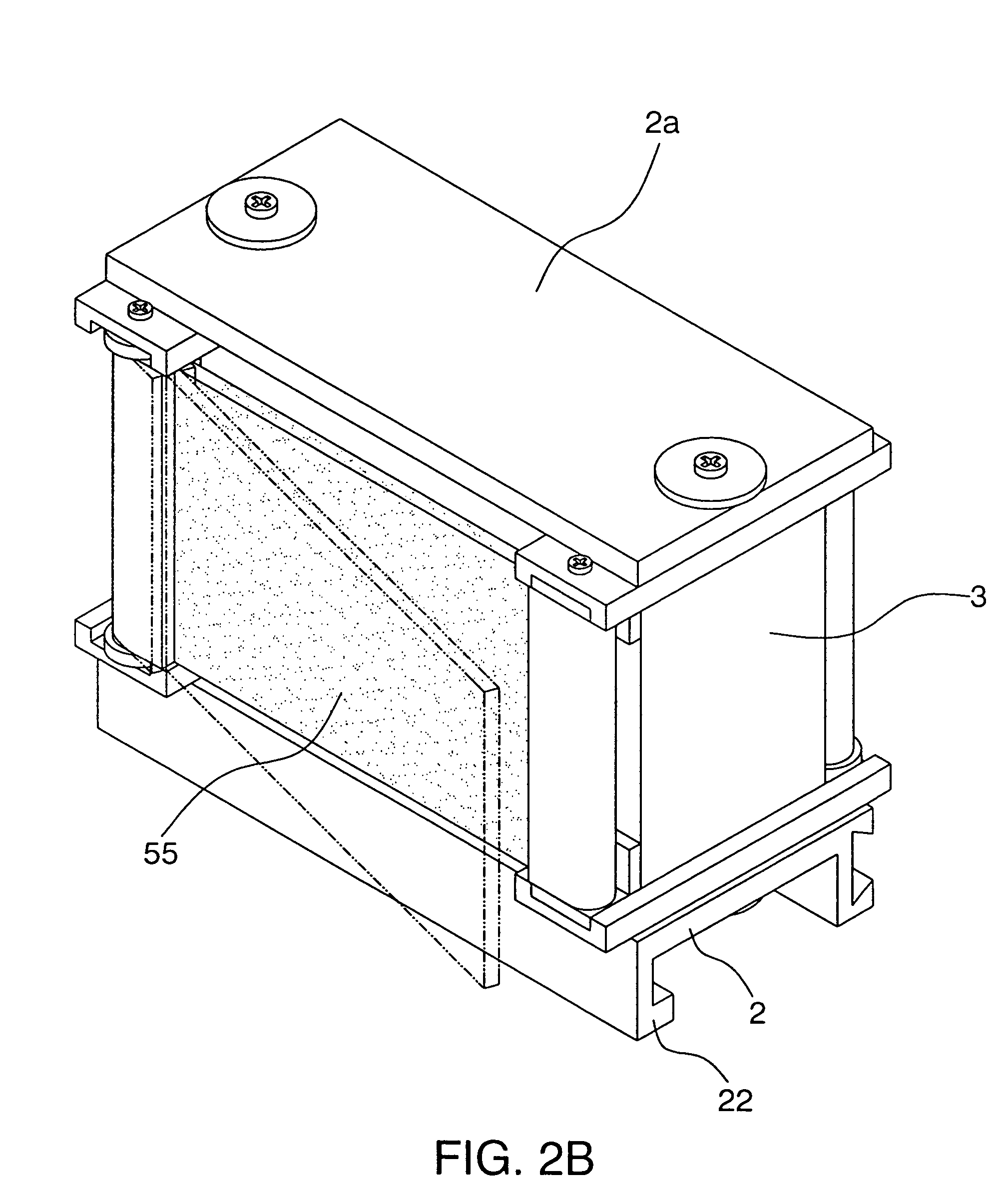

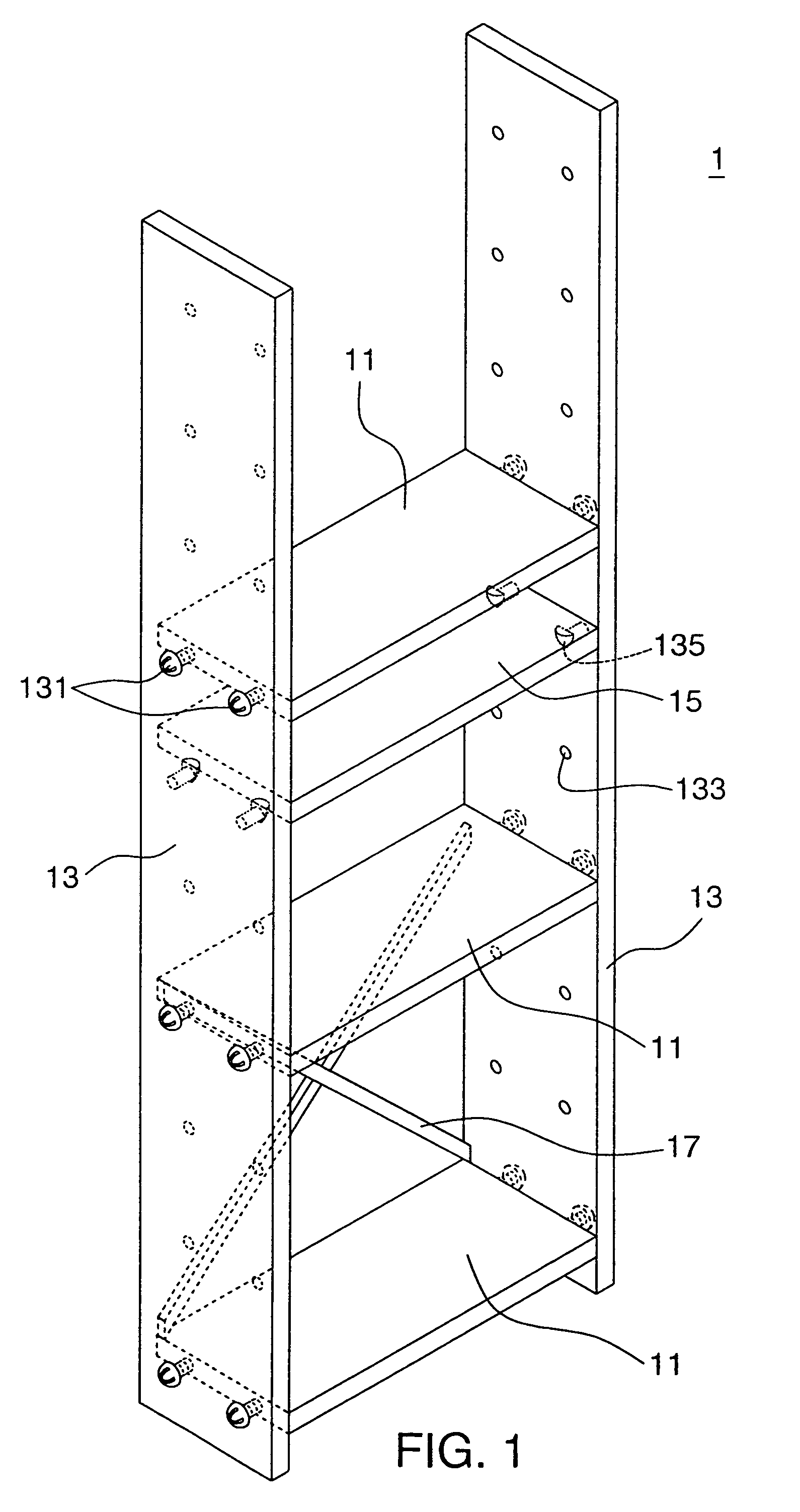

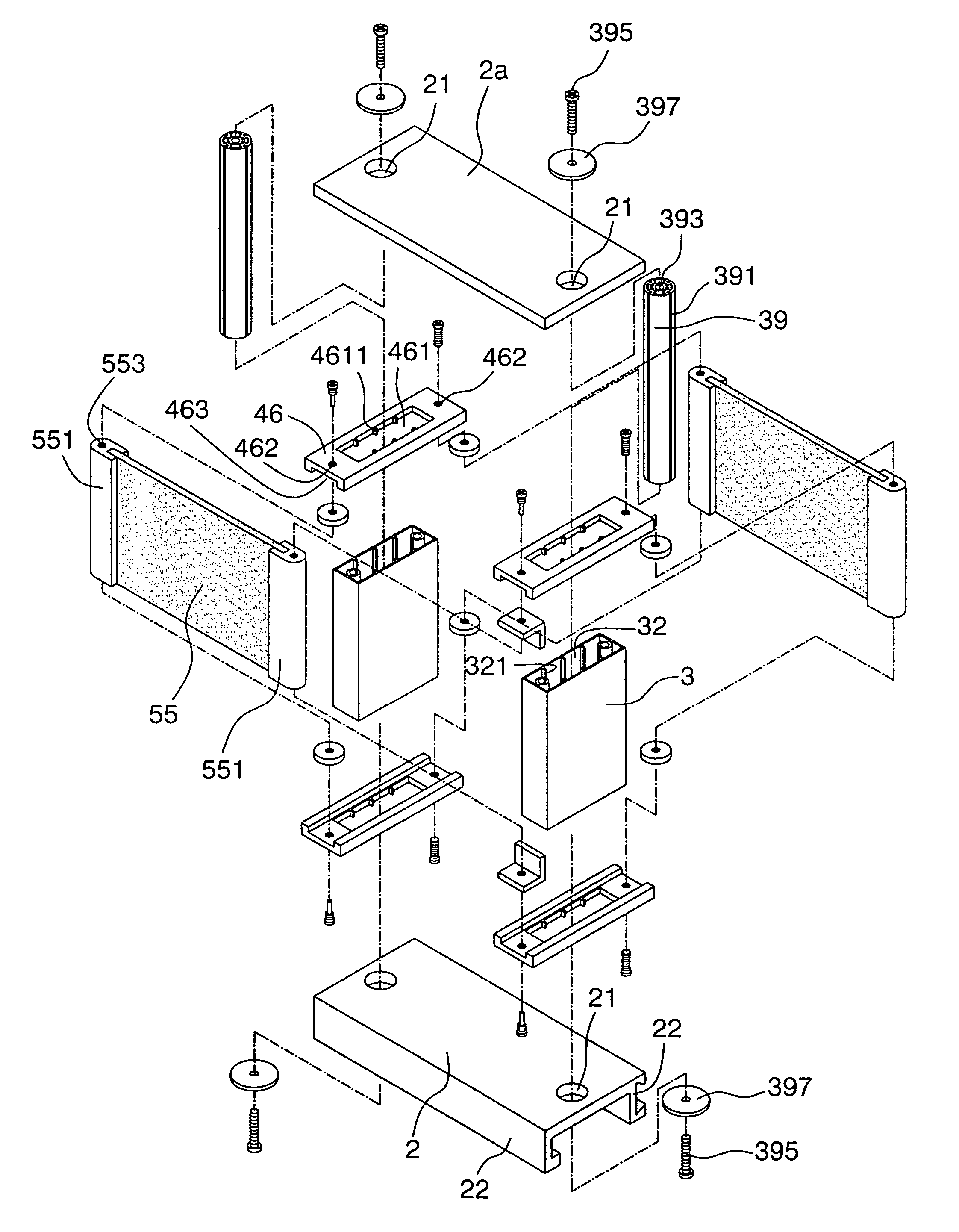

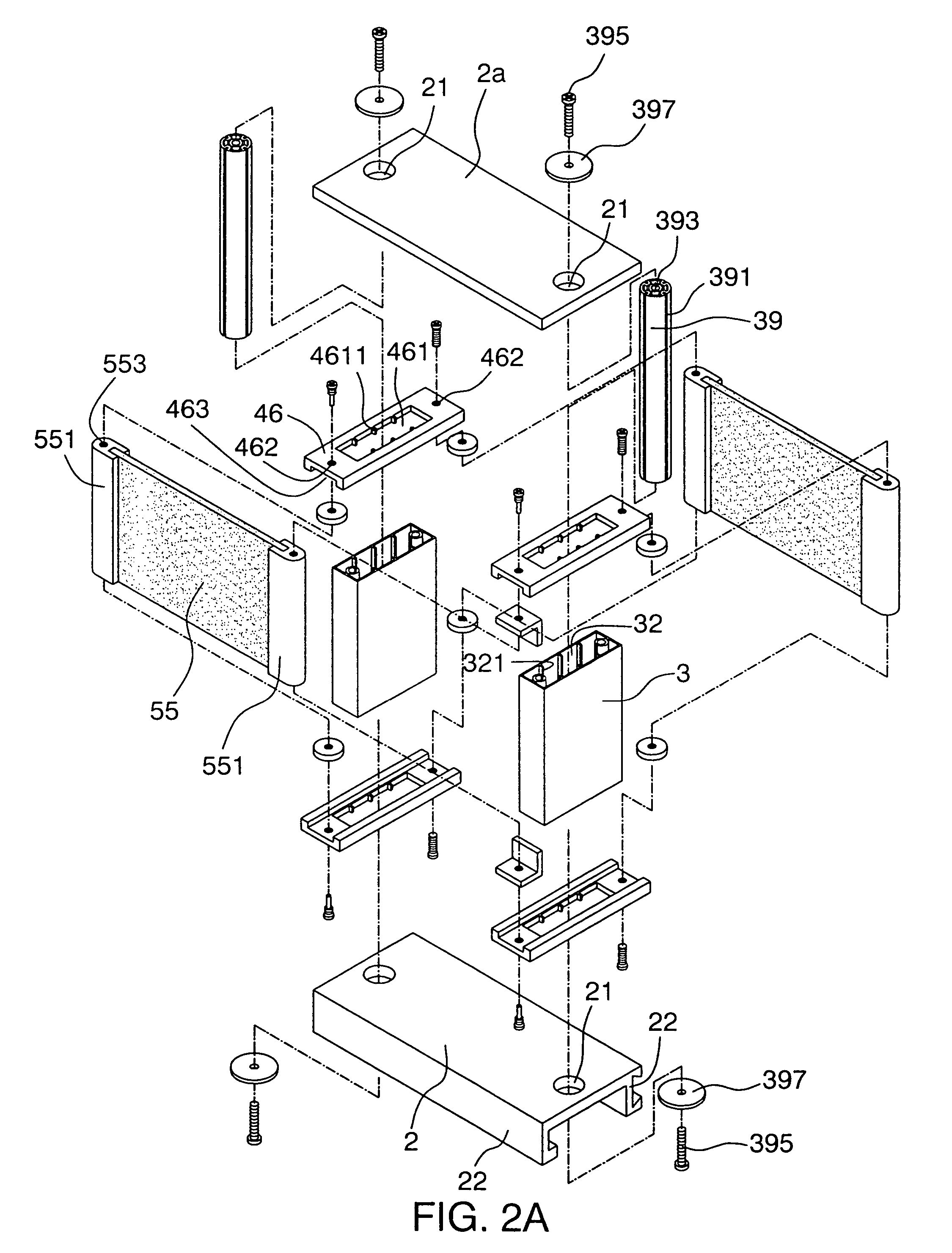

专利附图（8）
