用于展示照片或类似扁平物品，可折叠悬挂。
专利摘要

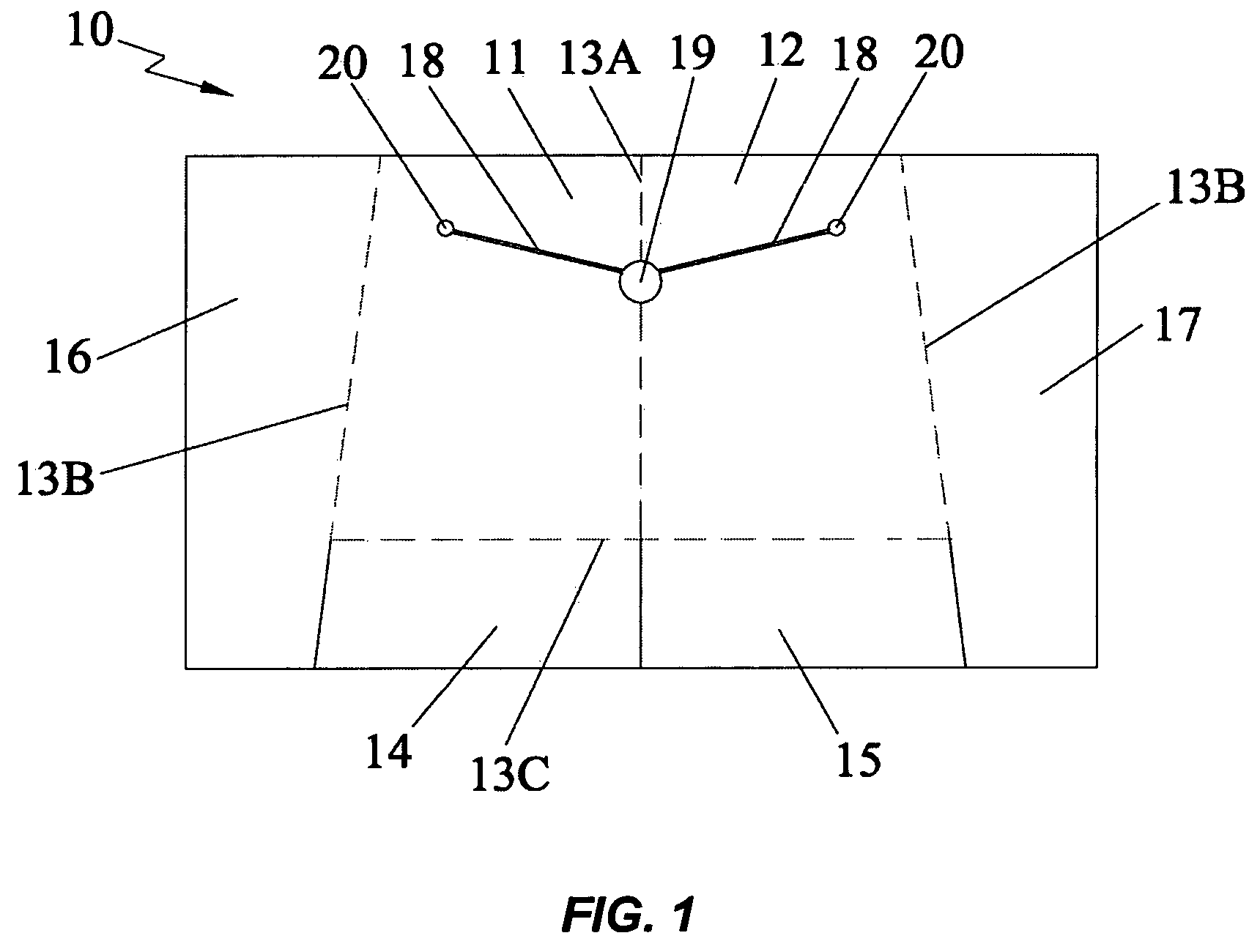

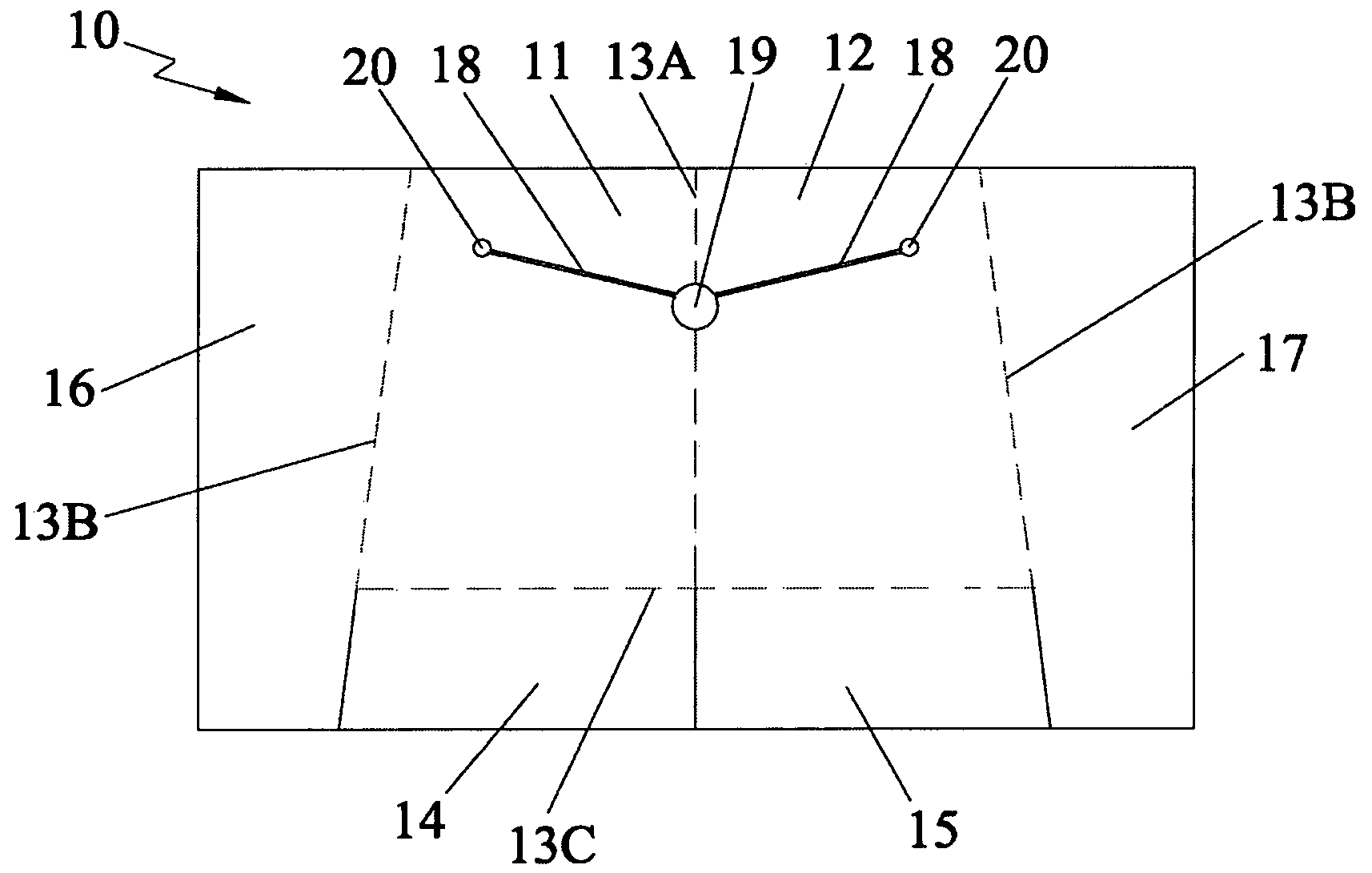

一种用于展示照片或其他类似扁平物品的装置，包括第一面板、连接到第一面板的第二面板、分别连接到第一和第二面板底边缘的第一和第二翼片段、以及连接到第一和第二面板左右侧边缘的第三和第四面板，其中所有面板连接均沿折叠线。设置在第一和第二面板上的倾斜切口设计成在装置中间产生“V”形狭缝。设置在狭缝中点处的孔容纳单点悬挂装置。设置在狭缝最末端的两个孔容纳线悬挂装置。通过沿折叠线折叠装置并保持面板和翼片段的合适角度来实现折叠状态。在折叠和展开状态下，第三和第四面板上的粘合剂用于将装置固定到照片或其他类似扁平物品的背面。
Original abstractA device for displaying photographs or other similar flat items comprising a first panel, a second panel connected to the first panel, first and second flap segments connected to bottom edges of the first and second panels, respectively, and a third and fourth panel connected to left and right side edges of the first and second panels, wherein all panel connections are along fold lines. A sloping cut disposed on each of the first and second panels is designed to create a “V” shaped slit in the middle of the device. A hole disposed at the midpoint of the slit accommodates a single point hanging means. Two holes disposed at the extreme ends of the slit accommodate a line hanging means. A folded state is achieved by folding the device along the fold lines and by maintaining suitable angles for the panels and flap segments. In both the folded and unfolded condition, adhesive on the third and fourth panels is used to secure the device on to the back of a photograph or other similar flat item.
专利附图（8）
