用于抽屉导轨，提供稳定和引导的移动。
专利摘要

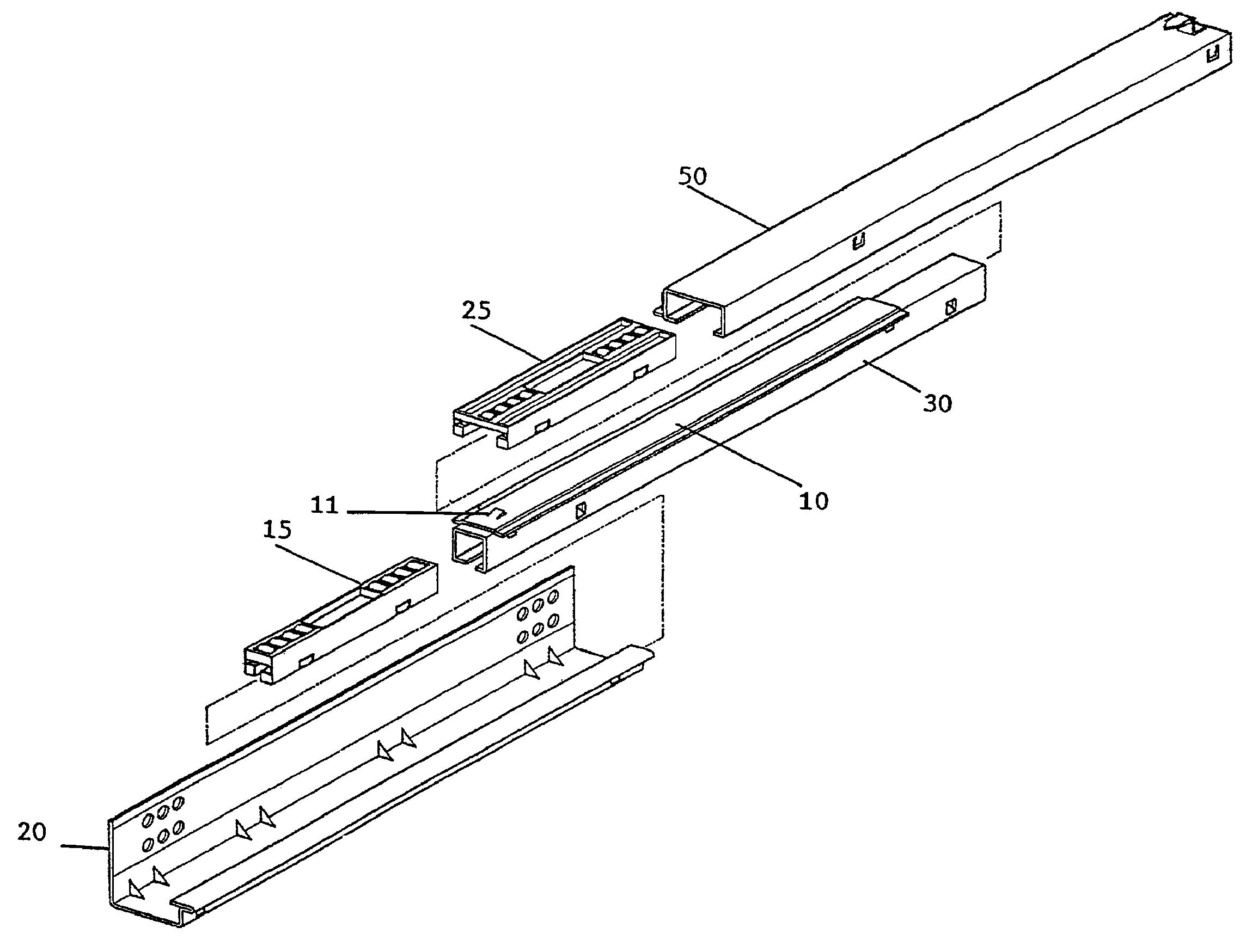

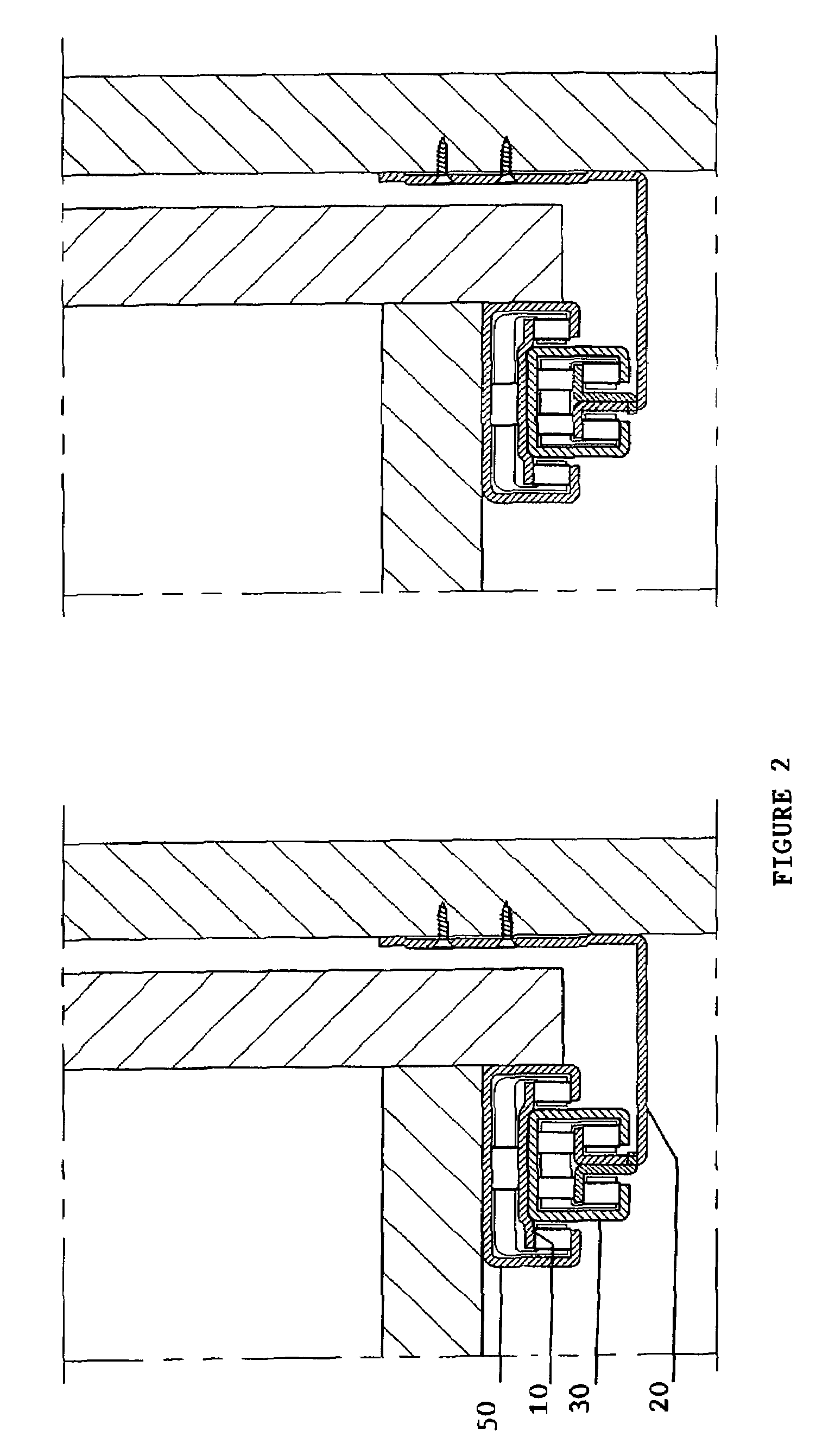

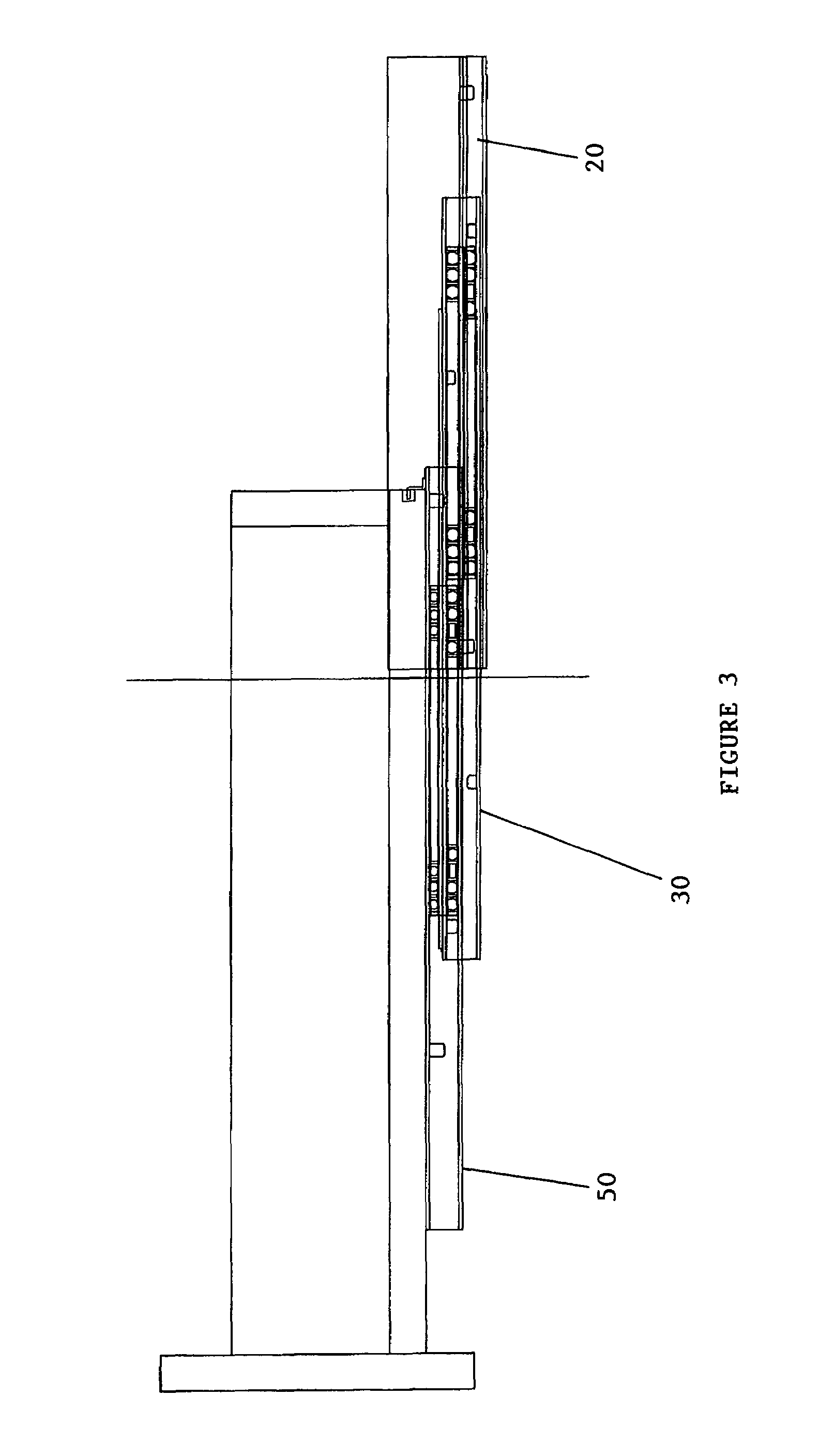

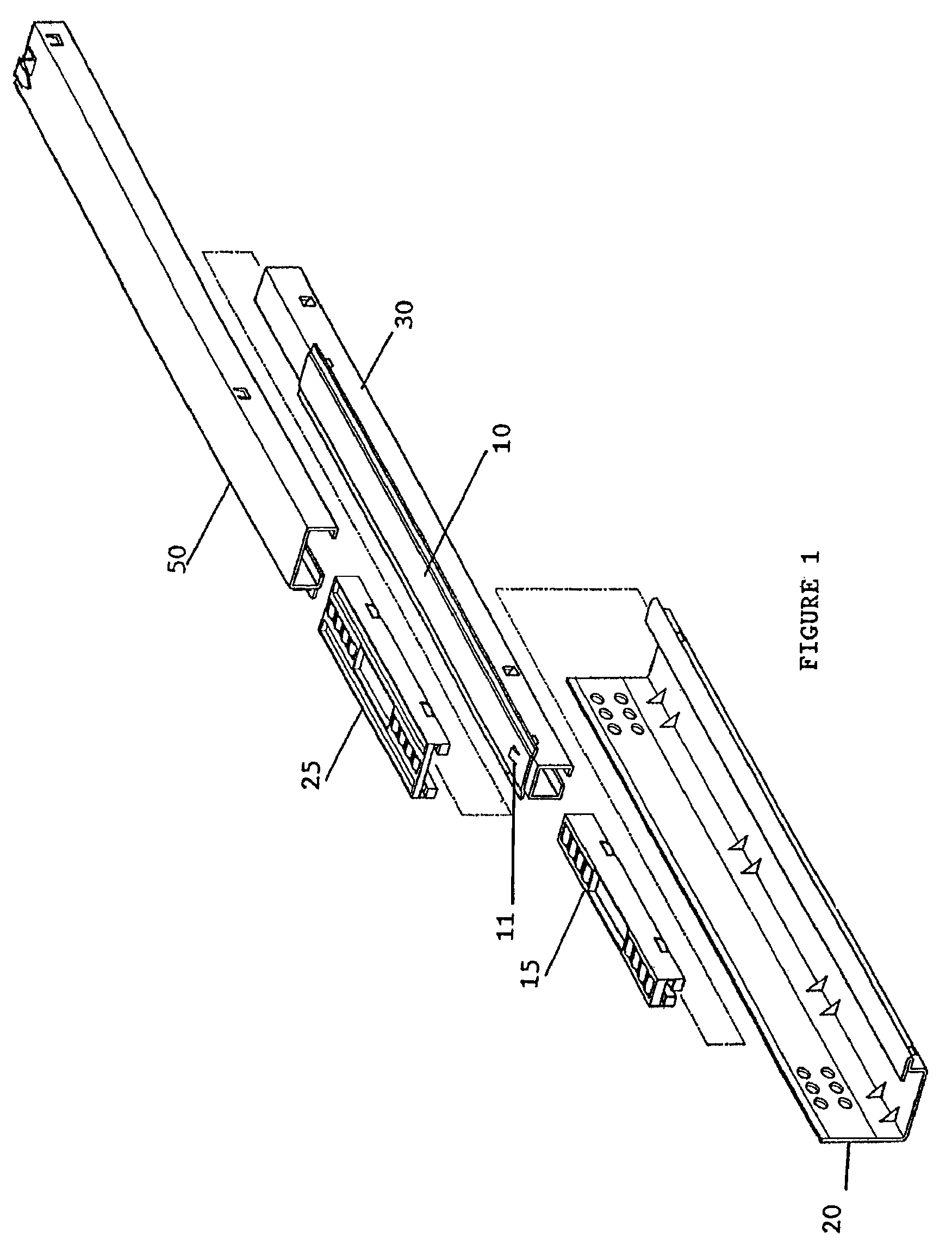

一种抽屉导轨，用于抽屉相对于家具构件稳定且引导地进出移动，具有安装在抽屉底表面上的拉出通道的至少一个表面，以及适于紧固在相应家具构件的内侧壁的任一侧或两侧上的固定导轨(20)。导轨组件包括外拉出通道(50)、中间拉出通道(30)和用于允许拉出通道相对移动的滚轮单元(15,25)。本发明的关键部分是附加稳定器装置(10)，其形式为适于提供运行表面的金属板，并相应地设置在两个滚轮单元(15,25)之间，以促进吸收垂直力和稳定抽屉运动。
Original abstractA drawer guide rail for a stabilized and guided in and out movement of a drawer with respect to the furniture member, having at least one surface of the pull out channel mounted on the bottom surface of the drawer, and a fixed guide ( 20 ) adapted to be fastened on either side or both sides of the inner sidewalls of the respective furniture member. The guide rail assembly includes an outer pull out channel ( 50 ), intermediate pull out channel ( 30 ) and roller units ( 15, 25 ) for allowing the relative movement of the pull out channels. The essential part of the present invention is an additional stabilizer means ( 10 ), in the form of a metal plate adapted to provide a running surface and is disposed between two roller units ( 15, 25 ) accordingly, to facilitate absorbance of vertical forces and stabilized drawer motion.
专利附图（8）
