信息库 / 卫浴用品 / 用于存放洗漱用品的容器
来源记录显示 Expired

用于存放洗漱用品的容器

Container for storing toiletry items

US-7464828-B1

用于存放和携带洗漱用品。

专利摘要

一种用于存放洗漱用品的容器,包括外套筒,该外套筒具有第一和第二相对侧壁以及相对的前壁和后壁。外套筒的侧壁以及前壁和后壁限定内部空间和提供进入内部空间的开口。该容器还包括内滑件,该内滑件紧密滑动配合在外套筒内,并具有底部、第一和第二相对侧壁以及第一和第二相对端壁。底部、侧壁和端壁限定内滑件的内部空间。内滑件的内壁将内滑件的内部空间分成第一和第二隔间。面板铰接地附接到内壁,并能够在打开位置和关闭位置之间移动,在打开位置,第一隔间的内部空间暴露,在关闭位置,第一隔间的内部空间被隐藏。

Original abstractA container for storing toiletry items includes an outer sleeve having first and second opposing side walls and opposing front and rear walls. The side walls and the front and rear walls of the outer slide define an interior space and an opening providing access to the interior space. The container also includes an inner slide that is a snug sliding fit within the outer sleeve and has a base, first and second opposing side walls and first and second opposing end walls. The base, the side walls and the end walls define an interior space of the inner slide. An interior wall of the inner slide divides the interior space of the inner slide into first and second compartments. A panel that is hingedly attached to the interior wall and is movable between an open position, in which the interior space of the first compartment is exposed, and a closed position, in which the interior space of the first compartment is concealed.

专利附图(4)

US-7464828-B1 figure 1
1

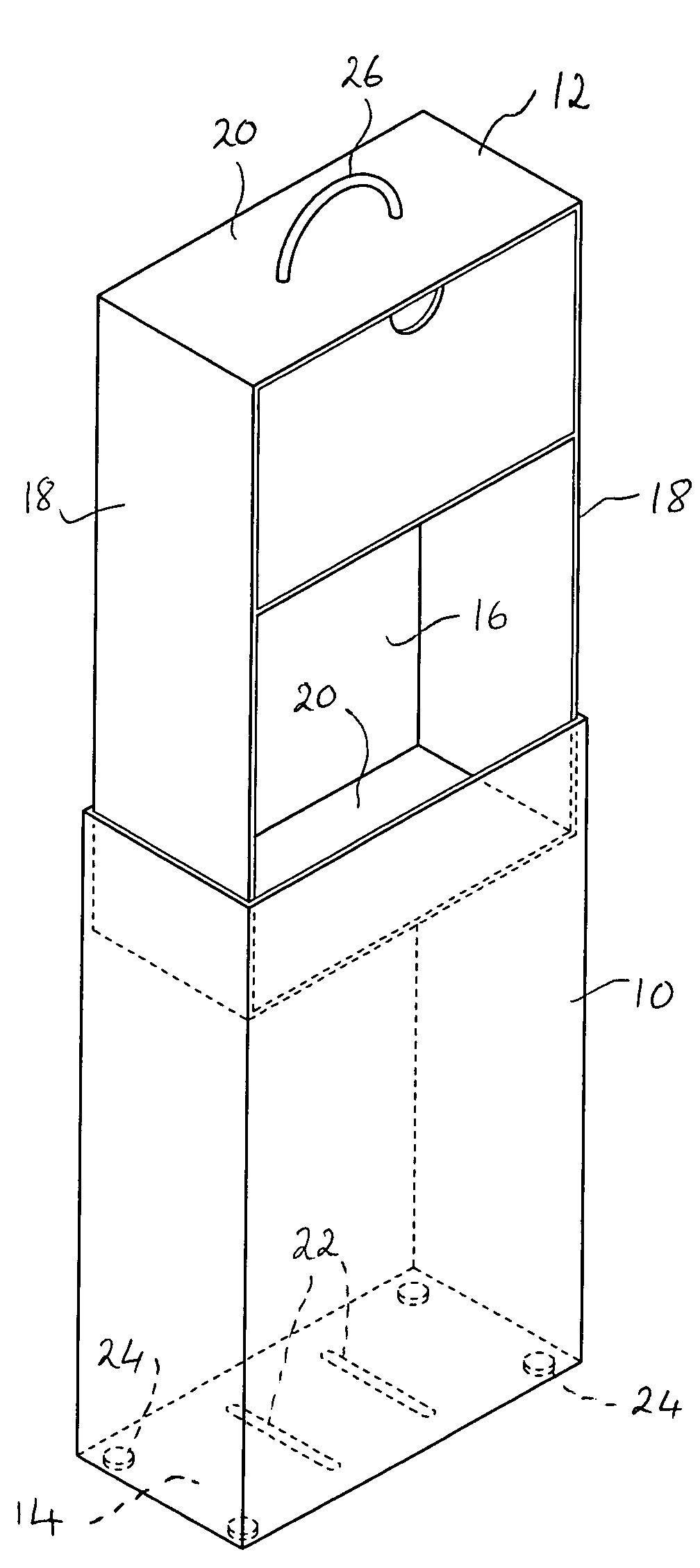

US-7464828-B1 figure 2
2
US-7464828-B1 figure 3
3

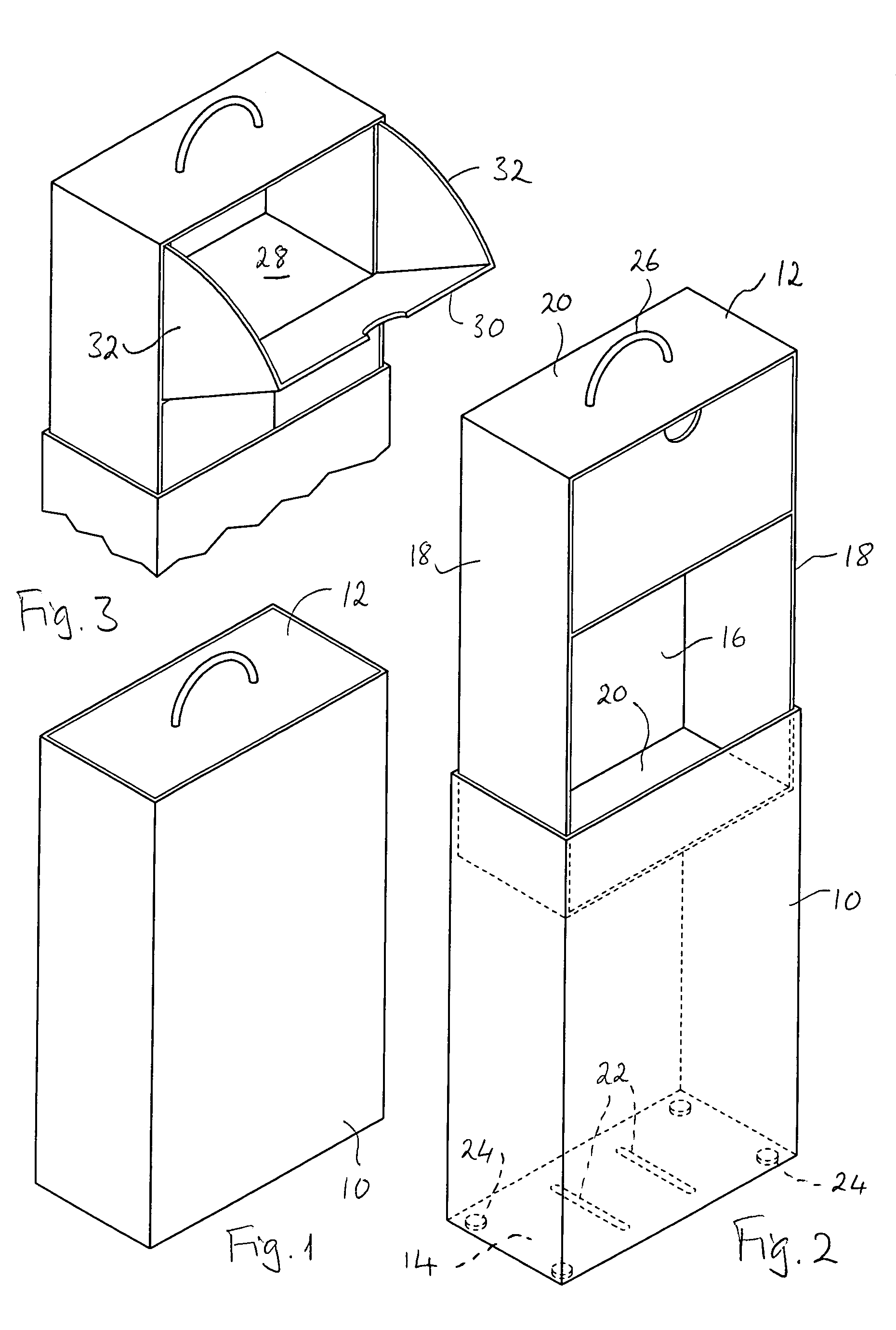

US-7464828-B1 figure 4
4
