地板覆盖物安装系统和方法

System and method for floor covering installation

US-7464510-B2

用于铺设模块化地板，无需粘合到地面。

专利摘要

用于连接相邻模块化地板覆盖单元的连接器。连接器包括薄膜和涂覆在薄膜一侧的粘合剂层。为了使用连接器安装瓷砖，将第一块瓷砖放置在地板上，并定位连接器使得粘合剂层朝上并且不接触地板。连接器通常定位成使得仅一部分粘合剂层粘附到瓷砖的底面，留下连接器的其余部分从瓷砖的底面延伸。然后，将瓷砖邻近第一块瓷砖定位，使得连接器的一部分粘附到相邻瓷砖。以此方式，连接器横跨相邻瓷砖边缘。瓷砖组装在底层地板表面上，而不需要将它们附接到地板表面。相反，瓷砖通过连接器彼此连接，使得瓷砖形成在底层地板表面上“浮动”的地板覆盖物。

Original abstractConnectors for joining adjacent modular floor covering units. The connectors include a film and an adhesive layer coated on one side of the film. To install tiles using the connectors, a first tile is placed on the floor and a connector is positioned so that the adhesive layer faces upward and does not contact the floor. The connector is typically positioned so that only a portion of the adhesive layer adheres to the underside of the tile, leaving the remainder of the connector extending from the underside of the tile. Tiles are then positioned adjacent the first tile so that a portion of the connector adheres to the adjacent tiles. In this way, the connectors span adjacent tile edges. The tiles are assembled on a underlying flooring surface without the need to attach them to the floor surface. Rather, the tiles are linked to each other with the connectors, so that the tiles create a floor covering that “floats” on the under lying floor surface.

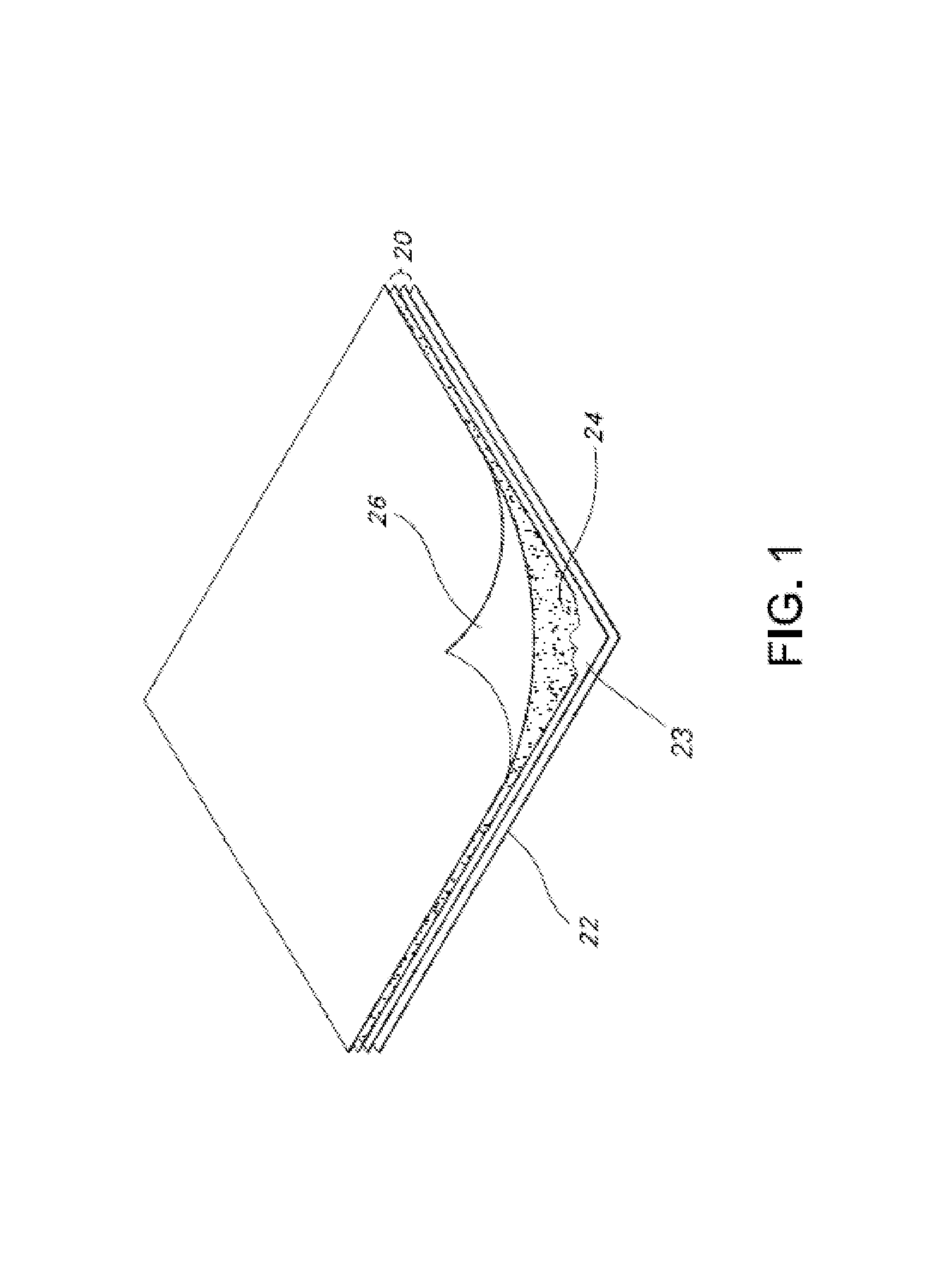

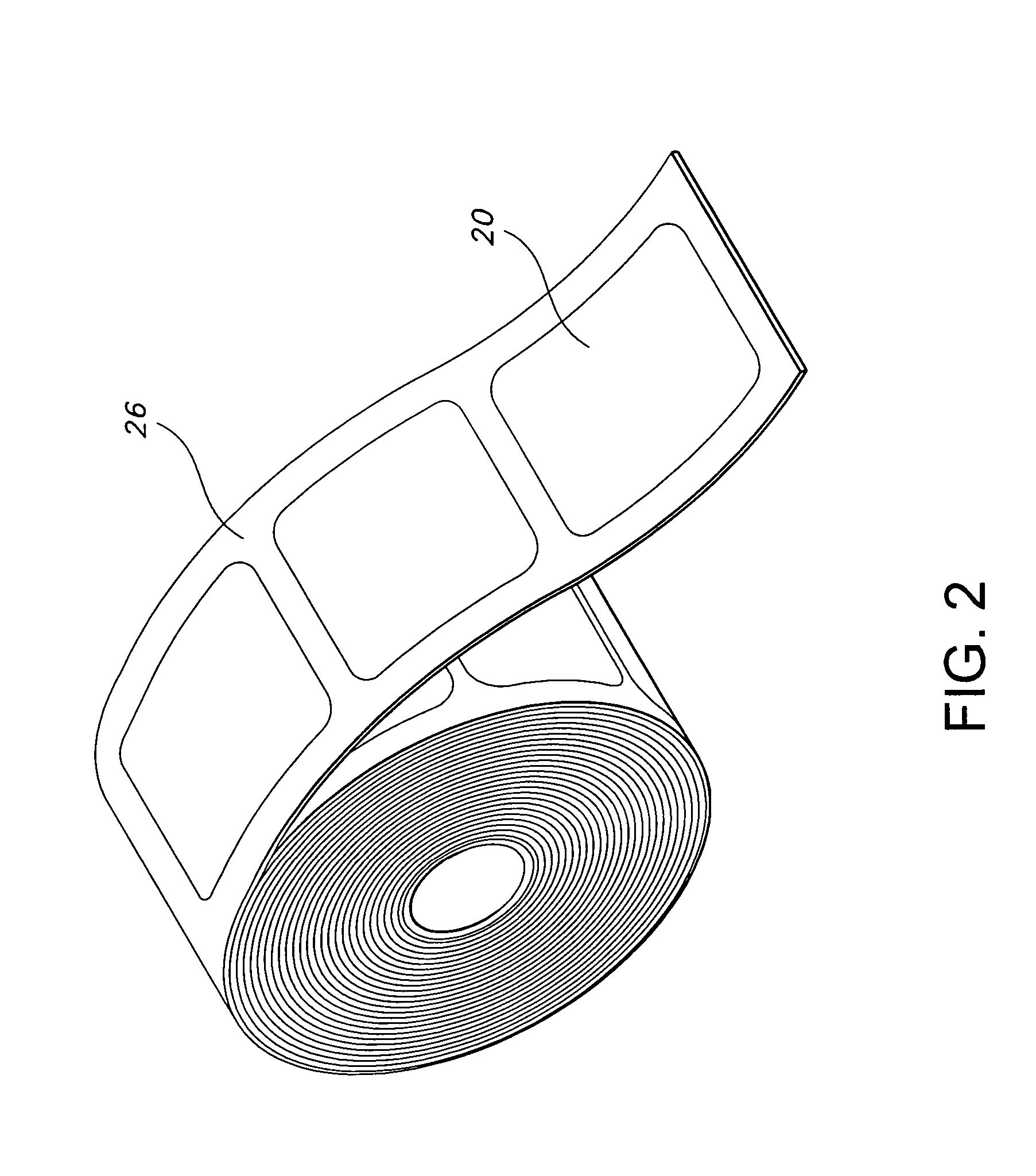

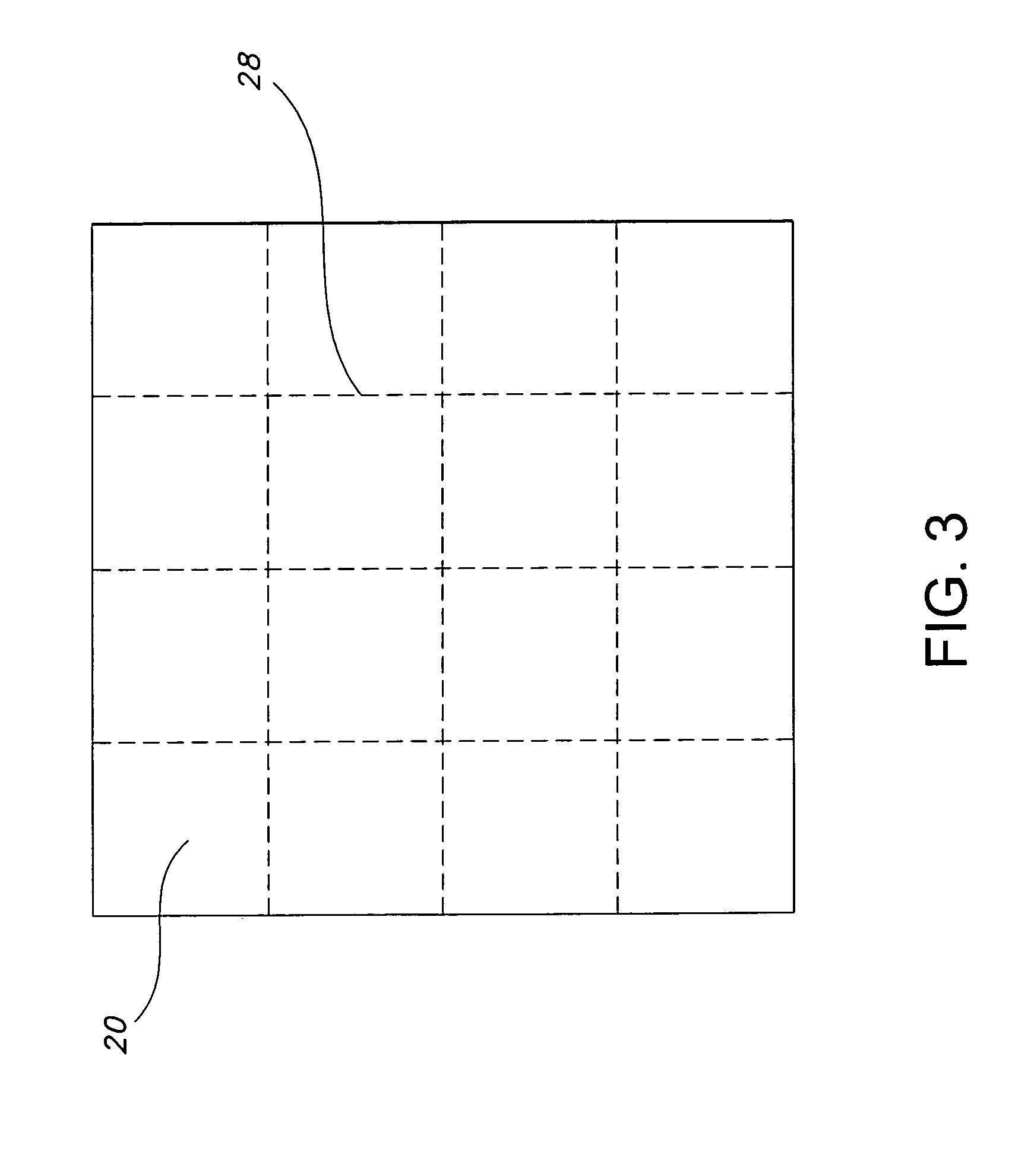

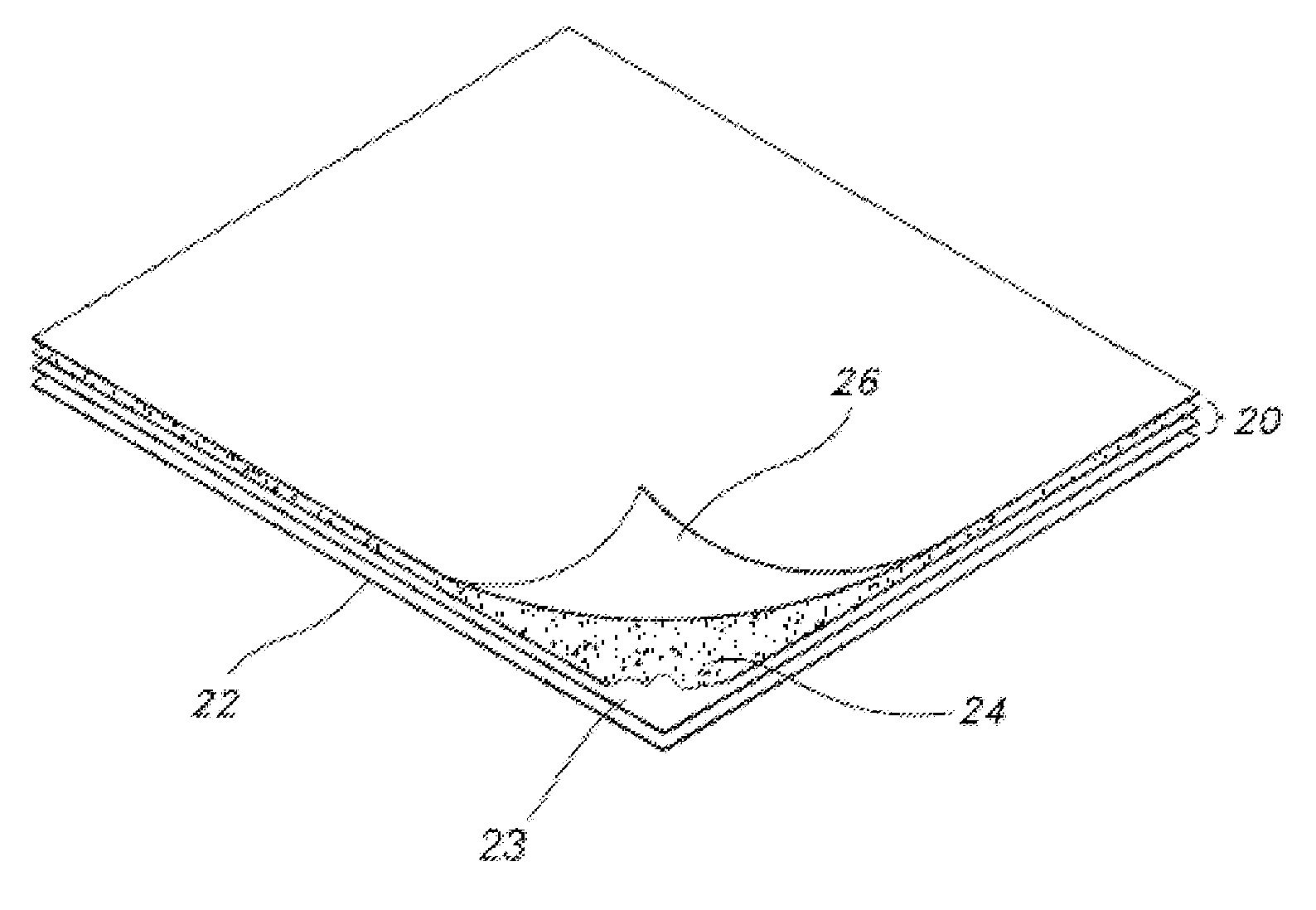

专利附图（8）
