用于固定楼梯地毯杆，可滑动连接，便于安装。
专利摘要
本发明提供一种横向互连的可滑动楼梯杆支架。支架还可用于楼梯杆组，该组还包括楼梯地毯固定杆和装饰头。支架具有顶部和底部。顶部具有多个凸起和互补形状的通道，用于接收来自底部的凸起；底部包含杆接收部分、带有孔的外端壁，用于接收与“母”装饰头啮合的螺纹装饰头紧固件，或“公”装饰头的紧固部分，以及多个凸起和互补形状的通道，用于接收来自顶部的凸起。
Original abstractThe present invention provides a transversely interconnecting slidable stair rod bracket. The bracket may also be provided for use in a stair rod set, the set also including a stair carpet retaining rod and a finial. The bracket has a top portion and a bottom portion. The top portion having a plurality of projections and complementary shaped channels for receiving projections from the bottom portion; the bottom portion contains a rod-receiving portion, an outside end wall with an aperture therein for accepting either a threaded finial fastener which engages with a “female” finial, or the fastening portion of a “male” finial, and a plurality of projections and complementary shaped channels for receiving projections from the top portion.

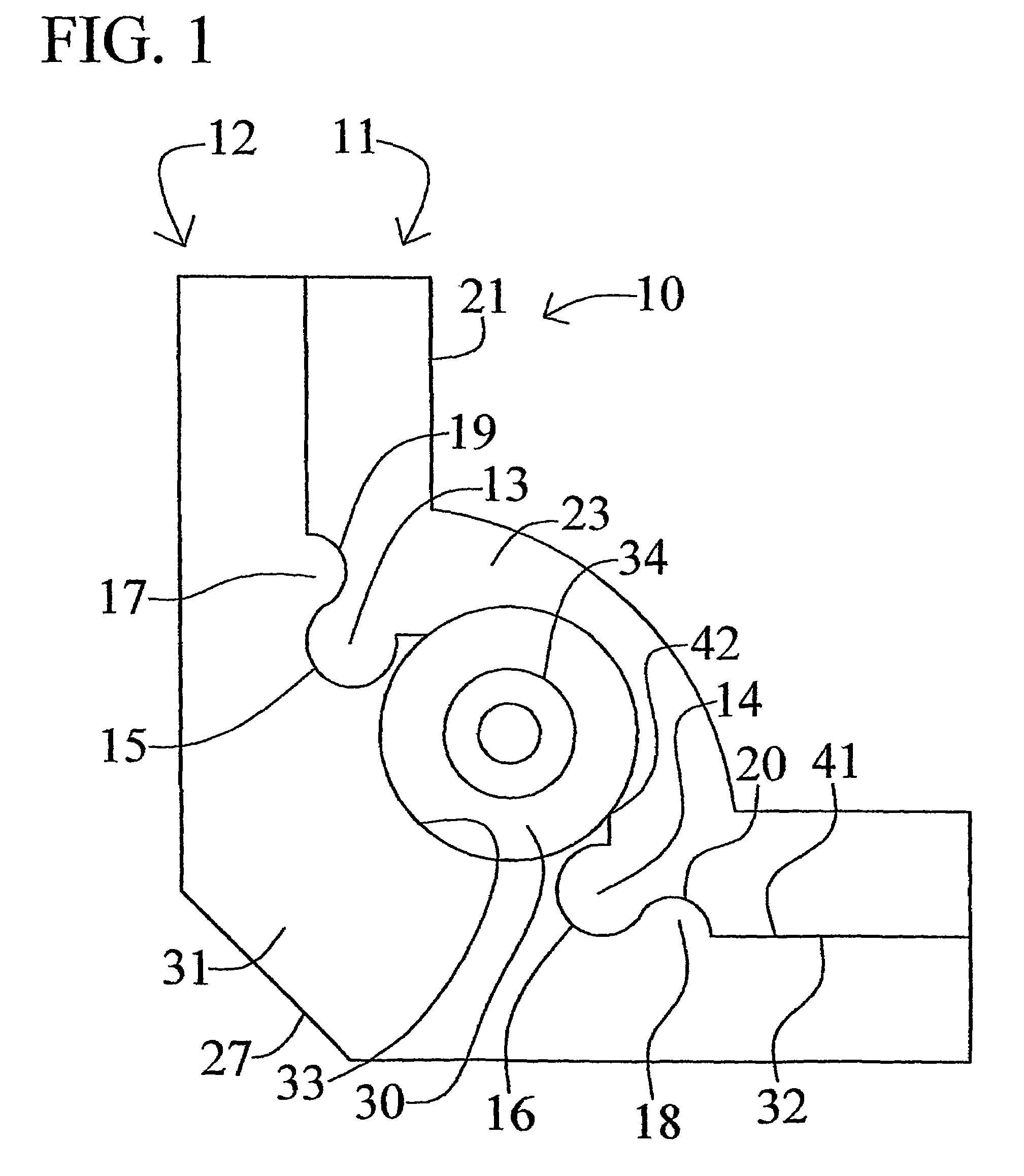

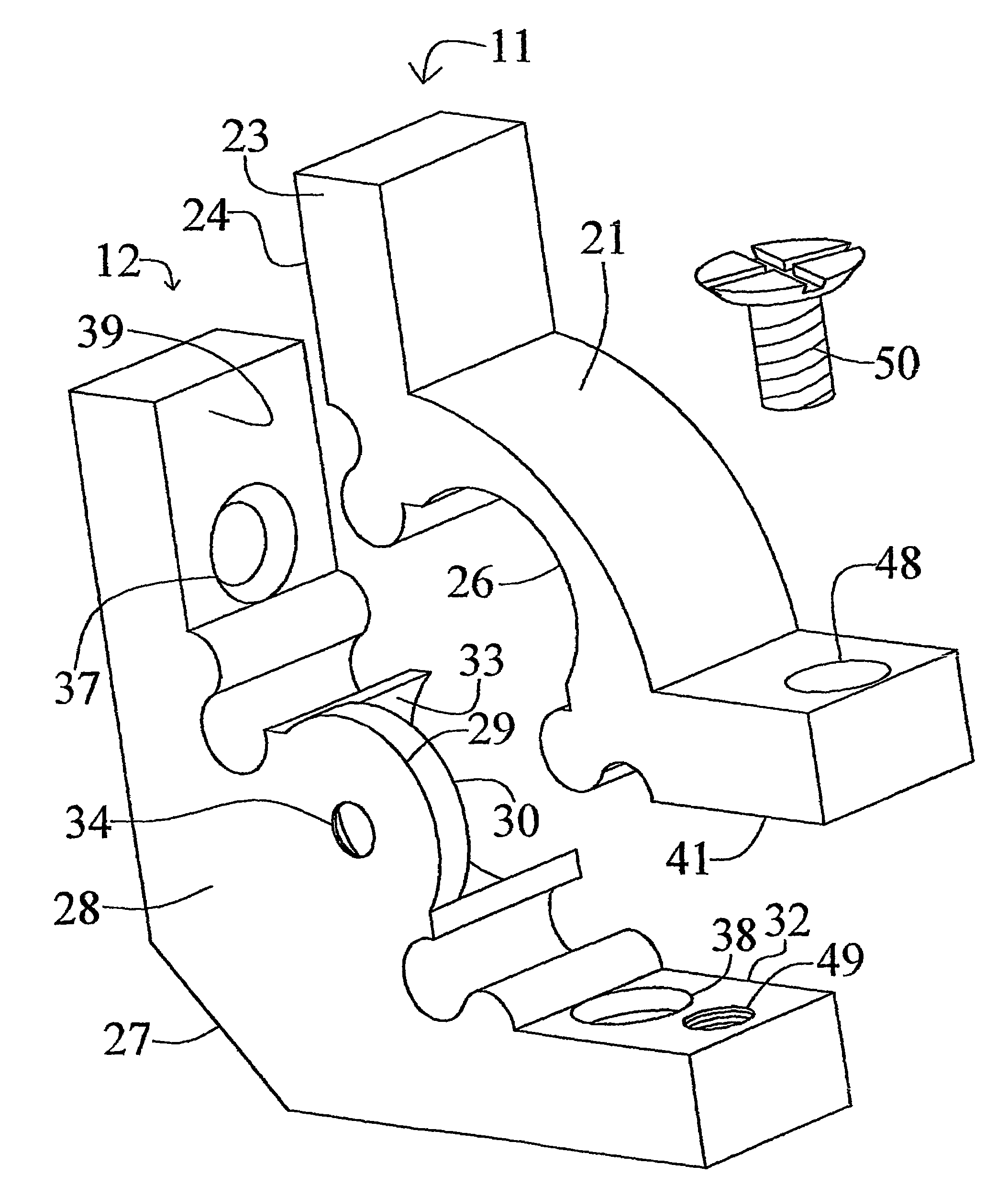

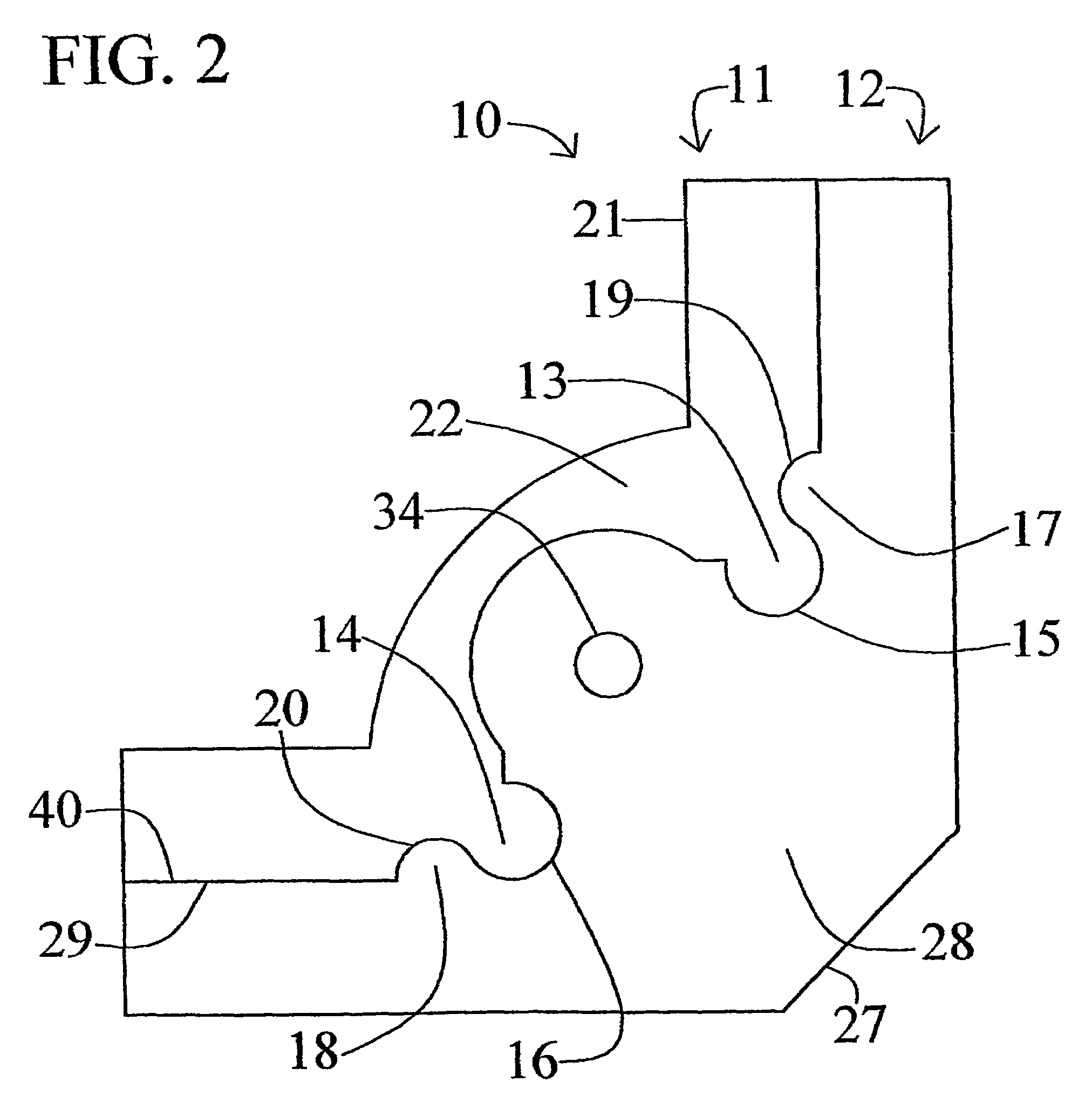

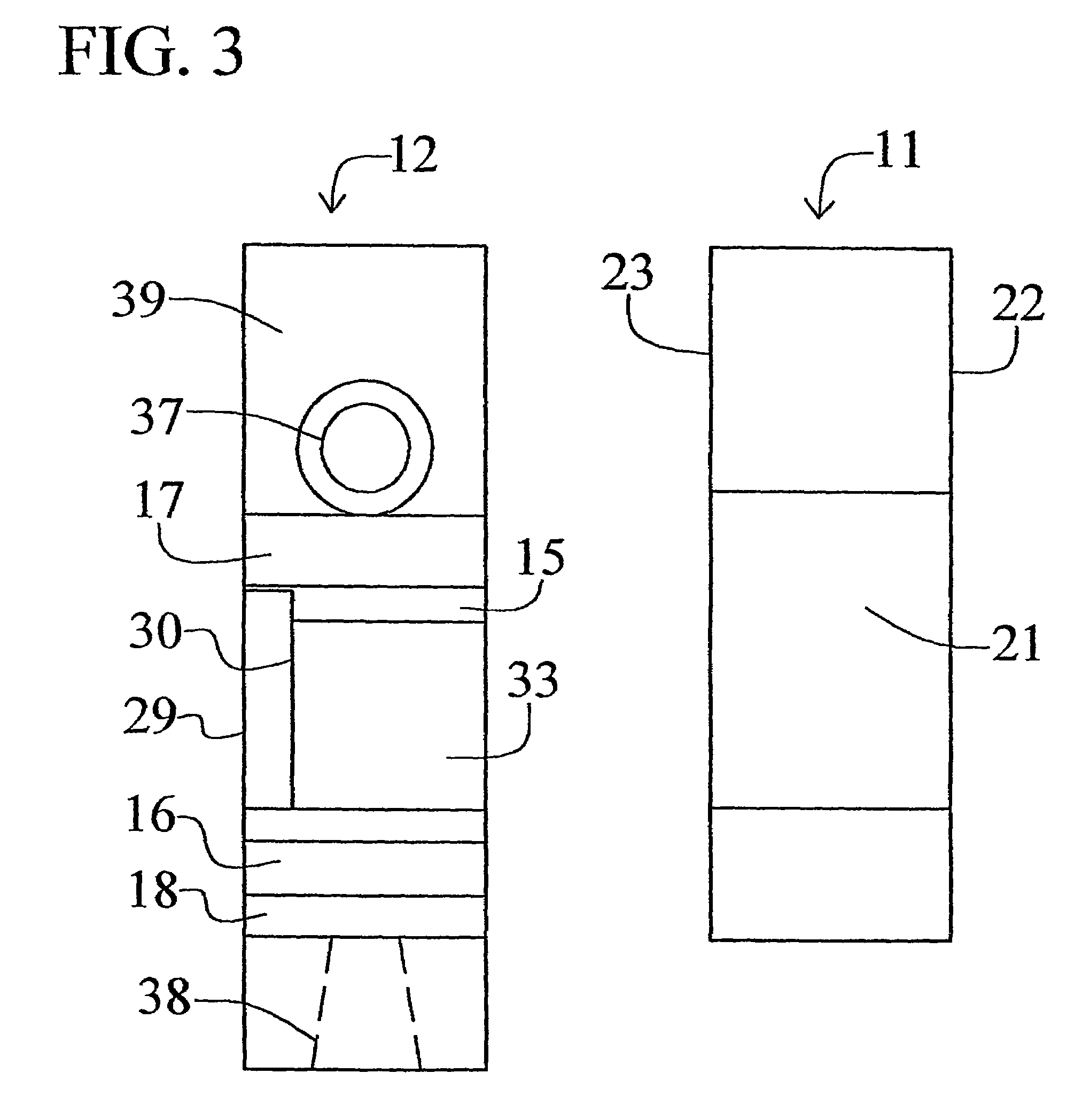

专利附图（8）
