女士反向坐便器
Hygienic commode for ladies with reverse sitting
US-7458110-B2为女性提供反向坐便器,便于卫生清洁。
专利摘要

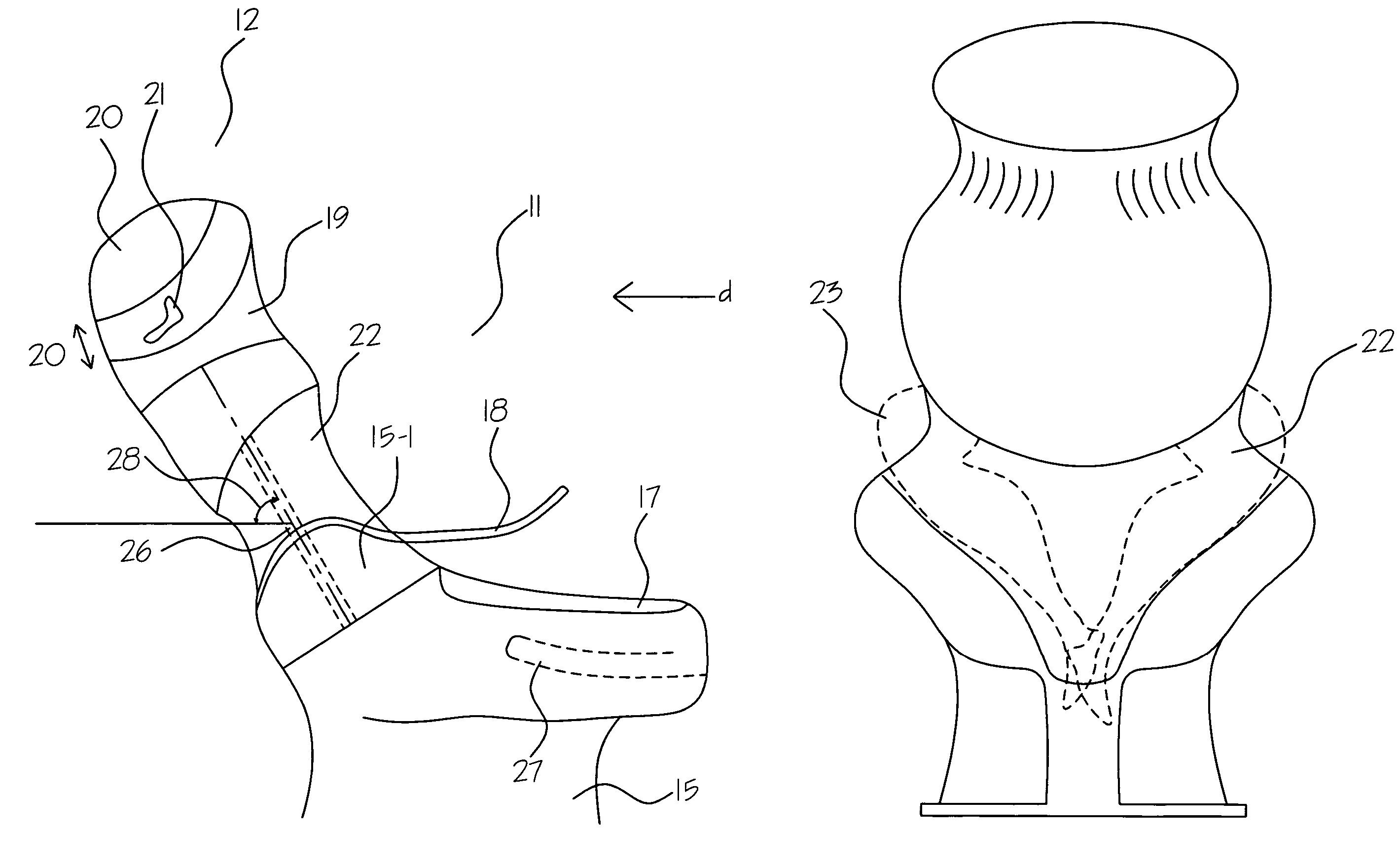

提供一种坐便椅,其座部反向面向水箱,并具有用于打开女性使用者阴唇以进行卫生排尿和排便的系统。座部组件包括便盆、座部和盖,其形成为支撑使用者面向水箱坐在坐便器上。座部组件在朝向水箱的方向上具有窄宽度,在相反侧具有较宽宽度。座部组件的俯视图具有面向水箱的椭圆形形状,尖端朝向水箱,呈自行车鞍座形状。座部组件的侧视图显示靠近水箱的升高部分。水箱相对于坐便器向后倾斜,以允许使用者将上身靠在其上。这种坐姿减少了使用者下身围绕坐便器座部的压力积聚,并使使用者的阴唇打开,使来自位于便盆较宽部分的冲洗器的水能够到达阴唇内侧并从使用者后方清洁其中。对于排便,将水箱调整到更向上的位置。
Original abstractA commode chair with reversed seat facing a water tank and with a system for opening the labia of female user for hygienic urination and excretion is provided. The seat assembly including bowl, seat, and lid are formed to support a user to sit on a commode facing the water tank. The seating assembly has a narrow width to the direction of a water tank and has wider width on the opposite side. An overview of the seating assembly has a shape of an oval facing the water tank with the sharp end, a bicycle saddle shape, facing the water tank. The side view of the seating assembly shows elevated part that is close to the water tank. The water tank is leaned backwards in relation to the commode to allow a user to rest her upper body thereon. This sitting position reduces pressure build up of the lower body of the user around the commode seat and let the labia of the user open for the water from a vidette, located at the wider part of the bowl, to reach the inner side of the labia and clean therein from behind of the user. For defecation, the water tank is adjusted to a more upward position.
专利附图(8)
